Health Monitor

It is very practical to see the datas that somes sensors are collecting.

BeginnerFull instructions provided4 hours1,614

Things used in this project

Hardware components

Nordic Semiconductor nRF5340 Development Kit

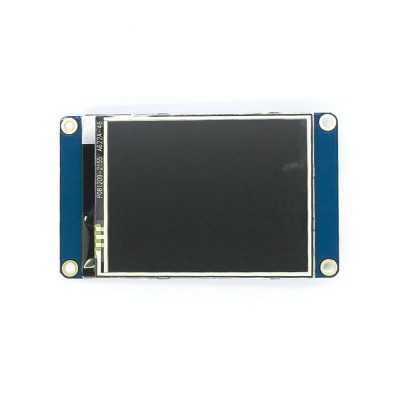

Itead Nextion NX3224T028 - Generic 2.8" HMI LCD Touch Display

USB-A to Micro-USB Cable

Arduino Nano 33 BLE Sense

SparkFun Particle Sensor Breakout - MAX30105

Vishay thermistor ntc 10k

Resistor 10k ohm

Breadboard (generic)

Jumper wires (generic)

Software apps and online services

Nordic Semiconductor nRF Connect SDK

Arduino IDE

Edge Impulse Studio

Story

Monitoring patients' vital signs like heart rate, oxygen saturation and temperature can be sometimes mandatory in some situations. Sometimes, it can also be useful to know other things like the patient state or if he has convulsions. In this case, IMUs can be used to know these factors.

This project is not perfect and I really encourage you to modify and to improve different aspects, mainly the Bluetooth connection between the nRF5340 DK and the Arduino Nano 33 BLE.

Theworkingprinciples

Arduino Nano 33 BLE

The working principle of this project is very simple. In fact, the Arduino Nano 33 BLE is scanning the different vital signs with sensors like the MAX30100 and a 10k ohm ntc thermistor. The Nano also has an integrated IMU (inertial measurement unit) that can be very useful to know the different movements that the patients is doing. I had also trained a model in Edge Impulse to recognized three main movements : walk, sleeping and convulsions Pleasenote : in the model, walking will display his french equivalent «marcher» and sleep is identify as «dormir».

The Arduino Nano 33 BLE is fully supported by Edge Impulse and you can very easily create your own model using their web site. Because the Nano 33 BLE features a nRF52840 it can run an Edge Impulse model, which an ordinary Arduino Nano cannot do. Machine learning can be very useful when it comes to analysing movements, like convulsions in this project.

The Arduino Nano 33 BLE also supports Bluetooth Low Energy, so the device can run on an integrated battery for a longer time.

The heart rate and the oxygen saturation are measured by using a MAX30100 sensor connect to the Arduino board via I2C. To use it easily, I have used the MAX30100_PulseOximeter.h library. In the code I am providing with this text, the sensors data can be read using the serial port of your computer. It will also display the data of the accelerometer of the board. To wire the board, you can look at the diagram in the schematics. The Arduino IDE code can also be found in the code section.

1 / 2 • Arduino Nano 33 BLE wired with all the sensors.

nRF5340DK

The nRF5340 DK is also support by Edge Impulse. In fact, the Nano part of this project can be replaced by a device featuring a nRF5340 chip because it is similar, but more powerful.

The nRF5340 is used in this project to display the informations send by the Arduino Nano. They are connected via BLE. The display used is a 2.8 inches TFT Touch Shield. It can support up to two contacts at the same time on the screen. The screen I have been using is in the form factor of an Arduino shield, the R3 form factor.

Because the nRF5340 features two cores, the application and the network core, you will have to program the network core to be able to use Bluetooth. Using Segger Embedded Studio, you should program the network core with the hci_rpmsgexample, which is in v1.5.0\zephyr\samples\bluetooth.

ApplicationCore

Then, the application core can be program using Segger Embedded Studio. During this project, I have used the ncs-display-bluetooth-master-example, which is a project by Nordic and I have modified it to suit my needs. So, if you want it to work, you will need to run the patch using Git. Make sure to use the nrf5340dk_nrf5340_cpuapp, not the nrf5340dk_nrf5340_cpuappns when you choose the board, when creating the project. To use the display, the example uses the lvgl library. You can modify the GUI by modifying the gui.c file in Segger. There are a lot of resources online and the library is very easy to use. Then, the application core can be program. If you are using the example I'm providing with the text, you can use the nRF Blinky app to check if the Bluetooth connection works. The code can be modified to connect the DK to the Arduino Nano 33 BLE and then display the data.

nRF5340 DK with the shield and connected to Bluetooth

Conclusions

In fact, this project is not perfect, far from that. But, I think that it can be useful to someone that want to get started with the nRF5340 DK.

Code

#include <Wire.h>
#include "MAX30100_PulseOximeter.h"
#include <Arduino_LSM9DS1.h>
#define REPORTING_PERIOD_MS 1000

PulseOximeter pox;

uint32_t tsLastReport = 0;

int tempPin = 0;

void onBeatDetected(){
  Serial.println("Beat");
}

void setup() {
  // put your setup code here, to run once:
Serial.begin(9600);
Serial.print("Initialiser oxymtre: ");

if (!pox.begin()) {
  Serial.println("CHEC");
  for(;;);
  }
  else{
    Serial.println("Succs");
    }
if (!IMU.begin()){
  Serial.println("chec de l'initialisation de l'IMU");
  while(1);

  }
    pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA);
    pox.setOnBeatDetectedCallback(onBeatDetected);
}

void loop() {
  // put your main code here, to run repeatedly:
  pox.update();
  float x, y, z;
  if (millis()-tsLastReport > REPORTING_PERIOD_MS){
    if (IMU.accelerationAvailable()){
      IMU.readAcceleration(x, y, z);

          int tempReading = analogRead(tempPin);
      double tempK = log(10000.0*((1024.0/tempReading-1)));
      tempK = 1/(0.001129148 +(0.000234125 +(0.0000000876741*tempK*tempK))*tempK);
      float tempC = tempK-273.15;

      Serial.print("Rythme cardiaque ");
      Serial.print(pox.getHeartRate());
      Serial.print("bpm / SpO2:");
      Serial.print(pox.getSpO2());
      Serial.print("% / ");
      Serial.print(tempC);
      Serial.print("*C / ");
      Serial.print(x);
      Serial.print('\t');
      Serial.print(y);
      Serial.print('\t');
      Serial.println(z);

      tsLastReport = millis();
    }
  }
  }

#include "gui.h"
#include <zephyr.h>
#include <device.h>
#include <drivers/display.h>
#include <lvgl.h>
#include <stdio.h>
#include <string.h>

#define LOG_LEVEL CONFIG_LOG_DEFAULT_LEVEL
#include <logging/log.h>
LOG_MODULE_REGISTER(gui);

uint32_t x = 10;

uint32_t count = 0U;
char count_str[11] = {0};
const struct device *display_dev;

static gui_event_t m_gui_event;
static gui_callback_t m_gui_callback = 0;


// Create a message queue for handling external GUI commands
K_MSGQ_DEFINE(m_gui_cmd_queue, sizeof(gui_message_t), 8, 4);

// Define a timer to update the GUI periodically
static void on_gui_blink_timer(struct k_timer *dummy);
K_TIMER_DEFINE(gui_blink_timer, on_gui_blink_timer, NULL);

char *on_off_strings[2] = {"On", "Off"};

// GUI objects
lv_obj_t *top_header, *top_bpm;
lv_obj_t *top_header_logo;
lv_obj_t *label_button, *label_led, *label_bt_state_hdr, *label_bt_state;
lv_obj_t *connected_background;
lv_obj_t *label_btn_state, *label_led_state;
lv_obj_t *btn1, *btn1_label;
lv_obj_t *checkbox_led;
lv_obj_t *image_led;
lv_obj_t *image_bg[12];


// Styles
lv_style_t style_btn, style_label, style_label_value, style_checkbox;
lv_style_t style_header, style_con_bg;

// Fonts
LV_FONT_DECLARE(arial_20bold);
LV_FONT_DECLARE(calibri_20b);
LV_FONT_DECLARE(calibri_20);
LV_FONT_DECLARE(calibri_24b);
LV_FONT_DECLARE(calibri_32b);

// Images
LV_IMG_DECLARE(nod_logo);
LV_IMG_DECLARE(led_on);
LV_IMG_DECLARE(led_off);
LV_IMG_DECLARE(img_noise_background);

static void gui_show_connected_elements(bool connected);

static void on_button1(lv_obj_t *btn, lv_event_t event)
{
	if(btn == btn1){
		if(event == LV_EVENT_PRESSED) {
			lv_label_set_text(label_btn_state, "Pressed");
			if(m_gui_callback) {
				m_gui_event.evt_type = GUI_EVT_BUTTON_PRESSED;
				m_gui_event.button_checked = true;
				m_gui_callback(&m_gui_event);
			}
		}
		else if(event == LV_EVENT_RELEASED) {
			lv_label_set_text(label_btn_state, "Released");
			if(m_gui_callback) {
				m_gui_event.evt_type = GUI_EVT_BUTTON_PRESSED;
				m_gui_event.button_checked = false;
				m_gui_callback(&m_gui_event);
			}
		}
	}
}

static void init_styles(void)
{
	/*Create background style*/
	static lv_style_t style_screen;
	lv_style_set_bg_color(&style_screen, LV_STATE_DEFAULT, LV_COLOR_MAKE(0xcb, 0xca, 0xff));
	lv_obj_add_style(lv_scr_act(), LV_BTN_PART_MAIN, &style_screen);

	/*Create the screen header label style*/
	lv_style_init(&style_header);
	lv_style_set_bg_opa(&style_header, LV_STATE_DEFAULT, LV_OPA_COVER);
	lv_style_set_bg_color(&style_header, LV_STATE_DEFAULT, LV_COLOR_MAKE(0x00, 0x00, 0x00));
	lv_style_set_radius(&style_header, LV_STATE_DEFAULT, 8);
	//lv_style_set_bg_grad_color(&style_header, LV_STATE_DEFAULT, LV_COLOR_TEAL);
	//lv_style_set_bg_grad_dir(&style_header, LV_STATE_DEFAULT, LV_GRAD_DIR_VER);
	lv_style_set_pad_left(&style_header, LV_STATE_DEFAULT, 70);
	lv_style_set_pad_top(&style_header, LV_STATE_DEFAULT, 30);
	lv_style_set_shadow_spread(&style_header, LV_STATE_DEFAULT, 1);
	lv_style_set_shadow_color(&style_header, LV_STATE_DEFAULT, LV_COLOR_BLACK);
	lv_style_set_shadow_opa(&style_header, LV_STATE_DEFAULT, 255);
	lv_style_set_shadow_width(&style_header, LV_STATE_DEFAULT, 1);
	lv_style_set_shadow_ofs_x(&style_header, LV_STATE_DEFAULT, 1);
	lv_style_set_shadow_ofs_y(&style_header, LV_STATE_DEFAULT, 2);
	lv_style_set_shadow_opa(&style_header, LV_STATE_DEFAULT, LV_OPA_50);

	/*Screen header text style*/
	lv_style_set_text_color(&style_header, LV_STATE_DEFAULT, LV_COLOR_MAKE(0xff, 0xff, 0xff));
	lv_style_set_text_font(&style_header, LV_STATE_DEFAULT, &calibri_32b);


	lv_style_init(&style_con_bg);
	lv_style_copy(&style_con_bg, &style_header);
	lv_style_set_bg_color(&style_con_bg, LV_STATE_DEFAULT, LV_COLOR_MAKE(0x69, 0xb0, 0x5a));
	lv_style_set_bg_opa(&style_con_bg, LV_STATE_DEFAULT, LV_OPA_50);
	lv_style_set_radius(&style_header, LV_STATE_DEFAULT, 4);

	/*Create a label style*/
	lv_style_init(&style_label);
	lv_style_set_bg_opa(&style_label, LV_STATE_DEFAULT, LV_OPA_COVER);
	lv_style_set_bg_color(&style_label, LV_STATE_DEFAULT, LV_COLOR_SILVER);
	lv_style_set_bg_grad_color(&style_label, LV_STATE_DEFAULT, LV_COLOR_GRAY);
	lv_style_set_bg_grad_dir(&style_label, LV_STATE_DEFAULT, LV_GRAD_DIR_VER);
	lv_style_set_pad_left(&style_label, LV_STATE_DEFAULT, 5);
	lv_style_set_pad_top(&style_label, LV_STATE_DEFAULT, 10);

	/*Add a border*/
	lv_style_set_border_color(&style_label, LV_STATE_DEFAULT, LV_COLOR_WHITE);
	lv_style_set_border_opa(&style_label, LV_STATE_DEFAULT, LV_OPA_70);
	lv_style_set_border_width(&style_label, LV_STATE_DEFAULT, 3);

	/*Set the text style*/
	lv_style_set_text_color(&style_label, LV_STATE_DEFAULT, LV_COLOR_MAKE(0x00, 0x00, 0x30));
	lv_style_set_text_font(&style_label, LV_STATE_DEFAULT, &calibri_20b);


	/*Create a label value style*/
	lv_style_init(&style_label_value);
	lv_style_set_bg_opa(&style_label_value, LV_STATE_DEFAULT, LV_OPA_20);
	lv_style_set_bg_color(&style_label_value, LV_STATE_DEFAULT, LV_COLOR_SILVER);
	lv_style_set_bg_grad_color(&style_label_value, LV_STATE_DEFAULT, LV_COLOR_TEAL);
	lv_style_set_bg_grad_dir(&style_label_value, LV_STATE_DEFAULT, LV_GRAD_DIR_VER);
	lv_style_set_pad_left(&style_label_value, LV_STATE_DEFAULT, 0);
	lv_style_set_pad_top(&style_label_value, LV_STATE_DEFAULT, 3);

	/*Set the text style*/
	lv_style_set_text_color(&style_label_value, LV_STATE_DEFAULT, LV_COLOR_MAKE(0x00, 0x00, 0x30));
	lv_style_set_text_font(&style_label_value, LV_STATE_DEFAULT, &calibri_20);


	/*Create a simple button style*/
	lv_style_init(&style_btn);
	lv_style_set_radius(&style_btn, LV_STATE_DEFAULT, 10);
	lv_style_set_bg_opa(&style_btn, LV_STATE_DEFAULT, LV_OPA_COVER);
	lv_style_set_bg_color(&style_btn, LV_STATE_DEFAULT, LV_COLOR_SILVER);
	lv_style_set_bg_grad_color(&style_btn, LV_STATE_DEFAULT, LV_COLOR_GRAY);
	lv_style_set_bg_grad_dir(&style_btn, LV_STATE_DEFAULT, LV_GRAD_DIR_VER);
	lv_style_set_shadow_spread(&style_btn, LV_STATE_DEFAULT, 1);
	lv_style_set_shadow_color(&style_btn, LV_STATE_DEFAULT, LV_COLOR_GRAY);
	lv_style_set_shadow_opa(&style_btn, LV_STATE_DEFAULT, 255);
	lv_style_set_shadow_width(&style_btn, LV_STATE_DEFAULT, 1);

	/*Swap the colors in pressed state*/
	lv_style_set_bg_color(&style_btn, LV_STATE_PRESSED, LV_COLOR_GRAY);
	lv_style_set_bg_grad_color(&style_btn, LV_STATE_PRESSED, LV_COLOR_SILVER);

	/*Add a border*/
	lv_style_set_border_color(&style_btn, LV_STATE_DEFAULT, LV_COLOR_BLACK);
	lv_style_set_border_opa(&style_btn, LV_STATE_DEFAULT, LV_OPA_70);
	lv_style_set_border_width(&style_btn, LV_STATE_DEFAULT, 3);

	/*Different border color in focused state*/
	lv_style_set_border_color(&style_btn, LV_STATE_FOCUSED, LV_COLOR_BLACK);
	lv_style_set_border_color(&style_btn, LV_STATE_FOCUSED | LV_STATE_PRESSED, LV_COLOR_NAVY);

	/*Set the text style*/
	lv_style_set_text_color(&style_btn, LV_STATE_DEFAULT, LV_COLOR_TEAL);
	lv_style_set_text_font(&style_btn, LV_STATE_DEFAULT, &calibri_24b);

	/*Make the button smaller when pressed*/
	lv_style_set_transform_height(&style_btn, LV_STATE_PRESSED, -4);
	lv_style_set_transform_width(&style_btn, LV_STATE_PRESSED, -8);
#if LV_USE_ANIMATION
	/*Add a transition to the size change*/
	static lv_anim_path_t path;
	lv_anim_path_init(&path);
	lv_anim_path_set_cb(&path, lv_anim_path_overshoot);

	lv_style_set_transition_prop_1(&style_btn, LV_STATE_DEFAULT, LV_STYLE_TRANSFORM_HEIGHT);
	lv_style_set_transition_prop_2(&style_btn, LV_STATE_DEFAULT, LV_STYLE_TRANSFORM_WIDTH);
	lv_style_set_transition_time(&style_btn, LV_STATE_DEFAULT, 300);
	lv_style_set_transition_path(&style_btn, LV_STATE_DEFAULT, &path);
#endif
}

static void init_blinky_gui(void)
{
	for(int i = 0; i < 12; i++){
		int x_index = i % 4;
		int y_index = i / 4;
		image_bg[i] = lv_img_create(lv_scr_act(), NULL);
		lv_obj_set_pos(image_bg[i], x_index*80, y_index*80);
		lv_obj_set_size(image_bg[i], 80, 80);
		lv_img_set_src(image_bg[i], &img_noise_background);
	}

	// The connected header needs to be created before the top_header, to appear behind
	connected_background = lv_label_create(lv_scr_act(), NULL);
	lv_obj_add_style(connected_background, LV_LABEL_PART_MAIN, &style_con_bg);
	lv_label_set_long_mode(connected_background, LV_LABEL_LONG_DOT);
	lv_obj_set_pos(connected_background, 6, 65);
	lv_obj_set_size(connected_background, 320, 135);
	lv_label_set_text(connected_background, "");

	top_header = lv_label_create(lv_scr_act(), NULL);
	lv_obj_add_style(top_header, LV_LABEL_PART_MAIN, &style_header);
	lv_label_set_long_mode(top_header, LV_LABEL_LONG_BREAK);
	lv_obj_set_pos(top_header, 0, 0);
	lv_obj_set_size(top_header, 320, 240);
	lv_label_set_text(top_header, "BPM : " "123            "
        "Oxygen Saturation : " "94/100 " "Temperature :""35C ""Sleeping"   );

	//lv_label_set_align(top_header, LV_LABEL_ALIGN_CENTER);



	label_bt_state = lv_label_create(lv_scr_act(), NULL);
	lv_label_set_long_mode(label_bt_state, LV_LABEL_LONG_CROP);
	lv_label_set_align(label_bt_state, LV_LABEL_ALIGN_CENTER);
	lv_obj_set_pos(label_bt_state, 70, 210);
	lv_obj_set_size(label_bt_state, 180, 30);
	lv_label_set_text(label_bt_state, "Idle");
	lv_obj_add_style(label_bt_state, LV_LABEL_PART_MAIN, &style_label_value);

	btn1 = lv_btn_create(lv_scr_act(), NULL);     /*Add a button the current screen*/
	lv_obj_set_pos(btn1, 260, 10);                            /*Set its position*/
	lv_obj_set_size(btn1, 50, 50);                          /*Set its size*/
	lv_obj_reset_style_list(btn1, LV_BTN_PART_MAIN);         /*Remove the styles coming from the theme*/
	lv_obj_add_style(btn1, LV_BTN_PART_MAIN, &style_btn);
	lv_btn_set_checkable(btn1, true);

	btn1_label = lv_label_create(btn1, NULL);          /*Add a label to the button*/
	lv_label_set_text(btn1_label, "Button");                     /*Set the labels text*/
	lv_obj_set_event_cb(btn1, on_button1);

	label_btn_state = lv_label_create(lv_scr_act(), NULL);
	lv_label_set_long_mode(label_btn_state, LV_LABEL_LONG_DOT);
	lv_obj_set_pos(label_btn_state, 260, 65);
	lv_obj_set_size(label_btn_state, 50, 50);
	lv_label_set_text(label_btn_state, "Released");
	lv_label_set_align(label_btn_state, LV_LABEL_ALIGN_CENTER);
	lv_obj_add_style(label_btn_state, LV_LABEL_PART_MAIN, &style_label_value);

	image_led = lv_img_create(lv_scr_act(), NULL);
	lv_obj_set_pos(image_led, 10, 10);
	lv_obj_set_size(image_led, 30, 30);
	lv_img_set_src(image_led, &led_off);

	label_led_state = lv_label_create(lv_scr_act(), NULL);
	lv_label_set_long_mode(label_led_state, LV_LABEL_LONG_DOT);
	lv_obj_set_pos(label_led_state, 10, 65);
	lv_obj_set_size(label_led_state, 50, 50);
	lv_label_set_text(label_led_state, "Off");
	lv_label_set_align(label_led_state, LV_LABEL_ALIGN_CENTER);
	lv_obj_add_style(label_led_state, LV_LABEL_PART_MAIN, &style_label_value);

	gui_show_connected_elements(false);
}

static void gui_show_connected_elements(bool connected)
{
	lv_obj_set_hidden(connected_background, !connected);
	lv_obj_set_hidden(btn1, !connected);
	lv_obj_set_hidden(label_btn_state, !connected);
	lv_obj_set_hidden(image_led, !connected);
	lv_obj_set_hidden(label_led_state, !connected);
}

static void set_bt_state(gui_bt_state_t state)
{
	bool connected = false;
	switch(state){
		case GUI_BT_STATE_IDLE:
			k_timer_stop(&gui_blink_timer);
			lv_label_set_text(label_bt_state, "Idle");
			break;
		case GUI_BT_STATE_ADVERTISING:
			k_timer_start(&gui_blink_timer, K_MSEC(500), K_MSEC(500));
			lv_label_set_text(label_bt_state, "Advertising");
			break;
		case GUI_BT_STATE_CONNECTED:
			k_timer_stop(&gui_blink_timer);
			lv_label_set_text(label_bt_state, "Connected");
			connected = true;
			break;
	}
	gui_show_connected_elements(connected);
}

static void on_gui_blink_timer(struct k_timer *dummy)
{
	static bool blink_state;
	blink_state = !blink_state;
	lv_label_set_text(label_bt_state, blink_state ? "Advertising" : "");
}

void gui_init(gui_config_t * config)
{
	m_gui_callback = config->event_callback;
}

void gui_set_bt_state(gui_bt_state_t state)
{
	static gui_message_t set_bt_state_msg;
	set_bt_state_msg.type = GUI_MSG_SET_BT_STATE;
	set_bt_state_msg.params.bt_state = state;
	k_msgq_put(&m_gui_cmd_queue, &set_bt_state_msg, K_NO_WAIT);
}

void gui_set_bt_led_state(bool led_is_on)
{
	static gui_message_t set_led_state_msg;
	set_led_state_msg.type = GUI_MSG_SET_LED_STATE;
	set_led_state_msg.params.led_state = led_is_on;
	k_msgq_put(&m_gui_cmd_queue, &set_led_state_msg, K_NO_WAIT);
}

static void process_cmd_msg_queue(void)
{
	gui_message_t cmd_message;
	while(k_msgq_get(&m_gui_cmd_queue, &cmd_message, K_NO_WAIT) == 0){
		// Process incoming commands depending on type
		switch(cmd_message.type){
			case GUI_MSG_SET_STATE:
				break;
			case GUI_MSG_SET_BT_STATE:
				set_bt_state(cmd_message.params.bt_state);
				break;
			case GUI_MSG_SET_LED_STATE:
				lv_img_set_src(image_led, cmd_message.params.led_state ? &led_on : &led_off);
				lv_label_set_text(label_led_state, cmd_message.params.led_state ? "On" : "Off");
				break;
		}
	}
}

void gui_run(void)
{
	display_dev = device_get_binding(CONFIG_LVGL_DISPLAY_DEV_NAME);

	if (display_dev == NULL) {
		LOG_ERR("Display device not found!");
		return;
	}

	init_styles();

	init_blinky_gui();

	display_blanking_off(display_dev);

	while(1){
		process_cmd_msg_queue();
		lv_task_handler();
		k_sleep(K_MSEC(20));
	}
}

// Define our GUI thread, using a stack size of 4096 and a priority of 7
K_THREAD_DEFINE(gui_thread, 4096, gui_run, NULL, NULL, NULL, 7, 0, 0);

Credits

Xavier Hébert

1 project • 0 followers

Health Monitor

Things used in this project

Hardware components

Software apps and online services

Story

Arduino Nano 33 BLE

Conclusions

Schematics

Circuit Diagram

Code

Arduino code

gui.c

Credits

Xavier Hébert

Comments

Embed the widget on your own site

Health Monitor

Health Monitor

Things used in this project

Hardware components

Software apps and online services

Story

Arduino Nano 33 BLE

Conclusions

Schematics

Circuit Diagram

Code

Arduino code

gui.c

Credits

Xavier Hébert

Comments

Related channels and tags
