Published April 11, 2021

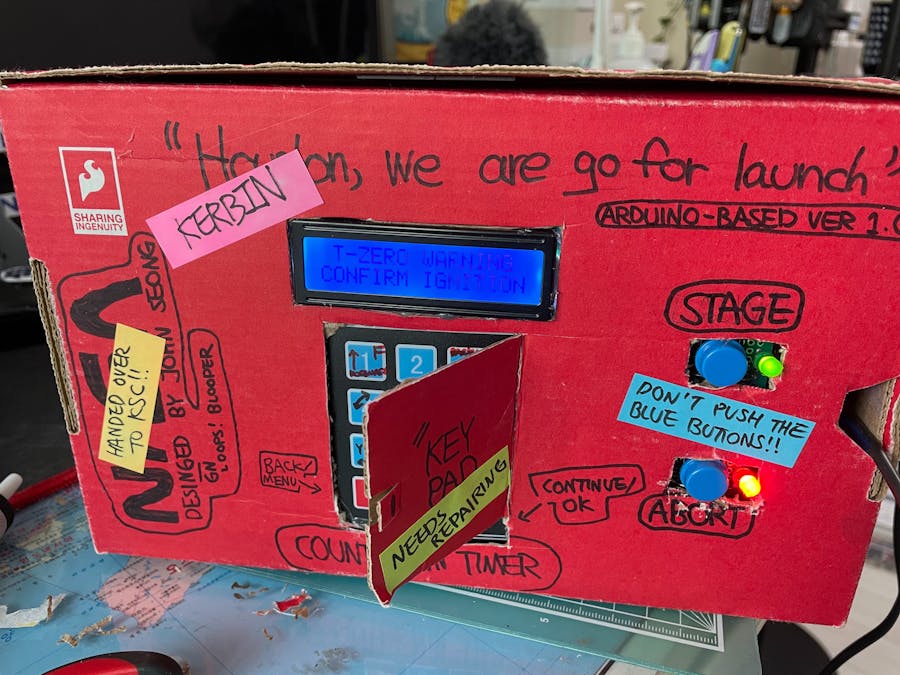

Jebediah Kerman's Launch Control System

An automated countdown timer, a macro keyboard, and a control device for Kerbal Space Program.

IntermediateShowcase (no instructions)339

Things used in this project

Hardware components

Arduino Micro

5 mm LED: Red

5 mm LED: Green

RGB LCD Shield Kit, 16x2 Character Display

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

PCB, For DMB-4775

Story

Jebediah's Launch Control System

Version 2.0

An Open-Source Project by John Seong

An automated countdown timer, a macro keyboard, and a control device for Kerbal Space Program that can be connected to the PC and autonomously launch the vehicle when the timer hits 0.

FEATURES

Automated countdown & launch

RCS & throttle control

Simple thrust-to-weight ratio calculation

Video

BEHIND THE SCENES

The code was built upon a finite-state machine concept; as the LCD display transitions to a menu screen from a startup page, the user has to navigate and choose different options, which leads to the corresponding pages.

Using the controller, you can control the RCS thrusters of your vehicle, which can be particularly useful when docking a spacecraft. Most importantly, it has an automatic hands-free launch feature, in which the controller runs appropriate commands for the vehicle to lift off. You can also control the throttle while the vehicle is flying. Jebediah's Launch Control System uses keyboard inputs according to the key bindings in the game settings, utilizing the feature that is exclusively available on Arduino Leonardo/Micro type boards. In case of an emergency, a DON'T PANIC (Vehicle Abort) button is included in the package as well!

1 / 5 • Images

HoustonOS

/*
   Jebediah's Launch Control System for Kerbal Space Program
   Version 2.0
   An Open-Source Project by John Seong
*/

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <Keypad.h>
#include <Keyboard.h>

#define NOTE_C4  262
#define NOTE_CS4 277
#define NOTE_D4  294
#define NOTE_DS4 311
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_FS4 370
#define NOTE_G4  392
#define NOTE_GS4 415
#define NOTE_A4  440
#define NOTE_AS4 466
#define NOTE_B4  494
#define NOTE_C5  523
#define NOTE_CS5 554
#define NOTE_D5  587
#define NOTE_DS5 622
#define NOTE_E5  659
#define NOTE_F5  698
#define NOTE_FS5 740
#define NOTE_G5  784

int melody[] = {
  NOTE_G4, NOTE_E4, NOTE_C4, NOTE_E4, NOTE_G4, NOTE_C5, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_E4, NOTE_FS4, NOTE_G4, NOTE_G4, NOTE_G4, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_B4, NOTE_A4, NOTE_B4, NOTE_C5, NOTE_C5, NOTE_G4, NOTE_E4, NOTE_C4,
  NOTE_G4, NOTE_E4, NOTE_C4, NOTE_E4, NOTE_G4, NOTE_C5, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_E4, NOTE_FS4, NOTE_G4, NOTE_G4, NOTE_G4, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_B4, NOTE_A4, NOTE_B4, NOTE_C5, NOTE_C5, NOTE_G4, NOTE_E4, NOTE_C4,
  NOTE_E5, NOTE_E5, NOTE_E5, NOTE_F5, NOTE_G5, NOTE_G5, NOTE_F5, NOTE_E5, NOTE_D5, NOTE_E5, NOTE_F5, NOTE_F5, NOTE_F5, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_B4, NOTE_A4, NOTE_B4, NOTE_C5, NOTE_E4, NOTE_FS4, NOTE_G4,
  NOTE_G4, NOTE_C5, NOTE_C5, NOTE_C5, NOTE_B4, NOTE_A4, NOTE_A4, NOTE_A4, NOTE_D5, NOTE_F5, NOTE_E5, NOTE_D5, NOTE_C5, NOTE_C5, NOTE_B4, NOTE_G4, NOTE_G4, NOTE_C5, NOTE_D5, NOTE_E5, NOTE_F5, NOTE_G5, NOTE_C5, NOTE_D5, NOTE_E5, NOTE_F5, NOTE_D5, NOTE_C5
};

int noteDurations[] = {
  6, 8, 4, 4, 4, 2, 6, 8, 4, 4, 4, 2, 8, 8, 3, 8, 4, 2, 6, 8, 4, 4, 4, 4, 4,
  6, 8, 4, 4, 4, 2, 6, 8, 4, 4, 4, 2, 8, 8, 3, 8, 4, 2, 6, 8, 4, 4, 4, 4, 4,
  8, 8, 4, 4, 4, 2, 8, 8, 4, 4, 4, 2, 4, 3, 8, 4, 2, 6, 8, 4, 4, 4, 2,
  4, 4, 4, 8, 8, 4, 4, 4, 4, 8, 8, 8, 8, 4, 4, 8, 8, 3, 8, 8, 8, 2, 8, 8, 3, 8, 4, 2
};

const byte ROWS = 4;
const byte COLS = 3;

const int buzzer = A3;

const int ledAbort = A5;
const int ledStage = 5;

const int buttonAbort = 4;
const int buttonStage = A4;

char keys[ROWS][COLS] = {
  {'1', '2', '3'},
  {'4', '5', '6'},
  {'7', '8', '9'},
  {'*', '0', '#'}
};

byte rowPins[ROWS] = {12, 11, 10, 9};
byte colPins[COLS] = {8, 7, 6};

Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS);

LiquidCrystal_I2C lcd(0x3F, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);

// Show a two-line message on the LCD.
void lcdShow(const char *line0, const char *line1) {
  lcd.clear();
  lcd.print(line0);
  lcd.setCursor(0, 1);
  lcd.print(line1);
}

void lcdShowResult(float result) {
  lcd.print(result);
}

void setup() {
  pinMode(buzzer, OUTPUT);

  pinMode(ledAbort, OUTPUT);
  pinMode(ledStage, OUTPUT);

  pinMode(buttonAbort, INPUT_PULLUP);
  pinMode(buttonStage, INPUT_PULLUP);

  pinMode(buzzer, OUTPUT);
  Serial.begin(9600);
  lcd.begin(16, 2);
  Keyboard.begin();
  lcdShow("JEB'S LAUNCH", "CONTROL SYSTEM");
  delay(3000);
  lcdShow("VERSION 2.0", "STUDIO HORIZON");
  delay(3000);
  lcdShow("WELCOME, KERMAN.", "PRESS ANY KEY...");
  while (!keypad.getKey()) ;  // wait for key press
}

void loop() {
  static enum {START, MENU, START2, MENU2, SET_COUNT, COUNT_DOWN, LAUNCH, SET_THRUST, SET_WEIGHT, LAUNCH_CONFIRMED, LAUNCH_CONFIRMED_FN, VEHICLE_CONTROLS, RCS_CONTROLS, RCS_CONTROLS_FN, ENGINE_CONTROLS, ENGINE_CONTROLS_FN} state = START;
  static uint32_t last_second, preMillis;  // millis() value on last full second
  static int count;
  static float thrust, weight, ratio;

  char key = keypad.getKey();

  switch (state) {
    case START:  // transitional state
      lcdShow("1. LAUNCH SEQ.", "2. VEHICLE CTRL.");
      noTone(buzzer);
      state = MENU;
    /* fallthrough */

    case MENU:
      if (key == '1') {  // Countdown
        lcdShow("COUNTDOWN TIMER", "SECONDS: ");
        count = 0;
        state = SET_COUNT;

      } else if (key == '2') {  // Controls
        lcdShow("VEHICLE", "CONTROL MODE");
        delay(1000);
        lcdShow("1. RCS CONTROLS", "2. ENG CONTROLS");
        state = VEHICLE_CONTROLS;

      } else if (key == '8') {
        state = START2;
      }
      break;

    case START2:
      lcdShow("2. VEHICLE CTRL.", "3. TWR CALC.");
      state = MENU2;
    /* fallthrough */

    case MENU2:
      if (key == '2') {  // Controls
        lcdShow("VEHICLE", "CONTROL MODE");
        delay(1000);
        lcdShow("1. RCS CONTROLS", "2. ENG CONTROLS");
        state = VEHICLE_CONTROLS;

      } else if (key == '3') { // TWR
        lcdShow("TWR CALCULATOR", "THRUST: ");
        thrust = 0, weight = 0, ratio = 0;
        state = SET_THRUST;


      } else if (key == '5') {
        state = START;
      }
      break;

    case SET_COUNT:
      if (key >= '0' && key <= '9' && count <= 99) {
        lcd.print(key);
        count = 10 * count + (key - '0');

      } else if (key == '#') {
        lcdShow("    T-MINUS", "     SECONDS");
        // Force a refresh on entering COUNT_DOWN:
        last_second = millis() - 1000;
        count++;
        state = COUNT_DOWN;

      } else if (key == '*') {
        state = START;
      }
      break;

    case COUNT_DOWN:
      if (millis() - last_second >= 1000) {
        last_second += 1000;
        count--;

        if (count <= 10) {
          tone(buzzer, 500);
          delay(500);
          noTone(buzzer);
        }

        if (count == 0) {
          Serial.println("Lift off!");

        } else if (count < 0) {
          preMillis = millis() - 500;
          state = LAUNCH;
        }
        lcd.setCursor(1, 1);
        lcd.print(count < 10 ? "  " : count < 100 ? " " : ""); // pad
        lcd.print(count);
      } else if (key == '*') {
        state = START;
      }
      break;

    case LAUNCH:
      tone(buzzer, 3000);
      if (millis() - preMillis >= 500) {
        preMillis += 500;

        if (digitalRead(ledAbort) == LOW && digitalRead(ledStage) == LOW) {
          lcdShow(" T-ZERO WARNING", "CONFIRM IGNITION");
          digitalWrite(ledAbort, HIGH);
          digitalWrite(ledStage, HIGH);

        } else if (digitalRead(ledAbort) == HIGH && digitalRead(ledStage) == HIGH) {
          lcd.clear();
          digitalWrite(ledAbort, LOW);
          digitalWrite(ledStage, LOW);
        }

      } else if (key == '*' || (digitalRead(buttonAbort == HIGH) && digitalRead(buttonStage) == LOW)) {
        lcdShow("LAUNCH ABORT", "SELECTED!");
        digitalWrite(ledAbort, HIGH);
        digitalWrite(ledStage, LOW);
        Keyboard.write('x'); // MECO
        delay(500);
        Keyboard.write(0xB2); // for Mac users
        Keyboard.write(0xD4); // for Windows users
        Keyboard.write('z'); // Abort motors full throttle
        delay(2000);
        digitalWrite(ledAbort, LOW);
        state = START;

      } else if (key == '#' || (digitalRead(buttonStage == HIGH) && digitalRead(buttonAbort) == LOW)) {
        lcdShow("KERBIN, WE ARE", "GO FOR LAUNCH!");
        digitalWrite(ledAbort, LOW);
        digitalWrite(ledStage, HIGH);
        delay(2000);
        digitalWrite(ledStage, LOW);
        state = LAUNCH_CONFIRMED;
      }
      break;

    case SET_THRUST:
      if (key >= '0' && key <= '9' && thrust <= 9999) {
        lcd.print(key);
        thrust = 10 * thrust + (key - '0');

      } else if (key == '#') {
        lcdShow("TWR CALCULATOR", "WEIGHT: ");
        state = SET_WEIGHT;

      } else if (key == '*') {
        state = START;
      }
      break;

    case SET_WEIGHT:
      if (key >= '0' && key <= '9' && weight <= 9999) {
        lcd.print(key);
        weight = 10 * weight + (key - '0');

      } else if (key == '#') {
        lcdShow("THRUST-TO-WEIGHT", "RATIO: ");
        if (thrust != 0 || weight != 0) {
          ratio = thrust / weight;
          lcdShowResult(ratio);
        }

      } else if (key == '*') {
        state = START;
      }
      break;

    case LAUNCH_CONFIRMED:
      tone(buzzer, 1000);
      lcdShow("MAIN ENGINE", "IGNITION!");
      Keyboard.write((char) 32);
      Keyboard.write('z'); // Ignition
      delay(1500);
      Keyboard.write((char) 32); // Press space bar
      lcdShow("KRAKEN BLESS", "AMERIKA!");
      for (int thisNote = 0; thisNote < 101; thisNote++) {
        int noteDuration = 1000 / noteDurations[thisNote];
        tone(buzzer, melody[thisNote], noteDuration);
        int pauseBetweenNotes = noteDuration * 1.40;
        delay(pauseBetweenNotes);
        noTone(buzzer);
      }
      lcdShow("PRESS *", "TO PAY RESPECTS");
      state = LAUNCH_CONFIRMED_FN;
    /* fallthrough */

    case LAUNCH_CONFIRMED_FN:
      if (key == '*') {
        lcdShow("VEHICLE", "CONTROL MODE");
        delay(1000);
        lcdShow("1. RCS CONTROLS", "2. ENG CONTROLS");
        state = VEHICLE_CONTROLS;
      }
      break;

    case VEHICLE_CONTROLS:
      if (key == '1') {
        state = RCS_CONTROLS;

      } else if (key == '2') {
        lcdShow("THROTTLE", "PRESS ARROW KEYS");
        state = ENGINE_CONTROLS;

      } else if (key == '*') {
        state = START;
      }
      break;

    case RCS_CONTROLS:
      lcdShow("REACTION CONTROL", "PRESS ARROW KEYS");
      noTone(buzzer);
      state = RCS_CONTROLS_FN;
    /* fallthrough */

    case RCS_CONTROLS_FN:
      if (key == '1') {
        lcdShow("REACTION CONTROL", "[FORWARD]");
        Keyboard.write('H');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '3') {
        lcdShow("REACTION CONTROL", "[BACKWARD]");
        Keyboard.write('N');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '4') {
        lcdShow("REACTION CONTROL", "[ROLL LEFT]");
        Keyboard.write('Q');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '5') {
        lcdShow("REACTION CONTROL", "[PITCH DOWN]");
        Keyboard.write('W');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '6') {
        lcdShow("REACTION CONTROL", "[ROLL RIGHT]");
        Keyboard.write('E');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '7') {
        lcdShow("REACTION CONTROL", "[YAW LEFT]");
        Keyboard.write('A');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '8') {
        lcdShow("REACTION CONTROL", "[PITCH UP]");
        Keyboard.write('S');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '9') {
        lcdShow("REACTION CONTROL", "[YAW RIGHT]");
        Keyboard.write('D');
        tone(buzzer, 500);
        delay(500);
        state = RCS_CONTROLS;

      } else if (key == '*') {
        state = START;

      } else if (digitalRead(buttonAbort == HIGH) && digitalRead(buttonStage) == LOW) {
        lcdShow("LAUNCH ABORT", "SELECTED!");
        tone(buzzer, 500);
        digitalWrite(ledAbort, HIGH);
        digitalWrite(ledStage, LOW);
        Keyboard.write('x'); // MECO
        delay(500);
        Keyboard.write(0xB2); // for Mac users
        Keyboard.write(0xD4); // for Windows users
        Keyboard.write('z'); // Abort motors full throttle
        delay(2000);
        digitalWrite(ledAbort, LOW);
        state = RCS_CONTROLS;

      } else if (digitalRead(buttonStage == HIGH) && digitalRead(buttonAbort) == LOW) {
        lcdShow("STAGE SEPARATION", "CONFIRMED!");
        Keyboard.write((char) 32);
        tone(buzzer, 500);
        digitalWrite(ledAbort, LOW);
        digitalWrite(ledStage, HIGH);
        delay(2000);
        digitalWrite(ledStage, LOW);
        state = RCS_CONTROLS;
      }
      break;

    case ENGINE_CONTROLS:
      lcdShow("FUEL CONTROL", "PRESS ARROW KEYS");
      noTone(buzzer);
      state = ENGINE_CONTROLS_FN;
    /* fallthrough */

    case ENGINE_CONTROLS_FN:
      if (key == '5') {
        lcdShow("FUEL CONTROL", "[THROTTLE 100 %]");
        Keyboard.write('z');
        tone(buzzer, 500);
        delay(500);
        state = ENGINE_CONTROLS;

      } else if (key == '8') {
        lcdShow("FUEL CONTROL", "[THROTTLE 0 %]");
        Keyboard.write('x');
        tone(buzzer, 500);
        delay(500);
        state = ENGINE_CONTROLS;

      } else if (key == '*') {
        state = START;

      } else if (digitalRead(buttonAbort == HIGH) && digitalRead(buttonStage) == LOW) {
        lcdShow("LAUNCH ABORT", "SELECTED!");
        tone(buzzer, 500);
        digitalWrite(ledAbort, HIGH);
        digitalWrite(ledStage, LOW);
        Keyboard.write('x'); // MECO
        delay(500);
        Keyboard.write(0xB2); // for Mac users
        Keyboard.write(0xD4); // for Windows users
        Keyboard.write('z'); // Abort motors full throttle
        delay(2000);
        digitalWrite(ledAbort, LOW);
        state = ENGINE_CONTROLS;

      } else if (digitalRead(buttonStage == HIGH) && digitalRead(buttonAbort) == LOW) {
        lcdShow("STAGE SEPARATION", "CONFIRMED!");
        Keyboard.write((char) 32);
        tone(buzzer, 500);
        digitalWrite(ledAbort, LOW);
        digitalWrite(ledStage, HIGH);
        delay(2000);
        digitalWrite(ledStage, LOW);
        state = ENGINE_CONTROLS;
      }
      break;
  }
}

Credits

wonmor

0 projects • 0 followers

Jebediah Kerman's Launch Control System

Things used in this project

Hardware components

Hand tools and fabrication machines

Story

Jebediah's Launch Control System

FEATURES

BEHIND THE SCENES

Code

HoustonOS

GitHub

Credits

wonmor

Comments

Embed the widget on your own site

Jebediah Kerman's Launch Control System

Jebediah Kerman's Launch Control System

Things used in this project

Hardware components

Hand tools and fabrication machines

Story

Jebediah's Launch Control System

FEATURES

BEHIND THE SCENES

Code

HoustonOS

GitHub

Credits

wonmor

Comments

Related channels and tags
