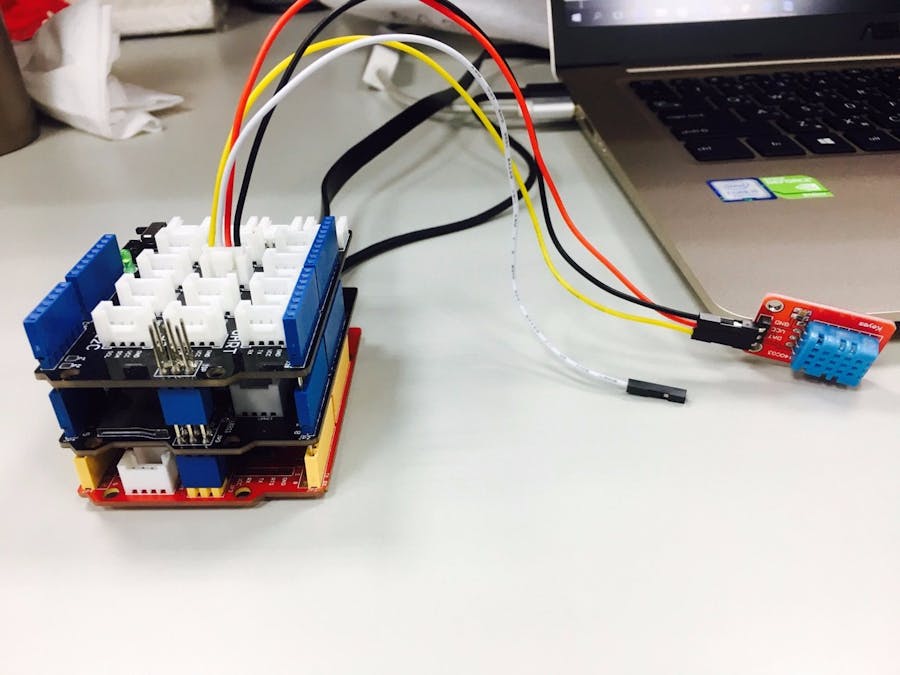

How to Show DHT11 Data on QNAP QIOT Dashboard

Step 1

“IoT Applications” → “Add IoT applications”.

Step 2

In “Create a New IoT application”：

• Enter a name for your IoT Application.

• The Rule name and Dashboard name will be automatically generated based on the IoT Application Name.

• Click “Create”.

Step 3

“Add Thing”:

• Enter a name for the Thing (in this sample: “Thingname”)

• “Custom” in “Thing Category”

• Click “Add”

Step 4

Click the “Thing Resources” button, and enter “Thing Resource".

Step 5

In “Add Thing Resource”:

• Enter a name for the resource (in this example: “myTemperature”)

• Enter a resource ID (The resource ID is used to create a topic in the QIoT broker. This ID should be unique for the device and no duplicates should be allowed for the same device)

• Click “Add”

Step 6

Click “Connect to device”, and “in Thing Information” choose “MQTT”, click “Next”, and click “download JSON file”

Step 7

In the “Rule” window to set the “MQTT Message”:

• Click “MQTT Message In”

• Uncheck “Use custom topic”

• Choose the Thing “Thingname”

• Click “Add”, and choose “myTemperature” in “Resources”

• Click “Done” and “Save”

Step 8

After setting the Rule, open the Arduino and the JSON file, and then copy the code (username, clientId, host, password, and topic) into Arduino, respectively. After copying, upload the file.

Step 9

Return to the Rule tab, and connect the MQTT Message In and Dashboard.

Step 10

In the Dashboard tab, you could see a sample temperature.
