CoffeeAuth: Grinder Authentication System

At our office we have a coffee problem. We began to start tearing through bags of espresso beans and wanted to help keep our coworkers accountable. The idea was simple--create a system that tracks how much coffee you drink and show you about how much it costs.

Hardware

HID Reader

The HID reader we used is the HID OMNIKEY 5427 CK. This reader is capable of using keyboard wedge mode where it acts as an HID Keyboard device; this allows the device to work on computers without requiring drivers. The device has a web interface for configuration, the device documentation I used is available here, however I will walk through much of the relevant setup.

HID Reader Setup

1. Install EEM Driver x86, x64 - this allows for configuration of the device from the web interface.

2. Navigate to the web interface http://192.168.63.99/

3. Under Keyboard Wedge > General Config - select the Keyboard Wedge Enable check box then make sure the check box Tech order after error is not checked.

Arduino

For this project you can use any Arduino, but you will need to alter the VID and PID in the App.xaml.cs to match whichever device you choose to use. I chose to use an Arduino Leonardo.

To check VID and PID:

• open the device manager
• Right click on your device and select properties
• Got to the events tab and under information you should see the VID and PID

PowerTail

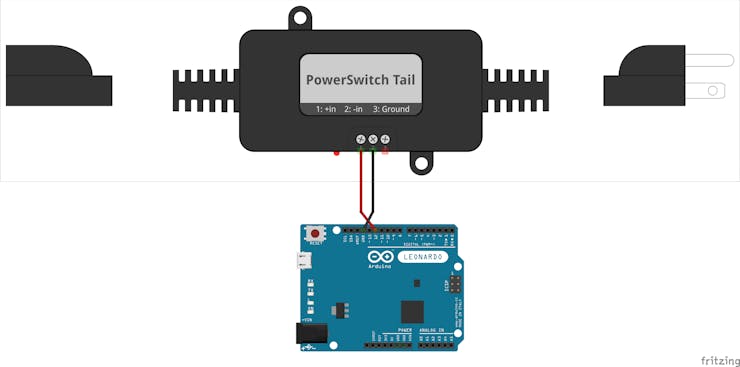

Hook up 1: +in on the PowerTail to Pin 12 on the Arduino and 2: -in to GND on the Arduino

Hook up  1: +in on the PowerTail to Pin 12 on the Arduino and 2: -in to GND on the Arduino

Software Universal Windows Platform

The application is a Windows Universal Application. It uses Remote-Wiring as well as Remote-Wiring.
