Rasbperry Pi - FFmpeg Install and Stream to Web

Part list to purchase:

1. Raspberry Pi 3 https://amzn.to/2VJIOBy

2. USB camera Logitech https://amzn.to/35w1DMN

Buy electronic component on utsource.net

The following tutorial will show you how to install FFmpeg onto the Raspberry Pi and stream video to the local web which can be access through computer/phone/tablet.

1. Install library

cd /usr/src
 git clone git://git.videolan.org/x264
 cd x264
 ./configure --host=arm-unknown-linux-gnueabi --enable-static --disable-opencl
 make
 sudo make install

2. Install FFmpeg

cd /usr/src
 git clone git://source.ffmpeg.org/ffmpeg.git
 cd ffmpeg/
 sudo ./configure --arch=armel --target-os=linux --enable-gpl --enable-libx264 --enable-nonfree
 make

Note: Model B+ (4-Cores) can do “make -j4” instead of  “make”. This "make" command will take 4 hours long 🠚 take a sleep instead of waiting for it!

sudo make install

3. Config something:

gedit /etc/ffserver.conf

Input following settings:

Port 8090
 # bind to all IPs aliased or not
 BindAddress 0.0.0.0
 # max number of simultaneous clients
 MaxClients 10
 # max bandwidth per-client (kb/s)
 MaxBandwidth 1000
 # Suppress that if you want to launch ffserver as a daemon.
 NoDaemon

<Feed feed1.ffm>
 File /tmp/feed1.ffm
 FileMaxSize 10M
 </Feed>

<Stream test.mjpg>
 Feed feed1.ffm
 Format mpjpeg
 VideoFrameRate 4
 VideoSize 600x480
 VideoBitRate 80
 # VideoQMin 1
 # VideoQMax 100
 VideoIntraOnly
 NoAudio
 Strict -1
 </Stream>

Make execute file for easy command:

gedit /usr/sbin/webcam.sh

Input following settings:

ffserver -f /etc/ffserver.conf & ffmpeg -v verbose -r 5 -s 600x480 -f video4linux2 -i /dev/video0 http://localhost:8090/feed1.ffm

Change the mode for file webcam.sh so it can execute, then run it:

chmod +x /usr/sbin/webcam.sh
 /usr/sbin/webcam.sh

After the above command, streaming will be started to local web.

Go to web browser, type address <your-ip-address:8090>/test.mjpg

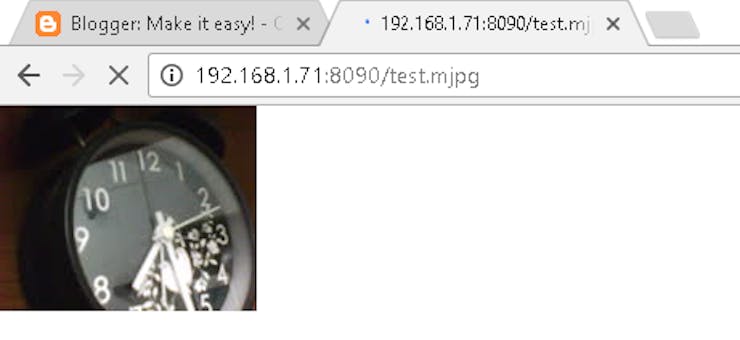

Result

Note: To stop the camera, press Ctrl+C at terminal, then type command:

pkill ffserver

As a test, I uploaded this video where you can see clock needle rotate every single second!

4. Automatic run

In order to run FFmpeg service without typing the command /usr/sbin/webcam.sh, go to /etc/rc.local 🠚 then add command line /usr/sbin/webcam.sh before "exit 0". Every time Raspberry starts up, FFmpeg will automatically run without typing code.
