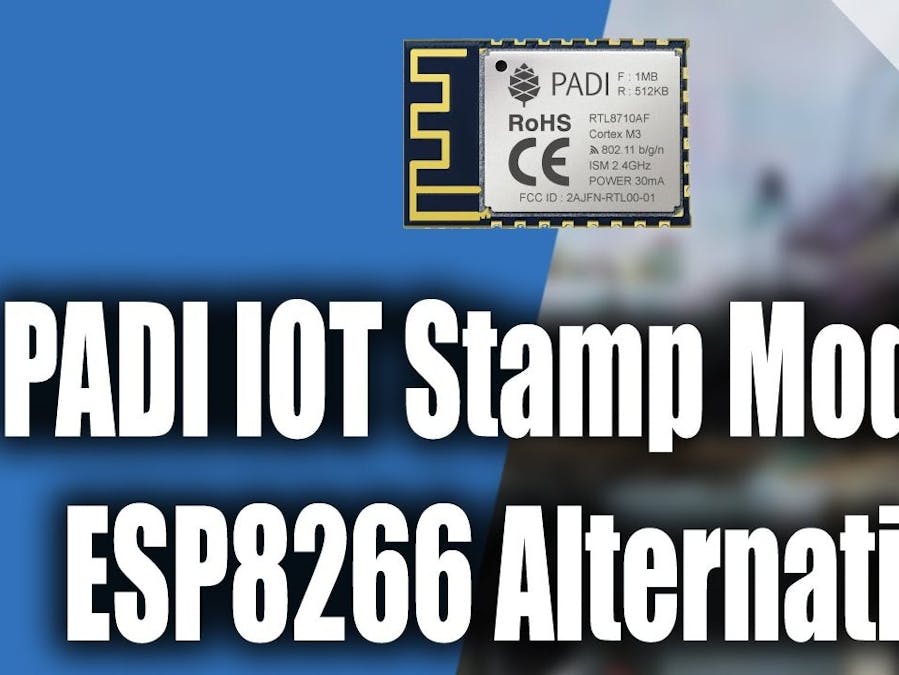

PADI IOT Stamp Module from Pine64

The IoT Stamp module is powered by Realtek RTL8710AF ARM Cortex M3 WiFi SoC running at 83 MHz. This module features the same form factor and GPIO layout as of ESP8266 but lacks ADC input.

Features

• Up to 1x SPI @ 41.5 Mbps max

• Up to 3x UART with 2x up to 4Mbps, 1x @ 38400 bps

• Up to 4x PWM

• Up to 1x I2C @ 3.4 Mbps max

• Up to 19 GPIOs including 10 supporting interrupts

• And it comes with 1 MB of flash and 512 KB of RAM

Used Commands:

AT
ATSR
ATSY
ATPW=1 //Station Mode
ATWS// Scan Wifi
ATPH=2,2// Mode AP 1/STA 2, Enable:DHCP 1/STATIC 2
ATPE=192.168.0.5// Static IP ATPN=weargenius,omisoksbwn// Connect to AP
ATW?// Wifi Info
ATPG=1 // Auto COnnect 0: Disable 1: Enable
ATPC=0,192.168.0.1,80 // Create TCp Client
ATPI// Connection Info
ATPT=70,1:"GET /tut/index.php?NAME=bikash /HTTP/1.1 Host:192.168.0.1:80\r\n"//Send Data
ATPR=1,20// rECEIVE dATA ATPD=0//0 FOR ALL OR conn_id
ATWD // Disconnect from AP

Resource Links

• IOT Stamp Resources

• Datasheet

• Pinout Diagram

• AT Commands guide

• Getting Started Guide
