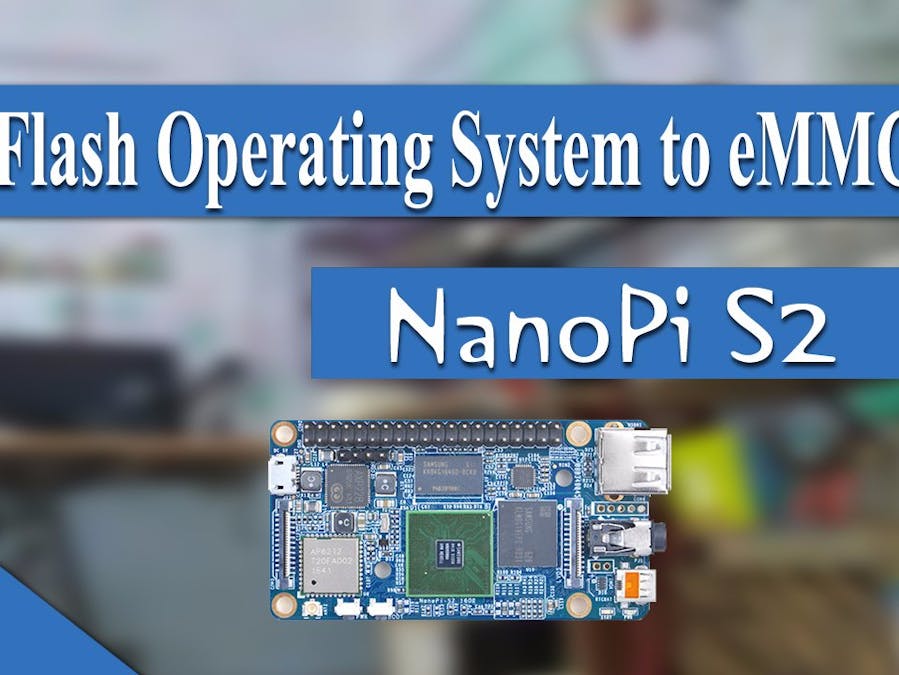

The NanoPi S2(S2) is designed and developed by FriendlyElec for professionals, enterprise users, makers, and hobbyists. It is a small board with WiFi, Bluetooth, and eMMC. It uses the Samsung Quad Core Cortex-A9 S5P4418 SoC with dynamic frequency scaling up to 1.4GHz. It has 1G DDR3 RAM, 802.11 b/g/n WiFi & Bluetooth 4.0 module. Its inbuilt power management unit uses the AXP228 chip which supports software shutdown. It takes power over the MicroUSB port. It has video input/output interface, 3.5mm audio jack, USB port, and MicroSD card slot, serial debug port and ADC pin-header. An Android and a Debian images are ready for this awesome SBC. The Android OS supports HDMI and LCD output.
Along with it has various interfaces, ports such as LVDS, and GPIOs which are compatible with Raspberry Pi’s GPIOs. Its PCB dimension is 40 * 75 mm. The NanoPi S2 works with most of the modules and OS images that are developed for FriendlyElec’s S5P4418 based boards. Source: http://bit.ly/2lvM1lC
Links : Check Out this SBC: bit.ly/2ptw7xM All OS with eFlasher for Download: bit.ly/2rrepLl Win32 Disk Imager: bit.ly/2n3Lfwg SD Formatter Windows: bit.ly/2ofKfFL
WiKi Page : bit.ly/2lvM1lC Buy : bit.ly/2pZqcR3
Access GPIO using SysFS of NanoPi S2 : http://bit.ly/2qiOTHj
