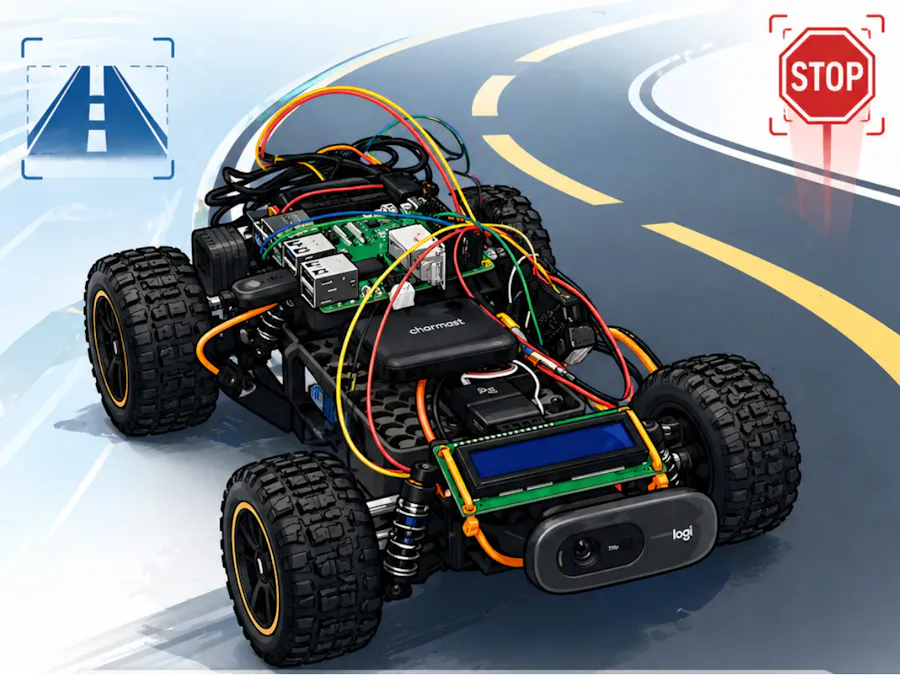

Vision-Based Autonomous Lane Keeping Vehicle

# ==============================================================================
# ELEC 553 Final Project - Main Autonomous Driving Script
#
# This script handles the main autonomous loop for the RPi 5 RC Car.
# It reads camera frames to perform HSV color filtering for lane keeping (blue) and stop box detection (red).
# It utilizes a PD controller for smooth steering, and reads hardware encoder interrupts via a sysfs file to
# dynamically maintain a constant motor speed.
#
# Citation: User raja_961, "Autonomous Lane-Keeping Car Using Raspberry Pi and OpenCV"
# URL: https://www.instructables.com/Autonomous-Lane-Keeping-Car-Using-Raspberry-Pi-and/
# ==============================================================================

import cv2
import numpy as np
import lgpio
import time
import csv

#
# HARDWARE PIN SETUP
#
STEER_PIN = 19
MOTOR_PIN = 18
GPIO_CHIP = 4  # RPi 5 utilizes gpiochip4 for its hardware IO

#
# PWM & ESC CALIBRATION CONSTANTS
#
# Duty cycles: 7.5 = Neutral, >7.5 = Forward/Right, <7.5 = Reverse(motor doesnt seem to go backwards)/Left
STEER_CENTER = 7.5
STEER_MIN = 6.2  # Physical left limit
STEER_MAX = 8.8  # Physical right limit
MOTOR_STOP = 7.5
BASE_SPEED = 8.0  # baseline forward speed
PWM_FREQ = 50     # 50 Hz standard for RC servos and ESCs

#
# PD CONTROLLER GAINS (Steering)
#
# Higher kp -> sharper turns.
Kp = 0.02
# Higher kd => less oscillation/shaking.
Kd = 0.002

#
# STEERING SMOOTHING (Low-Pass Filter)
#
# 0.0 -> Instant response;
# 1.0 -> Completely ignores new calculations
SMOOTH = 0.6

#
# ENCODER & CRUISE CONTROL CONSTANTS
#
# We read the custom kernel driver's output from the sysfs virtual file system
ENCODER_SYSFS = "/sys/module/encoder_driver/parameters/encoder_rate" # note that the vfs gives rates not intervals
TARGET_INTERVAL = 9     # Target milliseconds between encoder ticks
SPEED_STEP = 0.003      # Step size to adjust PWM to maintain target speed


#
# lgpio INITIALIZATION
#
gpio_handle = lgpio.gpiochip_open(GPIO_CHIP)

lgpio.gpio_claim_output(gpio_handle, STEER_PIN)
lgpio.gpio_claim_output(gpio_handle, MOTOR_PIN)

# Helper function to cleanly send PWM signals to a specified pin."""
def set_pwm(pin, duty_cycle):
    lgpio.tx_pwm(gpio_handle, pin, PWM_FREQ, duty_cycle)

# Initialize both to neutral
set_pwm(STEER_PIN, STEER_CENTER)
set_pwm(MOTOR_PIN, MOTOR_STOP)
print("Waiting for ESC to initialize...")
time.sleep(2)

#
# CAMERA INITIALIZATION
#
cap = cv2.VideoCapture(0, cv2.CAP_V4L2)
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 240)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 180)

if not cap.isOpened():
    print("Camera failed to open!")
    lgpio.gpiochip_close(gpio_handle)
    exit()

#
# DATA LOGGING SETUP
#
LOG_FILE = "/home/pi/run_data.csv"

# Initializes the CSV file with column headers for graphing later.
def init_csv():
    with open(LOG_FILE, "w", newline="") as f:
        writer = csv.writer(f)
        writer.writerow(
            [
                "Frame",
                "Error",
                "Steer_PWM",
                "Motor_PWM",
                "Prop_Response",
                "Deriv_Response",
                "Encoder_Interval_ms",
            ]
        )

# Appends a single frame's calculated states to the CSV file.
def log_row(frame_num, error, steer_pwm, motor_pwm, prop, deriv, enc):
    with open(LOG_FILE, "a", newline="") as f:
        writer = csv.writer(f)
        writer.writerow(
            [
                frame_num,
                round(error, 3) if error is not None else 0,
                round(steer_pwm, 4),
                round(motor_pwm, 4),
                round(prop, 4),
                round(deriv, 4),
                enc,
            ]
        )

#
# HARDWARE ENCODER READER & SPEED CONTROL
#

# Helper to get the current millisecond interval between encoder ticks from the kernel driver.
def read_encoder():
    try:
        with open(ENCODER_SYSFS, "r") as f:
            return 1000 / int(f.read().strip())  # Convert rate (ticks/sec) to interval (ms)
    except:
        return 0  # If the driver isn't loaded or throws an error, return 0 to hold speed

# Dynamically adjusts the motor's duty cycle to maintain a constant physical speed regardless of battery drain or track friction.
def adjust_speed(current_dc, interval):
    # Ignore noises
    if interval == 0 or interval < 1:
        return current_dc

    # Adjust towards the target interval
    # too slow
    if interval > TARGET_INTERVAL:
        new_dc = current_dc + SPEED_STEP
    # too fast
    elif interval < TARGET_INTERVAL:
        new_dc = current_dc - SPEED_STEP
    else:
        new_dc = current_dc

    # Clamp between 8.0 and 8.2 so the speed is stable
    return max(8.0, min(8.2, new_dc))


#
# LANE DETECTION
#

# Processes the camera frame to find the blue tape, calculates the center
# of the lane, and returns the pixel error from the camera's center.
def get_lane_error(frame):
    # Convert from BGR to HSV
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

    # Define blue range
    lower_blue = np.array([80, 30, 30])
    upper_blue = np.array([155, 255, 255])
    mask = cv2.inRange(hsv, lower_blue, upper_blue)

    # Apply morphological opening to remove random background noise
    kernel = np.ones((5, 5), np.uint8)
    mask = cv2.morphologyEx(mask, cv2.MORPH_OPEN, kernel)

    img_h, img_w = mask.shape

    # We sample the image at 5 specific horizontal rows rather than processing the whole image.
    # The lower rows are physically closer to the car, so we give them a higher mathematical weight.
    rows = [
        int(img_h * 0.55),
        int(img_h * 0.65),
        int(img_h * 0.75),
        int(img_h * 0.85),
        int(img_h * 0.92),
    ]
    weights = [0.8, 1.0, 1.2, 1.5, 1.8]
    centers = []

    # Calculate the center of the blue pixels along each sampled row
    for i, r in enumerate(rows):
        strip = mask[r : r + 4, :]
        _, xs = np.where(strip > 0)
        if len(xs) > 10: # Ensure there is enough blue to constitute a valid line
            centers.append((np.mean(xs), weights[i]))

    blue_pixels = cv2.countNonZero(mask)

    if not centers:
        return None, blue_pixels

    # Calculate the overall weighted average center of the lane
    weighted_sum = sum(c * wt for c, wt in centers)
    total_weight = sum(wt for _, wt in centers)
    lane_center = weighted_sum / total_weight

    # Calculate error: Positive error = lane is to the right = car needs to steer right
    error = lane_center - (img_w / 2)
    # Clamp the error to prevent extreme steering values if the camera glitches
    error = max(-90.0, min(90.0, error))

    return error, blue_pixels


#
# STOP BOX DETECTION
#
def is_red_stop(frame):
    """Checks the bottom portion of the frame for the red stop box."""
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

    # Define red range
    mask1 = cv2.inRange(hsv, np.array([9, 36, 149]), np.array([24, 147, 209]))
    mask2 = cv2.inRange(hsv, np.array([0, 13, 000]), np.array([11, 250, 255]))
    red_mask = mask1 | mask2

    img_h, img_w = red_mask.shape

    # Define a ROI
    roi = red_mask[int(img_h * 0.10) : int(img_h * 0.95), :]

    # Calculate the percentage of red pixels in the ROI
    ratio = cv2.countNonZero(roi) / (roi.shape[0] * roi.shape[1])

    # If larger than threshold, we have a red stop sign
    return ratio > 0.15


# ==============================================================================
# DRIVING LOOP (MAIN LOOP)
# ==============================================================================

# Variables for status
last_error = 0.0
last_steer = STEER_CENTER
passed_first_stop = False
last_stop_time = 0
current_motor = BASE_SPEED
frame_num = 0

init_csv()

try:
    print("Starting  car will move now!")
    set_pwm(MOTOR_PIN, BASE_SPEED)

    while True:
        ret, frame = cap.read()
        if not ret:
            print("Camera read failed")
            break

        frame_num += 1

        # stop Box Check
        if is_red_stop(frame):
            # Prevent from immediately stopping again on the same box
            if time.time() - last_stop_time > 3:
                print(f"[{frame_num}] RED STOP detected")
                log_row(frame_num, 0, STEER_CENTER, MOTOR_STOP, 0, 0, 0)

                # Brake gradually over a few hundred milliseconds.
                for brake_dc in [7.8, 7.6, 7.5]:
                    set_pwm(MOTOR_PIN, brake_dc)
                    time.sleep(0.1)

                # Stop
                set_pwm(MOTOR_PIN, MOTOR_STOP)
                set_pwm(STEER_PIN, STEER_CENTER)

                # Stop at the first box, terminate at the second box.
                if not passed_first_stop:
                    time.sleep(3)
                    passed_first_stop = True
                    last_stop_time = time.time()
                    set_pwm(MOTOR_PIN, BASE_SPEED)
                    current_motor = BASE_SPEED
                    print("Resuming after first stop...")
                    time.sleep(0.5)
                else:
                    # If at final stop, break the loop
                    print("Final stop. Done.")
                    break

        # Lane Detection & Steering Calculation
        error, blue_px = get_lane_error(frame)

        if error is None:
            # If the camera completely loses the lane, hold the wheels straight
            steer_val = STEER_CENTER
            prop = 0.0
            deriv = 0.0
        else:
            # Proportional term
            prop = Kp * error
            # Derivative term
            deriv = Kd * (error - last_error)

            # Note: Subtracting because a positive error (lane on right) requires a larger PWM (steer right)
            raw_steer = STEER_CENTER - (prop + deriv)
            raw_steer = max(STEER_MIN, min(STEER_MAX, raw_steer))

            # Apply a low-pass filter to smooth the servo movement
            steer_val = SMOOTH * last_steer + (1 - SMOOTH) * raw_steer

            # Update state variables
            last_steer = steer_val
            last_error = error

        # Execute the calculated steering angle
        set_pwm(STEER_PIN, steer_val)

        # Motor Speed Adjustment
        enc_interval = read_encoder()
        current_motor = adjust_speed(current_motor, enc_interval)
        set_pwm(MOTOR_PIN, current_motor)

        # Log to file and print data
        log_row(frame_num, error, steer_val, current_motor, prop, deriv, enc_interval)
        print(
            f"[{frame_num}] Err:{error} Steer:{steer_val:.2f} "
            f"Motor:{current_motor:.2f} EncRate:{1000 // enc_interval if enc_interval != 0 else None} Blue:{blue_px}"
        )

        cv2.waitKey(1)
        time.sleep(0.02)

except KeyboardInterrupt:
    print("\nStopped by user via Keyboard Interrupt")

finally:
    # ==============================================================================
    # CLEANUP BLOCK
    # this block ensures the hardware does not run away uncontrollably
    # ==============================================================================
    set_pwm(MOTOR_PIN, MOTOR_STOP)
    set_pwm(STEER_PIN, STEER_CENTER)
    time.sleep(0.5)

    # Stop the PWM
    lgpio.tx_pwm(gpio_handle, MOTOR_PIN, 0, 0)
    lgpio.tx_pwm(gpio_handle, STEER_PIN, 0, 0)

    # Release gpio
    lgpio.gpiochip_close(gpio_handle)
    cap.release()
    print(f"Cleanup done. {frame_num} frames logged to CSV.")
