Published November 1, 2020 © GPL3+

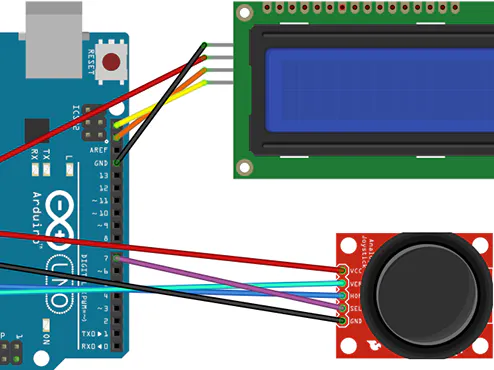

Lcd game console

A console made from an lcd and a joystick

BeginnerFull instructions provided1,182

Things used in this project

Hardware components

Arduino UNO

Solderless Breadboard Full Size

Analog joystick (Generic)

DFRobot I2C 16x2 Arduino LCD Display Module

USB-A to Mini-USB Cable

Software apps and online services

Arduino IDE

Arduino Web Editor

Story

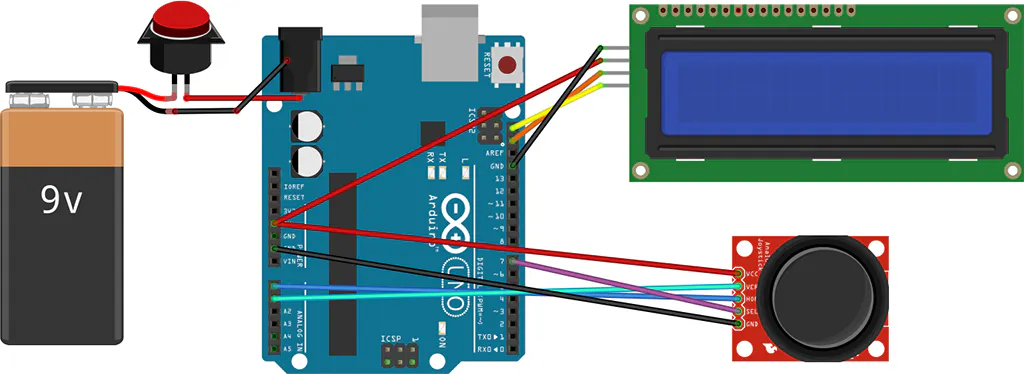

Hello its very simple so no explanation needed just get the parts and copy the code with the wiring diagram!

How to play!

PITF-ARD Click to start. Go right to find the door key to complete the level. Move the joystick UP to jump.

#include <Wire.h>
#include <VirtualWire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,16,2);
// VARIABLES DECLARATION
int game = 0;
int gameover = 0;
int le = 0;
float ll = 0;
int key = LOW;
int mov=0;
int cc=1;
int screen1[202];
int screen2[202];
int ind = 0;
int randomNumber=0;
int ax=0;
int ay=0;
int timegame=2000;
int clef = 0;
int jump = 0;
int path = 42;
int ck = 2;
// CHARS DECLARATION
byte man1[] = {0x04, 0x0E, 0x0E, 0x0E, 0x04, 0x04, 0x1F, 0x1F} ;
byte man2[] = {0x04, 0x1E, 0x05, 0x04, 0x0B, 0x10, 0x1F, 0x1F} ;
byte man3[] = {0x04, 0x0F, 0x14, 0x04, 0x1A, 0x01, 0x1F, 0x1F} ;
byte man4[] = {0x15, 0x0E, 0x04, 0x0E, 0x11, 0x00, 0x00, 0x00} ;
byte man5[] = {0x15, 0x0E, 0x04, 0x0E, 0x11, 0x00, 0x1F, 0x1F} ;
byte man6[] = {0x00, 0x00, 0x04, 0x0E, 0x04, 0x04, 0x1F, 0x1F} ;
byte flat[8] = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F};
byte hole[] = {0x0E, 0x1F, 0x15, 0x1B, 0x0E, 0x04, 0x1F, 0x1F} ;
byte m1[] = {0x1F, 0x1F, 0x1F, 0x19, 0x10, 0x00, 0x00, 0x00} ;
byte m2[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0F, 0x06, 0x00} ;
byte m3[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0C, 0x00, 0x00} ;
byte m4[] = {0x1F, 0x1F, 0x00, 0x0A, 0x00, 0x0A, 0x00, 0x0A} ;
byte m5[] = {0x1F, 0x1F, 0x1F, 0x00, 0x0A, 0x00, 0x0A, 0x00} ;
byte m6[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x00, 0x0A, 0x00} ;
byte keys[8] = {0x00, 0x03, 0x1F, 0x13, 0x00, 0x00, 0x1F, 0x1F} ;
byte dooro[8] = {0x1F, 0x11, 0x11, 0x11, 0x11, 0x11, 0x1F, 0x1F} ;
byte door[8] = {0x1F, 0x1F, 0x1D, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F} ;
void setup(){
 lcd.init();
 lcd.backlight();
 lcd.home();
 lcd.clear();
// CHARACTER ASSOCIATION
 lcd.createChar(1, man1);
 lcd.createChar(2, flat);
 lcd.createChar(3, hole);
 lcd.createChar(8, keys);
 lcd.createChar(7, door);
}
void loop(){
 if (game == 0)
 {
   if (gameover == 0)
     {
     // TITLE SCREEN SCREEN
       lcd.home();
       lcd.setCursor(0, 0);
       lcd.print("  Key game");
       lcd.setCursor(0, 1);
       lcd.print(" 2020");
       key = digitalRead(7);
       if (key == LOW)
           {
           // INIT GAME
           lcd.clear();
           lcd.home();
           le = 0;
           ll = 0;
           gameover = 1;
           cc=2;
           jump = 0;
           path = 16;
           }
      }
    else
      {
          // NEW SCREEN - START
           randomSeed(analogRead(0));
           game = 1;
           key = LOW;
           le = le + 1;
           ll = ll + 1;
           path = path + 10;
           if (path>202)
           {
           path = 202;
           }
           ind = 0;
           for(int s=0;s<(path + 10);s++)
            {
            screen1[s] = 2;
            }
           for(int s=11;s<(path -2 );s=s+3)
            {
            randomNumber = int(random(2, 4));
            //randomNumber = 3;
            screen1[s] = randomNumber;
            }
           screen1[6]=7;
           screen1[path + 1]=8;
           for(int s=0;s<(path+10);s++)
            {
            randomNumber = int(random(4, 7));
            screen2[s] = randomNumber;
            }
          if ((ll/2) == int(ll/2))
            {
             lcd.createChar(4, m4);
             lcd.createChar(5, m5);
             lcd.createChar(6, m6);
            }
            else
            {
             lcd.createChar(4, m1);
             lcd.createChar(5, m2);
             lcd.createChar(6, m3);
            }
          timegame = 2000;
          clef = 0;
          lcd.createChar(7, door);
          cc = 2;
          ck = 2;
    }
 }
 else
 {
 // GAME LOOP
     if (jump == 3)
     {
     jump = 0;
     }
     lcd.home();
     timegame = timegame - le;
     for(int s=ind;s<(ind+16);s++)
     {
      lcd.setCursor(s-ind, 0);
      lcd.write(byte(screen2[s]));
      lcd.setCursor(s-ind, 1);
      lcd.write(byte(screen1[s]));
     }
     if (timegame < 0)
     {
       timegame = 0;
     }
     lcd.setCursor(16-String(timegame).length(), 0);
     lcd.print(timegame);
if (jump == 0)
{
    lcd.setCursor(7, 1);
    lcd.write(byte(1));
    ck = screen1[ind+7];
    if (mov == 1)
     {
     if (cc==1)
     {
       lcd.createChar(1, man1);
     }
     else
     {
       lcd.createChar(1, man1);
     }
     mov = 0;
     }
     else
     {
     lcd.createChar(1, man1);
     mov = 1;
     }
}
if (jump > 0)
{
      lcd.setCursor(7, 0);
      lcd.write(byte(1));
      lcd.createChar(1, man4);
      if (cc == 2)
      {
      ind = ind + 1;
      }
      else
      {
      ind = ind - 1;
      }
 if (jump == 1)
 {
      jump = 2;
 }
 else
 {
      jump = 3;
 }
}
     // CHECK LIVE OR DIE - LOOP GAME OR GAME OVER
     if ((ck == 2)&&(timegame>0))  // SET THE VARIABLE TO CHECK
     {
     ay = analogRead(1);
     ax = analogRead(0);
     if ((ax > 600) && (jump == 0))
       {
           if (ind<(path-7))
           {
           ind = ind + 1;
           cc = 2;
           }
           else
           {
             screen1[path + 1]=2;
             clef = 1;
             lcd.createChar(7, dooro);
           }
       }
     if ((ax < 200) && (jump == 0))
     {
           if (ind>0)
           {
              ind = ind - 1;
              cc = 1;
           }
           else
           {
            if (clef==1)
            {
             // CHECK LEVEL CLEAR - START
           lcd.setCursor(0, 1);
           lcd.print("                ");
           lcd.setCursor((int(10-String(le).length())/2),1);
           lcd.print("LEVEL ");
           lcd.print(le+1);
           delay(4000);
           lcd.clear();
           game = 0;
           gameover = 1;
//  CHECK LEVEL CLEAR - END
             }
           }
     }
     if ((ay < 200) && (ind >1) && (ind <(path - 8)) && (jump == 0))
     {
     jump = 1;
     }
     delay(200);
// GAME LOOP - END
 }
 else
 {
//  GAME OVER - START
   if (timegame>0)
     {
     lcd.setCursor(0, 0);
     lcd.print("   GAME  OVER :(   ");
     lcd.setCursor(7, 1);
     lcd.write(byte(1));
     lcd.createChar(1, man6);
     }
     else
     {
     lcd.setCursor(0, 1);
     lcd.print("   TIME  OVER   ");
     }
     delay(4000);
     lcd.clear();
     game = 0;
     gameover =0;
//  GAME OVER - END
   }
 }
}

Code

sketch.ino

#include <Wire.h>
#include <VirtualWire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,16,2);

// VARIABLES DECLARATION
int game = 0;
int gameover = 0;
int le = 0;
float ll = 0;
int key = LOW;
int mov=0;
int cc=1;
int screen1[202];
int screen2[202];
int ind = 0;
int randomNumber=0;
int ax=0;
int ay=0;
int timegame=2000;
int clef = 0;
int jump = 0;
int path = 42;
int ck = 2;

// CHARS DECLARATION
byte man1[] = {0x04, 0x0E, 0x0E, 0x0E, 0x04, 0x04, 0x1F, 0x1F} ;
byte man2[] = {0x04, 0x1E, 0x05, 0x04, 0x0B, 0x10, 0x1F, 0x1F} ;
byte man3[] = {0x04, 0x0F, 0x14, 0x04, 0x1A, 0x01, 0x1F, 0x1F} ;
byte man4[] = {0x15, 0x0E, 0x04, 0x0E, 0x11, 0x00, 0x00, 0x00} ;
byte man5[] = {0x15, 0x0E, 0x04, 0x0E, 0x11, 0x00, 0x1F, 0x1F} ;
byte man6[] = {0x00, 0x00, 0x04, 0x0E, 0x04, 0x04, 0x1F, 0x1F} ;
byte flat[8] = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F};
byte hole[] = {0x0E, 0x1F, 0x15, 0x1B, 0x0E, 0x04, 0x1F, 0x1F} ;
byte m1[] = {0x1F, 0x1F, 0x1F, 0x19, 0x10, 0x00, 0x00, 0x00} ;
byte m2[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0F, 0x06, 0x00} ;
byte m3[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0C, 0x00, 0x00} ;
byte m4[] = {0x1F, 0x1F, 0x00, 0x0A, 0x00, 0x0A, 0x00, 0x0A} ;
byte m5[] = {0x1F, 0x1F, 0x1F, 0x00, 0x0A, 0x00, 0x0A, 0x00} ;
byte m6[] = {0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x00, 0x0A, 0x00} ;
byte keys[8] = {0x00, 0x03, 0x1F, 0x13, 0x00, 0x00, 0x1F, 0x1F} ;
byte dooro[8] = {0x1F, 0x11, 0x11, 0x11, 0x11, 0x11, 0x1F, 0x1F} ;
byte door[8] = {0x1F, 0x1F, 0x1D, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F} ;



void setup(){
  lcd.init();
  lcd.backlight();
  lcd.home();
  lcd.clear();
// CHARACTER ASSOCIATION
  lcd.createChar(1, man1);
  lcd.createChar(2, flat);
  lcd.createChar(3, hole);
  lcd.createChar(8, keys);
  lcd.createChar(7, door);
}


void loop(){
  if (game == 0)
  {
    if (gameover == 0)
      {
      // TITLE SCREEN SCREEN
        lcd.home();
        lcd.setCursor(0, 0);
        lcd.print("  key game");
        lcd.setCursor(0, 1);
        lcd.print(" 2020");
        key = digitalRead(7);
        if (key == LOW)
            {
            // INIT GAME
            lcd.clear();
            lcd.home();
            le = 0;
            ll = 0;
            gameover = 1;
            cc=2;
            jump = 0;
            path = 16;
            }
       }
     else
       {
           // NEW SCREEN - START
            randomSeed(analogRead(0));
            game = 1;
            key = LOW;
            le = le + 1;
            ll = ll + 1;
            path = path + 10;
            if (path>202)
            {
            path = 202;
            }
            ind = 0;
            for(int s=0;s<(path + 10);s++)
             {
             screen1[s] = 2;
             }

            for(int s=11;s<(path -2 );s=s+3)
             {
             randomNumber = int(random(2, 4));
             //randomNumber = 3;
             screen1[s] = randomNumber;
             }

            screen1[6]=7;
            screen1[path + 1]=8;

            for(int s=0;s<(path+10);s++)
             {
             randomNumber = int(random(4, 7));
             screen2[s] = randomNumber;
             }

           if ((ll/2) == int(ll/2))
             {
              lcd.createChar(4, m4);
              lcd.createChar(5, m5);
              lcd.createChar(6, m6);
             }
             else
             {
              lcd.createChar(4, m1);
              lcd.createChar(5, m2);
              lcd.createChar(6, m3);
             }
           timegame = 2000;
           clef = 0;
           lcd.createChar(7, door);
           cc = 2;
           ck = 2;
     }
  }
  else
  {

  // GAME LOOP
      if (jump == 3)
      {
      jump = 0;
      }

      lcd.home();
      timegame = timegame - le;
      for(int s=ind;s<(ind+16);s++)
      {
       lcd.setCursor(s-ind, 0);
       lcd.write(byte(screen2[s]));
       lcd.setCursor(s-ind, 1);
       lcd.write(byte(screen1[s]));
      }

      if (timegame < 0)
      {
        timegame = 0;
      }
      lcd.setCursor(16-String(timegame).length(), 0);
      lcd.print(timegame);

if (jump == 0)
{
     lcd.setCursor(7, 1);
     lcd.write(byte(1));
     ck = screen1[ind+7];
     if (mov == 1)
      {
      if (cc==1)
      {
        lcd.createChar(1, man1);
      }
      else
      {
        lcd.createChar(1, man1);
      }
      mov = 0;
      }
      else
      {
      lcd.createChar(1, man1);
      mov = 1;
      }
}

if (jump > 0)
{
       lcd.setCursor(7, 0);
       lcd.write(byte(1));
       lcd.createChar(1, man4);
       if (cc == 2)
       {
       ind = ind + 1;
       }
       else
       {
       ind = ind - 1;
       }
  if (jump == 1)
  {
       jump = 2;
  }
  else
  {
       jump = 3;
  }
}
      // CHECK LIVE OR DIE - LOOP GAME OR GAME OVER
      if ((ck == 2)&&(timegame>0))  // SET THE VARIABLE TO CHECK
      {
      ay = analogRead(1);
      ax = analogRead(0);
      if ((ax > 600) && (jump == 0))
        {
            if (ind<(path-7))
            {
            ind = ind + 1;
            cc = 2;
            }
            else
            {
              screen1[path + 1]=2;
              clef = 1;
              lcd.createChar(7, dooro);
            }
        }

      if ((ax < 200) && (jump == 0))
      {
            if (ind>0)
            {
               ind = ind - 1;
               cc = 1;
            }
            else
            {
             if (clef==1)
             {
              // CHECK LEVEL CLEAR - START
            lcd.setCursor(0, 1);
            lcd.print("                ");
            lcd.setCursor((int(10-String(le).length())/2),1);
            lcd.print("LEVEL ");
            lcd.print(le+1);
            delay(4000);
            lcd.clear();
            game = 0;
            gameover = 1;

//  CHECK LEVEL CLEAR - END

              }
            }
      }


      if ((ay < 200) && (ind >1) && (ind <(path - 8)) && (jump == 0))
      {
      jump = 1;
      }




      delay(200);


// GAME LOOP - END

  }
  else
  {

//  GAME OVER - START
    if (timegame>0)
      {
      lcd.setCursor(0, 0);
      lcd.print("   GAME  OVER :(   ");
      lcd.setCursor(7, 1);
      lcd.write(byte(1));
      lcd.createChar(1, man6);
      }
      else
      {
      lcd.setCursor(0, 1);
      lcd.print("   TIME  OVER   ");
      }
      delay(4000);
      lcd.clear();
      game = 0;
      gameover =0;

//  GAME OVER - END

    }
  }
}
