NE555 Christmas Tree

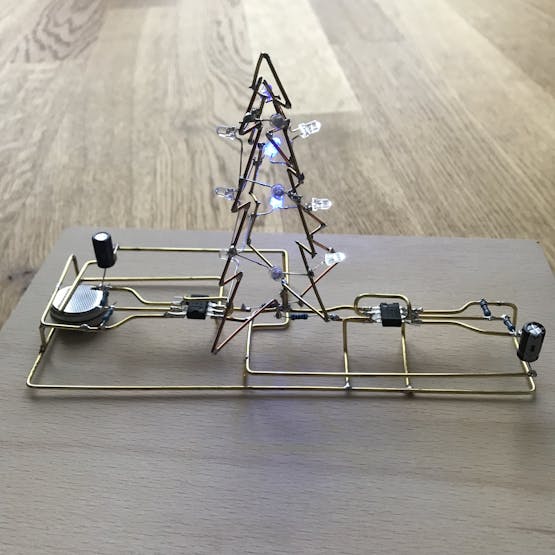

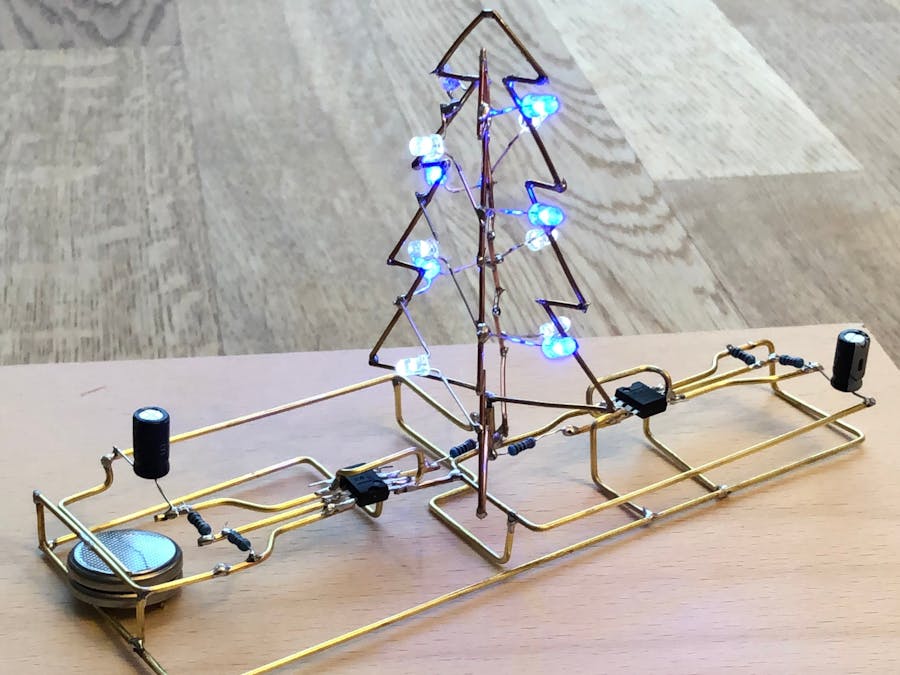

This is my try on a freeform circuit and this is inspired from the PCB version.

AdvancedShowcase (no instructions)515
NE555 Christmas Tree

Things used in this project

Hardware components

555 Timers
555 Timers
×2
Capacitor 100 µF
Capacitor 100 µF
×1
Capacitor 220 µF
Capacitor 220 µF
×1
Resistor 10k ohm
Resistor 10k ohm
×4
Resistor 220 ohm
Resistor 220 ohm
×2
Brass Rod
×1
Coin Cell Battery CR2032
Coin Cell Battery CR2032
×2

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
pliers

Story

Read more

Schematics

Schematic

Schematic new project sheet 1 20181214090442 3vzjfgg5s1
