Smart Home Concept Using Psoc6

Smart Switching using Capsense helps to control the appliances by a touch. Intruder detection and alerting using motion detection and noise.

IntermediateFull instructions provided6 hours899

Things used in this project

Hardware components

Infineon PSoC™ 62S2 Wi-Fi BT Pioneer Kit

12-volt dc adapter

Berg Pins( Right angle)

Berg Pins

General-purpose PCB

Resistor 10k ohm

Resistor 2.21k ohm

Resistor 1k ohm

Resistor 475 ohm

General Purpose Transistor PNP

Dc Barrel Jack Adapter - Female

Capacitor 10 µF

Capacitor 470 µF

Linear Regulator (7805)

mct2e

TaydaElectronics MINI RELAY SPDT 5 PINS 12VDC 10A 120V CONTACT

Buzzer, Piezo

PIR Motion Sensor (generic)

Software apps and online services

Infineon ModusToolbox™ Software

Hand tools and fabrication machines

Multitool, Screwdriver

Wire Stripper & Cutter, 18-10 AWG / 0.75-4mm² Capacity Wires

Soldering iron (generic)

Story

Smart Home Concept Using PSoC 6 is based around the CYPRESS PSoC6 WIFI- BT Pioneer Kit andModus Toolbox Software Environment.

The smart home concept using PSoC6 allows the user to monitor the intruder, whenever the motion and noise are detected system gives the alert. An ambient light sensor-based lighting controller helps to save energy by turning off the lights when there is enough Natural light. Touch-based appliances controlling using Capsense Buttons gives the smart feel and reduces the efforts to press the switches.

Features

Smart switching using Capsense allows controlling the appliances by a touch.
Intruder detection and alerting using the Motion sensor And PDM Microphone.
Theft Prevention and Alerting.
Natural light Intensity-based Lightings controller.
Detailed data can be found on the TFT Display.
Open-source Hardware design files and source code are available for download.

How Does Smart Home Concept Using PSoC 6 works?

The ambient light Sensor on the CY8CKIT - 028 TFT Display shieldcontinuously monitors the available Natural light Intensity. when there is low natural light intensity, the system activates the primary light source by turning on the Relay. whenever the user turns on the secondary lights by Capsense Buttons, the ambient light sensor measures the available light intensity. if the light intensity is more than the threshold values the system Deactivates the primary light source and saves the Power.

PIR motion sensor and PDM Microphone based noise detection will provide the security features in this system. During the night when Intruder motion or noise detected the system activates the buzzer and alerts the User.

Capsense buttons are been used to control the appliances by a touch. Here I am utilizing the Capsense features of the Pioneer Kit, in the two Capsense Buttons one button is used to turn ON the Lights another is used to turn OFF the light. When the user Touches Capsense Buttons the respective action's details are displayed on the TFT display.

Block Diagram

Block Diagram

The Heart of the smart home concept using PSoC Is a CYPRESS PSoC 6 WiFi-BT Pioneer Kit. The PSoC 6 WiFi-BT Pioneer Kit is a low-cost hardware platform that enables the design and debugs of the PSoC 62 MCU (CY8C6247BZI-D54) and the Murata LBEE5KL1DX Module (CYW4343W WiFi + Bluetooth Combo Chip).

PSoC 6 WiFi-BT Pioneer Kit Features

PSoC 62 MCU with up to 1MB Flash, 288KB SRAM, and 104 GPIOs
Murata LBEE5KL1DX Wi-Fi/BT combo module
On-board 512Mb QSPI NOR Flash Memory
EZ-PD™ CCG3 USB Type-C Controller with Power Delivery
CapSense touch slider, buttons, and proximity sensor
On-board debugger/programmer (KitProg)
Arduino UNO v3 headers
Digilent Pmod interface
CY8CKIT-028-TFT shield board with:
2.4-inch TFT display
Ambient light sensor
6-axis motion sensor
PDM-PCM microphone

PSoC 6 WiFi-BT Pioneer Kit

The PSoC 6 WiFi-BT Pioneer Kit has been designed for users to develop next-generation Internet of Things (IoT) applications. It comes with the PSoC 62 MCU, which provides IoT developers with an ultra-low-power, flexible, and secure MCU architecture. For more information about the Kit click here

Board Pinout

CY8CKIT-028-TFT

The TFT Display Shield Board (CY8CKIT-028-TFT) has been designed such that a TFT display, audio devices, and sensors can interface with PSoC MCUs.

Features

It comes with the features below to enable everyday objects to connect to the Internet of Things (IoT).

2.4 inch TFT Display (ST7789V)
Motion Sensor (BMI-160)
Ambient Light Sensor (TEMT6000X01)
PDM Microphone example code (SPK0838HT4HB)
Audio Codec (AK4954A)

For More Detailed information on the CY8CKIT-028-TFT Click Here

In this project, I have used Optocouplers to Drive the Relays and to control the lights and appliances. here optocouplers 4N25 help to protect the PSoC 6 WiFi-BT Pioneer Kit from external surge and gives isolation to users from high voltage. The connection diagrams Are attached in the files, please go through them. To power the optoisolator, Buzzer, and relays I have used an External Supply voltage of 5vdc. I am Regulating 5 volts from 12 volt 1A Power source using 7805 and other external components.

Optoisolated Relay driving circuit on PCB.

Programming The PSoC6 WIFI-BT Pioneer Kit

The PSoC6 WIFI-BT Pioneer kit comes with a debugger, and the firmware is KitProg2. but the Modustoolbox Requires Firmware with Kitprog3. so firmware needs to upgrade from KitProg2 to KitProg3.

To upgrade the firmware follow these steps

1. Press and hold down SW3 to set it into bootloader mode and connect the board. LED2 should flash.

2. Open the fw-loader folder using command prompt

3. Then go to the Command Prompt (Windows).

4. Add the code a and Hit enter

\fw-loader --update-kp3

5. Firmware upgrading status will appear on the screen

Programming PSoC6 CY8CKIT-062 WIFI- BT Pioneer Kit Using ModusToolbox

I have used ModusToolbox Version 2.2 To compile and Upload the code you can find the software here.

After Downloading and Installing SoftwareOpen the ModusToolbox.

1.Create a name and click on the launch (I am using Project Name AsEXAMPLE1)

2.Select New application from the Start menu

3. Project creator window will appear select CY8CKIT-062-WIFI-BT From PSoC 6 BSPs and click Next.

4. Choose Appropriate Application Template (For This project I am using the Empty PSoC App).

5. After Successful Initialization main window will appear with README.md

6. Open main.c From Project Window.

7. main. c will appear with Basic syntax code.

8. Now we Need To add libraries to the main code. I am utilizing Capsense, TFT, PDM Microphone, Serial port, Ambient light sensor, GPIO So I am going to add those libraries Now.

Click on the Quick access and Type Library Manager

And select ModusToolbox Library Manager or(CTRL+8)

Select Libraries

Select CY8CKIT-028-TFT then other CY8CKIT-028-TFT relatedlibraries will automatically select.

Then select emwin from PSoC Middleware And click Update

It will take few minutes to Get all libraries. after the successful importing it shows that Import is Complete.

click close it redirects to the main window.

9. Add or write code to Main.c

Since we are using TFT Display, before compiling the code we need to Write COMPONENTS = EMWIN_NOSNTS In the Maker. file

Click on Maker. file from the project window

And write COMPONENTS=EMWIN_NOSNTS and save

1. COMPONENTS=EMWIN_NOSNTS

Now Code Can compile and upload.

To compile And Upload the Code Select Debug(KitProg3_MiniProg4) from Launches Menu.

Note: Before Launching Make sure That the Device is Connected to Your computer.

After Successful uploading, the following windows will appear and Your Kit is Ready for Action.

Demonstration Video and Results Images

Testing Result Images

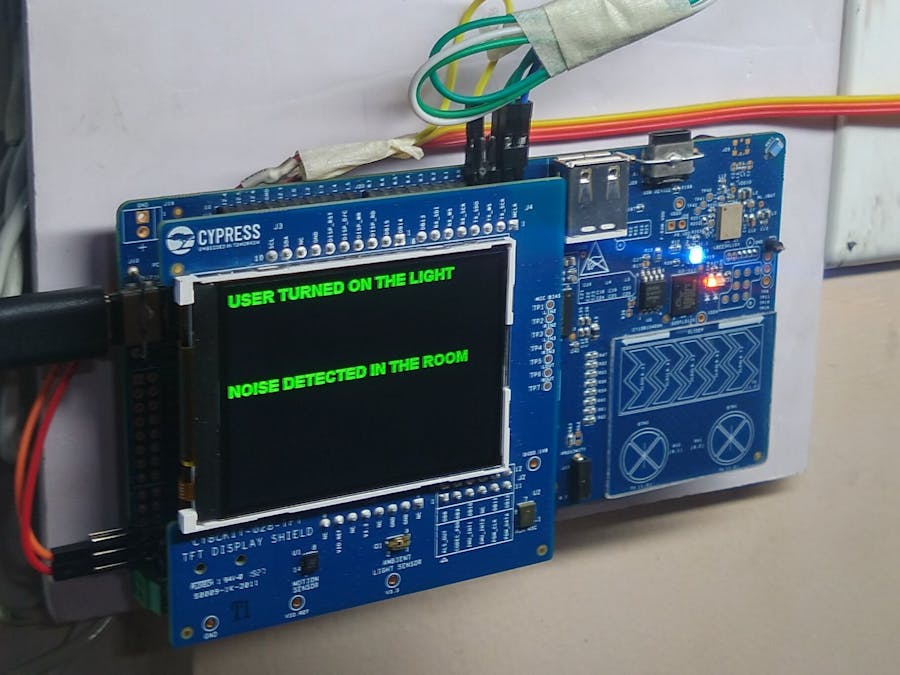

1. User Turned ON The Light Using Capsense Button & Motion Detected Inside The Room

2.User Turned OFF The Light Using Capsense Button & Light Intensity Is LOW Turning ON The Primary Light Source.

3.Noise Detected In The Room

Test Setup Before Turning ON The System

Demonstration Video

Useful Links

1. https://cypresssemiconductorco.github.io/TARGET_CY8CKIT-062-WIFI-BT/html/modules.html

2.https://cypresssemiconductorco.github.io/psoc6hal/html/group__group__hal__gpio.html#subsection_gpio_snippet_2

3.https://github.com/cypresssemiconductorco/CY8CKIT-028-TFT

4. https://www.nxp.com/docs/en/user-guide/UM03001_emWin5_3.pdf

Schematics

Code

C0DE

/*******************************************************************************

 * Include header files
 ******************************************************************************/
#include "cybsp.h"
#include "stdlib.h"
#include "cy_pdl.h"
#include "cyhal.h"
#include "cycfg.h"
#include "cycfg_capsense.h"
#include "led.h"
#include "cy_retarget_io.h"
#include "mtb_light_sensor.h" /*light sensor library */
#include "GUI.h"
#include "mtb_st7789v.h"
#include "cy8ckit_028_tft_pins.h"
/*******************************************************************************
 *  Macros
 ******************************************************************************/
#define CAPSENSE_INTR_PRIORITY      (3u)
#define EZI2C_INTR_PRIORITY         (1u) /* EZI2C interrupt priority must be* higher than CapSense interrupt */
#define LIGHT_SENSOR_PIN (CYBSP_A0)
#define FRAME_SIZE                  (1024)
#define THRESHOLD_HYSTERESIS        70u  /* PDM Sensitivity adjustment (as value increases sensitivity decreases)*/
#define VOLUME_RATIO                (4*FRAME_SIZE)
#define SAMPLE_RATE_HZ              8000u
#define DECIMATION_RATE             64u
#define AUDIO_SYS_CLOCK_HZ          24576000u
#define PDM_DATA                    P10_5
#define PDM_CLK                     P10_4
#define BUZZER_BEEP_COUNT         (2)
#define PIR_BUZZER_BEEP_COUNT         (2)
#define GPIO_INTERRUPT_PRIORITY (1u)
cyhal_adc_t adc;
mtb_light_sensor_t light_sensor;


/*******************************************************************************
* Function Prototypes
*******************************************************************************/

static uint32_t initialize_capsense(void);
static void process_touch(void);
static void initialize_capsense_tuner(void);
static void capsense_isr(void);
static void capsense_callback();
void handle_error(void);
void button_isr_handler(void *arg, cyhal_gpio_event_t event);
void pdm_pcm_isr_handler(void *arg, cyhal_pdm_pcm_event_t event);
void clock_init(void);

/*******************************************************************************
* Global Variables
*******************************************************************************/
cy_stc_scb_ezi2c_context_t ezi2c_context;
cyhal_ezi2c_t sEzI2C;
cyhal_ezi2c_slave_cfg_t sEzI2C_sub_cfg;
cyhal_ezi2c_cfg_t sEzI2C_cfg;
volatile bool capsense_scan_complete = false;
volatile bool button_flag = false;
volatile bool pdm_pcm_flag = true;
uint32_t noise_threshold = THRESHOLD_HYSTERESIS;
volatile bool gpio_intr_flag = false;


uint32_t volume = 0;

cyhal_pdm_pcm_t pdm_pcm;
cyhal_clock_t   audio_clock;
cyhal_clock_t   pll_clock;

void handle_error(void)
{
    /* Disable all interrupts. */
    __disable_irq();

    CY_ASSERT(0);
}


/*******************************************************************************
* TFT DISPLAY PIN CONFIGURARIONS
*******************************************************************************/
const mtb_st7789v_pins_t tft_pins =
{
    .db08 = CY8CKIT_028_TFT_PIN_DISPLAY_DB8,
    .db09 = CY8CKIT_028_TFT_PIN_DISPLAY_DB9,
    .db10 = CY8CKIT_028_TFT_PIN_DISPLAY_DB10,
    .db11 = CY8CKIT_028_TFT_PIN_DISPLAY_DB11,
    .db12 = CY8CKIT_028_TFT_PIN_DISPLAY_DB12,
    .db13 = CY8CKIT_028_TFT_PIN_DISPLAY_DB13,
    .db14 = CY8CKIT_028_TFT_PIN_DISPLAY_DB14,
    .db15 = CY8CKIT_028_TFT_PIN_DISPLAY_DB15,
    .nrd  = CY8CKIT_028_TFT_PIN_DISPLAY_NRD,
    .nwr  = CY8CKIT_028_TFT_PIN_DISPLAY_NWR,
    .dc   = CY8CKIT_028_TFT_PIN_DISPLAY_DC,
    .rst  = CY8CKIT_028_TFT_PIN_DISPLAY_RST
};

/*******************************************************************************
* PDM MICROPHONE intialization setting
*******************************************************************************/
const cyhal_pdm_pcm_cfg_t pdm_pcm_cfg =
{
    .sample_rate     = SAMPLE_RATE_HZ,
    .decimation_rate = DECIMATION_RATE,
    .mode            = CYHAL_PDM_PCM_MODE_STEREO,
    .word_length     = 16,  /* bits */
    .left_gain       = 0,   /* dB */
    .right_gain      = 0,   /* dB */
};


/*******************************************************************************
* Main loop
*******************************************************************************/

int main(void)
{
    cy_rslt_t result;
    bool read_val;
    uint32_t count = 0;
    uint8_t light;
    int16_t  audio_frame[FRAME_SIZE] = {0};
    CY_ASSERT(result == CY_RSLT_SUCCESS);
    result = cybsp_init();
    result = mtb_st7789v_init8(&tft_pins);
    __enable_irq();
    clock_init();
    result = cyhal_gpio_init(P13_2, CYHAL_GPIO_DIR_INPUT, CYHAL_GPIO_DRIVE_PULLDOWN,false); /* PIR MOTION SENSOR PIN*/
    cyhal_gpio_init(P13_5,CYHAL_GPIO_DIR_OUTPUT,CYHAL_GPIO_DRIVE_STRONG, false); /*CAPSENSE CONTROLLED LIGHT PIN*/
    cyhal_gpio_init(P13_4,CYHAL_GPIO_DIR_OUTPUT,CYHAL_GPIO_DRIVE_STRONG, false);/* PRIMARY LIGHT SOURCE PIN */
    cyhal_gpio_init(P10_7,CYHAL_GPIO_DIR_OUTPUT,CYHAL_GPIO_DRIVE_STRONG, false);/* BUZZER PIN */
    cyhal_gpio_init(CYBSP_USER_LED5, CYHAL_GPIO_DIR_OUTPUT, CYHAL_GPIO_DRIVE_STRONG, false); /*ON BOARD LED INDICATION FOR NOISE DETECTION */
    cyhal_pdm_pcm_init(&pdm_pcm, PDM_DATA, PDM_CLK, &audio_clock, &pdm_pcm_cfg);
    cyhal_pdm_pcm_register_callback(&pdm_pcm, pdm_pcm_isr_handler, NULL);
    cyhal_pdm_pcm_enable_event(&pdm_pcm, CYHAL_PDM_PCM_ASYNC_COMPLETE, CYHAL_ISR_PRIORITY_DEFAULT, true);
    cyhal_pdm_pcm_start(&pdm_pcm);
    GUI_Init();
    initialize_led();
    initialize_capsense_tuner();
    result = initialize_capsense();
    result = cy_retarget_io_init(CYBSP_DEBUG_UART_TX, CYBSP_DEBUG_UART_RX, CY_RETARGET_IO_BAUDRATE);
    result = cyhal_adc_init(&adc, LIGHT_SENSOR_PIN, NULL);
    CY_ASSERT(result == CY_RSLT_SUCCESS);
    result = mtb_light_sensor_init(&light_sensor, &adc, LIGHT_SENSOR_PIN);
    CY_ASSERT(result == CY_RSLT_SUCCESS);

    Cy_CapSense_ScanAllWidgets(&cy_capsense_context);
    GUI_SetColor(GUI_GREEN);
    GUI_SetBkColor(GUI_BLACK);
    GUI_SetFont(GUI_FONT_20B_1);
    GUI_Clear();


    for (;;)
    {
    	read_val = cyhal_gpio_read(P13_2);
    	light = mtb_light_sensor_light_level(&light_sensor);
    	printf("Ambient Light = %d%% \r\n", light);

/*******************************************************************************
* Motion detection
*******************************************************************************/
    	 if(read_val == true)
    	 {

    		 for (count = 0; count < PIR_BUZZER_BEEP_COUNT; count++)
    		 {
    			 GUI_SetColor(GUI_WHITE);
    			 GUI_SetTextAlign(GUI_TA_LEFT);
    			 GUI_DispStringAt("ALERT!!: MOTION DETECTED ", 0, 150);
    			 cyhal_gpio_write(P10_7, true);
    			 cyhal_system_delay_ms(50);
    		     cyhal_gpio_write(P10_7, false);
    		     cyhal_system_delay_ms(50);
    		 }

    	 }

    	 else
    	 {
    		 GUI_SetTextAlign(GUI_TA_LEFT);
    		 GUI_DispStringAt(" ", 0, 150);

    		 GUI_DispCEOL();
    	 }

/*******************************************************************************
* light intensity detection
*******************************************************************************/

    	if(light < 10) // LIGHT INTENSITY THRESHOLD VALUE
    	{

    		GUI_SetColor(GUI_RED);
    		GUI_SetTextAlign(GUI_TA_LEFT);
    		GUI_DispStringAt("LIGHT INTENSITY IS LOW TURNING ", 0, 50);
    		GUI_DispStringAt("ON THE PRIMARY LIGHT SOURCE." , 0, 70);
    		cyhal_gpio_write(P13_4, true);  /*TURN ON THE PRIMARY LIGHT*/
    	}

    	else
    	{
    		GUI_SetColor(GUI_RED);
    		GUI_SetTextAlign(GUI_TA_LEFT);
    		GUI_DispStringAt(" ", 0, 50);
    		GUI_DispCEOL();
    		GUI_DispStringAt(" ", 0, 70);
    		GUI_DispCEOL();
    		cyhal_gpio_write(P13_4, false); /* TURN OFF THE PRIMARY LIGHT*/
    	}
/*******************************************************************************
* capsense
*******************************************************************************/
        if (capsense_scan_complete)
        {
            Cy_CapSense_ProcessAllWidgets(&cy_capsense_context);
            process_touch();
            Cy_CapSense_RunTuner(&cy_capsense_context);
            Cy_CapSense_ScanAllWidgets(&cy_capsense_context);
            capsense_scan_complete = false;
        }

/*******************************************************************************
* PDM NOISE DETECTION
*******************************************************************************/
        if (pdm_pcm_flag)
        {
        	pdm_pcm_flag = 0;
        	volume = 0;
        	for (uint32_t index = 0; index < FRAME_SIZE; index++)
        	{
        		volume += abs(audio_frame[index]);
        	}



        	for (uint32_t index = 0; index < (volume/VOLUME_RATIO); index++)
        	{

        	}

        	if ((volume/VOLUME_RATIO) > noise_threshold)
        	{
        		cyhal_gpio_write(CYBSP_USER_LED5, false); /* WHEN NOISE DETECTED TURN ON THE ONBOARD LED*/
        		GUI_SetColor(GUI_GREEN);
        		GUI_SetTextAlign(GUI_TA_LEFT);
        		GUI_DispStringAt("NOISE DETECTED IN THE ROOM", 0, 100);
        		for (count = 0; count < BUZZER_BEEP_COUNT; count++)
        		        {
        			cyhal_gpio_write(P10_7, true); /* WHEN NOISE DETECTED TURN ON THE BUZZER*/
        				cyhal_system_delay_ms(100);
        				cyhal_gpio_write(P10_7, false);  /* WHEN NOISE DETECTED TURN OFF THE BUZZER*/
        				cyhal_system_delay_ms(100);
        		        }
        	}

        	else
        	{
        	cyhal_gpio_write(CYBSP_USER_LED5, true);  /* WHEN NOISE DETECTED TURN OFF THE ONBOARD LED*/
                GUI_SetTextAlign(GUI_TA_LEFT);
                GUI_DispStringAt("                     ", 0, 100);
                GUI_DispCEOL();
                cyhal_gpio_write(P10_7, false);
        	}

        	cyhal_pdm_pcm_read_async(&pdm_pcm, audio_frame, FRAME_SIZE);
        }

        if (button_flag)
        {
        	button_flag = false;
        	noise_threshold = (volume/VOLUME_RATIO) + THRESHOLD_HYSTERESIS;

        }

    }
    cyhal_system_delay_ms(1000);
}

/*******************************************************************************
* CAPSENSING
*******************************************************************************/
static void process_touch(void)
{
    uint32_t button0_status;
    uint32_t button1_status;
    cy_stc_capsense_touch_t *slider_touch_info;
    uint16_t slider_pos;
    uint8_t slider_touch_status;
    bool led_update_req = false;

    static uint32_t button0_status_prev;
    static uint32_t button1_status_prev;
    static uint16_t slider_pos_prev;
    static led_data_t led_data = {LED_ON, LED_MAX_BRIGHTNESS};

    button0_status = Cy_CapSense_IsSensorActive(
        CY_CAPSENSE_BUTTON0_WDGT_ID,
        CY_CAPSENSE_BUTTON0_SNS0_ID,
        &cy_capsense_context);

    button1_status = Cy_CapSense_IsSensorActive(
        CY_CAPSENSE_BUTTON1_WDGT_ID,
        CY_CAPSENSE_BUTTON1_SNS0_ID,
        &cy_capsense_context);

    slider_touch_info = Cy_CapSense_GetTouchInfo(
    CY_CAPSENSE_LINEARSLIDER0_WDGT_ID, &cy_capsense_context);
    slider_touch_status = slider_touch_info->numPosition;
    slider_pos = slider_touch_info->ptrPosition->x;


    if ((0u != button0_status) &&
        (0u == button0_status_prev))
    {
    	GUI_Clear();
        led_data.state = LED_ON;
        cyhal_gpio_write(P13_5, true); /*CAPSENSE CONTROLLED LIGHT ON*/
        led_update_req = true;
        GUI_SetColor(GUI_GREEN);
        GUI_SetTextAlign(GUI_TA_LEFT);
        GUI_DispStringAt("USER TURNED ON THE LIGHT", 1, 1);
    }

    if ((0u != button1_status) &&
        (0u == button1_status_prev))
    {
    	GUI_Clear();
        led_data.state = LED_OFF;
        cyhal_gpio_write(P13_5, false); /*CAPSENSE CONTROLLED LIGHT OFF */
        led_update_req = true;
        GUI_SetColor(GUI_BLUE);
        GUI_SetTextAlign(GUI_TA_LEFT);
        GUI_DispStringAt("USER TURNED OFF THE LIGHT", 0, 0);
    }


    if ((0 != slider_touch_status) &&
        (slider_pos != slider_pos_prev))
    {
        led_data.brightness = (slider_pos * 100)
                / cy_capsense_context.ptrWdConfig[CY_CAPSENSE_LINEARSLIDER0_WDGT_ID].xResolution;
        led_update_req = true;
    }


    if (led_update_req)
    {
        update_led_state(&led_data);
    }

    /* Update previous touch status */
    button0_status_prev = button0_status;
    button1_status_prev = button1_status;
    slider_pos_prev = slider_pos;
}


static uint32_t initialize_capsense(void)
{
    uint32_t status = CYRET_SUCCESS;
    const cy_stc_sysint_t CapSense_interrupt_config =
        {
            .intrSrc = CYBSP_CSD_IRQ,
            .intrPriority = CAPSENSE_INTR_PRIORITY,
        };

    status = Cy_CapSense_Init(&cy_capsense_context);
    if (CYRET_SUCCESS != status)
    {
        return status;
    }

    Cy_SysInt_Init(&CapSense_interrupt_config, capsense_isr);
    NVIC_ClearPendingIRQ(CapSense_interrupt_config.intrSrc);
    NVIC_EnableIRQ(CapSense_interrupt_config.intrSrc);
    status = Cy_CapSense_Enable(&cy_capsense_context);

    if (CYRET_SUCCESS != status)
    {
        return status;
    }


    status = Cy_CapSense_RegisterCallback(CY_CAPSENSE_END_OF_SCAN_E, capsense_callback, &cy_capsense_context);
    if (CYRET_SUCCESS != status)
    {
        return status;
    }

    return status;
}

static void capsense_isr(void)
{
    Cy_CapSense_InterruptHandler(CYBSP_CSD_HW, &cy_capsense_context);
}


void capsense_callback(cy_stc_active_scan_sns_t * ptrActiveScan)
{
    capsense_scan_complete = true;
}

static void initialize_capsense_tuner(void)
{
    cy_rslt_t result;
    sEzI2C_sub_cfg.buf = (uint8 *)&cy_capsense_tuner;
    sEzI2C_sub_cfg.buf_rw_boundary = sizeof(cy_capsense_tuner);
    sEzI2C_sub_cfg.buf_size = sizeof(cy_capsense_tuner);
    sEzI2C_sub_cfg.slave_address = 8U;

    sEzI2C_cfg.data_rate = CYHAL_EZI2C_DATA_RATE_400KHZ;
    sEzI2C_cfg.enable_wake_from_sleep = false;
    sEzI2C_cfg.slave1_cfg = sEzI2C_sub_cfg;
    sEzI2C_cfg.sub_address_size = CYHAL_EZI2C_SUB_ADDR16_BITS;
    sEzI2C_cfg.two_addresses = false;

    result = cyhal_ezi2c_init(&sEzI2C, CYBSP_I2C_SDA, CYBSP_I2C_SCL, NULL, &sEzI2C_cfg);
    if (result != CY_RSLT_SUCCESS)
    {
        handle_error();
    }

}


/*******************************************************************************
* PDM DATA PROCESSING
*******************************************************************************/
void button_isr_handler(void *arg, cyhal_gpio_event_t event)
{
    (void) arg;
    (void) event;

    button_flag = true;
}

void pdm_pcm_isr_handler(void *arg, cyhal_pdm_pcm_event_t event)
{
    (void) arg;
    (void) event;

    pdm_pcm_flag = true;
}

void clock_init(void)
{
    /* Initialize the PLL */
    cyhal_clock_get(&pll_clock, &CYHAL_CLOCK_PLL[0]);
    cyhal_clock_init(&pll_clock);
    cyhal_clock_set_frequency(&pll_clock, AUDIO_SYS_CLOCK_HZ, NULL);
    cyhal_clock_set_enabled(&pll_clock, true, true);

    cyhal_clock_get(&audio_clock, &CYHAL_CLOCK_HF[1]);
    cyhal_clock_init(&audio_clock);

    cyhal_clock_set_source(&audio_clock, &pll_clock);
    cyhal_clock_set_enabled(&audio_clock, true, true);
}
