Solar Powered (Beehive) Monitor Using Sigfox

Small temperature/humidity/atmospheric pressure monitor using Sigfox to transfer the data. Powered by solar energy to monitor beehives.

IntermediateShowcase (no instructions)16 hours4,494

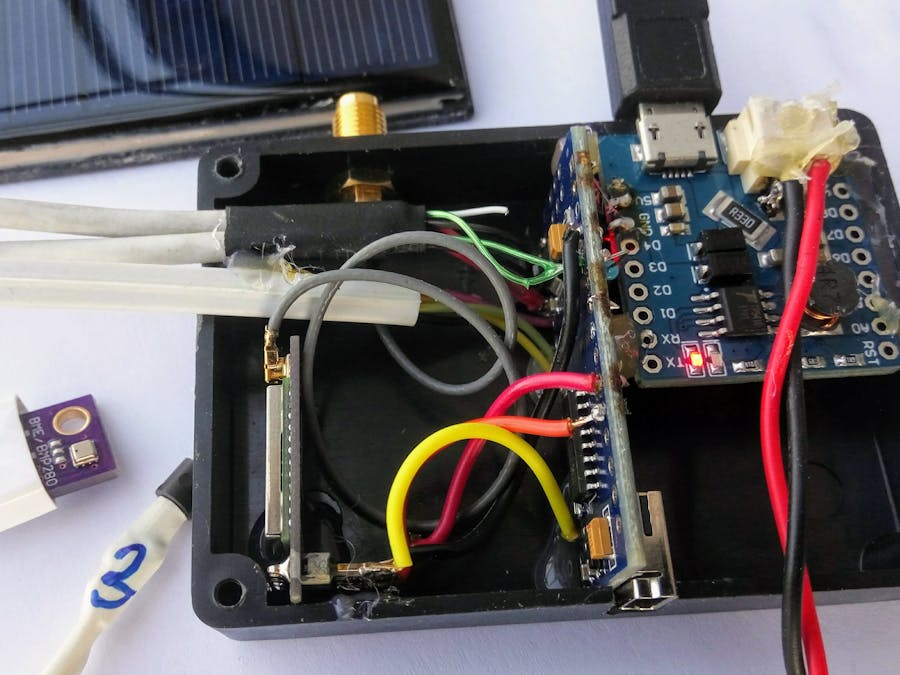

Solar Powered (Beehive) Monitor Using Sigfox

Things used in this project

Hardware components

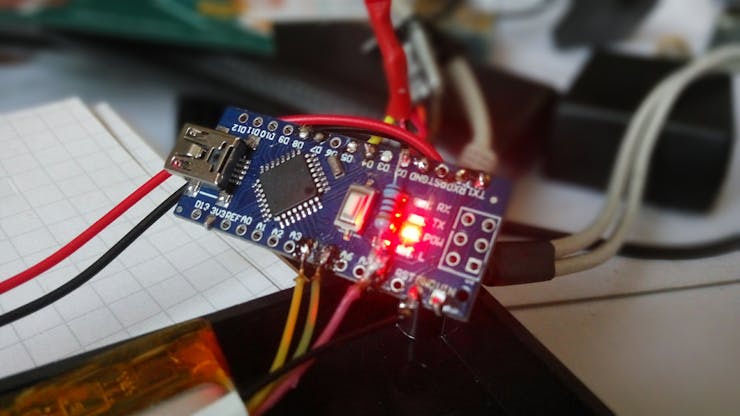

Arduino Nano R3
Arduino Nano R3
×1
IOT LPWAN SigFox Node UART Modem 868MHz with antena
×1
WeMos Battery Shield for D1 mini
×1
Li-pol accu 3,7V/550mAh 4x30x35mm
×1
SparkFun Atmospheric Sensor Breakout - BME280
SparkFun Atmospheric Sensor Breakout - BME280
×1
DS18B20 Programmable Resolution 1-Wire Digital Thermometer
Maxim Integrated DS18B20 Programmable Resolution 1-Wire Digital Thermometer
×2
Case
×1
Wire
×1

Software apps and online services

Sigfox
Sigfox
Webserver (PHP, mySQL)

Hand tools and fabrication machines

Soldering tool
Multimeter

Story

Read more

Schematics

iTRUBEC SigFox beehive monitor

Basic schema (does not contain the power part)

Code

iTRUBEC SigFox beehive monitor sketch & callback REST in PHP
