Nose Lab: Edge AI smell classifier

Edge AI E-nose: train the neural net in your browser, export a standalone Arduino Uno sketch. No Python, no cloud, no PC after uplo

IntermediateFull instructions provided1,747

Things used in this project

Hardware components

Arduino UNO

Seeed Studio Grove - Gas Sensor(MQ2)

DFRobot Gravity: Analog Alcohol Sensor (MQ3) For Arduino

DFRobot Gravity: Analog CH4 Gas Sensor (MQ4) For Arduino

DFRobot Gravity: Analog LPG Gas Sensor (MQ5) For Arduino

DFRobot Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino

MQ-135

Story

## What this is

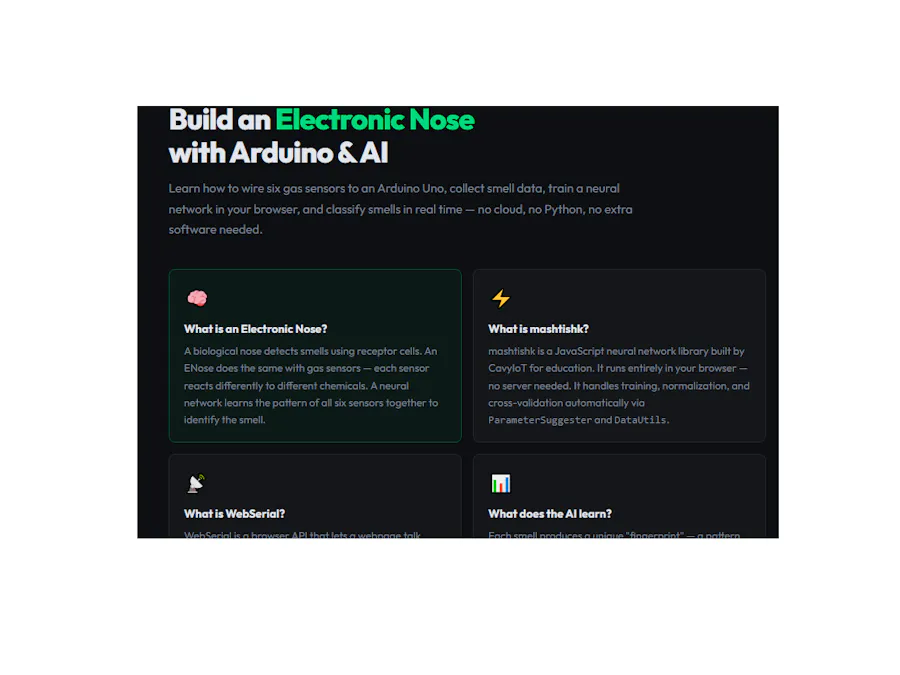

ENose Lab is a single-page web app that turns an Arduino Uno plus six MQ gas sensors into a trainable smell classifier. Everything — data collection, neural network training, confusion matrix, live inference — happens in your browser over WebSerial. When you're happy with the model, one click exports a self-contained Arduino sketch that runs inference directly on the Uno, with weights baked into flash via `PROGMEM`. No PC, no cloud, no retraining.

**Try it now:** https://cavyiot.com/enose (Chrome or Edge on desktop required — the app uses WebSerial)

## Why I built this

Most electronic-nose tutorials stop at "read the sensors." The interesting part — teaching the thing to tell coffee from ethanol — is usually punted to Python, Colab notebooks, TensorFlow Lite conversion, and a pile of toolchain setup that nobody actually wants to install. I wanted the whole loop (collect → train → deploy) to work in one tab, and for the final artifact to be a plain `.ino` file that anyone can flash from the Arduino IDE.

The neural network runs on `mashtishk`, a small JavaScript NN library I wrote for exactly this kind of on-device ML work. Training uses a Web Worker so the UI stays responsive. Cross-validation is built in (k-fold) so the accuracy number you see is actually honest.

## What you'll build

A standalone smell classifier that:

- Reads six MQ gas sensors continuously

- Runs a trained neural network on the Uno itself (no PC tethered after upload)

- Prints predicted class + confidence over Serial at 9600 baud

- Uses `PROGMEM` so weights live in flash — SRAM stays free for inference

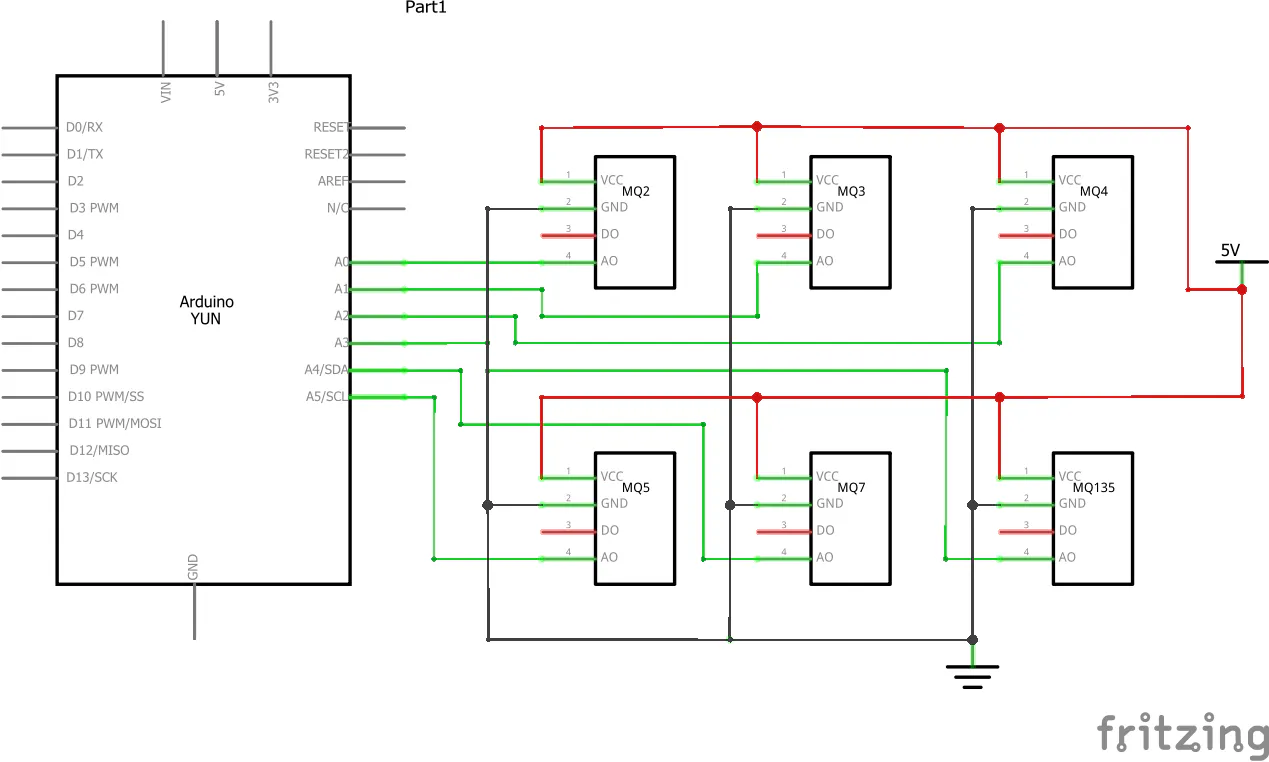

## Hardware

- Arduino Uno (ATmega328P)

- MQ-2 (LPG/smoke) → A0

- MQ-3 (alcohol) → A1

- MQ-4 (methane) → A2

- MQ-5 (natural gas) → A3

- MQ-7 (CO) → A4

- MQ-135 (air quality / NH3/NOx/benzene) → A5

- Breadboard, jumpers, USB cable

All sensors share `VCC → 5V` and `GND → GND`. Give them 2–3 minutes to warm up before collecting data — cold MQ readings are nonsense.

## The full workflow (browser side)

1. **Connect.** Upload the provided sketch, plug in the Uno, click Connect.

2. **Define classes.** Pick 2–3 smells (e.g. clean air, coffee, ethanol). Set readings per session.

3. **Collect.** Hit Collect near each smell. Do 3+ sessions per class — the app merges them.

4. **AutoConfig.** App picks the architecture and hyperparameters.

5. **Train.** Runs in a Web Worker with live loss chart and k-fold cross-validation.

6. **Results.** Confusion matrix + live inference at 4 Hz.

7. **Export.** One click → `enose_uno.zip` with the sketch and inference header. Flash and go.

## How the on-Uno inference works

Weights and biases are generated as `const float PROGMEM` arrays, read from flash at inference time with `pgm_read_float()`. Two 64-float ping-pong buffers hold activations, so SRAM usage stays around 512 bytes regardless of model size. A typical 6→12→8→3 network (~230 params) runs in single-digit milliseconds.

## Tips that took me way too long to learn

- **Warm up the sensors for 2–3 minutes** before collecting. MQ heaters need time to stabilize; cold readings drift by hundreds of ADC counts.

- **Collect across sessions, not in one sitting.** Three collections of 20 readings each, spaced by a minute or two, beats one collection of 60 every time. The model learns the smell, not the specific moment you sampled.

- **Include "clean air"** as a class. Without a null class, the model will always predict *something* and confidently misclassify nothing-at-all as coffee.

- **Keep the network small.** 6 → 12 → 8 → N is a sensible starting point. Anything bigger than ~800 params gets tight on Uno SRAM.

- **Serial Monitor at 9600 baud** for the generated sketch. The browser-side collection sketch is also 9600.

## Limitations, honestly

- MQ sensors are crude. They respond to broad gas families, not specific molecules. Don't expect to tell cabernet from merlot.

- Cross-sensitivity is real. MQ-135 sees everything. This is a feature for pattern-based classification, a bug if you want absolute concentrations.

- Humidity and temperature affect readings. If you collect training data in winter and test in summer, accuracy will tank. Collect in the conditions you'll deploy in.

- Browser support: Chrome or Edge desktop only. WebSerial isn't in Firefox or Safari, and the File System Access API isn't on mobile.

## What's next

I'm working on an ESP32 export target (12-bit ADC, 3.3V, Wi-Fi for remote inference) and a variant for the Grove Multichannel V2 I2C sensor. Also thinking about adding temperature/humidity compensation as an optional preprocessing step.

## Links

- **Live app:** https://cavyiot.com/enose

- **mashtishk library:** [https://github.com/CavyAgrotronics/mashtishk]

- **CavyIoT:** https://cavyiot.com

Feedback and PRs welcome. If you build something with this, I'd love to see what smells you classified.

Code

Enose.ino

// ENose Uno — On-Demand 6xMQ Reader
// MQ-2(A0) MQ-3(A1) MQ-4(A2) MQ-5(A3) MQ-7(A4) MQ-135(A5)
//
// Command protocol:
//   "Snn\n" -> burst of nn readings (SETTLE_MS between each)
//   "L\n"   -> live stream at 4 Hz
//   "X\n"   -> stop streaming
// Sends "READY\n" on boot. All output is 6-value CSV.

#define SETTLE_MS  150
#define STREAM_MS  250

bool streaming = false;
unsigned long lastStream = 0;
String cmdBuf = "";

void sendReading() {
  Serial.print(analogRead(A0)); Serial.print(",");
  Serial.print(analogRead(A1)); Serial.print(",");
  Serial.print(analogRead(A2)); Serial.print(",");
  Serial.print(analogRead(A3)); Serial.print(",");
  Serial.print(analogRead(A4)); Serial.print(",");
  Serial.println(analogRead(A5));
}

void setup() {
  Serial.begin(9600);
  Serial.println("READY");
}

void loop() {
  while (Serial.available() > 0) {
    char c = (char)Serial.read();
    if (c == '\n' || c == '\r') {
      cmdBuf.trim();
      if (cmdBuf.length() == 0) { cmdBuf = ""; continue; }
      if (cmdBuf == "L") { streaming = true; lastStream = 0; }
      else if (cmdBuf == "X") { streaming = false; }
      else if (cmdBuf.startsWith("S")) {
        streaming = false;
        int n = cmdBuf.substring(1).toInt();
        if (n < 1) n = 1; if (n > 99) n = 99;
        for (int i = 0; i < n; i++) {
          sendReading();
          if (i < n - 1) delay(SETTLE_MS);
        }
      }
      cmdBuf = "";
    } else { cmdBuf += c; }
  }
  if (streaming) {
    unsigned long now = millis();
    if (now - lastStream >= STREAM_MS) { lastStream = now; sendReading(); }
  }
}
