ORBIT: Smart Desktop Companion Robot and Control Hub

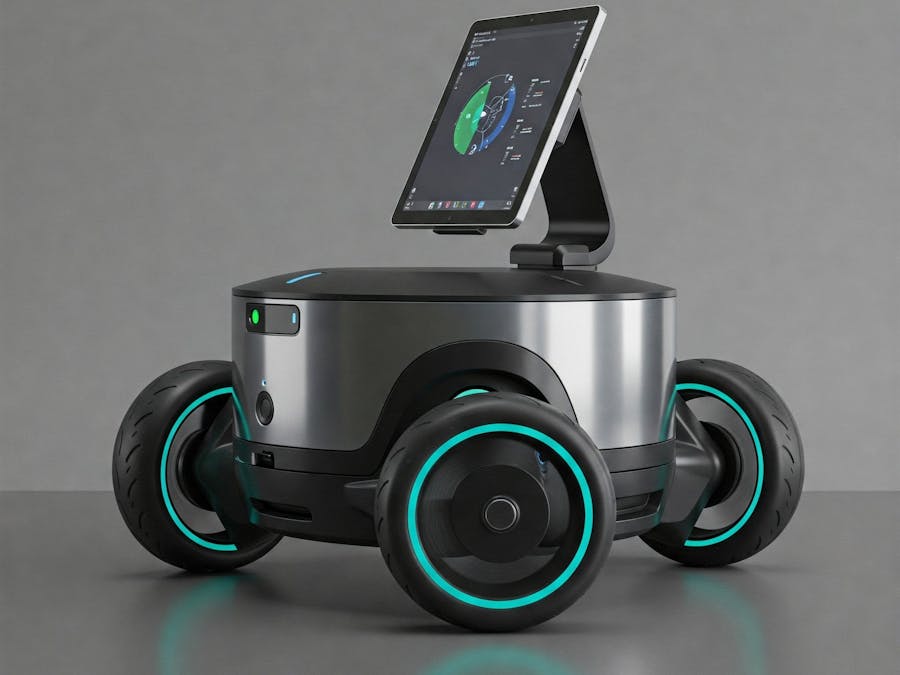

Imagine a sleek, compact robot, about the size of a small desk lamp, gracefully moving around your workspace. That's Orbit. It's a smart desktop companion designed to be both functional and engaging. It's not just a gadget; it's a mobile control hub that brings your smart home commands and even handy desktop tools right to your fingertips, wherever you are at your desk. It's got a vibrant touchscreen display perched on top, ready to respond to your touch, and a unique ability to glide smoothly in any direction, making it feel almost alive on your desktop.

Motivation

The inspiration came from daily frustration, honestly. I was constantly breaking my concentration while working, fumbling for my phone, opening apps, or even getting up to adjust the lights or change the temperature. It felt clunky and disconnected from my workflow. I envisioned a smarter, more integrated approach – something that could bring those controls to me, intuitively and seamlessly. Beyond just practicality, I was also drawn to the idea of creating something a bit more personable and interactive. A static smart home panel on the wall is functional, but lacks charm. Orbit is meant to be more than just a controller; it's a desktop companion that enhances your space with both utility and a touch of personality.

Practical Scenario

You're at your desk, focused on work, and you realize it's getting a bit too dim in the room. Instead of reaching for your phone or interrupting your flow to use a separate smart home app, you glance at Orbit, your desktop companion.

Perched beside your keyboard, Orbit is subtly humming, its overhead touchscreen display gently glowing. You reach out and tap the 'Lights' icon on its screen. Instantly, the GIGA Display Shield registers your touch and sends this signal to the brain of Orbit: the Arduino GIGA R1 WiFi microcontroller.

The GIGA R1, nestled beneath the display and Grove Shield, springs into action. It interprets your touch as a request to control the lights. Using its pre-programmed intelligence – the software you've created – it knows to bring up the light control panel on the display. Within seconds, a user-friendly interface appears, showing sliders for brightness and color temperature.

You gently slide your finger across the brightness control, wanting to brighten the room a bit. As you adjust the slider on Orbit's screen, the GIGA R1 is simultaneously generating commands in the 'language' of your smart home system – perhaps using Wi-Fi to talk to your smart light hub. These commands, formatted perfectly for your smart lights, are transmitted wirelessly over your home Wi-Fi network.

Almost instantaneously, your smart lights respond! They brighten smoothly to your desired level, all controlled directly from Orbit without you ever needing to look away from your workspace or switch devices.

But Orbit is more than just a static controller. Let's say you get a notification on your computer – an important email arrives. Orbit, being a companion, is designed to subtly alert you. Perhaps it gently glides a few inches to the side, catching your peripheral vision. This movement is orchestrated by the GIGA R1, which precisely controls the omnidirectional drive system – those unique three wheels powered by motors and managed by the Grove motor drivers. The GIGA R1 calculates the exact power and timing for each motor, allowing Orbit to move smoothly and precisely in any direction you program, or even just to subtly shift its position to attract attention.

If you wanted to use Orbit for desktop productivity, maybe as a quick keypad, you could switch to a different screen on its display. Imagine using it to quickly access shortcuts for your favorite applications or frequently used functions, all through its responsive touchscreen.

And what about Orbit's advanced connectivity? The nRF9151 DK module is constantly working in the background, providing location awareness through GPS and cellular connectivity. While you're at your desk, this might be used for subtle features, perhaps adjusting smart home settings based on time of day or even room location in the future. But if you were away from home, you could potentially use Orbit's cellular connection to remotely check on your smart home status or even send commands from anywhere in the world, leveraging that long-range cellular link. The nRF9151 DK communicates seamlessly with the GIGA R1 via a fast SPI connection, sharing GPS data and receiving instructions.

Throughout all of this, the Grove Arduino Shield acts as a convenient central hub, simplifying the connections between the GIGA R1 and the motor drivers, making the hardware assembly cleaner and more manageable.

Workingand Integration

Orbit operates as a cohesive system designed to seamlessly blend desktop utility with smart home control. The user experience begins with intuitive interaction via the GIGA Display Shield's touchscreen, where taps and gestures initiate actions. This user input is immediately captured and relayed to the Arduino GIGA R1 WiFi, the central processing unit orchestrating all of Orbit's functionalities. The GIGA R1, acting as the system's brain, interprets these touch commands, triggering a cascade of processes to achieve the desired outcome, whether it's dimming smart lights or initiating a subtle movement.

The magic of Orbit's mobility is achieved through its sophisticated omni-directional drive system. This system, powered by three meticulously controlled motors, allows Orbit to glide effortlessly across a desktop in any direction. The Arduino GIGA R1, in conjunction with the Grove motor drivers connected via the Grove Arduino Shield, precisely manages these motors. The GIGA R1's firmware houses complex algorithms that translate desired movements into specific pulse-width modulation (PWM) signals for the motor drivers, dictating the speed and direction of each wheel to achieve smooth and accurate omni-directional motion.

Beyond physical movement, Orbit extends its reach into the smart home environment through its integrated Wi-Fi capabilities. The Arduino GIGA R1, equipped with Wi-Fi, facilitates seamless communication with smart home devices and platforms. The software on the GIGA R1 implements the necessary communication protocols and APIs to send commands and receive status updates from devices like smart lights, thermostats, and more. This allows Orbit to act as a mobile and interactive smart home control panel, bringing environmental adjustments directly to the user's workspace.

To further enhance its capabilities, Orbit incorporates the nRF9151 DK module, connected via a high-speed SPI communication bus to the Arduino GIGA R1. This integration unlocks advanced features like GPS and cellular connectivity. The nRF9151 DK, with its dedicated firmware, handles GPS data acquisition and cellular network management, providing location awareness and remote communication capabilities to the overall system. The GIGA R1 leverages this data and connectivity to potentially enable location-based automations, remote monitoring, and control beyond the confines of a local Wi-Fi network.

Physically, Orbit's components are integrated for both functionality and ease of assembly. The GIGA Display Shield stacks directly onto the Arduino GIGA R1, creating a compact and integrated control and display unit. The Grove Arduino Shield then acts as an expansion hub, simplifying the wiring for the Grove motor drivers and future Grove-compatible sensors, reducing complexity and promoting modularity. This hardware arrangement, combined with the modular software architecture on the Arduino GIGA R1 and the specialized firmware on the nRF9151 DK, results in a well-integrated and versatile desktop companion robot, seamlessly blending physical presence with digital control and connectivity.

Description of the Various Component and their Integration

1. Arduino GIGA R1 WiFi: Central Processing and Control Unit

The Arduino GIGA R1 WiFi serves as the central processing unit (CPU) and primary microcontroller for the Orbit robot. Based on the STM32H747XI dual-core processor, it provides the computational resources necessary for real-time control, complex algorithm execution, and concurrent task management. Its integrated Wi-Fi module facilitates network connectivity, enabling communication with smart home ecosystems and external control interfaces. The GIGA R1's extensive GPIO (General Purpose Input/Output) capabilities, PWM (Pulse Width Modulation) outputs, and communication interfaces (including SPI) are critical for interfacing with the Display Shield, Grove Shield, motor drivers, and the nRF9151 DK, thereby orchestrating the robot's core functionalities.

2. Arduino GIGA Display Shield: Human-Machine Interface (HMI)

The Arduino GIGA Display Shield functions as the primary Human-Machine Interface (HMI) for Orbit. Employing an integrated capacitive touchscreen display, it enables intuitive user interaction through touch-based commands and provides a visual output medium for displaying system status, control interfaces, and feedback. The Display Shield interfaces directly with the Arduino GIGA R1 via a dedicated high-bandwidth connection, ensuring low-latency input processing and high-refresh-rate graphical output, crucial for a responsive and user-friendly control experience.

3. Grove Arduino Shield: Modular Expansion and Interconnection Platform

The Grove Arduino Shield acts as a modular expansion and interconnection platform, facilitating simplified integration of Grove-compatible peripherals. Utilizing a standardized 4-pin connector system, the Grove Shield mitigates wiring complexity and promotes rapid prototyping by enabling plug-and-play connectivity for a diverse array of sensors, actuators, and communication modules. The shield provides signal routing from the Grove connectors to the Arduino GIGA R1's GPIO pins, PWM outputs, and communication interfaces, streamlining hardware integration and enhancing system modularity.

4. Grove Motor Drivers with TB6612FNG: Actuation Subsystem for Locomotion

Grove Motor Driver modules incorporating the TB6612FNG dual H-bridge IC constitute the actuation subsystem for Orbit's omni-directional locomotion. The TB6612FNG provides bidirectional motor control capability for each of the DC motors driving the omni-directional wheel system. Utilizing Pulse Width Modulation (PWM) signals from the Arduino GIGA R1, these drivers enable precise velocity control of the motors, while digital input pins facilitate directional control. The Grove interface simplifies electrical connections and integration with the Arduino GIGA R1 via the Grove Shield, ensuring efficient power delivery and control signal transmission to the motors.

5. DC Motors (Omni-Directional Drive System): Propulsion and Mobility Mechanism

Three direct current (DC) motors form the electromechanical propulsion system for Orbit's omni-directional mobility. Configured in a specialized arrangement, these motors, when independently controlled in terms of speed and direction, enable holonomic movement, allowing for translation in any planar direction and rotation about the vertical axis. These motors are directly coupled to the omni-directional wheels and are driven by the Grove Motor Drivers based on control commands from the Arduino GIGA R1, providing the physical means for the robot's desktop navigation and positioning.

6. nRF9151 DK (Nordic Semiconductor): Advanced Wireless Connectivity Module

The Nordic Semiconductor nRF9151 DK serves as an advanced wireless connectivity module, extending Orbit's operational scope beyond local network boundaries. Integrating both cellular LTE-M/NB-IoT and GPS functionalities, the nRF9151 DK enables long-range data communication and geolocation capabilities. The onboard ARM Cortex-M33 microcontroller within the nRF9151 DK manages cellular protocol stacks and GPS signal processing. Communication with the Arduino GIGA R1 is established via a Serial Peripheral Interface (SPI) bus, facilitating high-throughput data exchange for GPS coordinates and cellular data streams.

7. GPS (Global Positioning System - within nRF9151 DK): Geolocation and Positioning Subsystem

The integrated Global Positioning System (GPS) receiver within the nRF9151 DK provides Orbit with geolocation and positioning capabilities. By processing signals from the Global Navigation Satellite System (GNSS), the GPS subsystem determines the robot's geographic coordinates (latitude, longitude, and altitude). This positional data, transmitted to the Arduino GIGA R1 via SPI, can be utilized for location tracking, geofencing applications, and potentially, context-aware functionalities based on geographic location.

8. Cellular Connectivity (LTE-M/NB-IoT - within nRF9151 DK): Wide-Area Network Communication Interface

Cellular LTE-M and NB-IoT connectivity, implemented within the nRF9151 DK, provides Orbit with a wide-area network (WAN) communication interface. Utilizing low-power, wide-area (LPWA) cellular technologies, this subsystem enables long-range, low-bandwidth data communication over cellular networks. This functionality supports remote monitoring, over-the-air firmware updates, and operation in environments where local Wi-Fi infrastructure is unavailable, significantly extending the robot's operational versatility.

9. SPI Communication Bus: High-Speed Inter-Processor Data Link

The Serial Peripheral Interface (SPI) communication bus establishes a high-speed, synchronous serial data link between the Arduino GIGA R1 and the nRF9151 DK. SPI facilitates efficient and rapid data exchange, essential for transmitting GPS coordinate data and control commands between the two microcontrollers. The SPI protocol's synchronous nature ensures reliable data transfer, critical for real-time operation and maintaining data integrity within the integrated system.

10. Grove Connectors: Standardized Electrical Interconnection System

Grove connectors represent a standardized electrical interconnection system employed for simplified and modular hardware assembly. These 4-pin connectors provide a uniform interface for power and signal transmission, reducing wiring complexity and facilitating rapid prototyping. The Grove system promotes modularity and ease of component integration, enabling efficient assembly and potential future expansion of the Orbit robot's hardware capabilities.

11. Software (Firmware on GIGA R1 and nRF9151 DK - Conceptually): Algorithmic Control and Operational Logic

Software, in the form of firmware residing on both the Arduino GIGA R1 and nRF9151 DK, constitutes the algorithmic control and operational logic of the Orbit robot. Firmware on the GIGA R1 implements core control algorithms for motor actuation, omni-directional movement kinematics, user interface management, and smart home communication protocols. Firmware on the nRF9151 DK manages cellular network connectivity, GPS signal acquisition and processing, and the SPI communication interface. This distributed firmware architecture allows for specialized processing on each microcontroller, while coordinated operation is achieved through inter-processor communication and a well-defined system architecture.

Conclusion

Orbit offers a compelling and practical solution for the growing demands of integrated smart environments and efficient workflows. Its unique combination of mobile interaction, intuitive touchscreen control, and robust connectivity, powered by the Arduino GIGA R1 and nRF9151 DK, sets it apart from conventional static controllers. This project is designed to be demonstrably useful, user-friendly, and engaging, enhancing both productivity and smart home convenience. Selecting Orbit is choosing a project with clear value, strong technical foundations, and the potential to create a truly impactful and desirable desktop companion robot. I am enthusiastic about the opportunity to bring Orbit to fruition and confident in its success.
