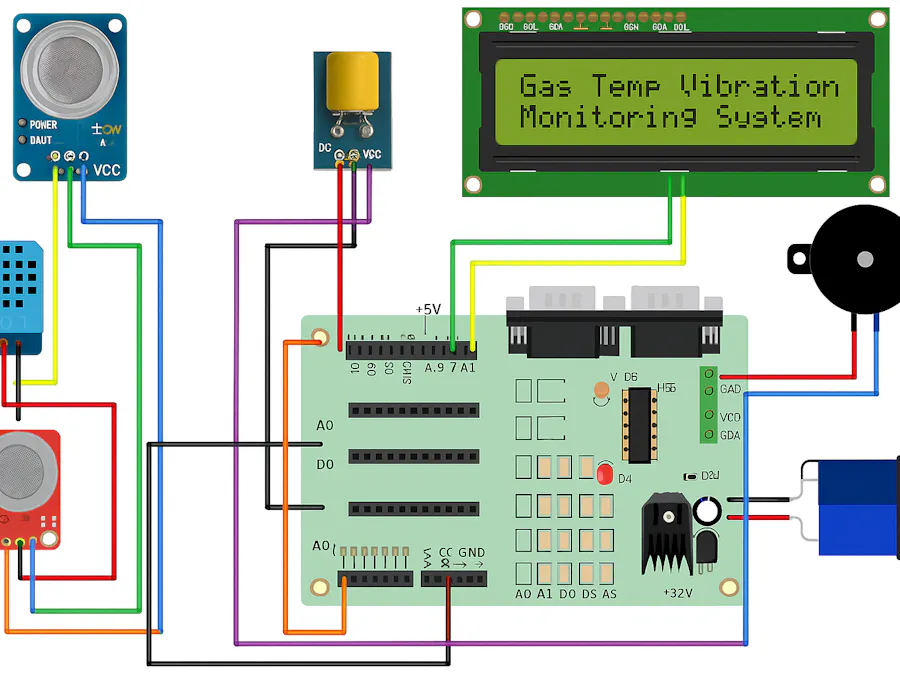

Coal Mine alerting system

Project can be used for college expo and it is built on custom PCB no need for bread boards, it will work efficiently

AdvancedFull instructions provided2 days232

Things used in this project

Hardware components

Arduino UNO

PCBWay Custom PCB

ElectroPeak 0.96" OLED 64x128 Display Module

Buzzer

DHT11 Temperature & Humidity Sensor (4 pins)

Seeed Studio Grove - Gas Sensor(MQ2)

Seeed Studio Grove - Vibration Sensor (SW-420)

Twilio Programmable Wireless

Jumper wires (generic)

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

Solder Flux, Soldering

Story

There is lot of manual work in coal mines in daily operations. Lot of

accidents happens in coal mines in various ways. Mainly in

underground excavation lot of CO gases generate and cause health

hazardous. Sometimes high temperature causes heavy fires. In the

project multi sensors integrated into one system. This is the real-

world safety application it saves the life of coal mine workers in

dangerous conditions

METHODOLOGY :

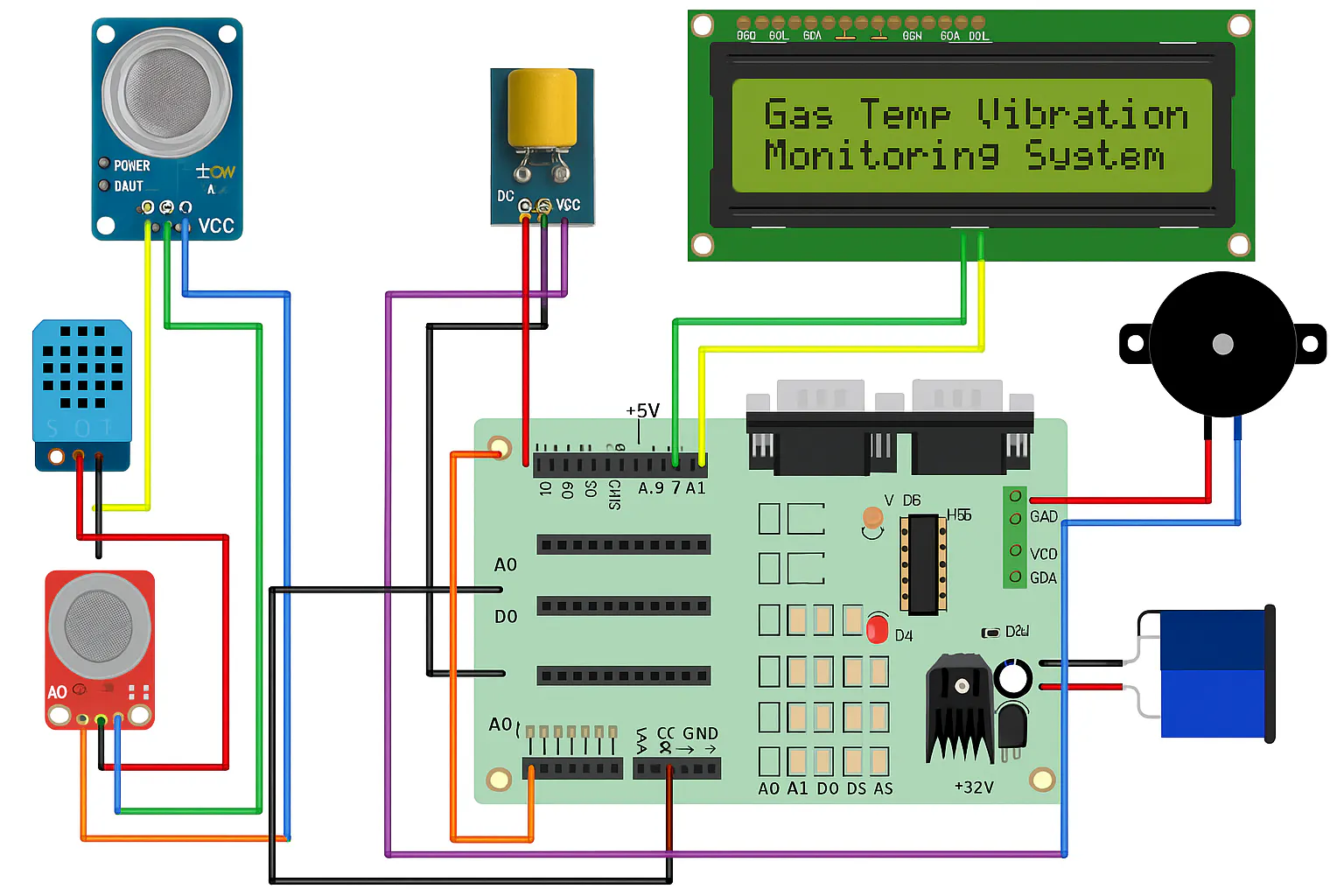

This project includes DHT-11(Temperature and Humidity Sensor),

CO (Mq2) and SW420 (vibration) sensors are connected to Arduino

through Analog and Digital IO pins. Buzzer connected to digital IO

pin. DHT-11(Temperature & Humidity) sensor reads Coal mine

temperature and Humidity. Heavy heat causes fires. Mq2 (CO)

sensor reads CO emission in Coal mines. SW-420 sensor reads

vibrations data. These sensors data will be displayed on LCD or

OLED continuously. In abnormal condition gives buzzer sound to

alert coal mine workers. WIFI (ESP8266/IOT) module sends sensor

data to server continuously. User can see data in IOT server from

anywhere. Before entering into coal mines workers has to observe

data in IOT server and then leave. It also sends the push

notifications to the mobile if there is an alert caused due to increase

in the threshold values

Code

code for Arduino

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <DHT.h>

// OLED setup
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// Sensor pins
#define DHTPIN A1
#define DHTTYPE DHT11
#define MQ2_PIN A0
#define VIBRATION_PIN A2
#define BUZZER_PIN 7

DHT dht(DHTPIN, DHTTYPE);

// Thresholds
const int TEMP_THRESHOLD = 50;
const int HUMIDITY_THRESHOLD = 80;
const int SMOKE_THRESHOLD = 300;
const int VIBRATION_THRESHOLD = 500;

unsigned long vibrationStartTime = 0;
const unsigned long MIN_VIBRATION_DURATION = 2000;

void setup() {
  Serial.begin(9600);
  dht.begin();

  pinMode(BUZZER_PIN, OUTPUT);
  digitalWrite(BUZZER_PIN, HIGH); // Turn buzzer off initially
  pinMode(VIBRATION_PIN, INPUT);

  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // 0x3C is common I2C address
    Serial.println(F("SSD1306 allocation failed"));
    for (;;);
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(10, 25);
  display.println("Earthquake Monitor");
  display.display();
  delay(2000);
  display.clearDisplay();
}

void activateBuzzer() {
  digitalWrite(BUZZER_PIN, LOW);
}

void deactivateBuzzer() {
  digitalWrite(BUZZER_PIN, HIGH);
}

void loop() {
  float temp = dht.readTemperature();
  float humidity = dht.readHumidity();
  int smoke = analogRead(MQ2_PIN);
  int vibration = analogRead(VIBRATION_PIN);

  bool earthquakeDetected = false;
  if (vibration >= VIBRATION_THRESHOLD) {
    if (vibrationStartTime == 0) {
      vibrationStartTime = millis();
    } else if (millis() - vibrationStartTime >= MIN_VIBRATION_DURATION) {
      earthquakeDetected = true;
    }
  } else {
    vibrationStartTime = 0;
  }

  bool alert = (temp >= TEMP_THRESHOLD || humidity >= HUMIDITY_THRESHOLD ||
                smoke >= SMOKE_THRESHOLD || earthquakeDetected);

  if (alert) {
    activateBuzzer();
  } else {
    deactivateBuzzer();
  }

  // OLED display update
  display.clearDisplay();
  display.setCursor(0, 0);
  display.print("Temp: "); display.print(temp); display.println(" C");
  display.print("Hum: "); display.print(humidity); display.println(" %");
  display.print("Smoke: "); display.println(smoke);
  display.print("Vib: "); display.println(vibration);
  display.print("Earthquake: ");
  display.println(earthquakeDetected ? "YES" : "NO");
  if (alert) {
    display.setCursor(90, 50);
    display.setTextColor(SSD1306_BLACK, SSD1306_WHITE);
    display.println("ALERT");
    display.setTextColor(SSD1306_WHITE);
  }
  display.display();

  // Serial output
  Serial.print("Temp: ");
  Serial.print(temp);
  Serial.print("C | Hum: ");
  Serial.print(humidity);
  Serial.print("% | Smoke: ");
  Serial.print(smoke);
  Serial.print(" | Vib: ");
  Serial.print(vibration);
  Serial.print(" | Earthquake: ");
  Serial.print(earthquakeDetected ? "YES" : "NO");
  Serial.print(" | Alert: ");
  Serial.println(alert ? "ACTIVE" : "INACTIVE");

  delay(500);
}
