Speed Controlled RPM Matching LED Strip

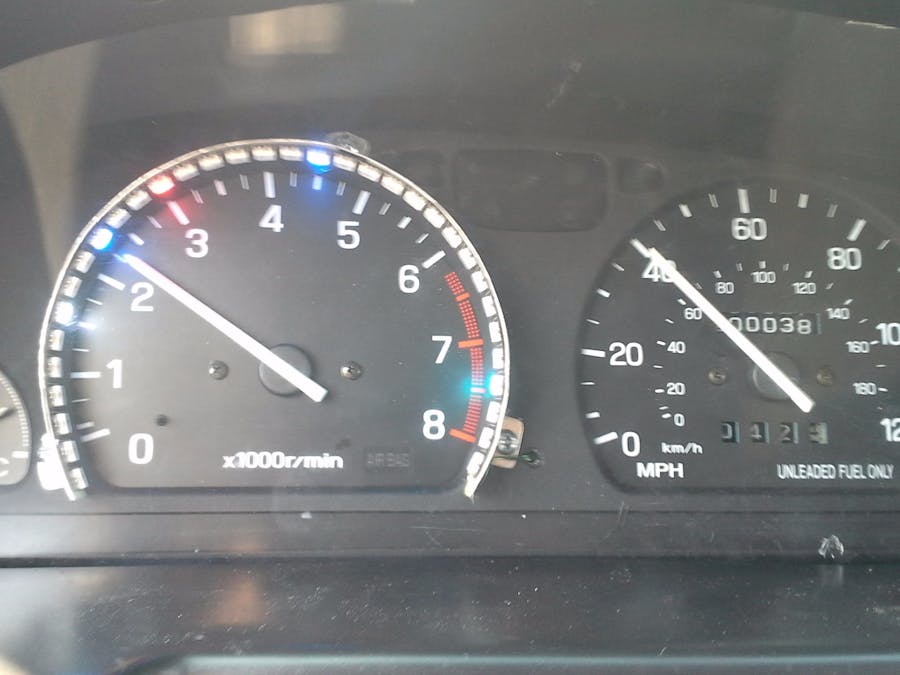

A Digistump-based LED strip that calculates what RPM corresponds to each gear to aid in heel-toe downshifting and rev-matching. Budget: $20

IntermediateShowcase (no instructions)12 hours4,102
Speed Controlled RPM Matching LED Strip

Things used in this project

Hardware components

DigiSpark
DigiSpark
×1
capacitor 330 uf
×1
resistor 5k ohm
×2
WS2812 Strip
×1
Single Turn Potentiometer- 10k ohms
Single Turn Potentiometer- 10k ohms
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Resistor 170 ohm
×1
IR LED 940nm
×1
IR Photodiode 940nm
×1
Resistor 440ohm
×1
Rotary potentiometer (generic)
Rotary potentiometer (generic)
With on/off swtich
×1
Prototype board
×1
5v Voltage Regulator
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Schematic

Code

gear.h

C/C++
/* This header defines a gear structure allowing for easier-to read
and manipulate code for the NeoPixel gear display car project
*/
#pragma once

struct gear {
public:
	double ratio;
	uint8_t R;
	uint8_t G;
	uint8_t B;
	gear() {};
	gear(double ratio_) {
		ratio = ratio_;
	}
	gear(double ratio_, uint8_t R_, uint8_t G_, uint8_t B_) {
		ratio = ratio_;
		R = R_;
		G = G_;
		B = B_;
	}
	int calcLED(int mph) {
		int numLEDs = 31;
		double res = (mph - 10 / ratio) / 177.6 * ratio*(numLEDs - 1);  //changed 12 to 10 on 7/29/17
		return round(res);
	}
};

gear gears[5];

void init_gears() {
	gears[0] = gear(4.842, 0, 200, 200);
	gears[1] = gear(2.888, 12, 40, 180);
	gears[2] = gear(1.977, 200, 0, 0);
	gears[3] = gear(1.519, 32, 12, 255);
	gears[4] = gear(1.043, 200, 200, 200);
}

Main code

C/C++
/*This version works with 8 colored stripes and no night mode (night mode was too problematic)
 *Progressive spaces to count based on speed calculation
 *Global brightness, global gear variables
 *speeds calculation calibrated as of 7/28/17 - spot on
 *brightness control added 8/3/17
 */
#include "avr/interrupt.h"
#include <Adafruit_NeoPixel.h>
#include "gear.h"

//neopixels
Adafruit_NeoPixel pixels = Adafruit_NeoPixel(34, 3, NEO_GRB + NEO_KHZ800);


//interrupt volatiles
volatile uint32_t count=0;
volatile uint32_t start = 0;
volatile uint32_t finish = 0;
volatile int spaces_to_count = 16;


int display_in_Pixels(double micros_){
  //zero out the colors
  for (int i = 0; i < 33; i++) { pixels.setPixelColor(i, pixels.Color(0,0,0)); }

  //calculate speed in mph
  double speeds = 226257.3614/micros_*spaces_to_count;   //newly calibrated as of 7/28/17
  spaces_to_count = (speeds)+4;                   //progressive counting:  less to count at low speed = greater refresh rate, but less accurate

  for (int i = 0; i < 5; i++){
      int pixtoset =  gears[i].calcLED(speeds);
      //limit size of pix
      if (pixtoset > 31) {pixtoset = 31;}
      if (pixtoset < 1) {pixtoset = 0;}
      pixels.setPixelColor(32-pixtoset, pixels.Color(gears[i].R, gears[i].G, gears[i].B));
  }
}

void setPixBrightness(){
  int statePin4 = analogRead(2);  //yes, this reads pin4
  statePin4 = (1023 - statePin4)/8;    //invert
  pixels.setBrightness(statePin4);
}

void setup()
{
    init_gears();
    pixels.begin();
    GIMSK = 0b00000000;    // turns off pin change interrupts
    PCMSK = 0b00000010;    // turn on interrupts on pins P1
    //zero out the colors
    for (int i = 0; i < 33; i++) { pixels.setPixelColor(i, pixels.Color(0,0,0)); }
    pixels.show();
}

void loop()
{
  //reset variables
  start = 0;       //going to be the start of the spaces in micros
  finish = 0;      //end of the spaces in micros, also flag variable (as in we are done counting)
  count = 0;

  //re-enable interrupts, and wait for timing to be complete
  GIMSK = 0b00100000;    // turns on pin change interrupts
  while (!finish){ } // once the right number of spaces have passed, finish is non-zero, so it works as a flag variable

  //load pixel display
  display_in_Pixels(finish-start);

  //set brightness
  setPixBrightness();

  //show pix
  pixels.show();
}

ISR(PCINT0_vect)
{
  if (!count) {start = micros();}    //if count is 0, the this is the start of the timing
  if (count >= spaces_to_count){     //we are done counting
     //disable inters
     GIMSK = 0b00000000;    // turns off pin change interrupts
     finish = micros();     //stop the stopwatch
  }
  count++;
}
