Vibra Sense Click
Expansion Board
Read moreVibra Sense Click is a low cost micro shock vibration sensor with a digital output which can be set as an interrupt.

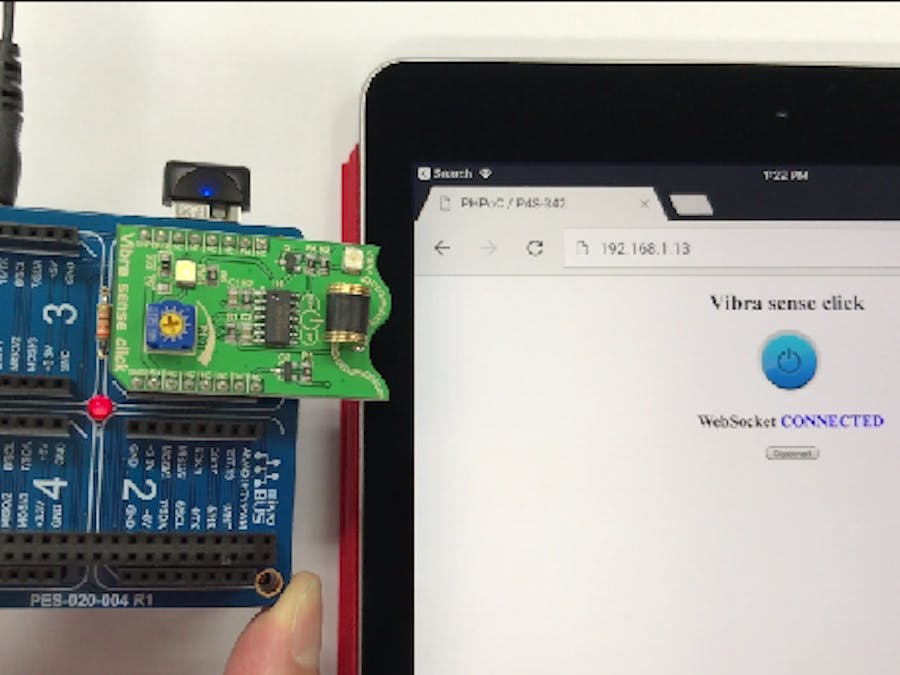

Pins marked NC are not used. Only four pins marked red rectangle are available to use the module. An expansion board for mikroBUS click modules helps you to place a click module on PHPoC Blue easily.
This example uses WebSocket to show sensor's output.
<?php
if(_SERVER("REQUEST_METHOD"))
exit; // avoid php execution via http request
include_once "/lib/sd_340.php";
include_once "/lib/sn_tcp_ws.php";
define("PIN_EN", 12);
define("PIN_INT", 8);
uio_setup(0, PIN_INT, "in"); // INT
uio_setup(0, PIN_EN, "out"); // EN
uio_out(0, PIN_EN, 1);
ws_setup(0, "vibra", "csv.phpoc");
$previous_state = 0;
$current_state = 0;
while(1)
{
$current_state = uio_in(0, PIN_INT);
if($previous_state != $current_state)
{
$previous_state = $current_state;
if(ws_state(0) == TCP_CONNECTED)
{
ws_write(0, "$current_state\r\n");
}
}
}
?>
<!DOCTYPE html>
<html>
<head>
<title>PHPoC / <?echo system("uname -i")?></title>
<meta name="viewport" content="width=device-width, initial-scale=0.7, maximum-scale=0.7">
<style> body { text-align: center; } </style>
<script>
var canvas_width = 95;
var canvas_height = 95;
var ws;
function init()
{
var button = document.getElementById("button");
button.width = canvas_width;
button.height = canvas_height;
button.style.backgroundImage = "url('/button_pop.png')";
}
function connect_onclick()
{
if(ws == null)
{
var ws_host_addr = "<?echo _SERVER("HTTP_HOST")?>";
var debug = document.getElementById("debug");
if((navigator.platform.indexOf("Win") != -1) && (ws_host_addr.charAt(0) == "["))
{
// network resource identifier to UNC path name conversion
ws_host_addr = ws_host_addr.replace(/[\[\]]/g, '');
ws_host_addr = ws_host_addr.replace(/:/g, "-");
ws_host_addr += ".ipv6-literal.net";
}
ws = new WebSocket("ws://" + ws_host_addr + "/vibra", "csv.phpoc");
document.getElementById("ws_state").innerHTML = "CONNECTING";
ws.onopen = ws_onopen;
ws.onclose = ws_onclose;
ws.onmessage = ws_onmessage;
}
else
ws.close();
}
function ws_onopen()
{
document.getElementById("ws_state").innerHTML = "<font color='blue'>CONNECTED</font>";
document.getElementById("bt_connect").innerHTML = "Disconnect";
button.style.backgroundImage = "url('/button_pop.png')";
}
function ws_onclose()
{
document.getElementById("ws_state").innerHTML = "<font color='gray'>CLOSED</font>";
document.getElementById("bt_connect").innerHTML = "Connect";
ws.onopen = null;
ws.onclose = null;
ws.onmessage = null;
ws = null;
button.style.backgroundImage = "url('/button_pop.png')";
}
function ws_onmessage(e_msg)
{
e_msg = e_msg || window.event; // MessageEvent
if(e_msg.data == 0)
button.style.backgroundImage = "url('/button_pop.png')";
else if(e_msg.data == 1)
button.style.backgroundImage = "url('/button_push.png')";
}
window.onload = init;
</script>
</head>
<body>
<p>
<h1>Vibra sense click</h1>
</p>
<canvas id="button"></canvas>
<h2>WebSocket <font id="ws_state" color="gray">CLOSED</font></h2>
<button id="bt_connect" type="button" onclick="connect_onclick();">Connect</button>
<span id="debug"></span
</body>
</html>
