Our tugbout ( build in 1951, still original engine, in daily use ) needed an instrumentation upgrade. The boat also has 2 wheelhouses and 2 generators, 2 chargers/inverters and shore connection.
I've installed an Arduino Ethernet in the engine room, used a hall sensor to measure rpm of the engine, for now there are 6 ds18b20 in use, #7 will be installed shortly. Furthermore the Arduino also steers the original ( read: antique ) RPM instrument in the main wheelhouse.
I am sourcing the sensors to measure exhaust temperatures and oil/air pressure (Honeywell has 'm).
Despite sampling temperature on 6 points, count rpm and steer analog meter, i'm only using 3 ports on the Arduino and spent less than €120 on hardware! The most expensive parts are the adapters to mount the sensors watertight into the cooling system.

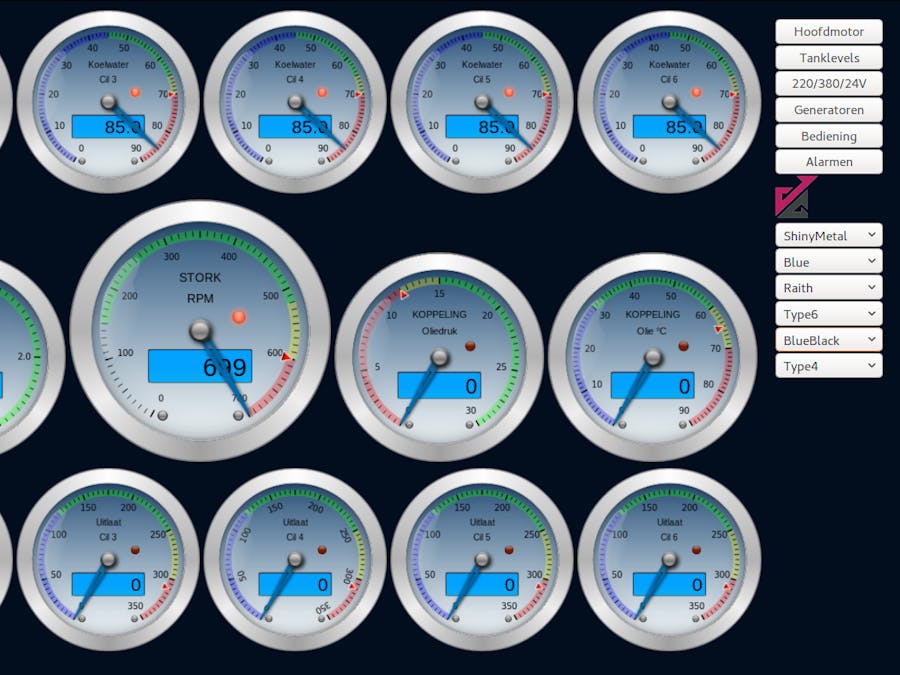

To display this data i'm using steelseries gauges, designed by Gerrit Grunwald, find all resources here.
I've adapted the radial demo page to my needs and got very pleasing results.
arduino sketch
Arduinothis code measures rpm of the main angine by means of an opto coupled hall sensor. It also reads a series of temperatures (ds18b20 sensors), steers an analog rpm instrument in the wheelhouse, and puts all the measurement data in an xml that is sent to the browser that has the instument webpage opened (this can be a local stored copy, the6 arduino does not serve the page itself, only the data)
#include <EthernetClient.h>
#include <Ethernet.h>
#include <EthernetServer.h>
#include <SPI.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#define ONE_WIRE_BUS 7
#define REQ_BUF_SZ 500
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
DeviceAddress ts_1 = { 0x28, 0x10, 0x1A, 0x1F, 0x00, 0x00, 0x80, 0xAA };
DeviceAddress ts_2 = { 0x28, 0x38, 0x15, 0x08, 0x00, 0x00, 0x80, 0x6C };
DeviceAddress ts_3 = { 0x28, 0x4C, 0x19, 0x1F, 0x00, 0x00, 0x80, 0xB7 };
DeviceAddress ts_4 = { 0x28, 0xAC, 0x19, 0x08, 0x00, 0x00, 0x80, 0x20 };
DeviceAddress ts_5 = { 0x28, 0x76, 0x1A, 0x1F, 0x00, 0x00, 0x80, 0xDB };
DeviceAddress ts_6 = { 0x28, 0x05, 0x1C, 0x08, 0x00, 0x00, 0x80, 0x38 };
float tempC1 = 0;
float tempC2 = 0;
float tempC3 = 0;
float tempC4 = 0;
float tempC5 = 0;
float tempC6 = 0;
float tempC7 = 0;
float tempC8 = 0;
float tempC9 = 0;
float tempC10 = 0;
float tempC11 = 0;
float tempC12 = 0;
float tempC14 = 0;
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xFF};
IPAddress ip( 192, 168, 1, 176);
EthernetServer server(80);
char HTTP_req[REQ_BUF_SZ] = {0};
char req_index = 0;
int analog_val = 0;
unsigned long lastmillis = 0;
int RPM;
int rpm;
int PinVal;
int OldPinVal;
String readString = "";
int counter = 0;
void setup()
{
Ethernet.begin(mac, ip); // initialize Ethernet device
server.begin();
sensors.begin();
Serial.begin(9600);
delay(300);
Serial.print("Live !");
}
void loop()
{
if(counter == 3); {
sensors.requestTemperatures();
delay(800);
tempC1 = sensors.getTempC(ts_1);
tempC2 = sensors.getTempC(ts_2);
tempC3 = sensors.getTempC(ts_3);
tempC4 = sensors.getTempC(ts_4);
tempC5 = sensors.getTempC(ts_5);
tempC6 = sensors.getTempC(ts_6);
counter = 0;
}
counter++;
analog_val = 0;
lastmillis = millis(); // reset timer voor 0.8 sec timeout
if (digitalRead(2) == HIGH) { while (digitalRead(2) == HIGH and millis() - lastmillis < 800);{} }
while (digitalRead(2) == LOW and millis() - lastmillis < 800); {} // wacht op begin passage detector of timeout
while (digitalRead(2) == HIGH and millis() - lastmillis < 800); {} // wacht op einde passage detector ==> startpunt meting
lastmillis = millis(); // reset timer voor meting & start chrono
while (digitalRead(2) == LOW and millis() - lastmillis < 800); {} // wacht op begin passage detector
while (digitalRead(2) == HIGH and millis() - lastmillis < 800); {} // wacht op einde passage detector ==> eindpunt meting
if (millis() - lastmillis < 800 ) {
analog_val = (60000 / (millis() - lastmillis)) ;
}
if (millis() - lastmillis > 799) {
analog_val = 0; // timed out = toerental 0
}
// aansturing toerenteller stuurhuis
RPM = analog_val;
PinVal = 0;
if (RPM > 100) {
PinVal = 16 + ((RPM - 100) * .33);
}
if (RPM > 200) {
PinVal = 49 + ((RPM - 200) * .37);
}
if (RPM > 300) {
PinVal = 86 + ((RPM - 300) * .38);
}
// PinVal = conversie van toerental naar waarde voor de output pin
analogWrite(5, round(PinVal)); // einde aansturing toerenteller stuurhuis
EthernetClient client = server.available();
if (client) {
readString = "";
boolean currentLineIsBlank = true;
while (client.connected() || client.available()) {
char c = client.read(); //gets byte from ethernet buffer
readString = readString + c;
if (c == '\n' && currentLineIsBlank) {
Serial.println(readString);
// send a standard http response header
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/xml");
client.println("Access-Control-Allow-Origin: *");
client.println();
// print the current readings, in HTML format:
client.print("<inputs>");
client.print("<rpm>");
client.print(analog_val);
client.print("</rpm>");
client.print("<tc1>");
client.print(tempC1);
client.print("</tc1>");
client.print("<tc2>");
client.print(tempC2);
client.print("</tc2>");
client.print("<tc3>");
client.print(tempC3);
client.print("</tc3>");
client.print("<tc4>");
client.print(tempC4);
client.print("</tc4>");
client.print("<tc5>");
client.print(tempC5);
client.print("</tc5>");
client.print("<tc6>");
client.print(tempC6);
client.print("</tc6>");
client.println("<inputs/>");
client.println();
break;
}
if (c == '\n') {
// you're starting a new line
currentLineIsBlank = true;
} else if (c != '\r') {
// you've gotten a character on the current line
currentLineIsBlank = false;
}
}
}
delay(50);
client.stop();
while (client.status() != 0) delay(50);
}
My dashboard

HTMLThis is the webpage containing all the gauges, it updates the gauges by requesting data from the arduino over LAN connection
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<meta charset="utf-8">
<title>Canvas Steel</title>
</head>
<body onload="init();" style="background-color:#020d1e">
<table>
<tbody>
<tr>
<td width="100%">
<canvas id="canvasRadial1" width="240" height="260">No canvas in your browser...sorry...</canvas>
<canvas id="canvasRadial2" width="240" height="240"></canvas>
<canvas id="canvasRadial3" width="240" height="240"></canvas>
<canvas id="canvasRadial4" width="240" height="240"></canvas>
<canvas id="canvasRadial5" width="240" height="240"></canvas>
<canvas id="canvasRadial6" width="240" height="240"></canvas>
</td>
</tr>
<tr>
<td width="100%">
<canvas id="canvasRadial13" width="240" height="300"></canvas>
<canvas id="canvasRadial15" width="240" height="300"></canvas>
<canvas id="canvasRadial16" width="300" height="300"></canvas>
<canvas id="canvasRadial17" width="240" height="300"></canvas>
<canvas id="canvasRadial14" width="240" height="300"></canvas>
</td>
</tr>
<tr>
<td width="100%">
<canvas id="canvasRadial7" width="240" height="240"></canvas>
<canvas id="canvasRadial8" width="240" height="240"></canvas>
<canvas id="canvasRadial9" width="240" height="240"></canvas>
<canvas id="canvasRadial10" width="240" height="240"></canvas>
<canvas id="canvasRadial11" width="240" height="240"></canvas>
<canvas id="canvasRadial12" width="240" height="240"></canvas>
</td>
<tr>
</tr>
</tbody></table>
<div style="position:absolute; left:1310px; top:20px; ">
<button onclick="popup()"; style="height:30px;width:125px"> Hoofdmotor </button><br>
<button onclick="popup()"; style="height:30px;width:125px"> Tanklevels </button><br>
<button onclick="popup()"; style="height:30px;width:125px"> 220/380/24V </button><br>
<button onclick="popup()"; style="height:30px;width:125px"> Generatoren </button><br>
<button onclick="popup()"; style="height:30px;width:125px"> Bediening </button><br>
<button onclick="popup()"; style="height:30px;width:125px"> Alarmen </button><br>
<img src="cue.png" style="width:50px;height:50px"; onclick="popup()";>
<br>
<select id="comboFrame" onchange="setFrameDesign(this)" style="height:30px;width:125px">
<option selected="selected" value=""> Type ring </option>
<option value="BLACK_METAL">BlackMetal</option>
<option value="METAL">Metal</option>
<option value="SHINY_METAL">ShinyMetal</option>
<option value="BRASS">Brass</option>
<option value="STEEL">Steel</option>
<option value="CHROME">Chrome</option>
<option value="GOLD">Gold</option>
<option value="ANTHRACITE">Anthracite</option>
<option value="TILTED_GRAY">TiltedGray</option>
<option value="TILTED_BLACK">TiltedBlack</option>
<option value="GLOSSY_METAL">GlossyMetal</option>
</select>
<select id="comboBackground" onchange="setBackgroundColor(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Kleur achtergrond </option>
<option value="DARK_GRAY">DarkGray</option>
<option value="SATIN_GRAY">SatinGray</option>
<option value="LIGHT_GRAY">LightGray</option>
<option value="WHITE">White</option>
<option value="BLACK">Black</option>
<option value="BEIGE">Beige</option>
<option value="BROWN">Brown</option>
<option value="RED">Red</option>
<option value="GREEN">Green</option>
<option value="BLUE">Blue</option>
<option value="ANTHRACITE">Anthracite</option>
<option value="MUD">Mud</option>
<option value="PUNCHED_SHEET">PunchedSheet</option>
<option value="CARBON">Carbon</option>
<option value="STAINLESS">Stainless</option>
<option value="BRUSHED_METAL">BrushedMetal</option>
<option value="BRUSHED_STAINLESS">BrushedStainless</option>
<option value="TURNED">Turned</option>
</select>
<select id="comboPointerColor" onchange="setPointerColor(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Kleur naald </option>
<option value="RED">Red</option>
<option value="GREEN">Green</option>
<option value="BLUE">Blue</option>
<option value="ORANGE">Orange</option>
<option value="YELLOW">Yellow</option>
<option value="CYAN">Cyan</option>
<option value="MAGENTA">Magenta</option>
<option value="WHITE">White</option>
<option value="GRAY">Gray</option>
<option value="BLACK">Black</option>
<option value="RAITH">Raith</option>
<option value="GREEN_LCD">Green LCD</option>
<option value="JUG_GREEN">JUG Green</option>
</select>
<select id="comboPointerType" onchange="setPointerType(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Type wijzernaald </option>
<option value="TYPE1">Type1</option>
<option value="TYPE2">Type2</option>
<option value="TYPE3">Type3</option>
<option value="TYPE4">Type4</option>
<option value="TYPE5">Type5</option>
<option value="TYPE6">Type6</option>
<option value="TYPE7">Type7</option>
<option value="TYPE8">Type8</option>
<option value="TYPE9">Type9</option>
<option value="TYPE10">Type10</option>
<option value="TYPE11">Type11</option>
<option value="TYPE12">Type12</option>
<option value="TYPE13">Type13</option>
<option value="TYPE14">Type14</option>
<option value="TYPE15">Type15</option>
<option value="TYPE16">Type16</option>
</select>
<select id="comboLcdColor" onchange="setLcdColor(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Kleur LCD scherm</option>
<option value="BEIGE">Beige</option>
<option value="BLUE">Blue</option>
<option value="ORANGE">Orange</option>
<option value="RED">Red</option>
<option value="YELLOW">Yellow</option>
<option value="WHITE">White</option>
<option value="GRAY">Gray</option>
<option value="BLACK">Black</option>
<option value="GREEN">Green</option>
<option value="BLUE2">Blue2</option>
<option value="BLUE_BLACK">BlueBlack</option>
<option value="BLUE_DARKBLUE">BlueDarkBlue</option>
<option value="BLUE_GRAY">BlueGray</option>
<option value="STANDARD">Standard</option>
<option value="STANDARD_GREEN">StandardGreen</option>
<option value="BLUE_BLUE">BlueBlue</option>
<option value="RED_DARKRED">RedDarkRed</option>
<option value="DARKBLUE">DarkBlue</option>
<option value="LILA">Lila</option>
<option value="BLACKRED">BlackRed</option>
<option value="DARKGREEN">DarkGreen</option>
<option value="AMBER">Amber</option>
<option value="LIGHTBLUE">LightBlue</option>
<option value="SECTIONS">Sections</option>
</select>
<select id="comboForeground" onchange="setForegroundType(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Type afdekglas </option>
<option value="TYPE1">Type1</option>
<option value="TYPE2">Type2</option>
<option value="TYPE3">Type3</option>
<option value="TYPE4">Type4</option>
<option value="TYPE5">Type5</option>
</select>
</div>
<script>
var radial1,
radial2,
radial3,
radial4,
radial5,
radial6,
radial7,
radial8,
radial9,
radial10,
radial11,
radial12,
radial13,
radial14,
radial15,
radial16,
radial17,
tempC1=85;
tempC2=85;
tempC3=85;
tempC4=85;
tempC5=85;
tempC6=85;
tempC7=300;
tempC8=300;
tempC9=300;
tempC10=300;
tempC11=300;
tempC12=300;
meter="";
data_val = 699;
i=1;
function init() {
// Define some sections
var sections1 = [steelseries.Section(0, 45, 'rgba(0, 0, 220, 0.3)'),
steelseries.Section(45, 65, 'rgba(0, 220, 0, 0.3)'),
steelseries.Section(65, 70, 'rgba(220, 220, 0, 0.3)'),
steelseries.Section(70, 90, 'rgba(255, 0, 0, 0.3)') ],
// Define value gradient for bargraph
valGrad = new steelseries.gradientWrapper( 0,
100,
[ 0, 0.33, 0.66, 0.85, 1],
[ new steelseries.rgbaColor(0, 0, 200, 1),
new steelseries.rgbaColor(0, 200, 0, 1),
new steelseries.rgbaColor(200, 200, 0, 1),
new steelseries.rgbaColor(200, 0, 0, 1),
new steelseries.rgbaColor(200, 0, 0, 1) ]);
// Initialzing gauges
radial1 = new steelseries.Radial('canvasRadial1', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: 'Koelwater',
unitString: 'Cil 1',
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial2 = new steelseries.Radial('canvasRadial2', {
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: 'Koelwater',
unitString: 'Cil 2',
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial3 = new steelseries.Radial('canvasRadial3', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 3",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial4 = new steelseries.Radial('canvasRadial4', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 4",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial5 = new steelseries.Radial('canvasRadial5', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 5",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial6 = new steelseries.Radial('canvasRadial6', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 6",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial7 = new steelseries.Radial('canvasRadial7', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: 'Uitlaat',
unitString: 'Cil 1',
threshold: 310,
lcdDecimals: 0,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial8 = new steelseries.Radial('canvasRadial8', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: 'Uitlaat',
unitString: 'Cil 2',
threshold: 310,
lcdDecimals: 0,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial9 = new steelseries.Radial('canvasRadial9', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 3",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial10 = new steelseries.Radial('canvasRadial10', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 4",
threshold: 310,
lcdDecimals: 0,
lcdVisible: true
});
radial11 = new steelseries.Radial('canvasRadial11', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 5",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial12 = new steelseries.Radial('canvasRadial12', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 6",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial13 = new steelseries.Radial('canvasRadial13', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 240,
minValue: 0,
maxValue: 35,
section: Array(steelseries.Section(0,10,'rgba(255,0,0,0.3)'),steelseries.Section(10,35,'rgba(0,255,0,0.3)')),
titleString: "Startlucht",
unitString: "Bar",
threshold: 10,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial14 = new steelseries.Radial('canvasRadial14', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 240,
minValue: 0,
maxValue: 90,
section: Array(steelseries.Section(0,30,'rgba(0,0,255,0.3)'),steelseries.Section(30,60,'rgba(0,255,0,0.3)'),steelseries.Section(60,70,'rgba(255,255,0,0.3)'),steelseries.Section(70,90,'rgba(255,0,0,0.3)')),
titleString: "KOPPELING",
unitString: "Olie °C ",
threshold: 65,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial15 = new steelseries.Radial('canvasRadial15', {
gaugeType: steelseries.GaugeType.TYPE4,
section: Array(steelseries.Section(0,1,'rgba(255,0,0,0.3)'),steelseries.Section(1,1.25,'rgba(255,255,0,0.3)'),steelseries.Section(1.25,2.5,'rgba(0,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
size: 240,
minValue: 0,
maxValue: 2.5,
majorTickSpacing: 0.1,
minorTickSpacing: 0.01,
labelNumberFormat: steelseries.LabelNumberFormat.FRACTIONAL,
thresholdBehaviourInverted: true,
//section: sectionsu,
titleString: "STORK",
unitString: "Oliedruk",
threshold: 1,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdDecimals: 1,
lcdVisible: true
});
radial16 = new steelseries.Radial('canvasRadial16', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 300,
minValue: 0,
maxValue: 700,
section: Array(steelseries.Section(150,520,'rgba(0,255,0,0.3)'),steelseries.Section(520,600,'rgba(255,255,0,0.3)'),steelseries.Section(600,700,'rgba(255,0,0,0.3)')),
titleString: "STORK",
unitString: "RPM",
threshold: 600,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial17 = new steelseries.Radial('canvasRadial17', {
gaugeType: steelseries.GaugeType.TYPE4,
section: Array(steelseries.Section(0,12,'rgba(255,0,0,0.3)'),steelseries.Section(12,15,'rgba(255,255,0,0.3)'),steelseries.Section(15,30,'rgba(0,255,0,0.3)')),
size: 240,
minValue: 0,
maxValue: 30,
//section: sectionsu,
titleString: "KOPPELING",
unitString: "Oliedruk",
threshold: 12,
lcdDecimals:0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
// Start update
setTimeout('GetArduinoInputs()', 2500);
setInterval(function(){ GetArduinoInputs(); }, 900);
setInterval(function(){ radial16.setValueAnimated(data_val); }, 900);
setInterval(function(){ radial1.setValueAnimated(tempC1); }, 2000);
setInterval(function(){ radial2.setValueAnimated(tempC2); }, 2000);
setInterval(function(){ radial3.setValueAnimated(tempC3); }, 2000);
setInterval(function(){ radial4.setValueAnimated(tempC4); }, 2000);
setInterval(function(){ radial5.setValueAnimated(tempC5); }, 2000);
setInterval(function(){ radial6.setValueAnimated(tempC6); }, 2000);
/*
setInterval(function(){ radial7.setValueAnimated(tempC1); }, 2000);
setInterval(function(){ radial8.setValueAnimated(tempC2); }, 2000);
setInterval(function(){ radial9.setValueAnimated(tempC3); }, 2000);
setInterval(function(){ radial10.setValueAnimated(tempC4); }, 2000);
setInterval(function(){ radial11.setValueAnimated(tempC5); }, 2000);
setInterval(function(){ radial12.setValueAnimated(tempC6); }, 2000);
setInterval(function(){ radial12.setValueAnimated(tempC14); }, 2000);
*/
}
function GetArduinoInputs()
{
nocache = "&nocache=" + Math.random() * 1000000;
var request = new XMLHttpRequest();
request.onreadystatechange = function()
{
if (request.readyState == 4) {
if (request.status == 200) {
if (request.responseXML != null) {
data_val = request.responseXML.getElementsByTagName('rpm')[0].childNodes[0].nodeValue;
tempC1 = request.responseXML.getElementsByTagName('tc1')[0].childNodes[0].nodeValue;
tempC2 = request.responseXML.getElementsByTagName('tc2')[0].childNodes[0].nodeValue;
tempC3 = request.responseXML.getElementsByTagName('tc3')[0].childNodes[0].nodeValue;
tempC4 = request.responseXML.getElementsByTagName('tc4')[0].childNodes[0].nodeValue;
tempC5 = request.responseXML.getElementsByTagName('tc5')[0].childNodes[0].nodeValue;
tempC6 = request.responseXML.getElementsByTagName('tc6')[0].childNodes[0].nodeValue;
}
}
}
}
request.open("GET", "http://192.168.1.176", true);
request.send(null);
}
function popup() {
alert('onder constructie');
}
function setFrameDesign(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "BLACK_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.BLACK_METAL);
i++;
}
break;
case "METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.METAL);
i++;
}
break;
case "SHINY_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.SHINY_METAL);
i++;
}
break;
case "BRASS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.BRASS);
i++;
}
break;
case "STEEL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.STEEL);
i++;
}
break;
case "CHROME":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.CHROME);
i++;
}
break;
case "GOLD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.GOLD);
i++;
}
break;
case "ANTHRACITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.ANTHRACITE);
i++;
}
break;
case "TILTED_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.TILTED_GRAY);
i++;
}
break;
case "TILTED_BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.TILTED_BLACK);
i++;
}
break;
case "GLOSSY_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.GLOSSY_METAL);
i++;
}
break;
}
}
function setBackgroundColor(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "DARK_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.DARK_GRAY);
i++;
}
break;
case "SATIN_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.SATIN_GRAY);
i++;
}
break;
case "LIGHT_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.LIGHT_GRAY);
i++;
}
break;
case "WHITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.WHITE);
i++;
}
break;
case "BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BLACK);
i++;
}
break;
case "BEIGE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BEIGE);
i++;
}
break;
case "BROWN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BROWN);
i++;
}
break;
case "RED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.RED);
i++;
}
break;
case "GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.GREEN);
i++;
}
break;
case "BLUE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BLUE);
i++;
}
break;
case "ANTHRACITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.ANTHRACITE);
i++;
}
break;
case "MUD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.MUD);
i++;
}
break;
case "PUNCHED_SHEET":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.PUNCHED_SHEET);
i++;
}
break;
case "CARBON":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.CARBON);
i++;
}
break;
case "STAINLESS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.STAINLESS);
i++;
}
break;
case "BRUSHED_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BRUSHED_METAL);
i++;
}
break;
case "BRUSHED_STAINLESS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BRUSHED_STAINLESS);
i++;
}
break;
case "TURNED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.TURNED);
i++;
}
break;
}
}
function setForegroundType(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "TYPE1":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE1);
i++;
}
break;
case "TYPE2":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE2);
i++;
}
break;
case "TYPE3":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE3);
i++;
}
break;
case "TYPE4":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE4);
i++;
}
break;
case "TYPE5":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE5);
i++;
}
break;
}
}
function setPointerColor(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "RED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.RED);
i++;
}
break;
case "GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GREEN);
i++;
}
break;
case "BLUE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.BLUE);
i++;
}
break;
case "ORANGE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.ORANGE);
i++;
}
break;
case "YELLOW":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.YELLOW);
i++;
}
break;
case "CYAN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.CYAN);
i++;
}
break;
case "MAGENTA":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.MAGENTA);
i++;
}
break;
case "WHITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.WHITE);
i++;
}
break;
case "GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GRAY);
i++;
}
break;
case "BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.BLACK);
i++;
}
break;
case "RAITH":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.RAITH);
i++;
}
break;
case "GREEN_LCD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GREEN_LCD);
i++;
}
break;
case "JUG_GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.JUG_GREEN);
i++;
}
break;
}
}
function setPointerType(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "TYPE1":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE1);
i++;
}
break;
case "TYPE2":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE2);
i++;
}
break;
case "TYPE3":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE3);
i++;
}
break;
case "TYPE4":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE4);
i++;
}
break;
case "TYPE5":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE5);
i++;
}
break;
case "TYPE6":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE6);
i++;
}
break;
case "TYPE7":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE7);
i++;
}
break;
case "TYPE8":
i = 1;
while(i < 18) {
...
This file has been truncated, please download it to see its full contents.
updated and refined sketch, 7 temp sensors in use,
ArduinoThis sketch samples temperatures on 7 points, measures rpm, steers analog rpm meter, and sends measurements in xml to network clients on request
#include <EthernetClient.h>
#include <Ethernet.h>
#include <EthernetServer.h>
#include <SPI.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#define ONE_WIRE_BUS 7
#define REQ_BUF_SZ 500
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
DeviceAddress ts_1 = { 0x28, 0x10, 0x1A, 0x1F, 0x00, 0x00, 0x80, 0xAA };
DeviceAddress ts_2 = { 0x28, 0x38, 0x15, 0x08, 0x00, 0x00, 0x80, 0x6C };
DeviceAddress ts_3 = { 0x28, 0x4C, 0x19, 0x1F, 0x00, 0x00, 0x80, 0xB7 };
DeviceAddress ts_4 = { 0x28, 0xAC, 0x19, 0x08, 0x00, 0x00, 0x80, 0x20 };
DeviceAddress ts_5 = { 0x28, 0x76, 0x1A, 0x1F, 0x00, 0x00, 0x80, 0xDB };
DeviceAddress ts_6 = { 0x28, 0x05, 0x1C, 0x08, 0x00, 0x00, 0x80, 0x38 };
DeviceAddress ts_7 = { 0x28, 0x3E, 0x16, 0x08, 0x00, 0x00, 0x80, 0x90 };
float tempC1 = 0;
float tempC2 = 0;
float tempC3 = 0;
float tempC4 = 0;
float tempC5 = 0;
float tempC6 = 0;
float tempC7 = 0;
float tempC8 = 0;
float tempC9 = 0;
float tempC10 = 0;
float tempC11 = 0;
float tempC12 = 0;
float tempC14 = 0;
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xFF};
IPAddress ip( 192, 168, 1, 167);
EthernetServer server(80);
char HTTP_req[REQ_BUF_SZ] = {0};
char req_index = 0;
int analog_val = 0;
unsigned long lastmillis = 0;
int RPM;
int rpm;
int PinVal;
int OldPinVal;
String readString = "";
int counter = 0;
void setup()
{
Ethernet.begin(mac, ip); // initialize Ethernet device
server.begin();
sensors.begin();
Serial.begin(9600);
delay(300);
Serial.print("Live !");
}
void loop()
{
sensors.requestTemperatures();
// delay(100);
analog_val = 0;
lastmillis = millis(); // reset timer voor 0.8 sec timeout
if (digitalRead(2) == HIGH) { while (digitalRead(2) == HIGH and millis() - lastmillis < 700);{} }
while (digitalRead(2) == LOW and millis() - lastmillis < 700); {} // wacht op begin passage detector of timeout
while (digitalRead(2) == HIGH and millis() - lastmillis < 700); {} // wacht op einde passage detector ==> startpunt meting
lastmillis = millis(); // reset timer voor meting & start chrono
while (digitalRead(2) == LOW and millis() - lastmillis < 700); {} // wacht op begin passage detector
while (digitalRead(2) == HIGH and millis() - lastmillis < 700); {} // wacht op einde passage detector ==> eindpunt meting
if (millis() - lastmillis < 700 ) {
analog_val = (60000 / (millis() - lastmillis)) ;
}
if (millis() - lastmillis > 699) {
analog_val = 0; // timed out = toerental 0
}
// aansturing toerenteller stuurhuis
RPM = analog_val;
PinVal = 0;
if (RPM > 100) {
PinVal = 16 + ((RPM - 100) * .33);
}
if (RPM > 200) {
PinVal = 49 + ((RPM - 200) * .37);
}
if (RPM > 300) {
PinVal = 86 + ((RPM - 300) * .38);
}
// PinVal = conversie van toerental naar waarde voor de output pin
analogWrite(5, round(PinVal)); // einde aansturing toerenteller stuurhuis
EthernetClient client = server.available();
if (client) {
readString = "";
boolean currentLineIsBlank = true;
while (client.connected() || client.available()) {
char c = client.read(); //gets byte from ethernet buffer
readString = readString + c;
if (c == '\n' && currentLineIsBlank) {
Serial.println(readString);
// send a standard http response header
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/xml");
client.println("Access-Control-Allow-Origin: *");
client.println();
// print the current readings, in HTML format:
client.print("<inputs>");
client.print("<rpm>");
client.print(analog_val);
client.print("</rpm>");
client.print("<tc1>");
client.print(sensors.getTempC(ts_1));
client.print("</tc1>");
client.print("<tc2>");
client.print(sensors.getTempC(ts_2));
client.print("</tc2>");
client.print("<tc3>");
client.print(sensors.getTempC(ts_3));
client.print("</tc3>");
client.print("<tc4>");
client.print(sensors.getTempC(ts_4));
client.print("</tc4>");
client.print("<tc5>");
client.print(sensors.getTempC(ts_5));
client.print("</tc5>");
client.print("<tc6>");
client.print(sensors.getTempC(ts_6));
client.print("</tc6>");
client.print("<tc7>");
client.print(sensors.getTempC(ts_7));
client.print("</tc7>");
client.print("</inputs>");
client.println();
break;
}
if (c == '\n') {
// you're starting a new line
currentLineIsBlank = true;
} else if (c != '\r') {
// you've gotten a character on the current line
currentLineIsBlank = false;
}
}
}
delay(50);
client.stop();
while (client.status() != 0) delay(50);
}
My dashboard updated version
HTMLThis webpage displays a series of gauges (designed by Gerrit Grunwald) , it requests data from the arduino, the response is an xml file. The gauges are updated with the data in the xml.
Updated version, 1K lines less code !!
Updated version, 1K lines less code !!
<!DOCTYPE html>
<html><head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<meta charset="utf-8">
<title>Lorenzo Online Instruments</title>
</head>
<body onload="init();" style="background-color:#020d1e">
<table>
<tbody>
<tr>
<td width="100%">
<canvas id="canvasRadial1" width="210" height="210">No canvas in your browser...sorry...</canvas>
<canvas id="canvasRadial2" width="210" height="210"></canvas>
<canvas id="canvasRadial3" width="210" height="210"></canvas>
<canvas id="canvasRadial4" width="210" height="210"></canvas>
<canvas id="canvasRadial5" width="210" height="210"></canvas>
<canvas id="canvasRadial6" width="210" height="210"></canvas>
</td>
</tr>
<tr>
<td width="100%">
<canvas id="canvasRadial13" width="240" height="240"></canvas>
<canvas id="canvasRadial15" width="240" height="240"></canvas>
<canvas id="canvasRadial16" width="300" height="300"></canvas>
<canvas id="canvasRadial17" width="240" height="240"></canvas>
<canvas id="canvasRadial14" width="240" height="240"></canvas>
</td>
</tr>
<tr>
<td width="100%">
<canvas id="canvasRadial7" width="210" height="210"></canvas>
<canvas id="canvasRadial8" width="210" height="210"></canvas>
<canvas id="canvasRadial9" width="210" height="210"></canvas>
<canvas id="canvasRadial10" width="210" height="210"></canvas>
<canvas id="canvasRadial11" width="210" height="210"></canvas>
<canvas id="canvasRadial12" width="210" height="210"></canvas>
</td>
</tr><tr>
</tr>
</tbody></table>
<div style="position:absolute; left:1310px; top:20px; ">
<button onclick="popup()" ;="" style="height:30px;width:125px"> Hoofdmotor </button><br>
<button onclick="popup()" ;="" style="height:30px;width:125px"> Tanklevels </button><br>
<button onclick="popup()" ;="" style="height:30px;width:125px"> 220/380/24V </button><br>
<button onclick="popup()" ;="" style="height:30px;width:125px"> Generatoren </button><br>
<button onclick="popup()" ;="" style="height:30px;width:125px"> Bediening </button><br>
<button onclick="popup()" ;="" style="height:30px;width:125px"> Alarmen </button><br>
<img src="Canvas%20Steel_bestanden/cue.png" style="width:50px;height:50px" ;="" onclick="popup()">
<br>
<select id="comboFrame" onchange="setFrameDesign(this)" style="height:30px;width:125px">
<option value=""> Type ring </option>
<option value="BLACK_METAL">BlackMetal</option>
<option value="METAL">Metal</option>
<option value="SHINY_METAL" selected="selected">ShinyMetal</option>
<option value="BRASS">Brass</option>
<option value="STEEL">Steel</option>
<option value="CHROME">Chrome</option>
<option value="GOLD">Gold</option>
<option value="ANTHRACITE">Anthracite</option>
<option value="TILTED_GRAY">TiltedGray</option>
<option value="TILTED_BLACK">TiltedBlack</option>
<option value="GLOSSY_METAL">GlossyMetal</option>
</select>
<select id="comboBackground" onchange="setBackgroundColor(this);" style="height:30px;width:125px">
<option value=""> Kleur achtergrond </option>
<option value="DARK_GRAY">DarkGray</option>
<option value="SATIN_GRAY">SatinGray</option>
<option value="LIGHT_GRAY">LightGray</option>
<option value="WHITE">White</option>
<option value="BLACK">Black</option>
<option value="BEIGE">Beige</option>
<option value="BROWN">Brown</option>
<option value="RED">Red</option>
<option value="GREEN">Green</option>
<option value="BLUE" selected="selected">Blue</option>
<option value="ANTHRACITE">Anthracite</option>
<option value="MUD">Mud</option>
<option value="PUNCHED_SHEET">PunchedSheet</option>
<option value="CARBON">Carbon</option>
<option value="STAINLESS">Stainless</option>
<option value="BRUSHED_METAL">BrushedMetal</option>
<option value="BRUSHED_STAINLESS">BrushedStainless</option>
<option value="TURNED">Turned</option>
</select>
<select id="comboPointerColor" onchange="setPointerColor(this);" style="height:30px;width:125px">
<option selected="selected" value=""> Kleur naald </option>
<option value="RED">Red</option>
<option value="GREEN">Green</option>
<option value="BLUE">Blue</option>
<option value="ORANGE">Orange</option>
<option value="YELLOW">Yellow</option>
<option value="CYAN">Cyan</option>
<option value="MAGENTA">Magenta</option>
<option value="WHITE">White</option>
<option value="GRAY">Gray</option>
<option value="BLACK">Black</option>
<option value="RAITH">Raith</option>
<option value="GREEN_LCD">Green LCD</option>
<option value="JUG_GREEN">JUG Green</option>
</select>
<select id="comboPointerType" onchange="setPointerType(this);" style="height:30px;width:125px">
<option value=""> Type wijzernaald </option>
<option value="TYPE1">Type1</option>
<option value="TYPE2">Type2</option>
<option value="TYPE3">Type3</option>
<option value="TYPE4">Type4</option>
<option value="TYPE5">Type5</option>
<option value="TYPE6" selected="selected">Type6</option>
<option value="TYPE7">Type7</option>
<option value="TYPE8">Type8</option>
<option value="TYPE9">Type9</option>
<option value="TYPE10">Type10</option>
<option value="TYPE11">Type11</option>
<option value="TYPE12">Type12</option>
<option value="TYPE13">Type13</option>
<option value="TYPE14">Type14</option>
<option value="TYPE15">Type15</option>
<option value="TYPE16">Type16</option>
</select>
<select id="comboLcdColor" onchange="setLcdColor(this);" style="height:30px;width:125px">
<option value=""> Kleur LCD scherm</option>
<option value="BEIGE">Beige</option>
<option value="BLUE">Blue</option>
<option value="ORANGE">Orange</option>
<option value="RED">Red</option>
<option value="YELLOW">Yellow</option>
<option value="WHITE">White</option>
<option value="GRAY">Gray</option>
<option value="BLACK">Black</option>
<option value="GREEN">Green</option>
<option value="BLUE2">Blue2</option>
<option value="BLUE_BLACK" selected="selected">BlueBlack</option>
<option value="BLUE_DARKBLUE">BlueDarkBlue</option>
<option value="BLUE_GRAY">BlueGray</option>
<option value="STANDARD">Standard</option>
<option value="STANDARD_GREEN">StandardGreen</option>
<option value="BLUE_BLUE">BlueBlue</option>
<option value="RED_DARKRED">RedDarkRed</option>
<option value="DARKBLUE">DarkBlue</option>
<option value="LILA">Lila</option>
<option value="BLACKRED">BlackRed</option>
<option value="DARKGREEN">DarkGreen</option>
<option value="AMBER">Amber</option>
<option value="LIGHTBLUE">LightBlue</option>
<option value="SECTIONS">Sections</option>
</select>
<select id="comboForeground" onchange="setForegroundType(this);" style="height:30px;width:125px">
<option value=""> Type afdekglas </option>
<option value="TYPE1">Type1</option>
<option value="TYPE2">Type2</option>
<option value="TYPE3">Type3</option>
<option value="TYPE4" selected="selected">Type4</option>
<option value="TYPE5">Type5</option>
</select>
</div>
<script>
var radial1,
radial2,
radial3,
radial4,
radial5,
radial6,
radial7,
radial8,
radial9,
radial10,
radial11,
radial12,
radial13,
radial14,
radial15,
radial16,
radial17,
tempC1=85;
tempC2=85;
tempC3=85;
tempC4=85;
tempC5=85;
tempC6=85;
tempC7=300;
tempC8=300;
tempC9=300;
tempC10=300;
tempC11=300;
tempC12=300;
tempC14=85;
meter="";
data_val = 699;
i=1;
function init() {
// Define some sections
var sections1 = [steelseries.Section(0, 45, 'rgba(0, 0, 220, 0.3)'),
steelseries.Section(45, 65, 'rgba(0, 220, 0, 0.3)'),
steelseries.Section(65, 70, 'rgba(220, 220, 0, 0.3)'),
steelseries.Section(70, 90, 'rgba(255, 0, 0, 0.3)') ],
// Define value gradient for bargraph
valGrad = new steelseries.gradientWrapper( 0,
100,
[ 0, 0.33, 0.66, 0.85, 1],
[ new steelseries.rgbaColor(0, 0, 200, 1),
new steelseries.rgbaColor(0, 200, 0, 1),
new steelseries.rgbaColor(200, 200, 0, 1),
new steelseries.rgbaColor(200, 0, 0, 1),
new steelseries.rgbaColor(200, 0, 0, 1) ]);
// Initialzing gauges
radial1 = new steelseries.Radial('canvasRadial1', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: 'Koelwater',
unitString: 'Cil 1',
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial2 = new steelseries.Radial('canvasRadial2', {
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: 'Koelwater',
unitString: 'Cil 2',
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial3 = new steelseries.Radial('canvasRadial3', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 3",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial4 = new steelseries.Radial('canvasRadial4', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 4",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial5 = new steelseries.Radial('canvasRadial5', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 5",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial6 = new steelseries.Radial('canvasRadial6', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 90,
section: sections1,
titleString: "Koelwater",
unitString: "Cil 6",
threshold: 70,
lcdDecimals: 1,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial7 = new steelseries.Radial('canvasRadial7', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: 'Uitlaat',
unitString: 'Cil 1',
threshold: 310,
lcdDecimals: 0,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial8 = new steelseries.Radial('canvasRadial8', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: 'Uitlaat',
unitString: 'Cil 2',
threshold: 310,
lcdDecimals: 0,
lcdVisible: true,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL
});
radial9 = new steelseries.Radial('canvasRadial9', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 3",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial10 = new steelseries.Radial('canvasRadial10', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 4",
threshold: 310,
lcdDecimals: 0,
lcdVisible: true
});
radial11 = new steelseries.Radial('canvasRadial11', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 5",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial12 = new steelseries.Radial('canvasRadial12', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 210,
minValue: 0,
maxValue: 350,
section: Array(steelseries.Section(0,120,'rgba(0,0,255,0.3)'),steelseries.Section(120,250,'rgba(0,255,0,0.3)'),steelseries.Section(250,300,'rgba(255,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
titleString: "Uitlaat",
unitString: "Cil 6",
threshold: 310,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial13 = new steelseries.Radial('canvasRadial13', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 240,
minValue: 0,
maxValue: 35,
section: Array(steelseries.Section(0,10,'rgba(255,0,0,0.3)'),steelseries.Section(10,35,'rgba(0,255,0,0.3)')),
titleString: "Startlucht",
unitString: "Bar",
threshold: 10,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial14 = new steelseries.Radial('canvasRadial14', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 240,
minValue: 0,
maxValue: 90,
section: Array(steelseries.Section(0,30,'rgba(0,0,255,0.3)'),steelseries.Section(30,60,'rgba(0,255,0,0.3)'),steelseries.Section(60,70,'rgba(255,255,0,0.3)'),steelseries.Section(70,90,'rgba(255,0,0,0.3)')),
titleString: "KOPPELING",
unitString: "Olie C ",
threshold: 65,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial15 = new steelseries.Radial('canvasRadial15', {
gaugeType: steelseries.GaugeType.TYPE4,
section: Array(steelseries.Section(0,1,'rgba(255,0,0,0.3)'),steelseries.Section(1,1.25,'rgba(255,255,0,0.3)'),steelseries.Section(1.25,2.5,'rgba(0,255,0,0.3)'),steelseries.Section(300,350,'rgba(255,0,0,0.3)')),
size: 240,
minValue: 0,
maxValue: 2.5,
majorTickSpacing: 0.1,
minorTickSpacing: 0.01,
labelNumberFormat: steelseries.LabelNumberFormat.FRACTIONAL,
thresholdBehaviourInverted: true,
//section: sectionsu,
titleString: "STORK",
unitString: "Oliedruk",
threshold: 1,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdDecimals: 1,
lcdVisible: true
});
radial16 = new steelseries.Radial('canvasRadial16', {
gaugeType: steelseries.GaugeType.TYPE4,
size: 300,
minValue: 0,
maxValue: 700,
section: Array(steelseries.Section(150,520,'rgba(0,255,0,0.3)'),steelseries.Section(520,600,'rgba(255,255,0,0.3)'),steelseries.Section(600,700,'rgba(255,0,0,0.3)')),
titleString: "STORK",
unitString: "RPM",
threshold: 600,
lcdDecimals: 0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
radial17 = new steelseries.Radial('canvasRadial17', {
gaugeType: steelseries.GaugeType.TYPE4,
section: Array(steelseries.Section(0,12,'rgba(255,0,0,0.3)'),steelseries.Section(12,15,'rgba(255,255,0,0.3)'),steelseries.Section(15,30,'rgba(0,255,0,0.3)')),
size: 240,
minValue: 0,
maxValue: 30,
//section: sectionsu,
titleString: "KOPPELING",
unitString: "Oliedruk",
threshold: 12,
lcdDecimals:0,
tickLabelOrientation: steelseries.TickLabelOrientation.HORIZONTAL,
lcdVisible: true
});
// Start update
setTimeout('GetArduinoInputs()', 5000);
setInterval(function(){ GetArduinoInputs(); }, 1000);
setInterval(function(){ radial16.setValueAnimated(data_val); }, 1000);
setInterval(function(){ radial1.setValueAnimated(tempC1); }, 2000);
setInterval(function(){ radial2.setValueAnimated(tempC2); }, 2000);
setInterval(function(){ radial3.setValueAnimated(tempC3); }, 2000);
setInterval(function(){ radial4.setValueAnimated(tempC4); }, 2000);
setInterval(function(){ radial5.setValueAnimated(tempC5); }, 2000);
setInterval(function(){ radial6.setValueAnimated(tempC6); }, 2000);
setInterval(function(){ radial14.setValueAnimated(tempC7); }, 2000);
/*
setInterval(function(){ radial8.setValueAnimated(tempC8); }, 2000);
setInterval(function(){ radial9.setValueAnimated(tempC9); }, 2000);
setInterval(function(){ radial10.setValueAnimated(tempC10); }, 2000);
setInterval(function(){ radial11.setValueAnimated(tempC11); }, 2000);
setInterval(function(){ radial12.setValueAnimated(tempC12); }, 2000);
setInterval(function(){ radial14.setValueAnimated(tempC14); }, 2000);
*/
}
function GetArduinoInputs()
{
nocache = "&nocache=" + Math.random() * 1000000;
var request = new XMLHttpRequest();
request.onreadystatechange = function()
{
if (request.readyState == 4) {
if (request.status == 200) {
if (request.responseXML != null) {
data_val = request.responseXML.getElementsByTagName('rpm')[0].childNodes[0].nodeValue;
tempC1 = request.responseXML.getElementsByTagName('tc1')[0].childNodes[0].nodeValue;
tempC2 = request.responseXML.getElementsByTagName('tc2')[0].childNodes[0].nodeValue;
tempC3 = request.responseXML.getElementsByTagName('tc3')[0].childNodes[0].nodeValue;
tempC4 = request.responseXML.getElementsByTagName('tc4')[0].childNodes[0].nodeValue;
tempC5 = request.responseXML.getElementsByTagName('tc5')[0].childNodes[0].nodeValue;
tempC6 = request.responseXML.getElementsByTagName('tc6')[0].childNodes[0].nodeValue;
tempC7 = request.responseXML.getElementsByTagName('tc7')[0].childNodes[0].nodeValue;
}
}
}
}
request.open("GET", "http://192.168.1.167", true);
request.send(null);
}
function popup() {
alert('onder constructie');
}
function setFrameDesign(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "BLACK_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.BLACK_METAL);
i++;
}
break;
case "METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.METAL);
i++;
}
break;
case "SHINY_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.SHINY_METAL);
i++;
}
break;
case "BRASS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.BRASS);
i++;
}
break;
case "STEEL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.STEEL);
i++;
}
break;
case "CHROME":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.CHROME);
i++;
}
break;
case "GOLD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.GOLD);
i++;
}
break;
case "ANTHRACITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.ANTHRACITE);
i++;
}
break;
case "TILTED_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.TILTED_GRAY);
i++;
}
break;
case "TILTED_BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.TILTED_BLACK);
i++;
}
break;
case "GLOSSY_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setFrameDesign(steelseries.FrameDesign.GLOSSY_METAL);
i++;
}
break;
}
}
function setBackgroundColor(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "DARK_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.DARK_GRAY);
i++;
}
break;
case "SATIN_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.SATIN_GRAY);
i++;
}
break;
case "LIGHT_GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.LIGHT_GRAY);
i++;
}
break;
case "WHITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.WHITE);
i++;
}
break;
case "BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BLACK);
i++;
}
break;
case "BEIGE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BEIGE);
i++;
}
break;
case "BROWN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BROWN);
i++;
}
break;
case "RED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.RED);
i++;
}
break;
case "GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.GREEN);
i++;
}
break;
case "BLUE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BLUE);
i++;
}
break;
case "ANTHRACITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.ANTHRACITE);
i++;
}
break;
case "MUD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.MUD);
i++;
}
break;
case "PUNCHED_SHEET":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.PUNCHED_SHEET);
i++;
}
break;
case "CARBON":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.CARBON);
i++;
}
break;
case "STAINLESS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.STAINLESS);
i++;
}
break;
case "BRUSHED_METAL":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BRUSHED_METAL);
i++;
}
break;
case "BRUSHED_STAINLESS":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.BRUSHED_STAINLESS);
i++;
}
break;
case "TURNED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setBackgroundColor(steelseries.BackgroundColor.TURNED);
i++;
}
break;
}
}
function setForegroundType(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "TYPE1":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE1);
i++;
}
break;
case "TYPE2":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE2);
i++;
}
break;
case "TYPE3":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE3);
i++;
}
break;
case "TYPE4":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE4);
i++;
}
break;
case "TYPE5":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setForegroundType(steelseries.ForegroundType.TYPE5);
i++;
}
break;
}
}
function setPointerColor(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "RED":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.RED);
i++;
}
break;
case "GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GREEN);
i++;
}
break;
case "BLUE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.BLUE);
i++;
}
break;
case "ORANGE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.ORANGE);
i++;
}
break;
case "YELLOW":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.YELLOW);
i++;
}
break;
case "CYAN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.CYAN);
i++;
}
break;
case "MAGENTA":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.MAGENTA);
i++;
}
break;
case "WHITE":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.WHITE);
i++;
}
break;
case "GRAY":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GRAY);
i++;
}
break;
case "BLACK":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.BLACK);
i++;
}
break;
case "RAITH":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.RAITH);
i++;
}
break;
case "GREEN_LCD":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.GREEN_LCD);
i++;
}
break;
case "JUG_GREEN":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerColor(steelseries.ColorDef.JUG_GREEN);
i++;
}
break;
}
}
function setPointerType(sel) {
switch (sel.options[sel.selectedIndex].value) {
case "TYPE1":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE1);
i++;
}
break;
case "TYPE2":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE2);
i++;
}
break;
case "TYPE3":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE3);
i++;
}
break;
case "TYPE4":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE4);
i++;
}
break;
case "TYPE5":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE5);
i++;
}
break;
case "TYPE6":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE6);
i++;
}
break;
case "TYPE7":
i = 1;
while(i < 18) {
meter = "radial" + i;
eval(meter).setPointerType(steelseries.PointerType.TYPE7);
i++;
}
break;
case "TYPE8":
...
This file has been truncated, please download it to see its full contents.
