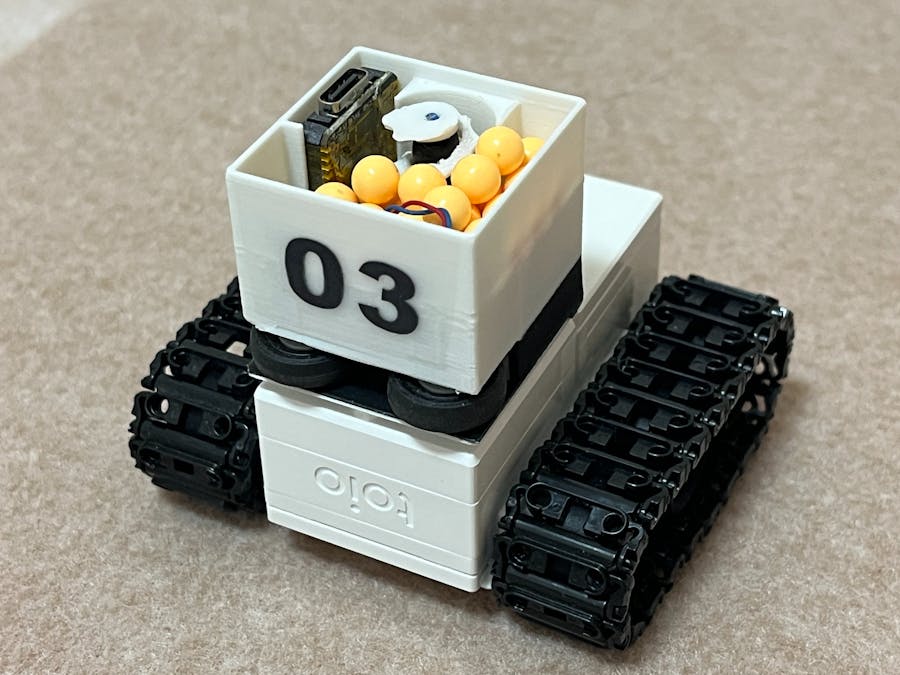

Ultra-compact plastic BBs launcher

/*
* MIT License
*
* Copyright (c) 2024 Kouhei Ito
* Copyright (c) 2025 Jun Kataoka
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to deal
* in the Software without restriction, including without limitation the rights
* to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in all
* copies or substantial portions of the Software.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
* AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
* LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
* OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
* SOFTWARE.
*/


//Controller for M5Fly
//#define DEBUG

#include <Arduino.h>
#include <M5AtomS3.h>
#include <WiFi.h>
#include <esp_now.h>
#include <esp_wifi.h>
#include <MPU6886.h>
#include <MadgwickAHRS.h>
#include <atoms3joy.h>
#include <FS.h>
#include <SPIFFS.h>
#include <driver/ledc.h>

#define NOTE_D1 294
#define NOTE_D2 330
#define NOTE_D3 350
#define NOTE_D4 393
#define NOTE_D5 441
#define NOTE_D6 495
#define NOTE_D7 556

const int buzzerPin = 5;
const int channel   = 0;

void setup_pwm_buzzer(void);
void beep(void);
void start_tone(void);
void buzzer_sound(uint32_t frequency, uint32_t duration_ms);

#define CHANNEL 1

#define ROTATING 1
#define NOT_ROTATING 0
#define ROTATING_W_LOG 2
#define NOT_ROTATING_W_LOG 3
#define FIRE_CONTROL_MODE 1
#define NOT_FIRE_CONTROL_MODE 0
#define RESO10BIT (4096)


esp_now_peer_info_t peerInfo;

int counter1 =0, counter2 =0, move =0;
bool send_esp_flag = true;
bool toio_swap_flag = true;
int toio_a, toio_b;
float Throttle;
float aileron, elevator, rudder;
uint16_t aileron_bias =2048;
uint16_t elevator_bias = 2048;
uint16_t rudder_bias =2048;
uint16_t Throttle_bias = 2048;
short xstick=0;
short ystick=0;
uint8_t rotation=NOT_ROTATING;
uint8_t fire=NOT_FIRE_CONTROL_MODE;
volatile uint8_t Loop_flag=0;
float Timer = 0.0;
float dTime = 0.01;
uint8_t Timer_state = 0;
uint8_t StickMode = 2;
uint32_t espnow_version;
volatile uint8_t proactive_flag          = 0;
unsigned long stime,etime,dtime;
uint8_t axp_cnt=0;
uint8_t is_peering=0;
uint8_t senddata[25];//19->22->23->24->25
uint8_t disp_counter=0;

//StampFly MAC ADDRESS
//1 F4:12:FA:66:80:54 (Yellow)
//2 F4:12:FA:66:77:A4
uint8_t Addr1[6] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};
uint8_t Addr2[6] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};


//Channel
uint8_t Ch_counter;
volatile uint8_t Received_flag = 0;
volatile uint8_t Channel = CHANNEL;

void rc_init(void);
void data_send(void);
void show_battery_info();
void voltage_print(void);

void setup_pwm_buzzer(void) {
    ledcSetup(channel, 4000, 8);        // 配置PWM通道：通道0，频率3000Hz，分辨率8位
    ledcAttachPin(buzzerPin, channel);  // 将PWM通道绑定到GPIO
}

void buzzer_sound(uint32_t frequency, uint32_t duration_ms) {
    ledcWriteTone(channel, frequency);
    ledcWrite(channel, 64);

    vTaskDelay(duration_ms / portTICK_PERIOD_MS);

    ledcWriteTone(channel, 0);
    digitalWrite(channel, 0);
}

void beep(void) {
    buzzer_sound(4000, 100);
}

void start_tone(void) {
    buzzer_sound(2000, 100);
    buzzer_sound(1000, 100);

    #if 0
    buzzer_sound(NOTE_D1, 200);
    buzzer_sound(NOTE_D5, 200);
    buzzer_sound(NOTE_D3, 200);
    buzzer_sound(NOTE_D4, 200);
    #endif
}

// 受信コールバック
void OnDataRecv(const uint8_t *mac_addr, const uint8_t *recv_data, int data_len)
{
  if (is_peering) {
    if (recv_data[7] == 0xaa && recv_data[8] == 0x55 && recv_data[9] == 0x16 && recv_data[10] == 0x88) {
        Received_flag = 1;
        Channel       = recv_data[0];
        Addr2[0]      = recv_data[1];
        Addr2[1]      = recv_data[2];
        Addr2[2]      = recv_data[3];
        Addr2[3]      = recv_data[4];
        Addr2[4]      = recv_data[5];
        Addr2[5]      = recv_data[6];
        USBSerial.printf("Receive !\n");
    }
  }
  else {
    //データ受信時に実行したい内容をここに書く。
    float a;
    uint8_t *dummy;
    uint8_t offset = 2;

    //Channel_detected_flag++;
    //if(Channel_detected_flag>10)Channel_detected_flag=10;
    //Serial.printf("Channel=%d  ",Channel);
    dummy=(uint8_t*)&a;
    dummy[0]=recv_data[0];
    dummy[1]=recv_data[1];
    if (dummy[0]==0xF4)return;
    if ((dummy[0]==99)&&(dummy[1]==99))Serial.printf("#PID Gain P Ti Td Eta ");
    for (uint8_t i=0; i<((data_len-offset)/4); i++)
    {
      dummy[0]=recv_data[i*4 + 0 + offset];
      dummy[1]=recv_data[i*4 + 1 + offset];
      dummy[2]=recv_data[i*4 + 2 + offset];
      dummy[3]=recv_data[i*4 + 3 + offset];
      // USBSerial.printf("%9.4f ", a);
    }
    // USBSerial.printf("\r\n");
  }
}

#define BUF_SIZE 128
// EEPROMにデータを保存する
void save_data(void)
{
  SPIFFS.begin(true);
  /* CREATE FILE */
  File fp = SPIFFS.open("/peer_info.txt", FILE_WRITE); // 書き込み、存在すれば上書き
  char buf[BUF_SIZE + 1];
  sprintf(buf, "%d,%02X,%02X,%02X,%02X,%02X,%02X",
          Channel,
          Addr2[0],
          Addr2[1],
          Addr2[2],
          Addr2[3],
          Addr2[4],
          Addr2[5]);
  fp.write((uint8_t *)buf, BUF_SIZE);
  fp.close();
  SPIFFS.end();

  // USBSerial.printf("Saved Data:%d,[%02X:%02X:%02X:%02X:%02X:%02X]",
  //     Channel,
  //     Addr2[0],
  //     Addr2[1],
  //     Addr2[2],
  //     Addr2[3],
  //     Addr2[4],
  //     Addr2[5]);
}

// EEPROMからデータを読み出す
void load_data(void)
{
  SPIFFS.begin(true);
  File fp = SPIFFS.open("/peer_info.txt", FILE_READ);
  char buf[BUF_SIZE + 1];
  while (fp.read((uint8_t *)buf, BUF_SIZE) == BUF_SIZE)
  {
    //USBSerial.print(buf);
    sscanf(buf,"%hhd,%hhX,%hhX,%hhX,%hhX,%hhX,%hhX",
          &Channel,
          &Addr2[0],
          &Addr2[1],
          &Addr2[2],
          &Addr2[3],
          &Addr2[4],
          &Addr2[5]);
    // USBSerial.printf("%d,%02X,%02X,%02X,%02X,%02X,%02X\n\r",
    //       Channel,
    //       Addr2[0],
    //       Addr2[1],
    //       Addr2[2],
    //       Addr2[3],
    //       Addr2[4],
    //       Addr2[5]);
  }
  fp.close();
  SPIFFS.end();
}

void rc_init(uint8_t ch, uint8_t* addr)
{
    // ESP-NOW初期化
    WiFi.mode(WIFI_STA);
    WiFi.disconnect();
    if (esp_now_init() == ESP_OK) {
        esp_now_unregister_recv_cb();
        esp_now_register_recv_cb(OnDataRecv);
        USBSerial.println("ESPNow Init Success");
    } else {
        USBSerial.println("ESPNow Init Failed");
        ESP.restart();
    }

    memset(&peerInfo, 0, sizeof(peerInfo));
    memcpy(peerInfo.peer_addr, addr, 6);
    peerInfo.channel = ch;
    peerInfo.encrypt = false;
    uint8_t peer_mac_addre;
    while (esp_now_add_peer(&peerInfo) != ESP_OK) {
        USBSerial.println("Failed to add peer");
    }
    esp_wifi_set_channel(ch, WIFI_SECOND_CHAN_NONE);
}

void peering(void)
{
  uint8_t break_flag;
  uint32_t beep_delay = 0;
  //StampFlyはMACアドレスをFF:FF:FF:FF:FF:FFとして
  //StampFlyのMACアドレスをでブロードキャストする
  //その際にChannelが機体と送信機で同一でない場合は受け取れない
  // ESP-NOWコールバック登録
  esp_now_register_recv_cb(OnDataRecv);

  //ペアリング
  Ch_counter = 1;
  while(1)
  {
    USBSerial.printf("Try channel %02d.\n\r", Ch_counter);
    peerInfo.channel = Ch_counter;
    peerInfo.encrypt = false;
    while (esp_now_mod_peer(&peerInfo) != ESP_OK)
    {
        USBSerial.println("Failed to mod peer");
    }
    esp_wifi_set_channel(Ch_counter, WIFI_SECOND_CHAN_NONE);

    //Wait receive StampFly MAC Address
    //uint32_t counter=1;
    //Channelをひとつづつ試していく
    for (uint8_t i =0;i<100;i++)
    {
          break_flag = 0;
          if (Received_flag == 1)
          {
            break_flag = 1;
            break;
          }
          usleep(100);
    }
    if (millis() - beep_delay >= 500) {
        beep();
        beep_delay = millis();
    }

    if (break_flag)break;
    Ch_counter++;
    if(Ch_counter==15)Ch_counter=1;
  }
  //Channel = Ch_counter;

  save_data();
  is_peering = 0;
  // USBSerial.printf("Channel:%02d\n\r", Channel);
  // USBSerial.printf("MAC2:%02X:%02X:%02X:%02X:%02X:%02X:\n\r",
  //                   Addr2[0],Addr2[1],Addr2[2],Addr2[3],Addr2[4],Addr2[5]);
  // USBSerial.printf("MAC1:%02X:%02X:%02X:%02X:%02X:%02X:\n\r",
  //                   Addr1[0],Addr1[1],Addr1[2],Addr1[3],Addr1[4],Addr1[5]);

  //Peering
  while (esp_now_del_peer(Addr1) != ESP_OK) {
    Serial.println("Failed to delete peer1");
  }
  memset(&peerInfo, 0, sizeof(peerInfo));
  memcpy(peerInfo.peer_addr, Addr2, 6);//Addr1->Addr2 ////////////////////////////
  peerInfo.channel = Channel;
  peerInfo.encrypt = false;
  while (esp_now_add_peer(&peerInfo) != ESP_OK)
  {
        USBSerial.println("Failed to add peer2");
  }
  esp_wifi_set_channel(Channel, WIFI_SECOND_CHAN_NONE);
}

void change_channel(uint8_t ch)
{
  peerInfo.channel = ch;
  if (esp_now_mod_peer(&peerInfo)!=ESP_OK)
  {
        USBSerial.println("Failed to modify peer");
        return;
  }
  esp_wifi_set_channel(ch, WIFI_SECOND_CHAN_NONE);
}

//周期カウンタ割り込み関数
hw_timer_t * timer = NULL;
void IRAM_ATTR onTimer()
{
  Loop_flag = 1;
  //Timer = Timer + dTime;
}

void setup() {
  M5.begin();
  Serial2.begin(115200, SERIAL_8N1, 1, 2);
  Wire1.begin(38, 39, 400*1000);
  load_data();
  M5.update();
  setup_pwm_buzzer();
  M5.Lcd.setRotation( 2 );
  M5.Lcd.setTextFont(2);
  M5.Lcd.setCursor(4, 2);

  if (M5.Btn.isPressed() || (Addr2[0] == 0xFF && Addr2[1] == 0xFF && Addr2[2] == 0xFF && Addr2[3] == 0xFF &&
                               Addr2[4] == 0xFF && Addr2[5] == 0xFF)) {
    M5.Lcd.println("Push LCD panel!");
    while (1) {
      M5.update();
      if (M5.Btn.wasPressed()) {
        is_peering = 1;
        break;
      }
    }
    rc_init(1, Addr1);
    USBSerial.printf("Button pressed!\n\r");
    M5.Lcd.println(" ");
    M5.Lcd.println("Push StampFly");
    M5.Lcd.println("    Reset Button!");
    M5.Lcd.println(" ");
    M5.Lcd.println("Pairing...");
    peering();
  }
  else rc_init(Channel, Addr2);
  M5.Lcd.fillScreen(BLACK);
  joy_update();

  StickMode = 2;
  if(getOptionButton())
  {
    StickMode = 3;
    M5.Lcd.println("Please release button.");
    while(getOptionButton())joy_update();
  }
  fire =NOT_FIRE_CONTROL_MODE;
  delay(500);

  if (StickMode == 3)
  {
    THROTTLE = RIGHTY;
    AILERON = LEFTX;
    ELEVATOR = LEFTY;
    RUDDER = RIGHTX;
    ARM_BUTTON = RIGHT_STICK_BUTTON;
    FLIP_BUTTON = LEFT_STICK_BUTTON;
    MODE_BUTTON = RIGHT_BUTTON;
    OPTION_BUTTON = LEFT_BUTTON;
  }
  else
  {
    THROTTLE = LEFTY;
    AILERON = RIGHTX;
    ELEVATOR = RIGHTY;
    RUDDER = LEFTX;
    ARM_BUTTON = LEFT_STICK_BUTTON;
    FLIP_BUTTON = RIGHT_STICK_BUTTON;
    MODE_BUTTON = RIGHT_BUTTON;
    OPTION_BUTTON = LEFT_BUTTON;
  }

  byte error, address;
  int nDevices;

////////////////////////////////////////////////////////
  USBSerial.println("Scanning... Wire1");

  nDevices = 0;
  for (address = 1; address < 127; address++ )
  {
    Wire1.beginTransmission(address);
    error = Wire1.endTransmission();

    if (error == 0)
    {
      USBSerial.print("I2C device found at address 0x");
      if (address < 16)
        USBSerial.print("0");
      USBSerial.print(address, HEX);
      USBSerial.println("  !");

      nDevices++;
    }
    else if (error == 4)
    {
      USBSerial.print("Unknown error at address 0x");
      if (address < 16)
        USBSerial.print("0");
      USBSerial.println(address, HEX);
    }
  }
  if (nDevices == 0)
    USBSerial.println("No I2C devices found\n");
  else
    USBSerial.println("done\n");

  esp_now_get_version(&espnow_version);
  USBSerial.printf("ESP-NOW Version %d\n", espnow_version);


  //割り込み設定
  timer = timerBegin(1, 80, true);
  timerAttachInterrupt(timer, &onTimer, true);
  timerAlarmWrite(timer, 10000, true);
  timerAlarmEnable(timer);
  delay(100);
}

uint8_t check_rotation_mode_change(void)
{
  uint8_t state;
  static uint8_t flag =0;
  state = 0;
  if (flag==0)
  {
    if (getModeButton() == 1)
    {
      flag = 1;
    }
  }
  else
  {
    if (getModeButton() == 0)
    {
      flag = 0;
      state = 1;
    }
  }
  //USBSerial.printf("%d %d\n\r", state, flag);
  return state;
}

uint8_t check_fire_mode_change(void)
{
  uint8_t state;
  static uint8_t flag =0;
  state = 0;
  if (flag==0)
  {
    if (getOptionButton() == 1)
    {
      flag = 1;
    }
  }
  else
  {
    if (getOptionButton() == 0)
    {
      flag = 0;
      state = 1;
    }
  }
  //USBSerial.printf("%d %d\n\r", state, flag);
  return state;
}



void loop() {
  uint16_t _throttle;// = getThrottle();
  uint16_t _aileron;// = getAileron();
  uint16_t _elevator;// = getElevator();
  uint16_t _rudder;// = getRudder();


  while(Loop_flag==0);
  Loop_flag = 0;
  etime = stime;
  stime = micros();
  dtime = stime - etime;
  M5.update();
  joy_update();

  //Stop Watch Start&Stop&Reset
  if(M5.Btn.wasPressed()==true)
  {
    if (Timer_state == 0)Timer_state = 1;
    else if (Timer_state == 1)Timer_state = 0;
  }

  if(M5.Btn.pressedFor(400)==true)
  {
    Timer_state = 2;
  }

  if (Timer_state == 1)
  {
    //カウントアップ
    Timer = Timer + dTime;
  }
  else if (Timer_state == 2)
  {
    //タイマリセット
    Timer = 0.0;
    Timer_state = 0;
  }

  if (check_rotation_mode_change() == 1)
  {
    if (rotation==ROTATING)rotation=NOT_ROTATING;
    else rotation = ROTATING;
  }

  if (check_fire_mode_change() == 1)
  {
    if (fire==FIRE_CONTROL_MODE)fire=NOT_FIRE_CONTROL_MODE;
    else fire = FIRE_CONTROL_MODE;
  }

  _throttle = getThrottle();
  _aileron = getAileron();
  _elevator = getElevator();
  _rudder = getRudder();


  if(getArmButton()==1)
  {
    //Throttle_bias = _throttle;
    aileron_bias = _aileron;
    elevator_bias = _elevator;
    rudder_bias = _rudder;
  }

  //量産版
  Throttle = -(float)(_throttle - Throttle_bias)/(float)(RESO10BIT*0.5);
  aileron =       (float)(_aileron - aileron_bias)/(float)(RESO10BIT*0.5);
  elevator =     (float)(_elevator - elevator_bias)/(float)(RESO10BIT*0.5);
  rudder =       (float)(_rudder - rudder_bias)/(float)(RESO10BIT*0.5);

  Throttle = Throttle + 0.02;
  aileron = aileron - 0.04;
  elevator = elevator + 0.01;
  rudder = rudder -0.05;

  //********************************* */
  // USBSerial.printf("%1.3f  %1.3f  %1.3f  %1.3f  \r\n", Throttle, aileron, elevator, rudder);
  //uart1.write('1;1;'+rd+';'+str(rs)+';'+ld+';'+str(ls)+"\n")
  int ld = 0, rd = 0, ls, rs, ols, ors, lls, rrs, olls, orrs, rrd, lld;

  if(toio_swap_flag == true){
    toio_a = 1;
    toio_b = 2;
  }else{
    toio_a = 2;
    toio_b = 1;
  }

  rs = (elevator * 100) - (rudder * 30);
  ls = (elevator * 100) + (rudder * 30);
  if(rs < 0){rd = 1;rs = -rs;}
  if(ls < 0){ld = 1;ls = -ls;}

  // toio control
  if(counter1 > 1 && (ors != rs || ols != ls)){
    Serial2.printf("%d;1;%d;%d;%d;%d;\r\n", toio_a, rd, rs, ld, ls); //toio command
    USBSerial.printf("%d %d %d %d %d %d %d %d\r\n", rd, ld, rs, ls, rotation, getOptionButton(),
  getArmButton(), getFlipButton());
    counter1 = 0;
  }

  ols = ls;
  ors = rs;
  counter1++;

  // if(getOptionButton() == 1)fire = 1;

  if((getArmButton() == 1 || move != 0) && fire == 0){
    switch (move){
    case 0:
      // Serial2.printf("toio_b;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", 1, 5, 0, 10, 0, 65535, 65535, 0); //toio command
      Serial2.printf("%d;1;%d;%d;%d;%d;\r\n", toio_a, 0, 20, 0, 20); //toio command
      delay(1000);
      Serial2.printf("%d;1;%d;%d;%d;%d;\r\n", toio_a, 0, 0, 0, 0); //toio command
      move++;
      break;
    case 1:
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 240); //toio command
      delay(1000);
      fire = 1;
      move++;
      break;
    case 2:
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 255); //toio command
      delay(1000);
      fire = 1;
      move++;
      break;
    case 3:
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 270); //toio command
      delay(1000);
      fire = 1;
      move++;
      break;
    case 4:
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 285); //toio command
      delay(1000);
      fire = 1;
      move++;
      break;
    case 5:
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 300); //toio command
      delay(1000);
      fire = 1;
      move++;
      break;

    default:
      move = 0;
      Serial2.printf("%d;3;%d;%d;%d;%d;%d;%d;%d;%d;\r\n", toio_b, 1, 5, 0, 10, 0, 65535, 65535, 270); //toio command
      delay(1000);
      break;
    }

  }
  if(fire == 1){
    if(counter2 > 20 ){
      fire =0;
      counter2 = 0;
    }else{
      counter2++;
    }
  }


  if(Throttle > 0.9){
    send_esp_flag = !send_esp_flag;
    delay(500);
  }

  if(Throttle < -0.9){
    toio_swap_flag = !toio_swap_flag;
    delay(500);
  }

  //********************************* */

  uint8_t* d_int;

  //ブロードキャストの混信を防止するためこの機体のMACアドレスに送られてきたものか判断する
  senddata[0] = peerInfo.peer_addr[3];////////////////////////////
  senddata[1] = peerInfo.peer_addr[4];////////////////////////////
  senddata[2] = peerInfo.peer_addr[5];////////////////////////////

  d_int = (uint8_t*)&rudder;
  senddata[3]=d_int[0];
  senddata[4]=d_int[1];
  senddata[5]=d_int[2];
  senddata[6]=d_int[3];

  d_int = (uint8_t*)&Throttle;
  senddata[7]=d_int[0];
  senddata[8]=d_int[1];
  senddata[9]=d_int[2];
  senddata[10]=d_int[3];

  d_int = (uint8_t*)&aileron;
  senddata[11]=d_int[0];
  senddata[12]=d_int[1];
  senddata[13]=d_int[2];
  senddata[14]=d_int[3];

  d_int = (uint8_t*)&elevator;
  senddata[15]=d_int[0];
  senddata[16]=d_int[1];
  senddata[17]=d_int[2];
  senddata[18]=d_int[3];

  senddata[19]=getArmButton();
  senddata[20]=getFlipButton();
  senddata[21]=rotation; //rotation
  senddata[22]=fire; //fire
  senddata[23]=proactive_flag;

  //checksum
  senddata[24]=0;
  for(uint8_t i=0;i<24;i++)senddata[24]=senddata[24]+senddata[i];

  //送信
  if(send_esp_flag == true){
      esp_err_t result = esp_now_send(peerInfo.peer_addr, senddata, sizeof(senddata));
  }

  // #ifdef DEBUG
  // USBSerial.printf("%02X:%02X:%02X:%02X:%02X:%02X\n",
  //   peerInfo.peer_addr[0],
  //   peerInfo.peer_addr[1],
  //   peerInfo.peer_addr[2],
  //   peerInfo.peer_addr[3],
  //   peerInfo.peer_addr[4],
  //   peerInfo.peer_addr[5]);
  // #endif
  //Display information
  //float vbat =0.0;// M5.Axp.GetBatVoltage();
  //int8_t bat_charge_p = int8_t((vbat - 3.0) / 1.2 * 100);

  M5.Lcd.setCursor(4, 2+disp_counter*17);
  switch (disp_counter)
  {
    case 0:
      M5.Lcd.printf("MAC ADR %02X:%02X    ", peerInfo.peer_addr[4],peerInfo.peer_addr[5]);
      break;
    case 1:
      M5.Lcd.printf("esp_now: %s ", send_esp_flag ? "true" : "false");
      // M5.Lcd.printf("BAT 1:%4.1f 2:%4.1f", Battery_voltage[0],Battery_voltage[1]);
      //M5.Lcd.printf("X:%4d",xstick);
      break;
    case 2:
      M5.Lcd.printf("toio_swap: %s ", toio_swap_flag ? "1 2" : "2 1");
      break;
    case 3:
      M5.Lcd.printf("CHL: %02d",peerInfo.channel);
      break;
    case 4:
      if( fire == FIRE_CONTROL_MODE ) M5.Lcd.printf("fire      ");
      else if ( fire == NOT_FIRE_CONTROL_MODE )   M5.Lcd.printf("not fire");
      break;
    case 5:
      if( rotation == ROTATING )      M5.Lcd.printf("rotating       ");
      else if ( rotation == NOT_ROTATING ) M5.Lcd.printf("not rotating");
      break;
    case 6:
      M5.Lcd.printf("Time:%7.2f",Timer);
      break;
    case 7:
      break;
    case 8:
      break;
    case 9:
      break;
  }
  disp_counter++;
  if(disp_counter==11)disp_counter=0;

  //Reset
  if( /*M5.Axp.GetBtnPress() == 2*/ 0 ){
    // 電源ボタンクリック
    //M5.Lcd.println("AtomFly2.0");
    esp_restart();
  }

}

void show_battery_info(){
  #if 0
  // バッテリー電圧表示
  double vbat = 0.0;
  int8_t bat_charge_p = 0;

  vbat = M5.Axp.GetBatVoltage();
  M5.Lcd.setCursor(5, 100);
  //M5.Lcd.setTextSize(1);
  M5.Lcd.printf("Volt:\n %8.2fV", vbat);

  // バッテリー残量表示
  bat_charge_p = int8_t((vbat - 3.0) / 1.2 * 100);
  M5.Lcd.setCursor(5, 140);
  M5.Lcd.printf("Charge:\n %8d%%", bat_charge_p);
#endif
}

void voltage_print(void)
{

  M5.Lcd.setCursor(0, 17, 2);
  M5.Lcd.printf("%3.1fV", Battery_voltage);
}
