Temperature Sensor

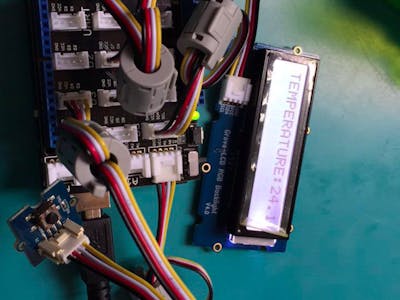

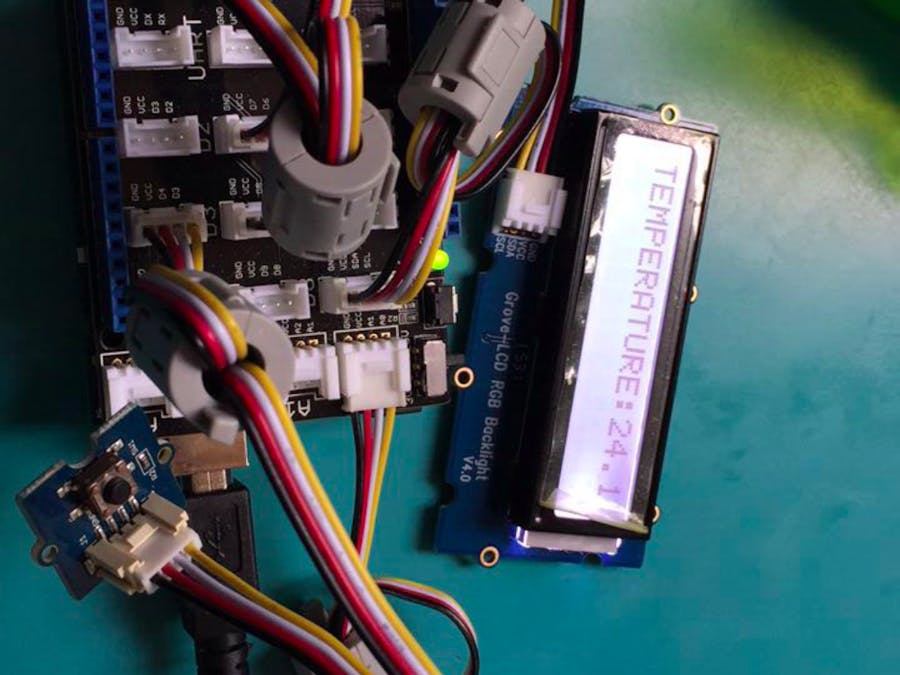

When the button is pressed and the temperature is greater than 20 degrees Celsius, this temperature sensor will light the LED.

IntermediateShowcase (no instructions)1 hour510
Temperature Sensor

Things used in this project

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Code

Temperature sensor on led

Arduino
#include <Blynk.h>

#include <rgb_lcd.h>

int button = 3;
int LED = 7;
int a;
int del=1000;
float temperature;
int B=3975;
float Resistance;
int LED1=6;
#include <Wire.h>
#include "rgb_lcd.h"

rgb_lcd lcd;

const int colorR = 255;
const int colorG = 255;
const int colorB = 255;

//#define BLYNK_DEBUG
#define BLYNK_PRINT Serial

//#define BLYNK_USE_DIRECT_CONNECT

#include <BlynkSimpleCurieBLE.h>
#include <CurieBLE.h>

// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).
char auth[] = "d617c296fb2c4227a9829b5f33eef636";

BLEPeripheral  blePeripheral;




void setup() {
  // put your setup code here, to run once:
pinMode(button,INPUT);
pinMode(LED,OUTPUT);
pinMode(LED1,OUTPUT);
lcd.begin(16, 2);

    lcd.setRGB(colorR, colorG, colorB);

    // Print a message to the LCD.


    delay(1000);

  Serial.begin(9600);
  delay(1000);

  blePeripheral.setLocalName("rajat");
  blePeripheral.setDeviceName("rajat");
  blePeripheral.setAppearance(384);

  Blynk.begin(blePeripheral, auth);

  blePeripheral.begin();

  Serial.println("Waiting for connections...");
}

void loop() {
  // put your main code here, to run repeatedly:
int buttonState=digitalRead(button);
if(buttonState==1)
{
  digitalWrite(LED,HIGH);
  a=analogRead(A0);
Resistance=(float)(1023-a)*(10000/a);
temperature=1/(log(Resistance/10000)/B+1/298.15)-293.15;

 lcd.print("TEMPERATURE:");
lcd.print(temperature);
delay(del);
if(temperature>20)
{
  digitalWrite(LED1,HIGH);
 delay(1000);
  digitalWrite(LED1,LOW);
}

}
else
digitalWrite(LED,LOW);
 lcd.setCursor(0, 1);


    delay(100);

  Blynk.run();
  blePeripheral.poll();


}
