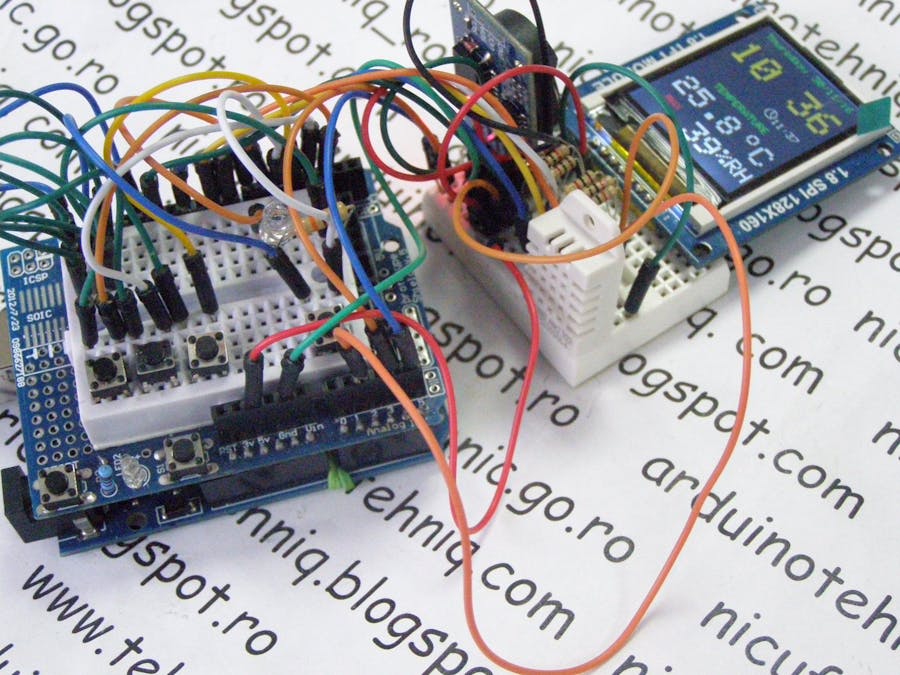

// original sketch from http://educ8s.tv/arduino-real-time-clock/
// Nicu FLORICA (niq_ro) from http://www.arduinotehniq.com
// made some chenages for animate display with blinking signs
// eliminate library for clock, use just subroutines
// use 3 buttons for manual adjust the data & clock
// add alarm (now usee eeprom memory for store hour alarm)
#include <Adafruit_ST7735.h>
#include <Adafruit_GFX.h>
#include <Wire.h>
#include <SPI.h>
#include "EEPROM.h"
#define TFT_CS 9
#define TFT_RST 7
#define TFT_DC 8
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);
// Option 2: use any pins but a little slower!
#define TFT_SCLK 13 // set these to be whatever pins you like!
#define TFT_MOSI 11 // set these to be whatever pins you like!
float maxTemperature=0;
float minTemperature=200;
char charMinTemperature[10];
char charMaxTemperature[10];
char timeChar[100];
char dateChar[50];
char temperatureChar[10];
float temperature = 0;
float previousTemperature = 0;
String dateString;
int minuteNow=0;
int minutePrevious=0;
#define DS3231_I2C_ADDRESS 104
byte tMSB, tLSB;
float temp3231;
float temperatura, temperatura0;
byte hh, mm, ss;
byte yy, ll, dd, zz;
#define meniu 2
#define minus 3
#define plus 4
#define alarm 5
#define buzzer 6
int nivel = 0; // if is 0 - clock
// if is 1 - hour adjust
// if is 2 - minute adjust
int hh1, mm1, zz1, dd1, ll1, yy1;
int maxday;
boolean initial = 1;
char chartemp[3];
int hha, mma; // for alarm
byte al; // for alarm
byte xa = 80;
byte ya = 70;
#include "DHT.h"
#define DHTPIN 16 // what pin we're connected to
// Uncomment whatever type you're using!
//#define DHTTYPE DHT11 // DHT 11
#define DHTTYPE DHT22 // DHT 22 (AM2302)
//#define DHTTYPE DHT21 // DHT 21 (AM2301)
// Connect pin 1 (on the left) of the sensor to +5V
// NOTE: If using a board with 3.3V logic like an Arduino Due connect pin 1
// to 3.3V instead of 5V!
// Connect pin 2 of the sensor to whatever your DHTPIN is
// Connect pin 4 (on the right) of the sensor to GROUND
// Connect a 10K resistor from pin 2 (data) to pin 1 (power) of the sensor
// Initialize DHT sensor for normal 16mhz Arduino
DHT dht(DHTPIN, DHTTYPE);
// NOTE: For working with a faster chip, like an Arduino Due or Teensy, you
// might need to increase the threshold for cycle counts considered a 1 or 0.
// You can do this by passing a 3rd parameter for this threshold. It's a bit
// of fiddling to find the right value, but in general the faster the CPU the
// higher the value. The default for a 16mhz AVR is a value of 6. For an
// Arduino Due that runs at 84mhz a value of 30 works.
// Example to initialize DHT sensor for Arduino Due:
//DHT dht(DHTPIN, DHTTYPE, 30);
//float temperatura;
int umiditate;
int tzeci, tunit, tzecimi, trest;
int tsemn, ttot;
int hzeci, hunit;
int previousHumidity = 0;
char umiditateChar[10];
unsigned long masurare;
unsigned long intervalmasurare = 30000;
void setup ()
{
dht.begin();
tft.initR(INITR_BLACKTAB);
tft.fillScreen(ST7735_BLACK);
Serial.begin(9600);
Wire.begin();
pinMode(meniu, INPUT);
pinMode(plus, INPUT);
pinMode(minus, INPUT);
pinMode(alarm, INPUT);
pinMode(buzzer, OUTPUT);
digitalWrite(meniu, HIGH); // put inputs in high state (when push is to ground -> low state)
digitalWrite(plus, HIGH);
digitalWrite(minus, HIGH);
digitalWrite(alarm, HIGH);
digitalWrite(buzzer, LOW);
printText("TEMPERATURE", ST7735_GREEN,5,85,1); // Temperature Static Text
printText("HUMIDITY", ST7735_RED,5,130,1);
// setDS3231time(byte second, byte minute, byte hour, byte dayOfWeek, byte dayOfMonth, byte month, byte year);
//setDS3231time(0, 45, 13, 0, 25, 11, 2016;
// hha = 7;
// mma = 00;
// al = 1; // 0 = alarm is off (must put in 1 foar active)
hha = EEPROM.read(100);
mma = EEPROM.read(101);
al = EEPROM.read(102);
if ((hha < 0) || (hha > 23)) hha = 7;
if ((mma < 0) || (mma > 59)) mma = 0;
if ((al < 0) || (al > 1)) al = 0;
//temperature = dht.readTemperature();
//umiditate = dht.readHumidity();
masurare = millis();
}
void loop ()
{
if (nivel == 0)
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
hh1=hh;
mm1=mm;
zz1=zz;
yy1=yy;
ll1=ll;
dd1=dd;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
if (((millis() - masurare) > intervalmasurare) || initial)
{
temperature = dht.readTemperature();
umiditate = dht.readHumidity();
delay(500);
masurare = millis();
}
readDS3231time(&ss, &mm, &hh, &zz, &dd, &ll,&yy);
String halarma = "";
if(hha<10)
{
halarma = halarma+" "+String(hha);
}else
halarma = halarma+ String(hha);
if(mma<10)
{
halarma = halarma+":0"+String(mma);
}else
{
halarma = halarma+":"+String(mma);
}
halarma.toCharArray(timeChar,100);
if (digitalRead(alarm) == LOW)
{
al = al + 1;
EEPROM.write(102, al%2);
delay(500);
}
if (mma == mm & hha == hh & al%2)
{
digitalWrite(buzzer, HIGH);
tft.drawCircle(xa, ya, 5, ST7735_RED);
tft.drawLine(xa, ya, xa, ya-5, ST7735_RED);
tft.drawLine(xa, ya, xa+4, ya+4, ST7735_RED);
printText(timeChar, ST7735_RED,xa+7,ya,1);
}
else
{
if (al%2 == 0)
{
tft.drawCircle(xa, ya, 5, ST7735_BLUE);
tft.drawLine(xa, ya, xa, ya-5, ST7735_BLUE);
tft.drawLine(xa, ya, xa+4, ya+4, ST7735_BLUE);
digitalWrite(buzzer, LOW);
printText(timeChar, ST7735_BLUE,xa+7,ya,1);
}
if (al%2 == 1)
{
tft.drawCircle(xa, ya, 5, ST7735_WHITE);
tft.drawLine(xa, ya, xa, ya-5, ST7735_WHITE);
tft.drawLine(xa, ya, xa+4, ya+4, ST7735_WHITE);
digitalWrite(buzzer, LOW);
printText(timeChar, ST7735_WHITE,xa+7,ya,1);
}
}
minuteNow = mm;
if(minuteNow!=minutePrevious || initial)
{
initial = 0;
dateString = getDayOfWeek(zz)+", ";
dateString = dateString+String(dd)+"/"+String(ll);
dateString= dateString+"/"+ String(yy);
minutePrevious = minuteNow;
String hours = "";
if(hh<10)
{
hours = hours+" "+String(hh);
}else
hours = hours+ String(hh);
if(mm<10)
{
hours = hours+" 0"+String(mm);
}else
{
hours = hours+" "+String(mm);
}
hours.toCharArray(timeChar,100);
tft.fillRect(0,0,160,65,ST7735_BLACK);
// printText(timeChar, ST7735_WHITE,20,25,3);
printText(timeChar, ST7735_YELLOW,5,25,4);
dateString.toCharArray(dateChar,50);
printText(dateChar, ST7735_GREEN,8,5,1);
}
if ((temperature != previousTemperature) || initial)
{
previousTemperature = temperature;
String temperatureString = String(temperature,1);
temperatureString.toCharArray(temperatureChar,10);
tft.fillRect(0,98,128,27,ST7735_BLACK);
printText(temperatureChar, ST7735_WHITE,10,100,3);
printText("o", ST7735_WHITE,90,95,2);
printText("C", ST7735_WHITE,105,100,3);
if((umiditate != previousHumidity) || initial)
{
previousHumidity = umiditate;
String umiditateString = String(umiditate);
umiditateString.toCharArray(umiditateChar,10);
tft.fillRect(55,130,128,27,ST7735_BLACK);
printText(umiditateChar, ST7735_WHITE,55,130,3);
printText("%RH", ST7735_WHITE,91,130,2);
}
}
delay(500);
// printText("o", ST7735_WHITE,62,28,1);
// printText("o", ST7735_WHITE,62,35,1);
printText("o", ST7735_YELLOW,62,28,1);
printText("o", ST7735_YELLOW,62,35,1);
delay(500);
printText("o", ST7735_BLACK,62,28,1);
printText("o", ST7735_BLACK,62,35,1);
} // end usual case (clock)
if (nivel == 1) // change hours
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
printText("HOUR:", ST7735_GREEN,10,36,2); // Temperature Static Text
dtostrf(hh1,3, 0, chartemp);
//tft.fillRect(50,50,70,18,ST7735_BLACK);
tft.fillRect(50,50,70,38,ST7735_BLACK);
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
hh1 = hh1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
hh1 = hh1-1;
delay(150);
}
if (hh1 > 23) hh1 = 0;
if (hh1 < 0) hh1 = 23;
} // end loop nivel = 1 (change the hours)
if (nivel == 2) // change minutes
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(10,35,70,18,ST7735_BLACK);
printText("MINUTE:", ST7735_GREEN,10,35,2); // Temperature Static Text
Serial.println(mm1);
dtostrf(mm1,3, 0, chartemp);
tft.fillRect(50,50,70,18,ST7735_BLACK);
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
mm1 = mm1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
mm1 = mm1-1;
delay(150);
}
if (mm1 > 59) mm1 = 0;
if (mm1 < 0) mm1 = 59;
} // end loop nivel = 2 (change the minutes)
if (nivel == 3) // change day in week
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(0,35,128,18,ST7735_BLACK);
printText("Day in Week:", ST7735_GREEN,10,40,1); // Temperature Static Text
//Serial.println(mm1);
dtostrf(zz1,3, 0, chartemp);
tft.fillRect(50,50,70,18,ST7735_BLACK);
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
tft.fillRect(10,80,100,18,ST7735_BLACK);
if (zz1 == 1) printText("1 - Monday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 2) printText("2 - Tuesday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 3) printText("3 - Wednesday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 4) printText("4 - Thursday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 5) printText("5 - Friday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 6) printText("6 - Saturday", ST7735_RED,10,80,1); // Temperature Static Text
if (zz1 == 0) printText("0 - Sunday", ST7735_RED,10,80,1); // Temperature Static Text
delay(50);
if (digitalRead(plus) == LOW)
{
zz1 = zz1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
zz1 = zz1-1;
delay(150);
}
if (zz1 > 6) zz1 = 0;
if (zz1 < 0) zz1 = 6;
} // end loop nivel = 3 (change the day of the week)
if (nivel == 4) // change year
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(10,35,70,18,ST7735_BLACK);
printText("YEAR:", ST7735_GREEN,10,35,2); // Temperature Static Text
dtostrf(yy1,3, 0, chartemp);
tft.fillRect(40,50,80,18,ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK); // erase last explication...
delay(50);
printText("20", ST7735_WHITE,45,50,2);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
yy1 = yy1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
yy1 = yy1-1;
delay(150);
}
if (yy1 > 49) yy1 = 49;
if (yy1 < 16) yy1 = 16;
} // end loop stare = 4 (change the year)
if (nivel == 5) // change mounth
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(10,35,70,18,ST7735_BLACK);
printText("MONTH:", ST7735_GREEN,10,35,2); // Temperature Static Text
dtostrf(ll1,3, 0, chartemp);
tft.fillRect(40,50,80,18,ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK); // erase last explication...
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
ll1 = ll1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
ll1 = ll1-1;
delay(150);
}
if (ll1 > 12) ll1 = 1;
if (ll1 < 1) ll1 = 12;
} // end loop stare = 5 (change the day as data)
if (nivel == 6) // change day as data
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK);
}
printText("SETTING", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(10,35,70,18,ST7735_BLACK);
printText("DAY:", ST7735_GREEN,10,35,2); // Temperature Static Text
dtostrf(dd1,3, 0, chartemp);
tft.fillRect(50,50,70,18,ST7735_BLACK);
tft.fillRect(10,80,100,18,ST7735_BLACK); // erase last explication...
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
dd1 = dd1+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
dd1 = dd1-1;
delay(150);
}
// Dawn & Dusk controller. http://andydoz.blogspot.ro/2014_08_01_archive.html
if (ll == 4 || ll == 5 || ll == 9 || ll == 11) { //30 days hath September, April June and November
maxday = 30;
}
else {
maxday = 31; //... all the others have 31
}
if (ll ==2 && yy % 4 ==0) { //... Except February alone, and that has 28 days clear, and 29 in a leap year.
maxday = 29;
}
if (ll ==2 && ll % 4 !=0) {
maxday = 28;
}
if (dd1 > maxday) dd1 = 1;
if (dd1 < 1) dd1 = maxday;
} // end loop nivel = 6 (change the day as data)
if (nivel == 7) // change hours alarm
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
tft.fillRect(10,15,100,38,ST7735_BLACK);
printText("ALARM", ST7735_GREEN,10,18,2); // Temperature Static Text
printText("HOUR:", ST7735_GREEN,10,36,2); // Temperature Static Text
dtostrf(hha,3, 0, chartemp);
//tft.fillRect(50,50,70,18,ST7735_BLACK);
tft.fillRect(50,50,70,38,ST7735_BLACK);
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
hha = hha+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
hha = hha-1;
delay(150);
}
if (hha > 23) hha = 0;
if (hha < 0) hha = 23;
} // end loop nivel = 7 (change the hours)
if (nivel == 8) // change minutes for alarm
{
if (digitalRead(meniu) == LOW)
{
nivel = nivel+1;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.fillRect(0,0,128,160,ST7735_BLACK);
}
tft.fillRect(10,15,70,18,ST7735_BLACK);
printText("ALARM", ST7735_GREEN,10,18,2); // Temperature Static Text
tft.fillRect(10,35,70,18,ST7735_BLACK);
printText("MINUTE:", ST7735_GREEN,10,35,2); // Temperature Static Text
Serial.println(mm1);
dtostrf(mma,3, 0, chartemp);
tft.fillRect(50,50,70,18,ST7735_BLACK);
delay(50);
printText(chartemp, ST7735_WHITE,60,50,2);
delay(50);
if (digitalRead(plus) == LOW)
{
mma = mma+1;
delay(150);
}
if (digitalRead(minus) == LOW)
{
mma = mma-1;
delay(150);
}
if (mma > 59) mma = 0;
if (mma < 0) mma = 59;
} // end loop nivel = 8 (change the minutes)
if (nivel >=9) // readfy to return to main loop
{
setDS3231time(0, mm1, hh1, zz1, dd1, ll1, yy1);
EEPROM.write(100, hha);
EEPROM.write(101, mma);
EEPROM.write(102, al%2);
nivel = 0;
previousTemperature= 0.0;
previousHumidity= 0;
initial = 1;
printText("TEMPERATURE", ST7735_GREEN,5,85,1); // Temperature Static Text
printText("HUMIDITY", ST7735_RED,5,130,1);
}
} // end main loop
void printText(char *text, uint16_t color, int x, int y,int textSize)
{
tft.setCursor(x, y);
tft.setTextColor(color);
tft.setTextSize(textSize);
tft.setTextWrap(true);
tft.print(text);
}
String getDayOfWeek(int i)
{
switch(i)
{
case 0: return "Monday";break;
case 1: return "Tuesday";break;
case 2: return "Wednesday";break;
case 3: return "Thursday";break;
case 4: return "Friday";break;
case 5: return "Saturday";break;
case 6: return "Sunday";break;
default: return "Monday";break;
}
}
// http://forum.arduino.cc/index.php?topic=398891.0
void setDS3231time(byte second, byte minute, byte hour, byte dayOfWeek, byte
dayOfMonth, byte month, byte year)
{
// sets time and date data to DS3231
Wire.beginTransmission(DS3231_I2C_ADDRESS);
Wire.write(0); // set next input to start at the seconds register
Wire.write(decToBcd(second)); // set seconds
Wire.write(decToBcd(minute)); // set minutes
Wire.write(decToBcd(hour)); // set hours
Wire.write(decToBcd(dayOfWeek)); // set day of week (1=Sunday, 7=Saturday)
Wire.write(decToBcd(dayOfMonth)); // set date (1 to 31)
Wire.write(decToBcd(month)); // set month
Wire.write(decToBcd(year)); // set year (0 to 99)
Wire.endTransmission();
}
// Convert binary coded decimal to normal decimal numbers
byte bcdToDec(byte val)
{
return ( (val / 16 * 10) + (val % 16) );
}
// Convert normal decimal numbers to binary coded decimal
byte decToBcd(byte val)
{
return ( (val / 10 * 16) + (val % 10) );
}
void readDS3231time(byte *second,
byte *minute,
byte *hour,
byte *dayOfWeek,
byte *dayOfMonth,
byte *month,
byte *year)
{
Wire.beginTransmission(DS3231_I2C_ADDRESS);
Wire.write(0); // set DS3231 register pointer to 00h
Wire.endTransmission();
Wire.requestFrom(DS3231_I2C_ADDRESS, 7);
// request seven bytes of data from DS3231 starting from register 00h
*second = bcdToDec(Wire.read() & 0x7f);
*minute = bcdToDec(Wire.read());
*hour = bcdToDec(Wire.read() & 0x3f);
*dayOfWeek = bcdToDec(Wire.read());
*dayOfMonth = bcdToDec(Wire.read());
*month = bcdToDec(Wire.read());
*year = bcdToDec(Wire.read());
}
Comments
