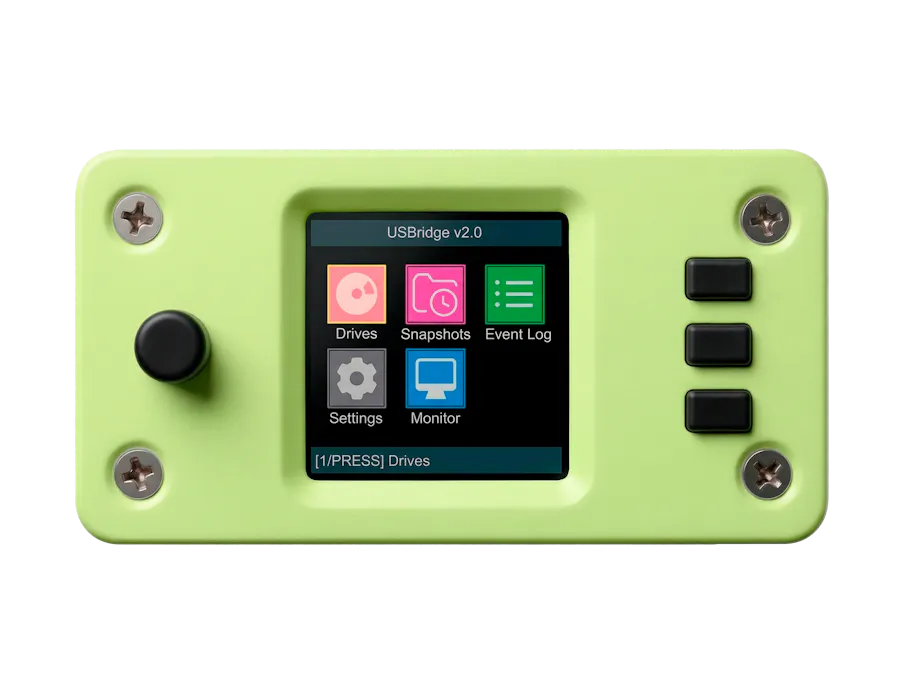

USBridge-KVM 2.0: Professional Out-of-Band Management

USBridge-KVM 2.0: L0 Infrastructure Control & BIOS-over-SSH

The Concept

Traditional KVM-over-IP solutions often struggle with high latency and heavy video streaming requirements. I designed USBridge-KVM 2.0 to operate at Layer 0 (L0), providing direct hardware-level access without the overhead of standard streaming protocols.

The goal was to create a tool that isn't just a remote desktop, but a robust debugging interface that works even when the host OS is completely destroyed or locked by ransomware.

USBridge-KVM 2.0 is launching soon on CrowdSupply! Sign up here to be notified and get early bird access

Engineering Innovation: BIOS-in-Terminal

The standout feature of this project is my BIOS-in-Terminal technology. Instead of piping raw 1080p video for simple firmware configuration, the system processes the video signal into an interactive, SSH-native text stream.

• Low Bandwidth: Fully functional over high-latency or low-bandwidth satellite/LTE connections.
• Automation-Ready: Since the output is terminal-based, you can use Python or Expect scripts to automate tasks like Secure Boot configuration or RAID array setups—tasks that previously required manual human interaction.

Hardware-Level Drive Emulation

I’ve eliminated the need for complex PXE infrastructures or physical USB sticks. By leveraging the Radxa Zero 3W's USB OTG capabilities, USBridge-KVM 2.0 mounts local drives or virtual disk images (VDI, VMDK) from an administrator’s workstation as a standard USB mass storage device.

• High-Speed Caching: Integrated LPDDR4X cache mitigates network jitter.
• Read-Write Overlay: All modifications are redirected to a separate layer on the local station, keeping your "golden images" pristine and untouched.

Security: Immutable Snapshots

To combat cyberattacks, I implemented a snapshot subsystem based on Btrfs isolation.

• Hardware Isolation: The host server has no physical path to modify or delete existing snapshots.
• Data Vault: Access is controlled exclusively by the KVM device, ensuring recovery even if the server’s OS is fully compromised.

Technical Specification

• Compute: Radxa Zero 3W (Rockchip RK3566 SoC, Quad-Core A55)
• Memory: 2 GB LPDDR4X RAM
• ATX Control: Custom 8-pin GPIO interface for Power/Reset/LED monitoring.
• Local UI: 240x240 IPS screen for instant rack-side POST status checks.
• Capture: Standard 1080p30 UVC capture with 80–150ms latency for full desktop mode.

Open Source Philosophy

I believe in Hardware Transparency. All schematics, PCB layouts, and 3D enclosure models (STL/STEP) are provided for community audit. While the current firmware remains proprietary to protect the unique BIOS-to-Terminal algorithms during the stabilization phase, I am committed to transitioning to an open-source codebase in the future.
