Published December 28, 2021 © GPL3+

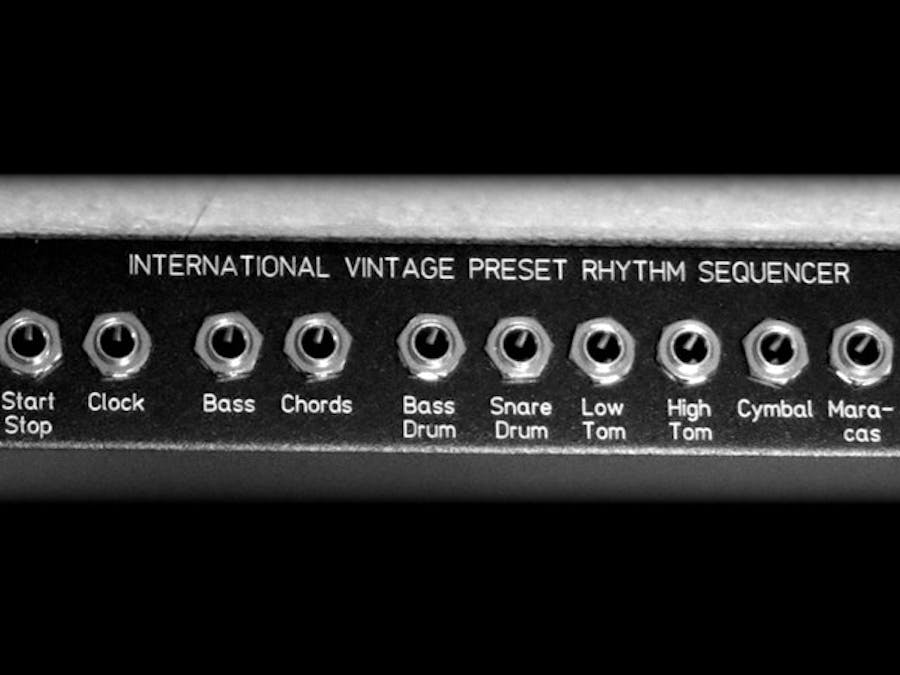

International Begleitautomat (Beat Sequencer)

An international dance rhythm accompany drum sequencer with 2 arduinos for rhythms and LCD.

AdvancedShowcase (no instructions)89

International Begleitautomat (Beat Sequencer)

Things used in this project

Hardware components

Arduino Nano R3

matching pcb

amphenol 1/4" jack MV2

Rotary Encoder with Push-Button

case 19" 1U

LCD fordata 16x1 (FC1601B00)

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Solder Flux, Soldering

Story

found around 80 dance rhythms as scores in a 70s GDR book:

wieland ziegenrücker - die tanzmusikwerkstatt

I coded the beat steps for each instrument in a 32-bit long unsigned integer constants table.

Schematics

Code

// 60s DDR Begleitautomat Rhythmen

// bass drum
const static unsigned long bd[78] PROGMEM={0,
  81,25,257,20820,8513,1041,4097,4353,4353,257,
  257,4369,289472833,257,33153,16847105,4161,20753,257,257,
  4260097,257,4369,257,257,257,65,4161,4353,257,
  257,257,69889,4369,4369,286282001,16843009,4161,257,257,
  4369,4369,16843009,1118481,5185,16843009,1118481,17043713,273,4369,
  17,65,17,4369,17473,16843009,4161,16843009,321,4369,
  4369,257,321,20545,17733,289493313,0,321,4097,4369,
  1025,257,85,17,1438991685,4353,1};

// snare drum
const static unsigned long sd[78] PROGMEM={0,
  76,17,20817,17476,0,2576,1114384,17476,4417,32784,
  23901,0,68161601,4112,0,1427181889,17684,4112,4112,4369,
  272699733,4112,4369,4112,4369,1028,1105,21780,0,0,
  23644,4369,1066000,4112,4369,286282001,0,0,257,4112,4112,
  17476,273698896,0,0,1431655765,0,1157697857,1373,17501,68,
  1361,68,4112,17424,0,21585,0,4433,4369,4112,
  4112,4112,21597,18373,68158480,17476,4112,65924,4112,16,
  0,213,91,1438991685,4176,272};

// low tom
const static unsigned long lt[78] PROGMEM={0,
  0,204,0,0,37008,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,1281,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,16384,0,0,0,0,0,
  0,0,0,0,0,67437632,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0};

// high tom
const static unsigned long ht[78] PROGMEM={0,
  0,0,0,0,25925,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,20544,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,1109,0,0,0,0,0,
  0,0,0,0,0,1374744861,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0};

// cymbal
const static unsigned long cy[78] PROGMEM={0,
  76,0,257,21845,4369,3925,10066329,0,0,37265,
  257,39321,1431655765,257,39321,0,0,20817,0,4369,
  0,37265,0,0,0,1028,0,0,0,20817,
  0,257,0,4369,17476,1064960,1364283729,21589,20817,0,
  21845,4369,286331153,1381445,0,269488144,5510213,0,0,0,
  0,0,0,4369,21845,0,0,289685777,4369,4369,
  39321,257,21845,0,4112,1431655765,4369,0,69905,37265,
  2448,2449,0,0,1438991685,21845,0};

// maracas
const static unsigned long mc[78] PROGMEM={0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,1431655765,0,0,0,0,
  1431655765,0,0,0,0,0,0,21845,21845,0,
  0,0,0,0,0,0,1431655765,0,0,0,
  0,0,0,0,0,0,5592405,1431655765,0,0,
  0,0,0,0,0,1431655765,0,1431655765,21845,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0};

// claves
const static unsigned long cl[78] PROGMEM={0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,17829953,0,0,0,0,
  272695568,0,0,0,0,0,0,4161,4161,0,
  0,0,0,0,0,0,17829953,0,0,0,
  0,0,0,0,0,0,4477265,17829953,0,0,
  0,0,0,0,0,17829953,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0};

// cow bell
const static unsigned long cb[78] PROGMEM={0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,289685777,0,0,0,
  0,0,0,0,0,1363431697,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0};

// bass trigger
const static unsigned long bass[78] PROGMEM={0,
  81,17,257,21589,17473,1345,4097,4353,4417,4369,
  20801,4369,289472833,257,33153,16843009,4161,16705,257,4353,
  272695553,257,4369,257,257,33153,65,20561,4353,257,
  257,257,69889,4369,21845,286282001,1347506257,4161,5441,257,
  4369,4369,4260097,1118481,17477,289472833,1118481,285282561,273,4369,
  17,65,17,4369,16705,285282561,4161,16843009,321,4369,
  4369,4433,16705,20545,17733,289493313,4369,321,69697,4369,
  1025,257,213,89,1438991685,4353,1};

// chords trigger
const static unsigned long chord[78] PROGMEM={0,
  76,95,4112,4369,27861,1040,1151377,17476,4417,4369,
  20560,34952,356778257,20817,1028,269488196,17684,5140,4112,4369,
  272699472,4369,4369,4112,4369,1028,1105,16,4161,20560,
  21588,4112,1066000,56797,43690,269504528,67372036,21589,4112,4112,
  21844,17476,340873553,282689,17493,1431655765,282689,1141130244,1092,17476,
  68,1361,68,4112,1104,273682512,21585,289685777,4112,4369,
  34952,4112,1040,21584,4112,1141903376,17476,1040,65796,4369,
  2448,276,85,91,1438991685,21845,272};

// bar length, called reset value
const static byte res[78]={0,
  8,8,16,16,16,12,12,16,16,16,
  16,16,16,16,16,32,16,16,16,16,
  32,16,16,16,16,16,12,16,16,16,
  16,16,24,16,16,32,32,16,16,16,
  16,16,32,24,16,32,24,32,12,16,
  8,12,8,16,16,32,16,32,16,16,
  16,16,16,16,16,32,16,16,20,16,
  12,12,8,8,32,16,12};

byte x=0;               // rhythm step
byte volatile e=0;      // rhythm select
const byte i=77;        // rhythm count
bool enc=LOW;           // enc A merker
unsigned long buff[10]; // rhythm buffer
byte y=0;
int a=0;


void setup()
{
Serial.begin(9600);
attachInterrupt(digitalPinToInterrupt(2),pulse,RISING);     // clock
pinMode(3,OUTPUT);                   // BD
pinMode(4,OUTPUT);                   // SD
pinMode(5,OUTPUT);                   // LT
pinMode(10,OUTPUT);                  // HT
pinMode(9,OUTPUT);                   // CY
pinMode(8,OUTPUT);                   // MC
pinMode(7,OUTPUT);                   // CL
pinMode(6,OUTPUT);                   // CB
pinMode(12,OUTPUT);                  // bass
pinMode(11,OUTPUT);                  // chords
pinMode(A0,INPUT);                   // s/s
pinMode(A2,INPUT_PULLUP);            // enc B
pinMode(A3,INPUT_PULLUP);            // enc A
pinMode(13,OUTPUT);                  // view IRQ
delay(2000);                         // wait for LCD
Serial.write(0);                     // send zero LCD value
}

void pulse()
{
if (digitalRead(A0) == HIGH)         // S/S active
  {
  digitalWrite(13,HIGH);                  // show IRQ time
  buff[0]=pgm_read_dword_near(&bd[e]);    // read all drums
  buff[1]=pgm_read_dword_near(&sd[e]);
  buff[2]=pgm_read_dword_near(&lt[e]);
  buff[3]=pgm_read_dword_near(&ht[e]);
  buff[4]=pgm_read_dword_near(&cy[e]);
  buff[5]=pgm_read_dword_near(&mc[e]);
  buff[6]=pgm_read_dword_near(&cl[e]);
  buff[7]=pgm_read_dword_near(&cb[e]);
  buff[8]=pgm_read_dword_near(&bass[e]);
  buff[9]=pgm_read_dword_near(&chord[e]);
  digitalWrite(3,bitRead(buff[0],x));     // put out steps
  digitalWrite(4,bitRead(buff[1],x));
  digitalWrite(5,bitRead(buff[2],x));
  digitalWrite(10,bitRead(buff[3],x));
  digitalWrite(9,bitRead(buff[4],x));
  digitalWrite(8,bitRead(buff[5],x));
  digitalWrite(7,bitRead(buff[6],x));
  digitalWrite(6,bitRead(buff[7],x));
  digitalWrite(12,bitRead(buff[8],x));
  digitalWrite(11,bitRead(buff[9],x));
  delay(5);                               // trigger pulse length
  digitalWrite(3,LOW);                    // trigger pulse low
  digitalWrite(4,LOW);
  digitalWrite(5,LOW);
  digitalWrite(6,LOW);
  digitalWrite(7,LOW);
  digitalWrite(8,LOW);
  digitalWrite(9,LOW);
  digitalWrite(10,LOW);
  digitalWrite(11,LOW);
  digitalWrite(12,LOW);
  x++;                                    // increase step
  if (x >= res[e])
    {
    x = 0;
    }
  digitalWrite(13,LOW);
  }
else                                      // stop mode
  {
  x=0;
  digitalWrite(3,LOW);
  digitalWrite(4,LOW);
  digitalWrite(5,LOW);
  digitalWrite(6,LOW);
  digitalWrite(7,LOW);
  digitalWrite(8,LOW);
  digitalWrite(9,LOW);
  digitalWrite(10,LOW);
  digitalWrite(11,LOW);
  digitalWrite(12,LOW);
  }
}

void loop()
{
  if (digitalRead(A2) == HIGH && enc == LOW)    // enc B
  {
    delay(5);
    if (digitalRead(A3) == HIGH)                // enc A
      {
        e++;
        if (e > i)
        {
          e = 1;
        }
      }
    else
      {
        e--;
        if (e == 0)
        {
          e = i;
        }
      }
    enc = HIGH;
    Serial.write(e);
  }
  delay(5);
  if (digitalRead(A2) == LOW && enc == HIGH)    // enc B
  {
    enc = LOW;
    delay(5);
  }
}

// 60s DDR Begleitautomat Text

#include <LiquidCrystal.h>

const static char drum[78][17] PROGMEM={"NO RHYTHM SELECT",
  "BAION A         ","BAION B         ","BAMBA           ","BEAT A          ","BEAT B          ",
  "BEAT-WALTZ A    ","BEAT-WALTZ B    ","BEGUINE         ","BLACK BOTTOM    ","BLUES           ",
  "BOLERO          ","BOOGIE-WOOGIE   ","BOSSA-NOVA      ","BOSTELLA        ","BOUNCE          ",
  "CALYPSO         ","CARIOCA         ","CHA-CHA-CHA     ","CHARLESTON A    ","CHARLESTON B    ",
  "CONGA           ","FOXTROT A       ","FOXTROT B       ","FOXTROT FAST    ","FOXTROT SLOW A  ",
  "FOXTROT SLOW B  ","FOXTROT SYNCOPED","GUARACHA A      ","GUARACHA B      ","HILL-BILLY      ",
  "HULLY-GULLY     ","LETKISS         ","LIPSI           ","LOKOMOTION A    ","LOKOMOTION B    ",
  "MADISON         ","MAMBO FAST      ","MAMBO SLOW A    ","MAMBO SLOW B    ","MARCH           ",
  "MARCH SLOP A    ","MARCH SLOP B    ","MEMPHIS         ","MEXICAN WALTZ   ","MONTUNO         ",
  "MOZAMBIQUE      ","NANIGO          ","PACHANGA        ","PASO DOBLE USA  ","PASO DOBLE SPAIN",
  "POLKA           ","RASPA           ","RHEINLAND       ","ROCK            ","ROCK-BEAT       ",
  "RUMBA           ","RUMBA-ROCK      ","SAMBA A         ","SAMBA B         ","SHAKE           ",
  "SHUFFLE-FOXTROT ","SIRTAKI         ","SLOP A          ","SLOP B          ","SOUL            ",
  "SOUL-BEAT       ","SURF A          ","SURF B          ","SWING QUINTO    ","SWING-FOXTROT   ",
  "SWING-WALTZ A   ","SWING-WALTZ B   ","TANGO A         ","TANGO B         ","TANGO-BOLERO    ",
  "TWIST           ","WALTZ           "};

byte x=0;                                 // char counter
byte e=0;                                 // rhythm number
LiquidCrystal lcd(6,7,5,8,4,9,3,10,2,11); // RS, EN, D0-7
char buff[20];                            // selected drum buffer

void setup()
{
  Serial.begin(9600);
  lcd.begin(8,2);
  lcd.clear();
  lcd.noCursor();
  lcd.noBlink();
  lcd.noAutoscroll();
  lcd.display();
}

void loop()
{
  if (Serial.available()>0)
  {
    e=Serial.read();
    for (x=0;x<16;x++)
    {
      buff[x]=pgm_read_byte_near(&drum[e][x]);
    }
    lcd.clear();
    lcd.home();
    for (x=0;x<8;x++)
    {
      lcd.setCursor(x,0);
      lcd.write(buff[x]);
      lcd.setCursor(x,1);
      lcd.write(buff[x+8]);
    }
  }
}
