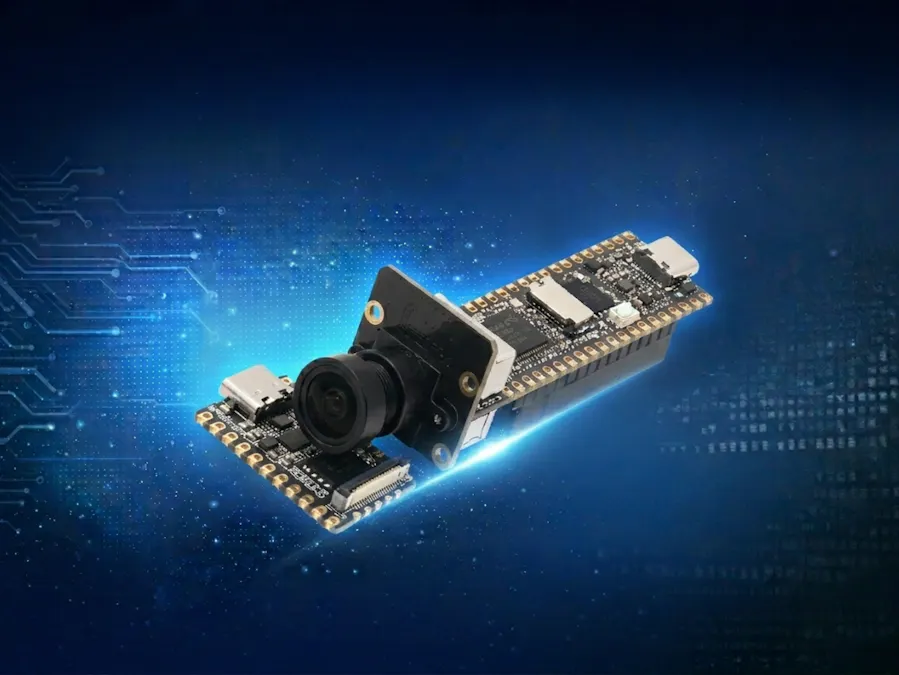

Luckfox PicoThe Best of Both Worlds: Meet the Luckfox Pico Plus Linux Development Board

Bridging the gap between the simplicity of a microcontroller and the power of a Single Board Computer.

For embedded engineers and hobbyists, the choice often comes down to two distinct paths: use a microcontroller (MCU) for real-time control and low power, or use a Single Board Computer (SBC) like a Raspberry Pi for Linux capabilities and networking. But what if you need both in a tiny footprint?

Enter the Luckfox Pico Plus, a compact computing module designed to run a full Linux operating system while fitting comfortably into space-constrained embedded products.

Under the Hood: The Rockchip RV1103 SoC

At the heart of the Luckfox Pico Plus lies the Rockchip RV1103, a highly integrated System-on-Chip (SoC) designed specifically for AI, vision, and automation.

Unlike standard microcontrollers, this SoC features a Heterogeneous Multiprocessing (HMP) architecture. This means it combines different types of processor cores to handle specific tasks efficiently:

1. ARM Cortex-A7 (Application Processor): This core runs the full Linux OS (typically Debian-based). It handles high-level logic, complex networking (TCP/IP, Wi-Fi, Cloud), and file systems.

2. RISC-V Core (Real-Time MCU): Working alongside the A7, this core acts like a microcontroller inside the chip. It manages low-latency I/O, sensor polling, and timing-critical control loops without the jitter introduced by the Linux kernel.

Key Technical Specifications

The board manages to pack an impressive array of features into a footprint roughly the size of a microcontroller board:

• AI Performance: Integrated NPU (Neural Processing Unit) delivering 0.5 TOPS, supporting INT4/INT8/INT16 models for edge inference.

• Vision Capabilities: An ISP (Image Signal Processor) capable of 4MP @ 30fps and a Hardware Video Encoder (H.264/H.265) for real-time streaming.

• Memory:64 MB DDR2 RAM (Onboard) + 128 MB SPI NAND Flash.

• Storage:MicroSD (TF Card) slot for expanded storage.

• Connectivity:Ethernet, USB, UART, SPI, I2C, PWM, ADC, and GPIO.

Why Use the Luckfox Pico Plus?

This board is purpose-built for Modern Edge Computing. It solves the "middle ground" problem where an MCU isn't powerful enough for AI/Networking, but a standard SBC is too bulky or power-hungry.

1. Edge AI and Computer Vision

With the integrated NPU and MIPI/CSI camera interface, you can run object detection, face recognition, and classification models locally without relying on cloud processing. The hardware encoder ensures you can stream video efficiently without bogging down the CPU.

2. Robust IoT Gateways

The Cortex-A7 core enables you to run full containerized applications (via Docker/Podman if enabled) and handle secure cloud authentication (MQTT, HTTPS). Meanwhile, the RISC-V core can interface directly with sensors via UART or I2C, ensuring data acquisition remains precise.

3. Industrial Automation

The separation of cores is a massive advantage here. The RISC-V core operates independently of Linux. Even if the Linux OS is rebooting or under heavy load, the RISC-V core can continue to manage motor control (PWM) and monitor safety sensors, acting as a failsafe.

Getting Started: The Development Workflow

Developing on the Luckfox Pico Plus feels like a hybrid between embedded firmware engineering and Linux administration.

1. Flashing:The board comes with 128 MB NAND flash containing the bootloader and kernel. You can flash new images via USB using the Rockchip SocToolkit.

2. Access:Once configured, you can access the terminal via SSH (Secure Shell) to deploy scripts and applications.

3. Languages:It supports C, C++, Python, and Shell scripting, giving developers flexibility in how they build applications.

Quick Tip for Storage: While the onboard flash is sufficient for the OS, using an SD card is recommended for data logging. You can verify your SD card mount via the terminal using the command cat /proc/partitions. If you see mmcblk0, your card is detected and ready for mounting.

Building of Edge AI Application

Problem Statement:

In industries, cameras are used to inspect parts for defects, misalignment, or contamination. Traditionally images are sent to a server, but that increases latency and bandwidth. Instead, we want the device itself to decide PASS or FAIL.

What runs on the board??

Main application written in C which Handles:

• camera capture
• encoding
• HTTP server
• inspection
• calling Python for cloud upload
• Python is only for HTTPS (Because writing TLS in C is painful)

Camera Input: The CSI camera provides NV12 frames through the V4L2 subsystem. My program dequeues buffers, processes them, and converts them to JPEG.

Web Monitoring : I embedded a lightweight HTTP server using Mongoose. From a browser, I can:

• watch the live stream
• trigger capture
• see PASS / FAIL
• No external PC software needed.

Inspection Logic: For now, I implemented a detection algorithm.It checks dark regions inside a region of interest and computes a percentage.If above threshold → FAIL.Kept it simple.

Cloud Upload: Once the result is ready, the system calls a Python script that sends JSON over HTTPS to my cloud API. Now your device becomes IoT-enabled.

Build System: The OS is built using Buildroot. I cross-compile on my PC and deploy the binary to the board.

Future scope:

• Add AI inference
• optimize FPS
• support multiple cameras

Conclusion

The Luckfox Pico Plus is a powerhouse for developers who need to squeeze Linux intelligence into tight spaces. Whether you are building a smart camera, an industrial controller, or a connected sensor hub, the combination of the Cortex-A7 and RISC-V cores offers a unique balance of power and precision.

In this project, we moved from raw camera frames to real-time decision making directly on the device. Instead of sending every image to the cloud, the board performs local inspection, generates PASS or FAIL results, and only then communicates meaningful data upstream. This dramatically reduces latency, saves bandwidth, and improves system reliability — exactly what modern edge systems demand.

What makes platforms like this exciting is how accessible advanced embedded Linux development has become. With open tools, a flexible build system, and powerful multimedia capabilities, even compact hardware can now host complete vision pipelines, web interfaces, and secure cloud connectivity.

The journey from sensor → processing → decision → cloud is no longer reserved for large industrial machines. It can live inside a palm-sized module.

And that is the real promise of edge computing.
