Visualize Brain Data on an Elecrow Display

// Program: ESP32-S3 Elecrow 7" HMI — Bands scope, FFT spectrum, Aurora, and computed Focus/Mellow + Settings tab (slider + raw). 2025-09-16 00:40 (Europe/Helsinki) — Thomas Vikström.

#include <Arduino.h>
#include <WiFi.h>
#include <WiFiUdp.h>
#include <cstring>
#include <cstdint>
#include <cmath>

#include <lvgl.h>
#include <esp_heap_caps.h>

#include <LovyanGFX.hpp>
#include <lgfx/v1/platforms/esp32s3/Panel_RGB.hpp>
#include <lgfx/v1/platforms/esp32s3/Bus_RGB.hpp>

#include "touch.h"      // your existing touch driver
#include "ui.h"         // optional (SquareLine UI)

#include <arduinoFFT.h> // lib_deps: lvgl/lvgl @ ^8.3.11, kosme/arduinoFFT @ ^1.6

/* =========================
   ===== Display setup =====
   ========================= */

class LGFX : public lgfx::LGFX_Device {
public:
  lgfx::Bus_RGB   _bus;
  lgfx::Panel_RGB _panel;
  LGFX(void) {
    { // RGB bus config
      auto cfg = _bus.config();
      cfg.panel = &_panel;
      cfg.pin_d0  = GPIO_NUM_15; cfg.pin_d1  = GPIO_NUM_7;  cfg.pin_d2  = GPIO_NUM_6;  cfg.pin_d3  = GPIO_NUM_5;  cfg.pin_d4  = GPIO_NUM_4;
      cfg.pin_d5  = GPIO_NUM_9;  cfg.pin_d6  = GPIO_NUM_46; cfg.pin_d7  = GPIO_NUM_3;  cfg.pin_d8  = GPIO_NUM_8;  cfg.pin_d9  = GPIO_NUM_16;
      cfg.pin_d10 = GPIO_NUM_1;  cfg.pin_d11 = GPIO_NUM_14; cfg.pin_d12 = GPIO_NUM_21; cfg.pin_d13 = GPIO_NUM_47; cfg.pin_d14 = GPIO_NUM_48;
      cfg.pin_d15 = GPIO_NUM_45;
      cfg.pin_henable = GPIO_NUM_41; cfg.pin_vsync=GPIO_NUM_40; cfg.pin_hsync=GPIO_NUM_39; cfg.pin_pclk=GPIO_NUM_0;
      cfg.freq_write  = 14000000;
      cfg.hsync_polarity=0; cfg.hsync_front_porch=40; cfg.hsync_pulse_width=48; cfg.hsync_back_porch=40;
      cfg.vsync_polarity=0; cfg.vsync_front_porch=1;  cfg.vsync_pulse_width=31; cfg.vsync_back_porch=13;
      cfg.pclk_active_neg=1; cfg.de_idle_high=0; cfg.pclk_idle_high=0;
      _bus.config(cfg);
    }
    { // Panel config
      auto cfg = _panel.config();
      cfg.memory_width=800; cfg.memory_height=480; cfg.panel_width=800; cfg.panel_height=480; cfg.offset_x=0; cfg.offset_y=0;
      _panel.config(cfg);
    }
    _panel.setBus(&_bus);
    setPanel(&_panel);
  }
};

LGFX lcd;

/* =========================
   ===== LVGL plumbing =====
   ========================= */

static uint32_t screenW, screenH;
static lv_disp_draw_buf_t draw_buf;
static lv_disp_drv_t disp_drv;
static lv_color_t* buf1 = nullptr;
static lv_color_t* buf2 = nullptr;
static int draw_lines = 80;

static void lvgl_flush_cb(lv_disp_drv_t *disp, const lv_area_t *area, lv_color_t *color_p) {
  uint32_t w = (area->x2 - area->x1 + 1);
  uint32_t h = (area->y2 - area->y1 + 1);
  lcd.pushImageDMA(area->x1, area->y1, w, h, (lgfx::rgb565_t*)&color_p->full);
  lv_disp_flush_ready(disp);
}
static void lvgl_touch_cb(lv_indev_drv_t *indev, lv_indev_data_t *data) {
  if (touch_has_signal()) {
    if (touch_touched()) { data->state = LV_INDEV_STATE_PRESSED; data->point.x = touch_last_x; data->point.y = touch_last_y; }
    else if (touch_released()) { data->state = LV_INDEV_STATE_RELEASED; }
  } else data->state = LV_INDEV_STATE_RELEASED;
}

/* =========================
   ===== Backlight PWM =====
   ========================= */
static constexpr int TFT_BL_PIN = 2;
static constexpr int BL_CH = 1;  // LEDC channel
static constexpr int BL_FREQ = 300;
static constexpr int BL_RES  = 8;
static inline void setBacklight(uint8_t lvl){ ledcWrite(BL_CH, lvl); }

/* =========================
   ===== UI components =====
   ========================= */

// Tabs
static lv_obj_t* tabview=nullptr;
static lv_obj_t* tab_bands=nullptr;
static lv_obj_t* tab_spec =nullptr;
static lv_obj_t* tab_aurora=nullptr;
static lv_obj_t* tab_bio=nullptr;
static lv_obj_t* tab_settings=nullptr;

// Settings widgets
static lv_obj_t* bl_slider=nullptr;
static lv_obj_t* bl_label =nullptr;
static lv_obj_t* lbl_ip=nullptr;
static lv_obj_t* lbl_port=nullptr;

// Raw bands label (moved to Settings)
static lv_obj_t* band_label=nullptr;

static const uint32_t UI_PERIOD_MS = 33;      // ~30 FPS
static uint8_t backlight_level_255 = 160;

/* Bands (tab 1) */
static lv_obj_t* eeg_chart=nullptr;
static lv_chart_series_t *ser_delta=nullptr, *ser_theta=nullptr, *ser_alpha=nullptr, *ser_beta=nullptr, *ser_gamma=nullptr;
static const uint16_t EEG_POINTS=240;
static int chart_y_min=-50, chart_y_max=50; // autorange
static float band_vis_max=1.0f; uint8_t range_tick=0;

/* Spectrum (tab 2) */
static lv_obj_t* spec_chart=nullptr; static lv_chart_series_t* ser_spec=nullptr; static lv_obj_t* spec_info=nullptr;
static const int SPEC_MIN_HZ=1, SPEC_MAX_HZ=20, SPEC_BINS=(SPEC_MAX_HZ-SPEC_MIN_HZ+1);

/* Aurora (tab 3) */
static lv_obj_t* aurora_canvas=nullptr; static lv_color_t* aurora_buf=nullptr; static int aurora_w=0, aurora_h=0;
static int16_t* sin1024=nullptr;

/* Biofeedback meters (tab 4) */
struct MeterRefs {
  lv_obj_t* container{nullptr};
  lv_obj_t* meter{nullptr};
  lv_meter_scale_t* scale{nullptr};
  lv_meter_indicator_t* needle{nullptr};
  lv_obj_t* label{nullptr};
};
static MeterRefs MET_FOCUS, MET_MELLOW;

/* =========================
   ===== OSC decoding  =====
   ========================= */

static uint8_t oscBuf[1024];
static inline uint32_t be32(const uint8_t* p){ return (uint32_t(p[0])<<24)|(uint32_t(p[1])<<16)|(uint32_t(p[2])<<8)|(uint32_t(p[3])); }

static int parse_osc_element(const uint8_t *buf, int len, char *addrBuf, int addrBufSize, float *out, int max) {
  if (!buf || len <= 0) return 0;
  const char *addr = (const char*)buf; int addr_len = strnlen(addr, len); if (addr_len == len) return 0;
  int off = ((addr_len + 1) + 3) & ~3; if (off >= len) return 0;
  int copy_len = (addr_len < addrBufSize-1)? addr_len : (addrBufSize-1);
  memcpy(addrBuf, addr, copy_len); addrBuf[copy_len]=0;
  const char* tt = (const char*)(buf + off); int tt_len = strnlen(tt, len - off); if (tt_len==0 || tt[0]!=',') return 0;
  off += ((tt_len+1)+3) & ~3; if (off > len) return 0;
  int count=0;
  for (int i=1; i<tt_len && off+4<=len && count<max; ++i) {
    if (tt[i]=='f'){ uint32_t be=be32(buf+off); float f; memcpy(&f,&be,4); out[count++]=f; off+=4; }
    else if (tt[i]=='i'){ uint32_t be=be32(buf+off); int32_t v; memcpy(&v,&be,4); out[count++]=(float)v; off+=4; }
    else break;
  }
  return count;
}
static void extract_bands_from_packet(const uint8_t *buf, int len, float bands[5]) {
  for (int i=0;i<5;++i) bands[i]=NAN; if (!buf || len<=0) return;
  auto handle=[&](const uint8_t* m,int mlen){
    char addr[128]; float v[16]; int n=parse_osc_element(m,mlen,addr,sizeof(addr),v,16);
    if (n<=0) return; float avg=0; for(int i=0;i<n;++i) avg+=v[i]; avg/= (float)n;
    if      (strstr(addr,"delta_absolute")) bands[0]=avg;
    else if (strstr(addr,"theta_absolute")) bands[1]=avg;
    else if (strstr(addr,"alpha_absolute")) bands[2]=avg;
    else if (strstr(addr,"beta_absolute"))  bands[3]=avg;
    else if (strstr(addr,"gamma_absolute")) bands[4]=avg;
  };
  if (len>=8 && memcmp(buf,"#bundle",7)==0) { if (len<16) return; int pos=16; while(pos+4<=len){ uint32_t sz=be32(buf+pos); pos+=4; if(sz==0||pos+(int)sz>len) break; handle(buf+pos,(int)sz); pos+=sz; } }
  else handle(buf,len);
}

/* =========================
   ===== Networking    =====
   ========================= */

static const char* WIFI_SSID = "your ssid here";
static const char* WIFI_PASS = "your password here";
static const uint16_t OSC_UDP_PORT = 5000;
static WiFiUDP Udp;

/* =========================
   ===== Bands smoothing =====
   ========================= */

static volatile int q_delta=0,q_theta=0,q_alpha=0,q_beta=0,q_gamma=0; static volatile bool q_have=false;
static float ema_delta=0, ema_theta=0, ema_alpha=0, ema_beta=0, ema_gamma=0;
static const float BAND_EMA_A=0.50f;

/* =========================
   ===== Spectrum (FFT) =====
   ========================= */

static const uint16_t FFT_N=64; static const double EEG_FS_HZ=256.0;
static double fft_vReal[FFT_N], fft_vImag[FFT_N]; static uint16_t fft_w=0; static bool fft_ready=false;
static arduinoFFT FFT;
static float spec_smooth[SPEC_BINS]={0}; static const float SPEC_EMA_A=0.40f;

volatile bool     q_spec_have = false;
volatile uint8_t  q_spec_vals[SPEC_BINS] = {0};

static inline double hp_filter(double x){ static double ema=0.0; const double a=0.005; ema=(1.0-a)*ema + a*x; return x-ema; }
static inline void fft_feed(double af7){ double x=hp_filter(af7); fft_vReal[fft_w]=x; fft_vImag[fft_w]=0.0; if(++fft_w>=FFT_N){ fft_w=0; fft_ready=true; } }

static void fft_compute_and_queue() {
  if (!fft_ready) return; fft_ready=false;
  FFT.Windowing(fft_vReal, FFT_N, FFT_WIN_TYP_HAMMING, FFT_FORWARD);
  FFT.Compute(fft_vReal, fft_vImag, FFT_N, FFT_FORWARD);
  FFT.ComplexToMagnitude(fft_vReal, fft_vImag, FFT_N);
  auto mag_at_hz=[&](float f)->float{
    if (f<=0) return 0.0f;
    float bin=f*(float)FFT_N/(float)EEG_FS_HZ; if (bin<1.0f) bin=1.0f; float maxBin=(float)FFT_N*0.5f-1.0f; if (bin>maxBin) bin=maxBin;
    int i0=(int)floorf(bin); int i1=i0+1; float frac=bin-(float)i0; float m0=(float)fft_vReal[i0]; float m1=(float)fft_vReal[i1];
    return m0 + (m1-m0)*frac;
  };
  float mags[SPEC_BINS]; float peak=0; int peakHz=SPEC_MIN_HZ;
  for (int h=SPEC_MIN_HZ; h<=SPEC_MAX_HZ; ++h) {
    float v = log10f(mag_at_hz((float)h)+1e-6f)+6.0f; if (v<0) v=0;
    mags[h-SPEC_MIN_HZ]=v; if (v>peak){ peak=v; peakHz=h; }
  }
  for (int i=0;i<SPEC_BINS;++i){
    float s = (peak<1e-6f?0.0f:mags[i]/peak);
    s = SPEC_EMA_A*s + (1.0f-SPEC_EMA_A)*spec_smooth[i];
    spec_smooth[i]=s; int v=(int)lroundf(s*100.0f); if(v<0)v=0; if(v>100)v=100;
    q_spec_vals[i]=(uint8_t)v;
  }
  q_spec_have=true;
  if (spec_info){ char t[32]; snprintf(t,sizeof(t),"Peak: %d Hz",peakHz); lv_label_set_text(spec_info,t); }
}

/* =========================

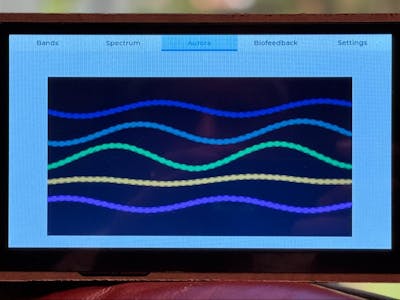

   ===== Aurora helpers =====
   ========================= */

static inline void init_sinlut(){
  if (!sin1024){
  sin1024 = (int16_t*)heap_caps_malloc(sizeof(int16_t)*1024, MALLOC_CAP_INTERNAL | MALLOC_CAP_8BIT);
  if (!sin1024) sin1024 = (int16_t*)heap_caps_malloc(sizeof(int16_t)*1024, MALLOC_CAP_8BIT);
    for (int i=0;i<1024;++i){ float ang=(2.0f*M_PI*i)/1024.0f; sin1024[i]=(int16_t)lroundf(sinf(ang)*32767.0f); }
  }
}
static inline float fsin1024(int idx){ idx&=1023; return (float)sin1024[idx]/32767.0f; }
static inline lv_color_t aurora_color(int band){
  switch(band){ case 0: return lv_color_hex(0x0A2A6D); case 1: return lv_color_hex(0x0F6E6D);
                case 2: return lv_color_hex(0x1AAE48); case 3: return lv_color_hex(0xE79E2E);
                default:return lv_color_hex(0xBB33CC); }
}
static const int AURORA_PTS=128; static const int AURORA_GLOW_SKIP=3; static uint16_t phase_idx[5]={0,128,256,384,512};

static void aurora_draw_frame(){
  if (!aurora_canvas || !aurora_buf || !sin1024) return;
  { lv_draw_rect_dsc_t r; lv_draw_rect_dsc_init(&r); r.bg_color=lv_color_hex(0x061018); r.bg_opa=220;
    lv_canvas_draw_rect(aurora_canvas, 0, 0, aurora_w, aurora_h, &r); }
  float amps[5] = {
    fminf(fabsf(ema_delta),3.0f)*60.0f, fminf(fabsf(ema_theta),3.0f)*60.0f,
    fminf(fabsf(ema_alpha),3.0f)*60.0f, fminf(fabsf(ema_beta), 3.0f)*60.0f,
    fminf(fabsf(ema_gamma),3.0f)*60.0f
  };
  const uint8_t speed[5]={2,2,3,4,5};
  int pad=18; int usable_h=aurora_h-2*pad; int gap=usable_h/6; int base_y[5]; for(int i=0;i<5;++i) base_y[i]=pad+gap*(i+1);
  lv_draw_line_dsc_t main_d; lv_draw_line_dsc_init(&main_d); main_d.width=6; main_d.opa=LV_OPA_COVER; main_d.round_start=1; main_d.round_end=1;
  lv_draw_line_dsc_t glow_d=main_d; glow_d.width=12; glow_d.opa=96;
  lv_point_t pts[AURORA_PTS]; lv_point_t gpts[AURORA_PTS]; const float x_step=(AURORA_PTS>1)?(float)(aurora_w-1)/(float)(AURORA_PTS-1):(float)aurora_w;
  for (int b=0;b<5;++b){
    main_d.color=aurora_color(b); glow_d.color=main_d.color;
    float neighbor=0.0f; if(b>0) neighbor+=amps[b-1]*0.25f; if(b<4) neighbor+=amps[b+1]*0.25f;
    for (int i=0;i<AURORA_PTS;++i){
      int x=(int)lroundf(i*x_step); int idx=(phase_idx[b]+(x*3))&1023; float y=base_y[b]+fsin1024(idx)*amps[b];
      int drift=(phase_idx[1]+x)&1023; y += fsin1024(drift)*neighbor*0.4f;
      int yi=(int)lroundf(y); if (yi<0) yi=0; if(yi>=aurora_h) yi=aurora_h-1; pts[i].x=x; pts[i].y=yi;
    }
    lv_canvas_draw_line(aurora_canvas, pts, AURORA_PTS, &main_d);
    int gcnt=0; for (int i=0;i<AURORA_PTS;i+=AURORA_GLOW_SKIP) gpts[gcnt++]=pts[i];
    if (gcnt>1) lv_canvas_draw_line(aurora_canvas, gpts, gcnt, &glow_d);
    phase_idx[b] += speed[b] + (uint8_t)(fabsf(ema_theta)*3.0f);
  }
  if (ema_gamma>0.02f){
    uint8_t dots=(uint8_t)min(18.0f, ema_gamma*30.0f);
    lv_draw_rect_dsc_t r; lv_draw_rect_dsc_init(&r); r.radius=1; r.bg_opa=140; r.bg_color=lv_color_hex(0xA0D8FF);
    for (int i=0;i<dots;++i){ int x=(millis()*37+i*73)%aurora_w; int y=(millis()*53+i*29)%aurora_h; lv_canvas_draw_rect(aurora_canvas,x,y,2,2,&r); }
  }
}

/* =========================
   ===== Biofeedback (computed Focus/Mellow) =====
   ========================= */

struct ZNorm {
  float mean = 0.0f;
  float mad  = 1.0f;   // mean absolute deviation (EMA)
  float a = 0.01f;     // update rate
  inline void update(float x){
    mean = (1.0f - a)*mean + a*x;
    float dev = fabsf(x - mean);
    mad  = (1.0f - a)*mad  + a*dev;
    if (mad < 1e-6f) mad = 1e-6f;
  }
  inline float norm01(float x) const {
    float z = (x - mean) / (3.0f*mad);
    return 1.0f / (1.0f + expf(-z));
  }
};

static ZNorm FOCUS_Z, MELLOW_Z;

static volatile int q_focus=-1, q_mellow=-1; static volatile bool q_bio_have=false;
static float ema_focus=0.0f, ema_mellow=0.0f; static const float BIO_EMA_A=0.40f;

static MeterRefs build_meter(lv_obj_t* parent, const char* title, lv_color_t color){
  MeterRefs mr;
  mr.container = lv_obj_create(parent);
  lv_obj_set_size(mr.container, 360, 300);
  lv_obj_set_style_bg_opa(mr.container, LV_OPA_0, 0);
  lv_obj_set_style_border_width(mr.container, 0, 0);
  lv_obj_set_style_pad_all(mr.container, 8, 0);

  lv_obj_t* t = lv_label_create(mr.container);
  lv_label_set_text(t, title);
  lv_obj_align(t, LV_ALIGN_TOP_MID, 0, 0);

  mr.meter = lv_meter_create(mr.container);
  lv_obj_set_size(mr.meter, 240, 240);
  lv_obj_align(mr.meter, LV_ALIGN_CENTER, 0, 10);

  mr.scale = lv_meter_add_scale(mr.meter);
  lv_meter_set_scale_ticks(mr.meter, mr.scale, 41, 2, 8, lv_palette_main(LV_PALETTE_GREY));
  lv_meter_set_scale_major_ticks(mr.meter, mr.scale, 10, 4, 14, lv_color_white(), 12);
  lv_meter_set_scale_range(mr.meter, mr.scale, 0, 100, 240, 150);

  lv_meter_indicator_t* arc_lo  = lv_meter_add_arc(mr.meter, mr.scale, 10, lv_palette_main(LV_PALETTE_RED), 0);
  lv_meter_set_indicator_start_value(mr.meter, arc_lo, 0);  lv_meter_set_indicator_end_value(mr.meter, arc_lo, 40);
  lv_meter_indicator_t* arc_mid = lv_meter_add_arc(mr.meter, mr.scale, 10, lv_palette_main(LV_PALETTE_AMBER), 0);
  lv_meter_set_indicator_start_value(mr.meter, arc_mid, 40); lv_meter_set_indicator_end_value(mr.meter, arc_mid, 70);
  lv_meter_indicator_t* arc_hi  = lv_meter_add_arc(mr.meter, mr.scale, 10, color, 0);
  lv_meter_set_indicator_start_value(mr.meter, arc_hi, 70); lv_meter_set_indicator_end_value(mr.meter, arc_hi, 100);

  // Needle color
  mr.needle = lv_meter_add_needle_line(mr.meter, mr.scale, 4, color, -12);

  mr.label = lv_label_create(mr.container);
  lv_label_set_text(mr.label, "-- %");
  lv_obj_align(mr.label, LV_ALIGN_BOTTOM_MID, 0, -4);

  return mr;
}
static inline void meter_set_value(const MeterRefs& mr, int val){
  if (!mr.meter || !mr.scale || !mr.needle) return;
  if (val<0) val=0; if (val>100) val=100;
  lv_meter_set_indicator_value(mr.meter, mr.needle, val);
  if (mr.label){ char t[24]; snprintf(t,sizeof(t), "%d %%", val); lv_label_set_text(mr.label, t); }
}

/* =========================
   ===== UI builders   =====
   ========================= */

static void build_ui() {
  // Tabs (order: Bands, Spectrum, Aurora, Biofeedback, Settings)
  tabview     = lv_tabview_create(lv_scr_act(), LV_DIR_TOP, 36);
  tab_bands   = lv_tabview_add_tab(tabview, "Bands");
  tab_spec    = lv_tabview_add_tab(tabview, "Spectrum");
  tab_aurora  = lv_tabview_add_tab(tabview, "Aurora");
  tab_bio     = lv_tabview_add_tab(tabview, "Biofeedback");
  tab_settings= lv_tabview_add_tab(tabview, "Settings");


  /* -------- Bands chart -------- */
  eeg_chart = lv_chart_create(tab_bands);
  lv_obj_set_size(eeg_chart, lv_pct(96), lv_pct(85));
  lv_obj_align(eeg_chart, LV_ALIGN_BOTTOM_MID, 0, -6);
  lv_chart_set_type(eeg_chart, LV_CHART_TYPE_LINE);
  lv_chart_set_update_mode(eeg_chart, LV_CHART_UPDATE_MODE_SHIFT);
  lv_chart_set_point_count(eeg_chart, EEG_POINTS);
  lv_chart_set_range(eeg_chart, LV_CHART_AXIS_PRIMARY_Y, chart_y_min, chart_y_max);
  lv_chart_set_div_line_count(eeg_chart, 4, 4);
  lv_obj_set_style_bg_opa(eeg_chart, LV_OPA_0, 0);
  lv_obj_set_style_border_width(eeg_chart, 0, 0);
  lv_obj_set_style_line_width(eeg_chart, 2, LV_PART_ITEMS);
  lv_obj_set_style_size(eeg_chart, 0, LV_PART_INDICATOR);
  lv_obj_set_style_line_rounded(eeg_chart, true, LV_PART_ITEMS);

  ser_delta = lv_chart_add_series(eeg_chart, lv_palette_main(LV_PALETTE_GREY ), LV_CHART_AXIS_PRIMARY_Y);
  ser_theta = lv_chart_add_series(eeg_chart, lv_palette_main(LV_PALETTE_TEAL ), LV_CHART_AXIS_PRIMARY_Y);
  ser_alpha = lv_chart_add_series(eeg_chart, lv_palette_main(LV_PALETTE_GREEN), LV_CHART_AXIS_PRIMARY_Y);
  ser_beta  = lv_chart_add_series(eeg_chart, lv_palette_main(LV_PALETTE_AMBER), LV_CHART_AXIS_PRIMARY_Y);
  ser_gamma = lv_chart_add_series(eeg_chart, lv_palette_main(LV_PALETTE_PINK ), LV_CHART_AXIS_PRIMARY_Y);

  for (int i=0;i<EEG_POINTS;++i){
    lv_chart_set_next_value(eeg_chart, ser_delta, 0);
    lv_chart_set_next_value(eeg_chart, ser_theta, 0);
    lv_chart_set_next_value(eeg_chart, ser_alpha, 0);
    lv_chart_set_next_value(eeg_chart, ser_beta,  0);
    lv_chart_set_next_value(eeg_chart, ser_gamma, 0);
  }

  /* -------- Spectrum -------- */
  spec_chart = lv_chart_create(tab_spec);
  lv_obj_set_size(spec_chart, lv_pct(96), lv_pct(80));
  lv_obj_align(spec_chart, LV_ALIGN_BOTTOM_MID, 0, -6);
  lv_chart_set_type(spec_chart, LV_CHART_TYPE_BAR);
  lv_chart_set_point_count(spec_chart, SPEC_BINS);
  lv_chart_set_range(spec_chart, LV_CHART_AXIS_PRIMARY_Y, 0, 100);
  lv_chart_set_div_line_count(spec_chart, 4, 4);
  lv_obj_set_style_bg_opa(spec_chart, LV_OPA_0, 0);
  lv_obj_set_style_border_width(spec_chart, 0, 0);
  lv_obj_set_style_size(spec_chart, 6, LV_PART_ITEMS);
  ser_spec = lv_chart_add_series(spec_chart, lv_palette_main(LV_PALETTE_BLUE), LV_CHART_AXIS_PRIMARY_Y);
  for (int i=0;i<SPEC_BINS;++i) lv_chart_set_next_value(spec_chart, ser_spec, 0);
  spec_info = lv_label_create(tab_spec); lv_label_set_text(spec_info, "Peak: -- Hz");
  lv_obj_align(spec_info, LV_ALIGN_TOP_LEFT, 6, 4);

  /* -------- Aurora -------- */
  aurora_canvas = lv_canvas_create(tab_aurora);
  aurora_w = min<int>(800*0.96f, 640); aurora_h = min<int>(480*0.80f, 360);
  lv_obj_set_size(aurora_canvas, aurora_w, aurora_h);
  lv_obj_align(aurora_canvas, LV_ALIGN_BOTTOM_MID, 0, -6);
  {
    size_t px = (size_t)aurora_w*(size_t)aurora_h;
    aurora_buf = (lv_color_t*)heap_caps_malloc(px*sizeof(lv_color_t), MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);
    if (!aurora_buf){
      aurora_w=480; aurora_h=240; lv_obj_set_size(aurora_canvas, aurora_w, aurora_h);
      px=(size_t)aurora_w*(size_t)aurora_h;
      aurora_buf = (lv_color_t*)heap_caps_malloc(px*sizeof(lv_color_t), MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);
    }
    if (!aurora_buf){
      aurora_w=320; aurora_h=180; lv_obj_set_size(aurora_canvas, aurora_w, aurora_h);
      px=(size_t)aurora_w*(size_t)aurora_h;
      aurora_buf = (lv_color_t*)heap_caps_malloc(px*sizeof(lv_color_t), MALLOC_CAP_8BIT);
    }
    lv_canvas_set_buffer(aurora_canvas, aurora_buf, aurora_w, aurora_h, LV_IMG_CF_TRUE_COLOR);
  }
  init_sinlut();

  /* -------- Biofeedback -------- */
  lv_obj_t* bio_row = lv_obj_create(tab_bio);
  lv_obj_set_size(bio_row, lv_pct(96), lv_pct(85));
  lv_obj_align(bio_row, LV_ALIGN_BOTTOM_MID, 0, -6);
  lv_obj_set_style_bg_opa(bio_row, LV_OPA_0, 0);
  lv_obj_set_style_border_width(bio_row, 0, 0);
  lv_obj_set_flex_flow(bio_row, LV_FLEX_FLOW_ROW);
  lv_obj_set_flex_align(bio_row, LV_FLEX_ALIGN_SPACE_EVENLY, LV_FLEX_ALIGN_CENTER, LV_FLEX_ALIGN_CENTER);
  lv_obj_set_style_pad_row(bio_row, 0, 0);
  lv_obj_set_style_pad_column(bio_row, 14, 0);
  MET_FOCUS  = build_meter(bio_row, "Focus",  lv_palette_main(LV_PALETTE_BLUE));
  MET_MELLOW = build_meter(bio_row, "Mellow", lv_palette_main(LV_PALETTE_GREEN));

  /* -------- Settings (slider + raw + IP/port) -------- */
  // Brightness slider
  bl_slider = lv_slider_create(tab_settings);
  lv_obj_set_size(bl_slider, 300, 22);
  lv_obj_align(bl_slider, LV_ALIGN_TOP_RIGHT, -20, 18);
  lv_slider_set_range(bl_slider, 0, 100);
  int start_pct = map(backlight_level_255, 0, 255, 0, 100);
  lv_slider_set_value(bl_slider, start_pct, LV_ANIM_OFF);

  bl_label = lv_label_create(tab_settings);
  static char bl_txt[32]; snprintf(bl_txt, sizeof(bl_txt), "Brightness %d%%", start_pct);
  lv_label_set_text(bl_label, bl_txt);
  lv_obj_align_to(bl_label, bl_slider, LV_ALIGN_OUT_LEFT_MID, -12, 0);

  lv_obj_add_event_cb(bl_slider, [](lv_event_t* e){
    int pct = lv_slider_get_value(lv_event_get_target(e));
    uint8_t lvl = (uint8_t) map(pct, 0, 100, 0, 255);
    setBacklight(lvl); backlight_level_255 = lvl;
    static char txt[32]; snprintf(txt, sizeof(txt), "Brightness %d%%", pct);
    lv_label_set_text(bl_label, txt);
  }, LV_EVENT_VALUE_CHANGED, nullptr);

  // Raw bands (moved here)
  band_label = lv_label_create(tab_settings);
  lv_obj_set_width(band_label, lv_pct(94));
  lv_label_set_long_mode(band_label, LV_LABEL_LONG_SCROLL_CIRCULAR);
  lv_label_set_text(band_label, "delta: --  theta: --  alpha: --  beta: --  gamma: --");
  lv_obj_set_style_bg_color(band_label, lv_color_hex(0x001018), 0);
  lv_obj_set_style_bg_opa(band_label, LV_OPA_COVER, 0);
  lv_obj_set_style_border_color(band_label, lv_color_hex(0xFFFFFF), 0);
  lv_obj_set_style_border_width(band_label, 2, 0);
  lv_obj_set_style_pad_all(band_label, 6, 0);
  lv_obj_set_style_text_color(band_label, lv_color_hex(0xFFFFFF), 0);
  lv_obj_align(band_label, LV_ALIGN_TOP_LEFT, 12, 60);

  // IP / Port info
  lbl_ip   = lv_label_create(tab_settings);
  lbl_port = lv_label_create(tab_settings);
  lv_label_set_text(lbl_ip,   "IP: --");
  lv_label_set_text(lbl_port, "UDP Port: --");
  lv_obj_align(lbl_ip,   LV_ALIGN_BOTTOM_LEFT, 12, -16);
  lv_obj_align(lbl_port, LV_ALIGN_BOTTOM_LEFT, 12, -40);

  lv_obj_move_foreground(tabview);
}

/* =========================
   ===== LVGL task     =====
   ========================= */

static void lvgl_task(void*){
  const TickType_t period = pdMS_TO_TICKS(UI_PERIOD_MS);
  TickType_t last = xTaskGetTickCount();
  for(;;){
    // Bands
    if (q_have && eeg_chart){
      q_have=false;
      float fd=q_delta/100.0f, ft=q_theta/100.0f, fa=q_alpha/100.0f, fb=q_beta/100.0f, fg=q_gamma/100.0f;
      ema_delta=BAND_EMA_A*fd+(1-BAND_EMA_A)*ema_delta;
      ema_theta=BAND_EMA_A*ft+(1-BAND_EMA_A)*ema_theta;
      ema_alpha=BAND_EMA_A*fa+(1-BAND_EMA_A)*ema_alpha;
      ema_beta =BAND_EMA_A*fb+(1-BAND_EMA_A)*ema_beta;
      ema_gamma=BAND_EMA_A*fg+(1-BAND_EMA_A)*ema_gamma;

      float maxAbs=fmaxf(fabsf(ema_delta),fmaxf(fabsf(ema_theta),fmaxf(fabsf(ema_alpha),fmaxf(fabsf(ema_beta),fabsf(ema_gamma)))));
      const float a_up=0.40f,a_down=0.10f;
      if (maxAbs>band_vis_max) band_vis_max=a_up*maxAbs+(1-a_up)*band_vis_max;
      else                     band_vis_max=a_down*maxAbs+(1-a_down)*band_vis_max;

      int target=(int)lroundf(band_vis_max*100.0f*1.2f); if (target<120) target=120; if (target>1000) target=1000;
      if (++range_tick>=30){
        range_tick=0;
        if (target>(int)(0.95f*chart_y_max) || target<(int)(0.5f*chart_y_max)){
          chart_y_min=-target; chart_y_max=target; lv_chart_set_range(eeg_chart, LV_CHART_AXIS_PRIMARY_Y, chart_y_min, chart_y_max);
        }
      }

      auto toChart=[](float v){ return (int)lroundf(v*100.0f); };
      lv_chart_set_next_value(eeg_chart, ser_delta, toChart(ema_delta));
      lv_chart_set_next_value(eeg_chart, ser_theta, toChart(ema_theta));
      lv_chart_set_next_value(eeg_chart, ser_alpha, toChart(ema_alpha));
      lv_chart_set_next_value(eeg_chart, ser_beta,  toChart(ema_beta));
      lv_chart_set_next_value(eeg_chart, ser_gamma, toChart(ema_gamma));

      if (band_label){ char lbl[160]; snprintf(lbl,sizeof(lbl),"delta: %.3f  theta: %.3f  alpha: %.3f  beta: %.3f  gamma: %.3f",
                    ema_delta,ema_theta,ema_alpha,ema_beta,ema_gamma); lv_label_set_text(band_label,lbl); }
    }

    // Spectrum
    if (q_spec_have && spec_chart){
      q_spec_have=false;
      for (int i=0;i<SPEC_BINS;++i) lv_chart_set_value_by_id(spec_chart, ser_spec, i, q_spec_vals[i]);
      lv_chart_refresh(spec_chart);
    }

    // Aurora when visible
    if (tabview && aurora_canvas){
      if (lv_tabview_get_tab_act(tabview)==2) aurora_draw_frame();
    }

    // Biofeedback
    if (q_bio_have){
      q_bio_have=false;
      if (q_focus >=0)  ema_focus  = BIO_EMA_A*(q_focus /100.0f)+(1.0f-BIO_EMA_A)*ema_focus;
      if (q_mellow>=0)  ema_mellow = BIO_EMA_A*(q_mellow/100.0f)+(1.0f-BIO_EMA_A)*ema_mellow;
      meter_set_value(MET_FOCUS,  (int)lroundf(ema_focus *100.0f));
      meter_set_value(MET_MELLOW, (int)lroundf(ema_mellow*100.0f));
    }

    lv_timer_handler();
    vTaskDelayUntil(&last, period);
  }
}

/* =========================
   ===== Helpers      =====
   ========================= */

static bool alloc_lvgl_draw_buffers_adaptive() {
  const int tries[] = {160, 120, 96, 80, 64, 48, 40, 32, 24, 16, 12};
  for (int lines : tries){
    size_t need = (size_t)screenW * (size_t)lines * sizeof(lv_color_t);
    buf1 = (lv_color_t*)heap_caps_malloc(need, MALLOC_CAP_SPIRAM | MALLOC_CAP_8BIT);
    buf2 = (lv_color_t*)heap_caps_malloc(need, MALLOC_CAP_SPIRAM | MALLOC_CAP_8BIT);
    if (buf1 && buf2){
      draw_lines=lines; lv_disp_draw_buf_init(&draw_buf, buf1, buf2, screenW*draw_lines);
      Serial.printf("LVGL draw buffer in PSRAM: %d lines (%.1f KB each)\n", draw_lines, need/1024.0f);
      return true;
    }
    if (buf1){ heap_caps_free(buf1); buf1=nullptr; }
    if (buf2){ heap_caps_free(buf2); buf2=nullptr; }
  }
  int lines=12; size_t need=(size_t)screenW*(size_t)lines*sizeof(lv_color_t);
  buf1=(lv_color_t*)heap_caps_malloc(need,MALLOC_CAP_8BIT);
  buf2=(lv_color_t*)heap_caps_malloc(need,MALLOC_CAP_8BIT);
  if (buf1 && buf2){ draw_lines=lines; lv_disp_draw_buf_init(&draw_buf, buf1, buf2, screenW*draw_lines);
    Serial.printf("LVGL draw buffer in DRAM: %d lines (%.1f KB each)\n", draw_lines, need/1024.0f); return true; }
  Serial.println("FATAL: draw buffers alloc failed."); return false;
}

/* =========================
   ===== Arduino core  =====
   ========================= */

void setup() {
  Serial.begin(115200);
  delay(100);

  ledcSetup(BL_CH, BL_FREQ, BL_RES);
  ledcAttachPin(TFT_BL_PIN, BL_CH);
  setBacklight(backlight_level_255);

  lcd.begin(); lcd.fillScreen(TFT_BLACK);
  screenW = lcd.width(); screenH = lcd.height();

  lv_init();
  touch_init();

  alloc_lvgl_draw_buffers_adaptive();

  lv_disp_drv_init(&disp_drv);
  disp_drv.hor_res=screenW; disp_drv.ver_res=screenH;
  disp_drv.flush_cb=lvgl_flush_cb; disp_drv.draw_buf=&draw_buf;
  disp_drv.full_refresh=0; disp_drv.direct_mode=0;
  lv_disp_drv_register(&disp_drv);

  static lv_indev_drv_t indev_drv;
  lv_indev_drv_init(&indev_drv);
  indev_drv.type=LV_INDEV_TYPE_POINTER; indev_drv.read_cb=lvgl_touch_cb;
  lv_indev_drv_register(&indev_drv);

#ifdef ui_init
  ui_init();
#endif

  build_ui();

  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  uint32_t t0=millis();
  while (WiFi.status()!=WL_CONNECTED && millis()-t0<15000) delay(100);
  if (WiFi.status()==WL_CONNECTED){
    Udp.begin(OSC_UDP_PORT);
    Serial.printf("WiFi OK. IP=%s, UDP port=%u\n", WiFi.localIP().toString().c_str(), OSC_UDP_PORT);
    if (lbl_ip)   { String s="IP: "+WiFi.localIP().toString(); lv_label_set_text(lbl_ip, s.c_str()); }
    if (lbl_port) { char t[32]; snprintf(t,sizeof(t),"UDP Port: %u", OSC_UDP_PORT); lv_label_set_text(lbl_port, t); }
  } else {
    Serial.println("WiFi FAILED.");
    if (lbl_ip)   lv_label_set_text(lbl_ip, "IP: (not connected)");
    if (lbl_port) { char t[32]; snprintf(t,sizeof(t),"UDP Port: %u", OSC_UDP_PORT); lv_label_set_text(lbl_port, t); }
  }

  xTaskCreatePinnedToCore(lvgl_task, "lvgl", 6144, nullptr, 1, nullptr, 1);
}

void loop() {
  if (WiFi.status()==WL_CONNECTED){
    int pkt=Udp.parsePacket();
    if (pkt>0 && pkt<=(int)sizeof(oscBuf)){
      int len=Udp.read(oscBuf,sizeof(oscBuf));
      if (len>0){
        // 1) Bands
        float bands[5]; extract_bands_from_packet(oscBuf,len,bands);
        static float last[5]={NAN,NAN,NAN,NAN,NAN};
        for (int i=0;i<5;++i) if(!isnan(bands[i])) last[i]=bands[i];

        const float MULT=100.0f;
        q_delta = isnan(last[0])?0:(int)roundf(last[0]*MULT);
        q_theta = isnan(last[1])?0:(int)roundf(last[1]*MULT);
        q_alpha = isnan(last[2])?0:(int)roundf(last[2]*MULT);
        q_beta  = isnan(last[3])?0:(int)roundf(last[3]*MULT);
        q_gamma = isnan(last[4])?0:(int)roundf(last[4]*MULT);
        q_have  = true;

        // 2) Spectrum: get AF7 sample if present
        bool got_af7=false; double af7_sample=0.0;
        const uint8_t* buf=oscBuf;
        auto scan_elem_af7=[&](const uint8_t* base,int blen){
          char addr[128]; float v[8]; int n=parse_osc_element(base,blen,addr,sizeof(addr),v,8);
          if (n>=3 && strstr(addr,"/muse/eeg")){ af7_sample=(double)v[1]; got_af7=true; }
        };
        if (len>=8 && memcmp(buf,"#bundle",7)==0){
          int pos=16; while(pos+4<=len){ uint32_t sz=be32(buf+pos); pos+=4; if (sz==0 || pos+(int)sz>len) break; scan_elem_af7(buf+pos,(int)sz); pos+=sz; }
        } else scan_elem_af7(buf,len);

        if (got_af7){ fft_feed(af7_sample); fft_compute_and_queue(); }

        // 3) Compute Focus & Mellow from bands (no MindMonitor /algorithm/)
        float d = isnan(last[0])?0.0f:last[0];
        float t = isnan(last[1])?0.0f:last[1];
        float a = isnan(last[2])?0.0f:last[2];
        float b = isnan(last[3])?0.0f:last[3];
        float g = isnan(last[4])?0.0f:last[4];
        const float K_EPS = 1e-6f;

        float focus_feat  = b / (a + t + K_EPS);
        float mellow_feat = a / (b + 0.5f*g + K_EPS);

        FOCUS_Z.update(focus_feat);
        MELLOW_Z.update(mellow_feat);

        int f_pct = (int)lroundf(FOCUS_Z.norm01(focus_feat)  * 100.0f);
        int m_pct = (int)lroundf(MELLOW_Z.norm01(mellow_feat)* 100.0f);
        if (f_pct<0) f_pct=0; if (f_pct>100) f_pct=100;
        if (m_pct<0) m_pct=0; if (m_pct>100) m_pct=100;

        q_focus  = f_pct;
        q_mellow = m_pct;
        q_bio_have = true;
      }
    }
  }
  delay(1);
}
