FreeRTOS Queue Communication: Button-to-LED Message Passing

This project demonstrates inter-task communication in FreeRTOS using queues. Instead of sharing variables directly, tasks exchange messages to control system behavior in a safe and scalable way.

A button press is detected in one task, sent as a message through a queue, and processed by another task that controls an LED.

Project Overview

In multitasking systems, tasks often need to exchange information. FreeRTOS queues provide a thread-safe way to send data between tasks without race conditions.

This project uses:

• One task to monitor and debounce a button
• One task to control an LED based on received messages
• A FreeRTOS queue to pass "ON" and "OFF" commands

The FreeRTOS headers are included as follows:

#include <Arduino_FreeRTOS.h>
#include <queue.h>

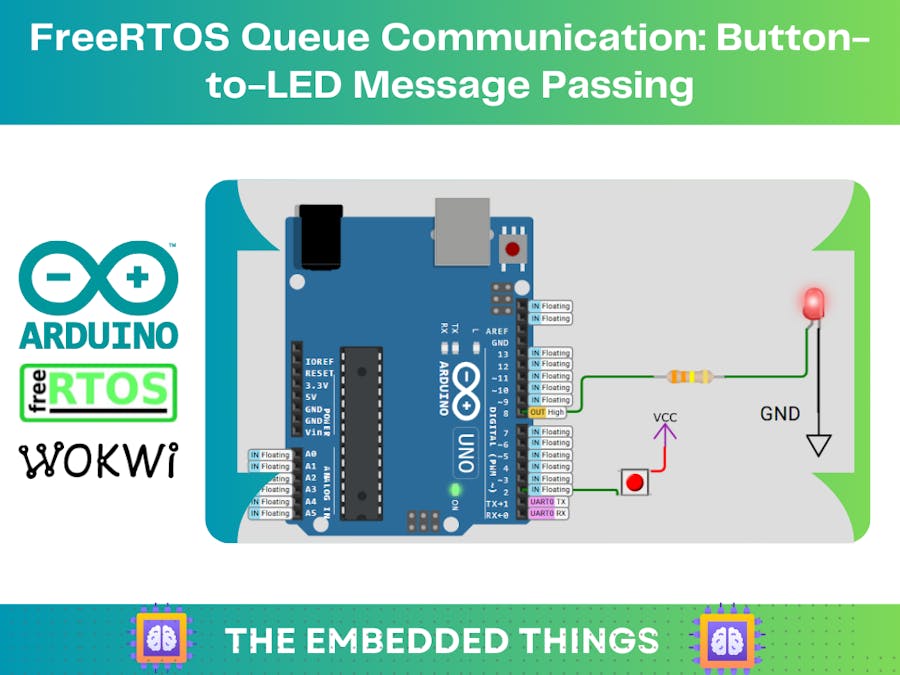

Hardware Setup

The project can be simulated using Wokwi Simulator and includes:

• Arduino UNO running FreeRTOS
• Push button connected to Pin 2
• LED connected to Pin 8

Core Functionality

Button Monitoring Task

This task continuously reads the button state, applies software debouncing, detects state changes, and sends messages to the queue.

void TaskButton(void *pvParameters) {
  int lastState = LOW;

  while (1) {
    int currentState = digitalRead(BUTTON_PIN);

    if (currentState != lastState) {
      char message[4];
      strcpy(message, currentState == HIGH ? "ON" : "OFF");

      xQueueSend(xQueue, &message, portMAX_DELAY);
      Serial.print("Sent: ");
      Serial.println(message);

      lastState = currentState;
    }

    vTaskDelay(50 / portTICK_PERIOD_MS);
  }
}

LED Control Task

This task waits for messages from the queue and controls the LED accordingly. It reacts immediately when a message is received.

void TaskLED(void *pvParameters) {
  char receivedMessage[4];

  while (1) {
    if (xQueueReceive(xQueue, receivedMessage, portMAX_DELAY) == pdPASS) {
      Serial.print("Received: ");
      Serial.println(receivedMessage);

      if (strcmp(receivedMessage, "ON") == 0) {
        digitalWrite(LED_PIN, HIGH);
      } else {
        digitalWrite(LED_PIN, LOW);
      }
    }
  }
}

Queue Creation and Task Setup

A queue capable of holding multiple messages is created in setup(). Both tasks run at the same priority.

void setup() {
  Serial.begin(9600);

  pinMode(BUTTON_PIN, INPUT);
  pinMode(LED_PIN, OUTPUT);

  xQueue = xQueueCreate(5, sizeof(char) * 4);

  xTaskCreate(TaskButton, "ButtonTask", 128, NULL, 1, NULL);
  xTaskCreate(TaskLED, "LEDTask", 128, NULL, 1, NULL);
}

The loop()

function is unused because the FreeRTOS scheduler manages execution:

void loop() {}

Expected Behavior

Key Features

• Safe inter-task communication using queues
• Button debouncing with periodic polling
• No shared global variables between tasks
• Real-time system feedback via Serial Monitor

Key Learning Points

• Queues decouple tasks and improve system reliability
• Message passing avoids race conditions
• Tasks can block efficiently while waiting for data
• FreeRTOS queues are ideal for event-driven designs

Learning Outcomes

• Understand how to create and use FreeRTOS queues
• Learn message-based task synchronization
• Design cleaner, more scalable multitasking systems

This project provides a clear and practical introduction to FreeRTOS queue-based communication, a core concept in professional embedded real-time systems.

That's all!

If you have any questions or suggestions, don’t hesitate to leave a comment below.
