PIR Night Security Light

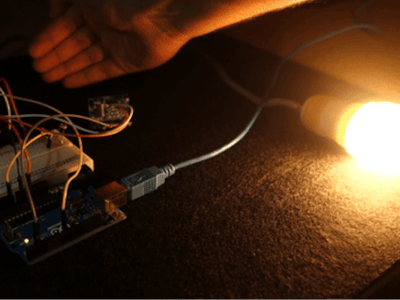

This is a night security light with a relay module, a photoresistor and an Arduino.

IntermediateFull instructions provided470
PIR Night Security Light

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Relay (generic)
×1
LDR, 5 Mohm
LDR, 5 Mohm
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Multitool, Screwdriver
Multitool, Screwdriver

Story

Read more

Schematics

Schematics

Schematics

Code

Code

Arduino
Code
int relay = 8;
volatile byte relayState = LOW;

int PIRInterrupt = 2;

// LDR pin is connected to Analog 0
int LDRPin = A0;
// LDR value is stored on LDR reading
int LDRReading;
// LDR Threshold value
int LDRThreshold = 300;

// Timer Variables
long lastDebounceTime = 0;
long debounceDelay = 10000;

void setup() {
  // Pin for relay module set as output
  pinMode(relay, OUTPUT);
  digitalWrite(relay, HIGH);
  // PIR motion sensor set as an input
  pinMode(PIRInterrupt, INPUT);

  attachInterrupt(digitalPinToInterrupt(PIRInterrupt), detectMotion, RISING);
  // Serial communication for debugging purposes
  Serial.begin(9600);
}

void loop() {
  // If 10 seconds have passed, the relay is turned off
  if((millis() - lastDebounceTime) > debounceDelay && relayState == HIGH){
    digitalWrite(relay, HIGH);
    relayState = LOW;
    Serial.println("OFF");
  }
  delay(50);
}

void detectMotion() {
  Serial.println("Motion");
  LDRReading = analogRead(LDRPin);

  if(LDRReading > LDRThreshold){
    if(relayState == LOW){
      digitalWrite(relay, LOW);
    }
    relayState = HIGH;
    Serial.println("ON");
    lastDebounceTime = millis();
  }
}
