Snack Snatcher Stopper 3000

Imagine coming home from a long day of work. You're starving and tired. All you want is a huge bowl of Count Chocula cereal and it's GONE!

IntermediateProtip12 hours38

Things used in this project

Hardware components

Jumper wires (generic)

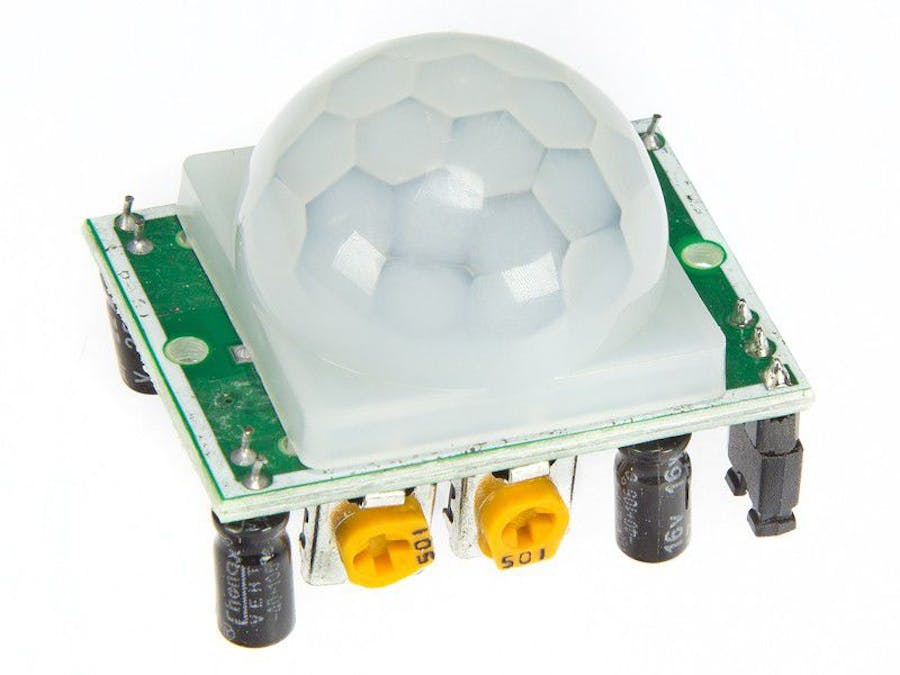

PIR Motion Sensor (generic)

LED (generic)

Particle lcd 1602 Module

PHPoC Bread Board

Particle Argon

Software apps and online services

IFTTT Maker service

Fritzing

Google Sheets

Story

Well the story is, we love our snacks. But apparently, we live with room mates who also love OUR snacks. So we had to come up with a solution. Our solution was to utilize two Particle Argons as a security alarm. One Argon was set up with a PIR sensor.

PIR Sensor and Particle Argon

Additionally, Argon One was also set up to send us an email notification whenever the sensor is tripped.

Email Notification From Argon One

The other Particle Argon was set up with an LCD display to notify us physically when the sensor has been tripped.

LCD Display and Particle Argon

Demonstration Video

Code

// This #include statement was automatically added by the Particle IDE.
#include <LiquidCrystal.h>

#define DHTPIN D5

#define DHTTYPE DHT11

LiquidCrystal lcd(D0, D1, D2, D3, D4, D5);

int inPin = D13;
int ledPin = D7;
int pIRstate = LOW;
int val = 0;

void setup() {
    lcd.begin(16,2);
    lcd.setCursor(4,0);
    lcd.print("Welcome");

Particle.subscribe("Intruder_Alert", Movement);

  pinMode( ledPin, OUTPUT );
  pinMode(inPin, INPUT);
}

void Movement(const char *event, const char *data) {

if(data == "Movement")

    lcd.begin(16,1);
    lcd.setCursor(1,4);
    lcd.print("INTRUDER ALERT");
    delay(5000);
    lcd.noDisplay();
    lcd.begin(16,2);
    lcd.setCursor(4,0);
    lcd.print("Welcome");
    delay(1500);
    lcd.begin(16,1);
    lcd.setCursor(1,4);
    lcd.print("ToTheSnackShow");

}

// First photon, Motion sensor
int inputPin = D0;
int ledPin = D7;
int pirState = LOW;
int val = 0;

int calibrateTime = 10000;

void setup()
{
  pinMode( ledPin, OUTPUT );
  pinMode(inputPin, INPUT);
}

void loop()
{
  if ( calibrated() )
  {

    readTheSensor();


    reportTheData();
  }
}

void readTheSensor() {
  val = digitalRead(inputPin);
}

bool calibrated() {
  return millis() - calibrateTime > 0;
}

void reportTheData() {


  if (val == HIGH) {


    if (pirState == LOW) {

      Particle.publish("Intruder_Alert", "Movement");

      pirState = HIGH;
      setLED( pirState );
    }
  } else {
    if (pirState == HIGH) {

      pirState = LOW;
      setLED( pirState );
    }
  }
}


 void setLED( int state )
{
  digitalWrite( ledPin, state );
}

void loop() {
  // Get some data
  String data = String(10);
  // Trigger the integration
  Particle.publish("Intruder_Alert", data, PRIVATE);
  // Wait 60 seconds
  delay(60000);
}

void setup() {
  // Subscribe to the integration response event
  Particle.subscribe("hook-response/Intruder_Alert", myHandler, MY_DEVICES);
}

void myHandler(const char *event, const char *data) {
  // Handle the integration response
}

Credits

Harrison Tharrington

1 project • 1 follower

Alex Cockman

4 projects • 5 followers

Thanks to Taylor Brady and Ezequiel Oreuz.
