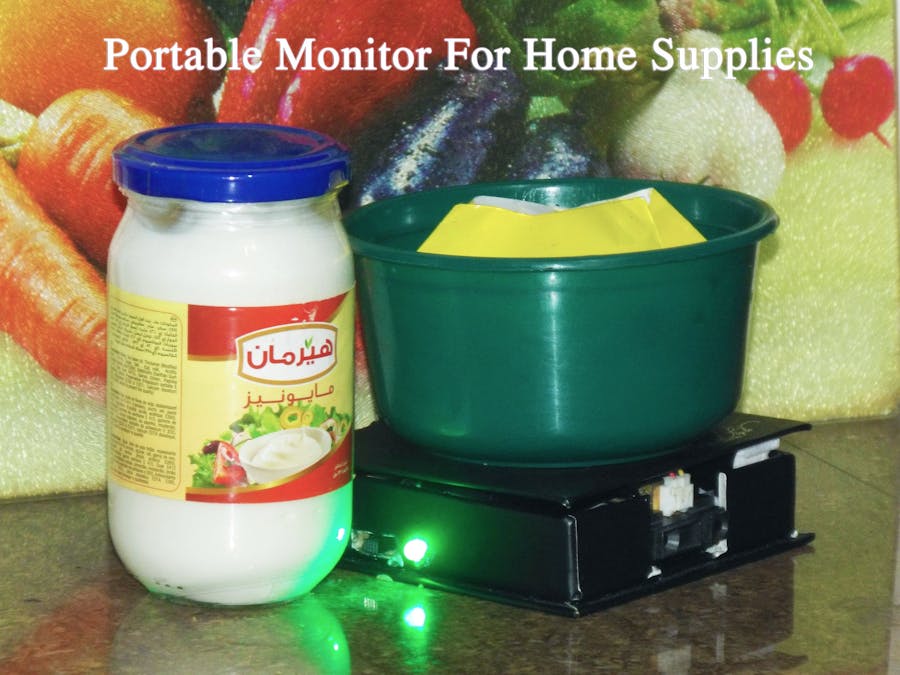

Portable Monitor for Home Supplies

#ifndef G_SENDER
#define G_SENDER
#define GS_SERIAL_LOG_1         // Print to Serial only server responce
//#define GS_SERIAL_LOG_2       //  Print to Serial client commands and server responce
#include <WiFiClientSecure.h>

class Gsender
{
    protected:
        Gsender();
    private:
        const int SMTP_PORT = 465;
        const char* SMTP_SERVER = "smtp.gmail.com";
        const char* EMAILBASE64_LOGIN = "Email address in 64 base";
        const char* EMAILBASE64_PASSWORD = "Password in 64 base";
        const char* FROM = "Low Supplies";
        const char* _error = nullptr;
        char* _subject = nullptr;
        String _serverResponce;
        static Gsender* _instance;
        bool AwaitSMTPResponse(WiFiClientSecure &client, const String &resp = "", uint16_t timeOut = 10000);

    public:
        static Gsender* Instance();
        Gsender* Subject(const char* subject);
        Gsender* Subject(const String &subject);
        bool Send(const String &to, const String &message);
        String getLastResponce();
        const char* getError();
};
#endif // G_SENDER

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <DNSServer.h>
#include <WiFiManager.h>
//needed for Json Response parse
#include <ArduinoJson.h>

//needed for eeprom access
#include <EEPROM.h>
#include <Arduino.h>
#include "EEPROMAnything.h"

WiFiClientSecure client;


#define measure A0    //Force Sensitive Resistor
#define red D1
#define blue D0         //RGB pins of LED
#define green D3
#define LED_POWER D2
#define sw1_weight D5       //Switch 1 positions
#define sw2_power D6
#define sw2_calibrate D8          //Switch 2 positions
#define sw2_check D7


int re1_rep_flag = 0;
int re2_rep_flag = 0;
int re3_rep_flag = 0;
int rst_flag = 0;
int rst_slot = 0;

//AMAZON DRS parameters
const char* device_model = "xxxxxxxxxxxxxxxxxxxxxxxx"; //Product model ID of the device
const char* device_identifier = "xxxxxxxxxxxxxxxxx"; // Serial No of the device
const char* client_id = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"; // Client ID
const char* client_secret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"; // Secret Code of the Developer Account
const char* slot_id = "xxxxxxxxxxxxxxxxx"; //Slot ID of the product

int startup = 1,con_flag=0;
int low=10;
int high=50;
int reading;
int absolute_val=0;
int fal=1;



void get_readings(){

  reading=0;
  for(int i=0;i<20;i++){
    reading = reading+analogRead(measure);        //get readings from the sensor
    delay(5);
  }
  absolute_val = reading /20;

}
void calibrate(){
  reading=0;
  for(int i=0;i<20;i++)                                       //calibrate
    reading = reading+analogRead(measure);

  absolute_val = reading /20;
  low = absolute_val;
  high = absolute_val;

  while (digitalRead(sw2_calibrate)==HIGH){
    reading=0;
  digitalWrite(blue,LOW);
  for(int i=0;i<20;i++){
    reading = reading+analogRead(measure);
    delay(5);
  }
  digitalWrite(blue,HIGH);
  absolute_val = reading /20;
    if (absolute_val<low) low = absolute_val;
    if(absolute_val>high) high=absolute_val;

   delay(100);

  }

digitalWrite(blue,HIGH);

for (int a=0; a<1500;a++){

  reading=0;
  for(int i=0;i<20;i++){
    reading = reading+analogRead(measure);
    delay(5);
  }
  absolute_val = reading /20;

  if(absolute_val <= low) {
    digitalWrite(red,LOW);
    digitalWrite(green,HIGH);
  }
  if(absolute_val > low+20) {
    digitalWrite(red,HIGH);
    digitalWrite(green,LOW);
  }

  delay(1);
}

  digitalWrite(red,HIGH);
  digitalWrite(green,HIGH);

}

unsigned int refresh_access_token()
{
  char _tmp_token[500];
  unsigned int _len_str;
  Serial.println();
  Serial.println("REQUEST NEW ACCESS TOKEN BY PROVIDING REFRESH TOKEN:\r\nConnecting to Host: api.amazon.com");
  _len_str = eepromReadString(105, 500, _tmp_token);
  //Serial.println(_tmp_token);
  // Use WiFiClientSecure class to create TCP connections
  if (!client.connect("api.amazon.com", 443)) {
    Serial.println("Error 5 --> Connection failed");
    return 5;
  }
  Serial.println("Connected\r\nSending Request for obtain Tokens");
  // This will send request for refresh of Access token to the server
  client.println("POST /auth/o2/token HTTP/1.1");
  client.println("Host: api.amazon.com");
  client.println("Content-Type: application/x-www-form-urlencoded");
  client.println("Cache-Control: no-cache");
  client.print("Content-Length: ");client.println(_len_str+197);
  client.println();
  client.print("grant_type=refresh_token");
  client.print("&refresh_token=Atzr%7C");
  client.print(_tmp_token);
  client.print("&client_id=");
  client.print(client_id);
  client.print("&client_secret=");
  client.println(client_secret);
  Serial.println("Request Send");

  unsigned long timeout = millis();
  while (client.available() == 0) {
    if (millis() - timeout > 35000) {
      Serial.println("Error 4 --> Connection Timeout !");
      client.stop();
      return 4;
    }
  }
  // Read all the lines of the reply from server and print them to Serial
  String _line = "temp";
  unsigned int _line_no = 1;
  while(client.available())
  {
    _line = client.readStringUntil('\r');
    Serial.print(_line);
    if ((_line_no == 1)&& (_line != "HTTP/1.1 200 OK"))
    {
      Serial.println();
      Serial.println("Error 3 --> Invalid Response");
      client.stop();
      return 3;
    }
    _line_no++;
  }
  DynamicJsonBuffer jsonBuffer;
  // Responce last line have access token and referesh token json oblect
  JsonObject& root = jsonBuffer.parseObject(_line);

  // Test if parsing succeeds.
  if (!root.success()) {
    Serial.println("Error 2 --> Json parseObject() failed");
    return 2;
  }
  const char* access_token = root["access_token"];
  // Print values
  Serial.println();
  Serial.print("Access token: ");
  Serial.println(access_token);
  _len_str = eepromWriteString1(600, 500, access_token);
  EEPROM.commit();
  Serial.print("Length: ");
  Serial.println(_len_str);
  //len_str = eepromReadString(605,500, _tmp_token);
  //Serial.print("Access token in EEPROM: ");
  //Serial.println(_tmp_token);
  //Serial.println(_len_str);
  Serial.println("SUCCESS");
  return 1;
}

void setup() {
  int cnt;
  Serial.begin(115200); //  Initlize UART for Serial debug

  pinMode(measure, INPUT);
  pinMode(red, OUTPUT);
  pinMode(green, OUTPUT);
  pinMode(blue, OUTPUT);
  pinMode(sw2_power,OUTPUT);
  pinMode(LED_POWER,OUTPUT);

  digitalWrite(sw2_power,HIGH);
  digitalWrite(red,HIGH);
  digitalWrite(green,HIGH);
  digitalWrite(blue,HIGH);
  digitalWrite(LED_POWER,HIGH);


}

void loop()
{
  if(is_wifi_connected() == 1)
  {
    if(startup==1)
    {

      Serial.println("connecting to AP.....");
      delay(2000);
      unsigned int x = obtain_access_and_refresh_token();
      Serial.println(x);
      Serial.println("Connected...");
      delay(4000);
      startup++;
    }


  }

    while(digitalRead(sw2_calibrate)!=HIGH){delay(100);}             //jump in to calibration mode

  if(digitalRead(sw2_calibrate)==HIGH) calibrate();

  while(digitalRead(sw2_calibrate)!=HIGH){

    get_readings();

    if(absolute_val <= low){
      int count = 0;                                        //Detects low values
      for (int z=0;z<50;z++){
        get_readings();
        if(absolute_val <= low) count++;
      }
      if (count > 45 && fal == 1){
        Serial.println("LOW DETECT");
        digitalWrite(red,LOW);
        refresh_access_token();
        end_point_request_replenishment(slot_id);
        fal = 0;

      }

      while(absolute_val < (low+high)/2){
        get_readings();                                   //Supply refill checker

      }

      if(absolute_val > (low+high)/2){
        digitalWrite(red,HIGH);
        fal = 1;
      }

      else count=0;
    }
  }

}

unsigned int end_point_request_replenishment(const char* _slot_id)
{
  char _tmp_token[500];
  unsigned int _len_str;
  Serial.println();
  Serial.println("REQUEST FOR REPLENISHMENT:\r\nConnecting to Host: dash-replenishment-service-na.amazon.com");
  _len_str = eepromReadString(605,500, _tmp_token);
  Serial.println(_tmp_token);
  // Use WiFiClientSecure class to create TCP connections
  if(!client.connect("dash-replenishment-service-na.amazon.com", 443))
  {
    Serial.println("Error 5 --> Connection failed");
    return 5;
  }
  Serial.println("Connected\r\nSending Request for Replenishment");
  //This will send the replenishment request to the Amazon DRS server
  client.print("POST /replenish/");client.print(_slot_id); client.println(" HTTP/1.1");
  client.println("Host: dash-replenishment-service-na.amazon.com");
  client.print("Authorization: Bearer Atza|");
  client.println(_tmp_token);
  client.println("Content-Length: 0");
  client.println("X-Amzn-Accept-Type: com.amazon.dash.replenishment.DrsReplenishResult@1.0");
  client.println("X-Amzn-Type-Version: com.amazon.dash.replenishment.DrsReplenishInput@1.0");
  client.println();
  Serial.println("Request Send");


  // Read all the lines of the reply from server and print them to Serial
  String _line = "temp";
  unsigned int _line_no = 1;
  while(client.available())
  {
    _line = client.readStringUntil('\r');
    Serial.print(_line);
    if ((_line_no == 1)&& (_line != "HTTP/1.1 200 OK"))
    {
      client.stop();
      return 3;
    }
    _line_no++;
  }
  DynamicJsonBuffer jsonBuffer;
  // Responce last line have access token and referesh token json oblect
  JsonObject& root = jsonBuffer.parseObject(_line);

  // Test if parsing succeeds.
  if (!root.success()) {
    Serial.println("Error 2 --> Json parseObject() failed");
    return 2;
  }
  const char* _detailCode = root["detailCode"];

  if(strcmp(_detailCode,"STANDARD_ORDER_PLACED")==0)
  {
    return 11;
  }
  else if(strcmp(_detailCode,"TEST_ORDER_PLACED")==0)
  {
    return 12;
  }
  else if(strcmp(_detailCode,"ORDER_INPROGRESS")==0)
  {
    return 13;
  }
  else
  {
    return 0;
  }
}

unsigned int obtain_access_and_refresh_token()
{
  char _tmp_token[500];
  unsigned int _len_str;
  _len_str = eepromReadString(0, 30, _tmp_token);
  client.println("POST /auth/o2/token HTTP/1.1");
  client.println("Host: api.amazon.com");
  client.println("Content-Type: application/x-www-form-urlencoded");
  client.println("Cache-Control: no-cache");
  client.println();
  client.print("grant_type=authorization_code");
  client.print("&code=");
  client.print(_tmp_token);
  client.print("&client_id=");
  client.print(client_id);
  client.print("&client_secret=");
  client.print(client_secret);
  Serial.println("Request Send");

  // Read all the lines of the reply from server and print them to Serial
  String _line = "temp";
  unsigned int _line_no = 1;
  while(client.available())
  {
    _line = client.readStringUntil('\r');
    Serial.print(_line);
    if ((_line_no == 1)&& (_line != "HTTP/1.1 200 OK"))
    {
      Serial.println();
      Serial.println("Error 3 --> Invalid Response");
      client.stop();
      return 3;
    }
    _line_no++;
  }
  DynamicJsonBuffer jsonBuffer;
  // Responce last line have access token and referesh token json oblect
  JsonObject& root = jsonBuffer.parseObject(_line);

  // Test if parsing succeeds.
  if (!root.success()) {
    Serial.println("Error 2 --> Json parseObject() failed");
    return 2;
  }
  const char* _refresh_token = root["refresh_token"];
  // Print values
  Serial.println();
  Serial.print("Refresh token: ");
  Serial.println(_refresh_token);
  _len_str = eepromWriteString1(100, 500, _refresh_token);
  EEPROM.commit();
  return 1;
}


unsigned int is_wifi_connected()
{
  if (WiFi.status() != WL_CONNECTED)
  {
    delay(1000);
    Serial.print(".");
    return 0;
  }
  else
  {
     return 1;
  }
}

int eepromReadInt(int address){
   int value = 0x0000;
   value = value | (EEPROM.read(address) << 8);
   value = value | EEPROM.read(address+1);
   return value;
}

void eepromWriteInt(int address, int value){
   EEPROM.write(address, (value >> 8) & 0xFF );
   EEPROM.write(address+1, value & 0xFF);
}

float eepromReadFloat(int address){
   union u_tag {
     byte b[4];
     float fval;
   } u;
   u.b[0] = EEPROM.read(address);
   u.b[1] = EEPROM.read(address+1);
   u.b[2] = EEPROM.read(address+2);
   u.b[3] = EEPROM.read(address+3);
   return u.fval;
}

void eepromWriteFloat(int address, float value){
   union u_tag {
     byte b[4];
     float fval;
   } u;
   u.fval=value;

   EEPROM.write(address  , u.b[0]);
   EEPROM.write(address+1, u.b[1]);
   EEPROM.write(address+2, u.b[2]);
   EEPROM.write(address+3, u.b[3]);
}

unsigned int eepromReadString(int offset, int bytes, char *buf){
  char c = 0;
  for (int i = offset; i < (offset + bytes); i++) {
    c = EEPROM.read(i);
    buf[i - offset] = c;
    if (c == 0)
    {
      return i-offset;
    }
  }
}



unsigned int eepromWriteString(int offset, int bytes, char *buf){
  char c = 0;
  //int len = (strlen(buf) < bytes) ? strlen(buf) : bytes;
  for (int i = 0; i < bytes; i++) {
    c = buf[i];
    EEPROM.write(offset + i, c);
    if (c == 0)
    {
      return i;
    }
  }
}
unsigned int eepromWriteString1(int offset, int bytes, const char *buf){
  char c = 0;
  //int len = (strlen(buf) < bytes) ? strlen(buf) : bytes;
  for (int i = 0; i < bytes; i++) {
    c = buf[i];
    EEPROM.write(offset + i, c);
    if (c == 0)
    {
      return i;
    }
  }
}
