Raspberry-Edge impulse Detect electronics modules

The project is a image processing based detection system. It detects the electronics components and print its prize. Useful in a electronics store.

Training the model:

Login to edge impulse and created a new project called electronics.

install edge impulse on Raspberry Pi:

curl -sL https://deb.nodesource.com/setup_12.x | sudo bash -

sudo apt install -y gcc g++ make build-essential nodejs sox gstreamer1.0-tools gstreamer1.0-plugins-good gstreamer1.0-plugins-base gstreamer1.0-plugins-base-apps

npm config set user root && sudo npm install edge-impulse-linux -g --unsafe-perm

Turn on the camera if its not already on.

type this in command line: edge-impulse-linux

After answering some RPi will be connected to the edge impulse project.

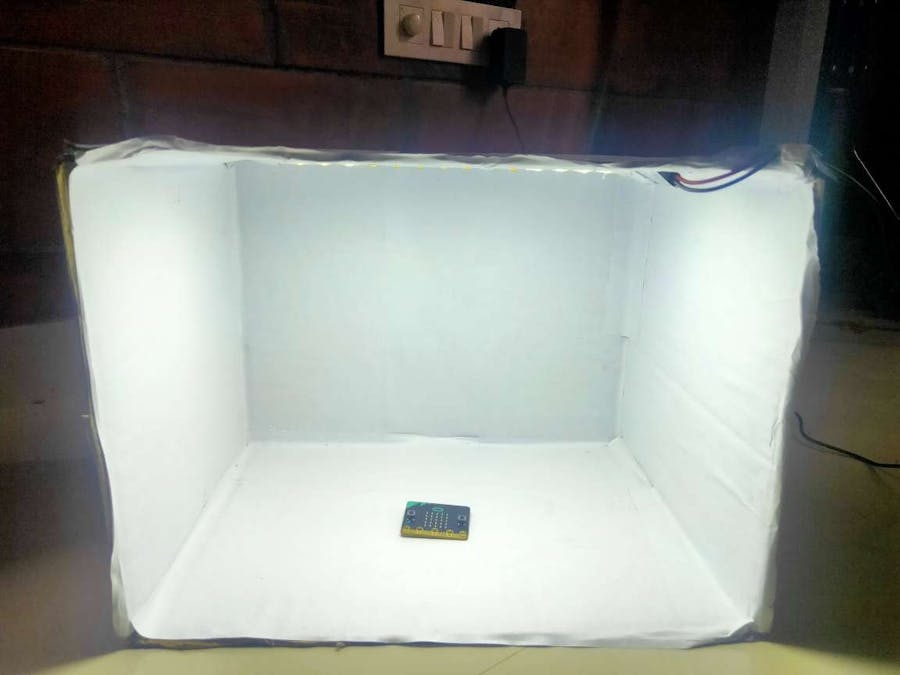

I created a box with proper lighting to capture images.

Click on data acquisition and select Raspberry pi camera and used it to data capturing.

Trained the model to distinguish between electronics components.
