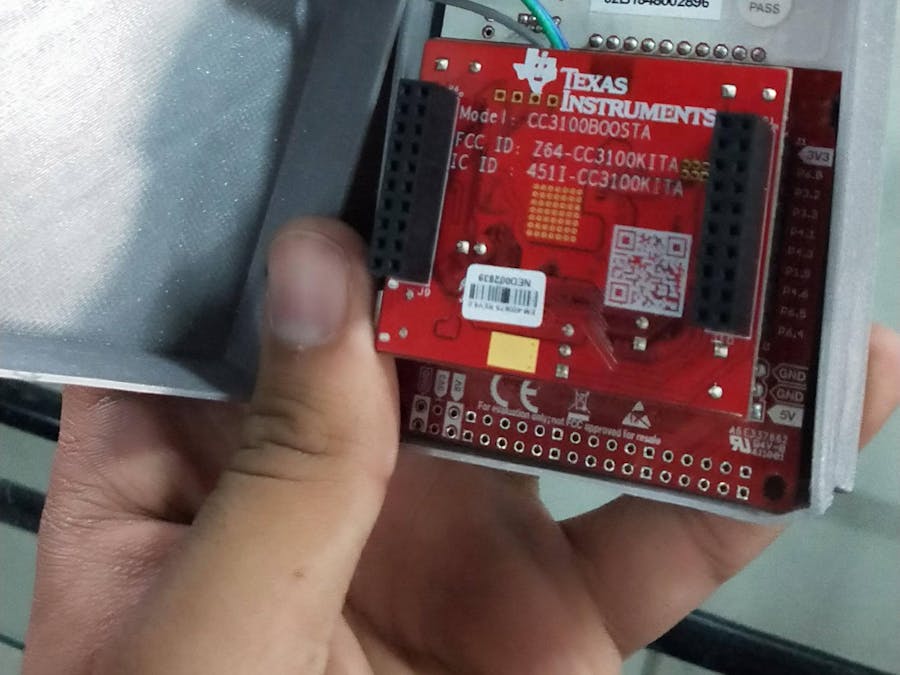

This gadget is designed to measure the air quality using MQ135 sensor. The o/p of MQ135 sensor is processed by MSP432 launchpad module. Launchpad module is interfaced with CC3100 wifi booster pack. Gadgets sends the data of Air Quality Index online on Ubidots server.
The live working can be seen in the video link:
https://www.facebook.com/MRIIRSUniversityFaridabad/videos/326200164913208/
Youtube video can be found below:
#ifndef __CC3200R1M1RGC__
// Do not include SPI for CC3200 LaunchPad
#include <SPI.h>
int sensorValue;
#endif
#include <WiFi.h>
char ssid[] = "R2P";
// your network password
char password[] = "8700217023";
char* TOKEN = "BBFF-pffKMwicvNd0O3ZSlt5CDai5pZ2m7C"; // Put here your TOKEN
char* DEVICE_LABEL = "aqim"; // Your Device label
/* Put here your variable's labels*/
char const * VARIABLE_LABEL_1 = "aqi";
/* HTTP Settings */
char const * HTTPSERVER = "industrial.api.ubidots.com";
const int HTTPPORT = 80;
char const * USER_AGENT = "Arduino_Ethernet";
char const * VERSION = "1.0";
WiFiClient clientUbi;
/********************************
* Auxiliar Functions
*******************************/
void SendToUbidots(String payload) {
int contentLength =payload.length();
/* Connecting the client */
clientUbi.connect(HTTPSERVER, HTTPPORT);
if (clientUbi.connected( )) {
/* Builds the request POST - Please reference this link to know all the request's structures https://ubidots.com/docs/api/ */
clientUbi.print(F("POST /api/v1.6/devices/"));
clientUbi.print(DEVICE_LABEL);
clientUbi.print(F(" HTTP/1.1\r\n"));
clientUbi.print(F("Host: "));
clientUbi.print(HTTPSERVER);
clientUbi.print(F("\r\n"));
clientUbi.print(F("User-Agent: "));
clientUbi.print(USER_AGENT);
clientUbi.print(F("/"));
clientUbi.print(VERSION);
clientUbi.print(F("\r\n"));
clientUbi.print(F("X-Auth-Token: "));
clientUbi.print(TOKEN);
clientUbi.print(F("\r\n"));
clientUbi.print(F("Connection: close\r\n"));
clientUbi.print(F("Content-Type: application/json\r\n"));
clientUbi.print(F("Content-Length: "));
clientUbi.print(contentLength);
clientUbi.print(F("\r\n\r\n"));
clientUbi.print(payload);
clientUbi.print(F("\r\n"));
Serial.println(F("Making request to Ubidots:\n"));
Serial.print("POST /api/v1.6/devices/");
Serial.print(DEVICE_LABEL);
Serial.print(" HTTP/1.1\r\n");
Serial.print("Host: ");
Serial.print(HTTPSERVER);
Serial.print("\r\n");
Serial.print("User-Agent: ");
Serial.print(USER_AGENT);
Serial.print("/");
Serial.print(VERSION);
Serial.print("\r\n");
Serial.print("X-Auth-Token: ");
Serial.print(TOKEN);
Serial.print("\r\n");
Serial.print("Connection: close\r\n");
Serial.print("Content-Type: application/json\r\n");
Serial.print("Content-Length: ");
Serial.print(contentLength);
Serial.print("\r\n\r\n");
Serial.print(payload);
Serial.print("\r\n");
} else {
Serial.println("Connection Failed ubidots - Try Again");
}
/* Reach timeout when the server is unavailable */
int timeout = 0;
while (!clientUbi.available() && timeout < 5000) {
timeout++;
delay(1);
if (timeout >= 5000) {
Serial.println(F("Error, max timeout reached"));
break;
}
}
/* Reads the response from the server */
Serial.println(F("\nUbidots' Server response:\n"));
while (clientUbi.available()) {
char c = clientUbi.read();
Serial.print(c); // Uncomment this line to visualize the response on the Serial Monitor
}
/* Disconnecting the client */
clientUbi.stop();
}
void setup() {
Serial.begin(9600);
//Initialize serial and wait for port to open:
Serial.begin(115200);
// attempt to connect to Wifi network:
Serial.print("Attempting to connect to Network named: ");
// print the network name (SSID);
Serial.println(ssid);
// Connect to WPA/WPA2 network. Change this line if using open or WEP network:
WiFi.begin(ssid, password);
while ( WiFi.status() != WL_CONNECTED) {
// print dots while we wait to connect
Serial.print(".");
delay(300);
}
Serial.println("\nYou're connected to the network");
Serial.println("Waiting for an ip address");
while (WiFi.localIP() == INADDR_NONE) {
// print dots while we wait for an ip addresss
Serial.print(".");
delay(300);
}
Serial.println("\nIP Address obtained");
printWifiStatus();
Serial.println("\nStarting connection to server...");
// if you get a connection, report back via serial:
}
void loop() {
sensorValue = analogRead(6); // read analog input pin 0
Serial.print("AirQua=");
Serial.print(sensorValue, DEC); // prints the value read
Serial.println(" PPM");
// if there are incoming bytes available
// from the server, read them and print them:
char payload[200];
char str_val_1[30];
/*---- Simulates the values of the sensors -----*/
// float sensor_value_1 = random(0, 1000)*1.0;
delay(100);
String s="";
s=s+"{\"aqi\":{\"value\":";
s=s+sensorValue;
s=s+"}}";
SendToUbidots(s);
delay(100);
}
void printWifiStatus() {
// print the SSID of the network you're attached to:
Serial.print("SSID: ");
Serial.println(WiFi.SSID());
// print your WiFi shield's IP address:
IPAddress ip = WiFi.localIP();
Serial.print("IP Address: ");
Serial.println(ip);
// print the received signal strength:
long rssi = WiFi.RSSI();
Serial.print("signal strength (RSSI):");
Serial.print(rssi);
Serial.println(" dBm");
}
