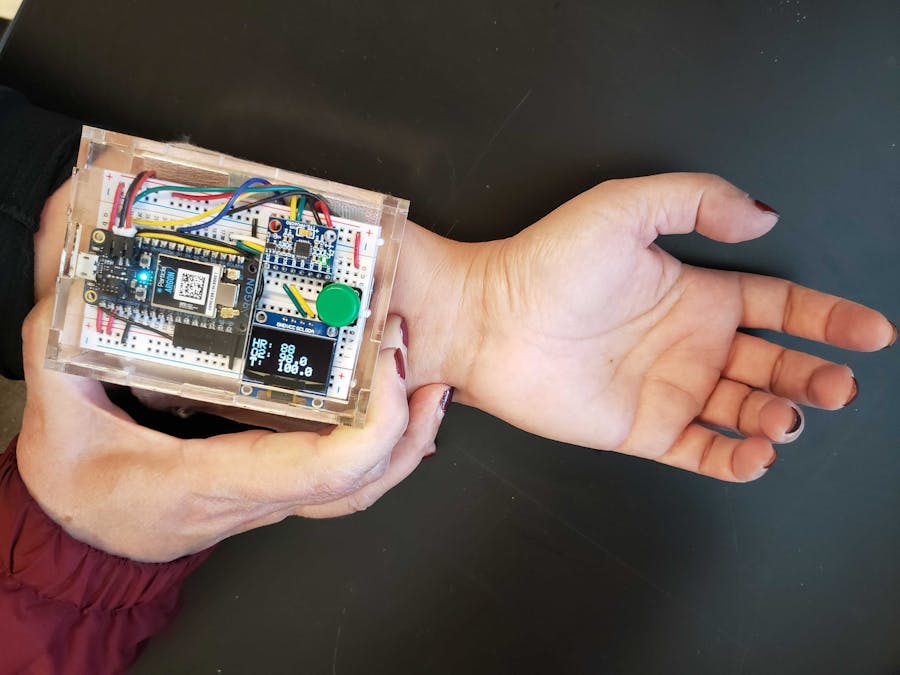

Health Alert Wristband

/*
 * Project: Internet of Things Cohort III Capstone
 * Description: HR/O2/TEMP with Alert Button and Fall Detection
 * Author: Constance and Janel
 * Date: 08-Dec-2020
 */


#include <Adafruit_MQTT.h>

#include "Adafruit_MQTT/Adafruit_MQTT.h"
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"

#include "credentials.h"

#include "algorithm_by_RF.h"
#include "max30102.h"
#include "MAX30105.h"                                     // MAX3010x library
#include <Adafruit_GFX.h>                                 // OLED Library
#include <Adafruit_SSD1306.h>                             // OLED Library
#include <Adafruit_BME280.h>


TCPClient TheClient;

Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);

//Sending data to Adafruit.io through MQTT
Adafruit_MQTT_Publish heartRate = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/HR");
Adafruit_MQTT_Publish oxygen = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/O2");
Adafruit_MQTT_Publish button = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/alertButton");
Adafruit_MQTT_Publish feedvarbodytemperature = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/BodyTemperature");
Adafruit_MQTT_Publish feedvarfalls = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/Fall Dectection");

#define OLED_RESET D4
Adafruit_SSD1306 display(OLED_RESET);
Adafruit_BME280 bme;

// Interrupt pin
const byte oxiInt = D8;                                   // pin connected to MAX30102 INT
MAX30105 particleSensor;

uint32_t aun_ir_buffer[BUFFER_SIZE];                      //infrared LED sensor data
uint32_t aun_red_buffer[BUFFER_SIZE];
uint32_t hr;                                              //red LED sensor data
float old_n_spo2, spo2;                                   // Previous SPO2 value
uint8_t uch_dummy,k;
bool isWristPlaced = false;

unsigned long lastDisplayTime;
unsigned long lastPublishTime;
unsigned long last;

double varBodyTempC;
float varBodyTempF;
int status;

const int MPU_ADDR = 0x68;

byte accel_x_h, accel_x_l; //X Data/var for individual bytes
int16_t accel_x; //X Data var to store the x-acceleration

byte accel_y_h, accel_y_l; //Y Data/var for individual bytes
int16_t accel_y; //Y Data/var to store the x-acceleration

byte accel_z_h, accel_z_l; //Z Data/var for individual bytes
int16_t accel_z; //Z Data/var to store the x-acceleration

float accelXG;
float accelYG;
float accelZG;
float accelTotal;

bool fallDetected = false;
float fallValue = 0.0;
const float fallThreshold = 1.5;

const int buttonPin = D2;


void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);              // Start the OLED display
  display.clearDisplay();
  display.display();
  display.setTextSize(2);
  display.setCursor(0,0);
  display.setTextColor(WHITE);
  display.println("Place on\nwrist and\nwait...");
  display.display();

  pinMode (buttonPin, INPUT_PULLDOWN);                    //pin D2 connects to the button
  pinMode(oxiInt, INPUT);                                 //pin D10 connects to the interrupt output pin of the MAX30102
  Wire.begin();

  particleSensor.begin(Wire, I2C_SPEED_FAST);             // Use default I2C port, 400kHz speed
  particleSensor.setup();

  Serial.begin(9600);
  maxim_max30102_reset();                                 //resets the MAX30102
  delay(1000);
  maxim_max30102_read_reg(REG_INTR_STATUS_1,&uch_dummy);  //Reads/clears the interrupt status register
  maxim_max30102_init();                                  //initialize the MAX30102
  old_n_spo2=0.0;

  //MPU6050 setup
  Wire.begin(); //begin I2C communication
  Wire.beginTransmission(MPU_ADDR); //begin transmission to MPU
  Wire.write(0x6B); //select and write to PWR_MGMT1 register
  Wire.write(0); //set to 0 (wakes up MPU)
  Wire.endTransmission(true); //end transmission and close connection

  status = bme.begin(0x76);
  if (status==false) {
    Serial.printf("Failed to open BME");
  }
//Additional Code if you wanted to incorporate Date and Time
  // sync_my_time();
}

//Continuously taking samples from MAX30102.  Heart rate and SpO2 are calculated every ST seconds
void loop() {
  getMPUData();
  getTemperature();
  processHRandSPO2();
  displayPrint();
  if(!isWristPlaced) {
    MQTT_connect();
    MQTT_ping();
  }
  publish();
  pushAlertButton();
  delay(100);
}

void processHRandSPO2(){
  long irValue = particleSensor.getIR();                  // Reading the IR value it will permit us to know if there's a finger on the sensor or not
  Serial.printf("irValue: %i\n", irValue);
  if (irValue > 50000){
    if(isWristPlaced == false) {
      isWristPlaced = true;
    }
    float n_spo2,ratio,correl;                            //SPO2 value
    int8_t ch_spo2_valid;                                 //indicator to show if the SPO2 calculation is valid
    int32_t n_heart_rate;                                 //heart rate value
    int8_t  ch_hr_valid;                                  //indicator to show if the heart rate calculation is valid
    int32_t i;

    //buffer length of BUFFER_SIZE stores ST seconds of samples running at FS sps
    //read BUFFER_SIZE samples, and determine the signal range
    for(i=0;i<BUFFER_SIZE;i++)
    {
      while(digitalRead(oxiInt)==1){                      //wait until the interrupt pin asserts
        //  yield();
      }
      // while (particleSensor.available() == false) {//do we have new data?
      //   particleSensor.check(); //Check the sensor for new data
      // }

      //IMPORTANT:
      //IR and LED are swapped here for MH-ET MAX30102. Check your vendor for MAX30102
      //and use this or the commented-out function call.
      maxim_max30102_read_fifo((aun_ir_buffer+i), (aun_red_buffer+i));
      // maxim_max30102_read_fifo((aun_red_buffer+i), (aun_ir_buffer+i));
    }

    //calculate heart rate and SpO2 after BUFFER_SIZE samples (ST seconds of samples) using Robert's method
    rf_heart_rate_and_oxygen_saturation(aun_ir_buffer, BUFFER_SIZE, aun_red_buffer, &n_spo2, &ch_spo2_valid, &n_heart_rate, &ch_hr_valid, &ratio, &correl);
    Serial.printf("n_spo2: %0.1f\n", n_spo2);
    Serial.printf("ch_spo2_valid: %i\n", ch_spo2_valid);
    Serial.printf("n_heart_rate: %i \n", n_heart_rate);
    Serial.printf("ch_hr_valid: %i\n", ch_hr_valid);

    hr = n_heart_rate;
    spo2 = n_spo2;
  }
  else {
    isWristPlaced = false;
    // Serial.println("No wrist detected");
  }
}

//Additional Code if you wanted to incorporate Date and Time
// void sync_my_time () {
//   Time.zone(-7);
//   Particle.syncTime();
//   waitUntil(Particle.syncTimeDone);
// }

void displayPrint () {
  //Additional Code if you wanted to incorporate Date and Time
  // String DateTime, DateOnly, TimeOnly, YearOnly;
  // char currentDate[11], currentTime[9], currentYear[5];

  // DateTime = Time.timeStr();

  // DateOnly = DateTime.substring(0,10);
  // DateOnly.toCharArray(currentDate,11);

  // YearOnly = DateTime.substring(20,24);
  // YearOnly.toCharArray(currentYear,5);

  // TimeOnly = DateTime.substring(11,19);
  // TimeOnly.toCharArray(currentTime,9);

  if (isWristPlaced == true) {
    if ((millis()-lastDisplayTime)>10000) {
      display.clearDisplay();
      display.display();

      display.setTextSize(2);
      display.setCursor(0,0);
      // display.setTextColor(BLACK, WHITE);
      // // Serial.printf("Display Date: %s %s \n", currentDate,currentYear);
      // display.printf("Date: %s %s", currentDate,currentYear);
      // // Serial.printf("Display Time: %s \n", currentTime);
      // display.printf("Time: %s\n", currentTime);

      if (hr>1 && spo2>1) {
        display.setTextColor(WHITE);
        // Serial.printf("Display Heart Rate: %i \n", hr);
        display.println();
        display.printf("HR: %i \n", hr);

        display.setTextColor(WHITE);
        // Serial.printf("Display Oxygen: %0.1f \n", spo2);
        display.printf("O2: %0.1f \n", spo2);

        display.setTextColor(WHITE);
        // Serial.printf("Display Temp: %0.1f  \n", varBodyTempF);
        display.printf("T:  %0.1f  \n", varBodyTempF);
      }
      else {
        display.setTextColor(WHITE);
        display.println();
        display.println("Measuring Vitals...");
      }

      display.display();
      lastDisplayTime = millis();
    }
  }
}

void publish () {
  if ((millis()-lastPublishTime)>10000) {
    if(mqtt.Update()) {
      if (hr>1 && spo2>1) {
        heartRate.publish(hr);
        Serial.printf("Publishing HR: %i \n", hr);

        oxygen.publish(spo2);
        Serial.printf("Publishing O2: %0.1f \n", spo2);
      }

      feedvarbodytemperature.publish(varBodyTempF);
      Serial.printf("Publishing Temp: %0.1f \n", varBodyTempF);

      if(fallDetected) {
        feedvarfalls.publish(fallValue);
        Serial.printf("Publishing Fall detected \n");
        fallDetected = false;
        fallValue = 0.0;
      }
    }
    lastPublishTime = millis();
  }
}

void pushAlertButton () {
  bool buttonState;
  static bool lastButton;

  buttonState = digitalRead(buttonPin);
  if(buttonState != lastButton) {
    if(buttonState == HIGH) {
      if(mqtt.Update()) {
        button.publish(buttonState);
        Serial.printf("Alert Button Pressed \n");
      }
    }
  lastButton = buttonState;
  }
}

void getMPUData(){
  Wire.beginTransmission(MPU_ADDR);
  Wire.write (0x3B);
  Wire.endTransmission(false);
  Wire.requestFrom(MPU_ADDR, 6, true);

  accel_x_h = Wire.read(); //x accel MSB
  accel_x_l = Wire.read(); //x accel LSB
  accel_x = accel_x_h << 8 | accel_x_l;
  accelXG=accel_x/17100.0;

  accel_y_h = Wire.read(); //y accel MSB
  accel_y_l = Wire.read(); //y accel LSB
  accel_y = accel_y_h << 8 | accel_y_l;
  accelYG=accel_y/16150.0;

  accel_z_h = Wire.read(); //z accel MSB
  accel_z_l = Wire.read(); //z accel LSB
  accel_z = accel_z_h << 8 | accel_z_l;
  accelZG=accel_z/15700.0;

  accelTotal = sqrt(pow(accelXG,2)+pow(accelYG,2)+pow(accelZG,2));
  Serial.printf("Accel Total Value: %0.3f \n", accelTotal);

  if(!fallDetected) {
    fallValue = accelTotal;
    fallDetected = (fallValue > fallThreshold);
  }
}

void getTemperature() {
  varBodyTempC = bme.readTemperature();
  varBodyTempF = map(varBodyTempC,27.8, 30.8, 97.0, 99.0);
}

void MQTT_connect() {
  int8_t ret;

  // Stop if already connected.
  if (mqtt.connected()) {
    return;
  }

  Serial.print("Connecting to MQTT... ");

  while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
       Serial.println(mqtt.connectErrorString(ret));
      //  Serial.println("Retrying MQTT connection in 5 seconds...");
       mqtt.disconnect();
       delay(5000);  // wait 5 seconds
  }
  Serial.println("MQTT Connected!");
}

void MQTT_ping() {
  if ((millis()-last)>120000) {
    Serial.printf("Pinging MQTT \n");
    if(! mqtt.ping()) {
      Serial.printf("Disconnecting \n");
      mqtt.disconnect();
    }
    last = millis();
  }
}
