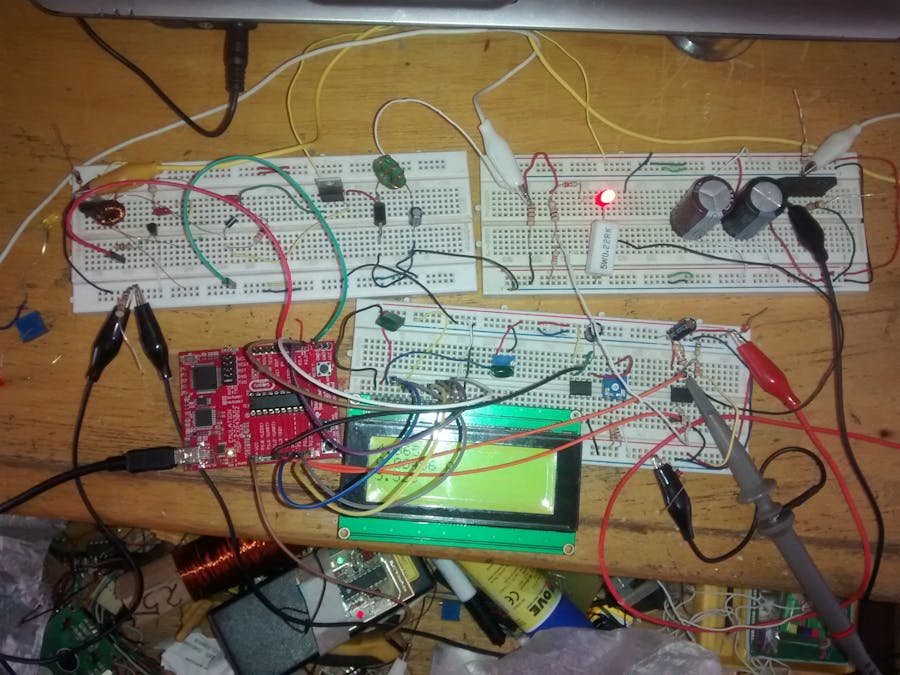

TI MSP430 DC Converter

TI MSP430™ :Buck Converter

PROJECT DESCRIPTION

• A buck converter is a voltage step down and current step up converter.The simplest way to reduce the voltage of a DC supply is to use a linear regulator (such as a 7805), but linear regulators waste energy as they operate by dissipating excess power as heat. Buck converters, on the other hand, can be remarkably efficient (95% or higher for integrated circuits), making them useful for tasks such as converting the main voltage in a computer (12 V in a desktop, 12-24 V in a laptop) down to the 0.8-1.8 volts needed by the processor.

Download Circuit and Schematic:

http://www.mediafire.com/download/88ood6r9wa4eff9/Booter_Potencia.rar

http://www.mediafire.com/download/5875mpgez556ha3/Booter_Control.rar
