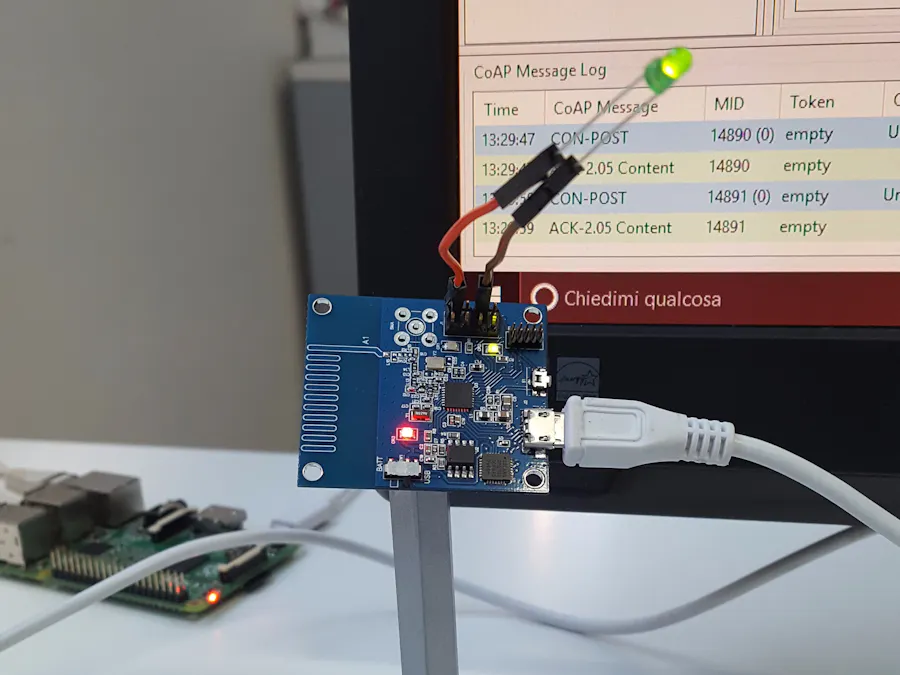

Digital Output Management with CoAP

The X.IP5 slip-radio manages the X.IP5-web-demo: turning LEDs on/off through CoAP.

BeginnerShowcase (no instructions)1 hour1,138

Things used in this project

Hardware components

Raspberry Pi 2 Model B

Texas Instruments SMARTRF06EBK Evaluation Board

LED (generic)

USB-A to Micro-USB Cable

Allied Electronics Flat cable

SD card 8GB min

MIKROE

OpenBuilds Wire Cable - By the Foot

Telecontrolli X.IP5 SmartMachine®

Software apps and online services

Texas Instruments Flash programmer2

Story

This project shows the interaction between the X.IP5 slip-radio device and the X.IP5 web demo device through CoAP. The first step is the installation of Contiki OS and 6lbr web server on Raspberry; you can follow this procedure on: https://github.com/Telecontrolli/6lbr-on-Telecontrolli-Devices-XIP.

Firmware

Generate the two firmware (X.IP5 slip-radio/X.IP5-web-demo) to be loaded on the X.IP5 devices. To execute this process, we need the SmartRF06EB with cables and Flash Programmer 2 software.

Completing this process, we can execute this simple project:

Connect the X.IP5 slip-radio device with the Raspberry.

Connect to X.IP5 web-demo device the output LED with the PIN that we find in the code board.h.

Connect the X.IP5 web-demo device with micro USB to power supply.

Open command prompt on Raspberry and type: “sudo service 6lbr start” and press Enter.

System running

If the procedure is correct the system works.

Open Mozilla Firefox browser on your PC.

In the search bar, type the gateway address "http://[bbbb::100]”

6lbr main screen will be open, go on the “sensors” item menu to read the sensor generated

Now you can operate with the sensor through the 6lbr

In the table, click on the word “coap”. In the screen just opened you can control the sensors through the network.

Please note, if the Coap doesn’t work, you must install Copper CU, the additional plugin for Mozilla and restart the browser. You can download Copper CU from this link: https://addons.mozilla.org/it/firefox/addon/copper-270430/

/*
 * Author: Telecontrolli srl
 * File: board.h V1.1
 * Description:  Defines related to the SmartRF06 Evaluation Board with a CC1310EM
 *
 * 	 	 This file provides connectivity information on LEDs, Buttons, UART and other peripherals
 *
 * 	         This file can be used as the basis to configure other boards using the
 *               CC13xx/CC26xx code as their basis.
 *
 *               This file is not meant to be modified by the user.
 * Header file with definitions related to the I/O connections on the TI
 * SmartRF06 Evaluation Board with a CC1310EM
 */
/*---------------------------------------------------------------------------*/
#ifndef BOARD_H_
#define BOARD_H_
/*---------------------------------------------------------------------------*/
#include "ioc.h"
/*---------------------------------------------------------------------------*/
/**
 * \name LED configurations
 *
 * Those values are not meant to be modified by the user
 * @{
 */
/* Some files include leds.h before us, so we need to get rid of defaults in
 * leds.h before we provide correct definitions */
#undef LEDS_GREEN
#undef LEDS_YELLOW
#undef LEDS_RED
#undef LEDS_CONF_ALL

#define LEDS_RED       1 /**< LED1 (Red)    */
#define LEDS_YELLOW    2 /**< LED2 (Yellow) */
#define LEDS_GREEN     4 /**< LED3 (Green)  */
#define LEDS_ORANGE    8 /**< LED4 (Orange) */
#define button	         /**< IOID_0 (Input)*/

#define LEDS_CONF_ALL 15

/* Notify various examples that we have LEDs */
#define PLATFORM_HAS_LEDS        1
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name LED IOID mappings
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_LED_1          IOID_13
#define BOARD_IOID_LED_2          IOID_12
#define BOARD_IOID_LED_3          IOID_14
#define BOARD_IOID_LED_4          IOID_UNUSED
#define BOARD_LED_1               (1 << BOARD_IOID_LED_1)
#define BOARD_LED_2               (1 << BOARD_IOID_LED_2)
#define BOARD_LED_3               (1 << BOARD_IOID_LED_3)
#define BOARD_LED_4               (1 << BOARD_IOID_LED_4)
#define BOARD_LED_ALL             (BOARD_LED_1 | BOARD_LED_2 | BOARD_LED_3 | \
                                   BOARD_LED_4)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name UART IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_UART_RX        IOID_8
#define BOARD_IOID_UART_TX        IOID_7
#define BOARD_IOID_UART_CTS       IOID_UNUSED
#define BOARD_IOID_UART_RTS       IOID_UNUSED
#define BOARD_UART_RX             (1 << BOARD_IOID_UART_RX)
#define BOARD_UART_TX             (1 << BOARD_IOID_UART_TX)
#define BOARD_UART_CTS            (1 << BOARD_IOID_UART_CTS)
#define BOARD_UART_RTS            (1 << BOARD_IOID_UART_RTS)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name Button IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_KEY_LEFT       IOID_UNUSED
#define BOARD_IOID_KEY_RIGHT      IOID_UNUSED
#define BOARD_IOID_KEY_UP         IOID_UNUSED
#define BOARD_IOID_KEY_DOWN       IOID_UNUSED
#define BOARD_IOID_KEY_SELECT     IOID_UNUSED
#define BOARD_KEY_LEFT            (1 << BOARD_IOID_KEY_LEFT)
#define BOARD_KEY_RIGHT           (1 << BOARD_IOID_KEY_RIGHT)
#define BOARD_KEY_UP              (1 << BOARD_IOID_KEY_UP)
#define BOARD_KEY_DOWN            (1 << BOARD_IOID_KEY_DOWN)
#define BOARD_KEY_SELECT          (1 << BOARD_IOID_KEY_SELECT)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name 3.3V domain IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_3V3_EN         IOID_UNUSED
#define BOARD_3V3_EN              (1 << BOARD_IOID_3V3_EN)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name SPI IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_SPI_SCK        IOID_4
#define BOARD_IOID_SPI_MOSI       IOID_3
#define BOARD_IOID_SPI_MISO       IOID_2
#define BOARD_SPI_SCK             (1 << BOARD_IOID_SPI_SCK)
#define BOARD_SPI_MOSI            (1 << BOARD_IOID_SPI_MOSI)
#define BOARD_SPI_MISO            (1 << BOARD_IOID_SPI_MISO)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name LCD IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_LCD_MODE       IOID_UNUSED
#define BOARD_IOID_LCD_RST        IOID_UNUSED
#define BOARD_IOID_LCD_CS         IOID_1
#define BOARD_IOID_LCD_SCK        BOARD_IOID_SPI_SCK
#define BOARD_IOID_LCD_MOSI       BOARD_IOID_SPI_MOSI
#define BOARD_LCD_MODE            (1 << BOARD_IOID_LCD_MODE)
#define BOARD_LCD_RST             (1 << BOARD_IOID_LCD_RST)
#define BOARD_LCD_CS              (1 << BOARD_IOID_LCD_CS)
#define BOARD_LCD_SCK             BOARD_SPI_SCK
#define BOARD_LCD_MOSI            BOARD_SPI_MOSI
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name SD Card IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_SDCARD_CS      IOID_UNUSED
#define BOARD_SDCARD_CS           (1 << BOARD_IOID_SDCARD_CS)
#define BOARD_IOID_SDCARD_SCK     BOARD_IOID_SPI_SCK
#define BOARD_SDCARD_SCK          BOARD_SPI_SCK
#define BOARD_IOID_SDCARD_MOSI    BOARD_IOID_SPI_MOSI
#define BOARD_SDCARD_MOSI         BOARD_SPI_MOSI
#define BOARD_IOID_SDCARD_MISO    BOARD_IOID_SPI_MISO
#define BOARD_SDCARD_MISO         BOARD_SPI_MISO
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name ALS IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_ALS_PWR        IOID_5
#define BOARD_IOID_ALS_OUT        IOID_6
#define BOARD_ALS_PWR             (1 << BOARD_IOID_ALS_PWR)
#define BOARD_ALS_OUT             (1 << BOARD_IOID_ALS_OUT)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name ACC IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_ACC_PWR        IOID_9
#define BOARD_IOID_ACC_INT        IOID_10
#define BOARD_IOID_ACC_INT1       IOID_11
#define BOARD_IOID_ACC_INT2       IOID_UNUSED
#define BOARD_IOID_ACC_CS         IOID_UNUSED
#define BOARD_ACC_PWR             (1 << BOARD_IOID_ACC_PWR)
#define BOARD_ACC_INT             (1 << BOARD_IOID_ACC_INT)
#define BOARD_ACC_INT1            (1 << BOARD_IOID_ACC_INT1)
#define BOARD_ACC_INT2            (1 << BOARD_IOID_ACC_INT2)
#define BOARD_ACC_CS              (1 << BOARD_IOID_ACC_CS)
#define BOARD_IOID_ACC_SCK        BOARD_IOID_SPI_SCK
#define BOARD_ACC_SCK             BOARD_SPI_SCK
#define BOARD_IOID_ACC_MOSI       BOARD_IOID_SPI_MOSI
#define BOARD_ACC_MOSI            BOARD_SPI_MOSI
#define BOARD_IOID_ACC_MISO       BOARD_IOID_SPI_MISO
#define BOARD_ACC_MISO            BOARD_SPI_MISO
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \brief ROM bootloader configuration
 *
 * Change SET_CCFG_BL_CONFIG_BL_PIN_NUMBER to BOARD_IOID_KEY_xyz to select
 * which button triggers the bootloader on reset.
 *
 * The remaining values are not meant to be modified by the user
 * @{
 */
#if ROM_BOOTLOADER_ENABLE
#define SET_CCFG_BL_CONFIG_BOOTLOADER_ENABLE            0xC5
#define SET_CCFG_BL_CONFIG_BL_LEVEL                     0x00
#define SET_CCFG_BL_CONFIG_BL_PIN_NUMBER                BOARD_IOID_KEY_SELECT
#define SET_CCFG_BL_CONFIG_BL_ENABLE                    0xC5
#else
#define SET_CCFG_BL_CONFIG_BOOTLOADER_ENABLE            0x00
#define SET_CCFG_BL_CONFIG_BL_LEVEL                     0x01
#define SET_CCFG_BL_CONFIG_BL_PIN_NUMBER                0xFF
#define SET_CCFG_BL_CONFIG_BL_ENABLE                    0xFF
#endif
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name Device string used on startup
 * @{
 */
#define BOARD_STRING "X.IP4T+EB or XIP5"
/** @} */
/*---------------------------------------------------------------------------*/
#endif /* BOARD_H_ */
/*---------------------------------------------------------------------------*/
/**
 * @}
 * @}
 */

/*
 * Author: Telecontrolli srl
 * File: board.h V1.1
 * Description:  Defines related to the SmartRF06 Evaluation Board with a CC1310EM
 *
 * 	 	 This file provides connectivity information on LEDs, Buttons, UART and other peripherals
 *
 * 	         This file can be used as the basis to configure other boards using the
 *               CC13xx/CC26xx code as their basis.
 *
 *               This file is not meant to be modified by the user.
 * Header file with definitions related to the I/O connections on the TI
 * SmartRF06 Evaluation Board with a CC1310EM
 */
/*---------------------------------------------------------------------------*/
#ifndef BOARD_H_
#define BOARD_H_
/*---------------------------------------------------------------------------*/
#include "ioc.h"
/*---------------------------------------------------------------------------*/
/**
 * \name LED configurations
 *
 * Those values are not meant to be modified by the user
 * @{
 */
/* Some files include leds.h before us, so we need to get rid of defaults in
 * leds.h before we provide correct definitions */
#undef LEDS_GREEN
#undef LEDS_YELLOW
#undef LEDS_RED
#undef LEDS_CONF_ALL

#define LEDS_RED       1 /**< LED1 (Red)    */
#define LEDS_YELLOW    2 /**< LED2 (Yellow) */
#define LEDS_GREEN     4 /**< LED3 (Green)  */
#define LEDS_ORANGE    8 /**< LED4 (Orange) */
#define button	         /**< IOID_0 (Input)*/

#define LEDS_CONF_ALL 15

/* Notify various examples that we have LEDs */
#define PLATFORM_HAS_LEDS        1
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name LED IOID mappings
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_LED_1          IOID_13
#define BOARD_IOID_LED_2          IOID_12
#define BOARD_IOID_LED_3          IOID_14
#define BOARD_IOID_LED_4          IOID_UNUSED
#define BOARD_LED_1               (1 << BOARD_IOID_LED_1)
#define BOARD_LED_2               (1 << BOARD_IOID_LED_2)
#define BOARD_LED_3               (1 << BOARD_IOID_LED_3)
#define BOARD_LED_4               (1 << BOARD_IOID_LED_4)
#define BOARD_LED_ALL             (BOARD_LED_1 | BOARD_LED_2 | BOARD_LED_3 | \
                                   BOARD_LED_4)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name UART IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_UART_RX        IOID_8
#define BOARD_IOID_UART_TX        IOID_7
#define BOARD_IOID_UART_CTS       IOID_UNUSED
#define BOARD_IOID_UART_RTS       IOID_UNUSED
#define BOARD_UART_RX             (1 << BOARD_IOID_UART_RX)
#define BOARD_UART_TX             (1 << BOARD_IOID_UART_TX)
#define BOARD_UART_CTS            (1 << BOARD_IOID_UART_CTS)
#define BOARD_UART_RTS            (1 << BOARD_IOID_UART_RTS)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name Button IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_KEY_LEFT       IOID_UNUSED
#define BOARD_IOID_KEY_RIGHT      IOID_UNUSED
#define BOARD_IOID_KEY_UP         IOID_UNUSED
#define BOARD_IOID_KEY_DOWN       IOID_UNUSED
#define BOARD_IOID_KEY_SELECT     IOID_UNUSED
#define BOARD_KEY_LEFT            (1 << BOARD_IOID_KEY_LEFT)
#define BOARD_KEY_RIGHT           (1 << BOARD_IOID_KEY_RIGHT)
#define BOARD_KEY_UP              (1 << BOARD_IOID_KEY_UP)
#define BOARD_KEY_DOWN            (1 << BOARD_IOID_KEY_DOWN)
#define BOARD_KEY_SELECT          (1 << BOARD_IOID_KEY_SELECT)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name 3.3V domain IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_3V3_EN         IOID_UNUSED
#define BOARD_3V3_EN              (1 << BOARD_IOID_3V3_EN)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name SPI IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_SPI_SCK        IOID_4
#define BOARD_IOID_SPI_MOSI       IOID_3
#define BOARD_IOID_SPI_MISO       IOID_2
#define BOARD_SPI_SCK             (1 << BOARD_IOID_SPI_SCK)
#define BOARD_SPI_MOSI            (1 << BOARD_IOID_SPI_MOSI)
#define BOARD_SPI_MISO            (1 << BOARD_IOID_SPI_MISO)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name LCD IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_LCD_MODE       IOID_UNUSED
#define BOARD_IOID_LCD_RST        IOID_UNUSED
#define BOARD_IOID_LCD_CS         IOID_1
#define BOARD_IOID_LCD_SCK        BOARD_IOID_SPI_SCK
#define BOARD_IOID_LCD_MOSI       BOARD_IOID_SPI_MOSI
#define BOARD_LCD_MODE            (1 << BOARD_IOID_LCD_MODE)
#define BOARD_LCD_RST             (1 << BOARD_IOID_LCD_RST)
#define BOARD_LCD_CS              (1 << BOARD_IOID_LCD_CS)
#define BOARD_LCD_SCK             BOARD_SPI_SCK
#define BOARD_LCD_MOSI            BOARD_SPI_MOSI
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name SD Card IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_SDCARD_CS      IOID_UNUSED
#define BOARD_SDCARD_CS           (1 << BOARD_IOID_SDCARD_CS)
#define BOARD_IOID_SDCARD_SCK     BOARD_IOID_SPI_SCK
#define BOARD_SDCARD_SCK          BOARD_SPI_SCK
#define BOARD_IOID_SDCARD_MOSI    BOARD_IOID_SPI_MOSI
#define BOARD_SDCARD_MOSI         BOARD_SPI_MOSI
#define BOARD_IOID_SDCARD_MISO    BOARD_IOID_SPI_MISO
#define BOARD_SDCARD_MISO         BOARD_SPI_MISO
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name ALS IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_ALS_PWR        IOID_5
#define BOARD_IOID_ALS_OUT        IOID_6
#define BOARD_ALS_PWR             (1 << BOARD_IOID_ALS_PWR)
#define BOARD_ALS_OUT             (1 << BOARD_IOID_ALS_OUT)
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name ACC IOID mapping
 *
 * Those values are not meant to be modified by the user
 * @{
 */
#define BOARD_IOID_ACC_PWR        IOID_9
#define BOARD_IOID_ACC_INT        IOID_10
#define BOARD_IOID_ACC_INT1       IOID_11
#define BOARD_IOID_ACC_INT2       IOID_UNUSED
#define BOARD_IOID_ACC_CS         IOID_UNUSED
#define BOARD_ACC_PWR             (1 << BOARD_IOID_ACC_PWR)
#define BOARD_ACC_INT             (1 << BOARD_IOID_ACC_INT)
#define BOARD_ACC_INT1            (1 << BOARD_IOID_ACC_INT1)
#define BOARD_ACC_INT2            (1 << BOARD_IOID_ACC_INT2)
#define BOARD_ACC_CS              (1 << BOARD_IOID_ACC_CS)
#define BOARD_IOID_ACC_SCK        BOARD_IOID_SPI_SCK
#define BOARD_ACC_SCK             BOARD_SPI_SCK
#define BOARD_IOID_ACC_MOSI       BOARD_IOID_SPI_MOSI
#define BOARD_ACC_MOSI            BOARD_SPI_MOSI
#define BOARD_IOID_ACC_MISO       BOARD_IOID_SPI_MISO
#define BOARD_ACC_MISO            BOARD_SPI_MISO
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \brief ROM bootloader configuration
 *
 * Change SET_CCFG_BL_CONFIG_BL_PIN_NUMBER to BOARD_IOID_KEY_xyz to select
 * which button triggers the bootloader on reset.
 *
 * The remaining values are not meant to be modified by the user
 * @{
 */
#if ROM_BOOTLOADER_ENABLE
#define SET_CCFG_BL_CONFIG_BOOTLOADER_ENABLE            0xC5
#define SET_CCFG_BL_CONFIG_BL_LEVEL                     0x00
#define SET_CCFG_BL_CONFIG_BL_PIN_NUMBER                BOARD_IOID_KEY_SELECT
#define SET_CCFG_BL_CONFIG_BL_ENABLE                    0xC5
#else
#define SET_CCFG_BL_CONFIG_BOOTLOADER_ENABLE            0x00
#define SET_CCFG_BL_CONFIG_BL_LEVEL                     0x01
#define SET_CCFG_BL_CONFIG_BL_PIN_NUMBER                0xFF
#define SET_CCFG_BL_CONFIG_BL_ENABLE                    0xFF
#endif
/** @} */
/*---------------------------------------------------------------------------*/
/**
 * \name Device string used on startup
 * @{
 */
#define BOARD_STRING "X.IP4T+EB or XIP5"
/** @} */
/*---------------------------------------------------------------------------*/
#endif /* BOARD_H_ */
/*---------------------------------------------------------------------------*/
/**
 * @}
 * @}
 */

Credits

MarCas Tech

13 projects • 12 followers

Hi guys, this is Hackster's profile. Here you will find the projects I have tested and developed. I work with TI device and Arduino Board.

Digital Output Management with CoAP
