The problem
Fruit loss to birds is a long-standing and costly problem for many producers. Crops that are most at risk include Blueberries, Cherries, Grapes, and Apples. The following types of damage are incurred by birds:
• Direct damage:
– Fruit feeding (all crops)
– Blossom feeding (plums)
– Trunk damage (apples)
• Indirect damage:
– Fruit rot infections following feeding injuries (blueberries, tree fruit, grapes)
– Planting of noxious weed species i.e.Poison Ivy, Asian Bittersweet by roosting birds (apples)
In order to deter birds from fields, growers use a combination of tactics such as:
– Physical barriers
• Netting of whole fields, individual rows or plants, fruiting zone
–Visual scare devices
• Scare-eye balloons, Mylar (flash) tape
• Predator balloons or kites (owls, coyotes, hawks)
• Windmills
– Audio scare devices
• Bird distress calls, propane cannons, guns
Of all the above methods Netting provides best protection, but is cumbersome and expensive
• A combination of other tactics provides some degree of protection
• Tactics should be in place before fruit begins to ripen. However, in order for more affordable methods to be effective an early detection/warning system must be in place so that deterrents are used when needed, otherwise birds become accustomed to them and ignore them.
Solution
The Thundercomm AI Kit can provide a real time onsite solution for early detection of approaching bird flocks by analyzing the feed from its camera, a USB camera, or a network of IP cameras. AI based pattern recognition solutions for bird detection in fields do not as yet exist as commercial products but are at the early stages of being offered as specialist services. The Thundercomm AI Kit can deliver eventually an off the self affordable solution.
In this project the Thundercomm AI Kit is used for data collection, storage and real-time data analysis. A camera, or an IP based camera network that provides the necessary coverage is connected to the Thundercomm and the feeds are analysed to detect approaching birds after appropriate training of the system. For a Proof of Concept images of various bird flocks will be used to train a Thundercomm AI Kit and if outdoors conditions permit it a live demo will also be recorded. Once a positive Identification is made the Thundercomm can also alert or actuate deterrent systems such as initiation of acoustic countermeasures.
The Process
TensorFlow will be used as the AI Framework to train a classifier for flocks of birds detection. Then the Snapdragon Neural Processing Engine SDK will allow the classifier to run on Qualcomm hardware (see following figure), and a Java application will provide the UI, the control of the camera(s), and the selection and playback of the deterrent sound from a list of available selections, i.e sounds of predators such as hawks, gunfire, even possibly annoying high pitch sounds.
Requirements - Steps
1. One must first create a Python - Tensorflow development environment in Linux or Windows as described in https://www.tensorflow.org/install/.
2, Create a working directory in which the files retrain.py and test.py should be copied.
This file is provided as an example at the TensorFlow GitHub and some minor changes have been made by Chris Dams for improved readability. The trick here is that instead of using the more complex process of object detection we will use the classification process. You can use any meaningful image set as distinctive from flocks and in this case I used clouds. So the end result is that images with flocks of birds are characterized as flocks as opposed to DON'T CARE!!!
3. Download the file Images.zip from here: https://www.dropbox.com/s/lh58hfy8lc1i72y/Images.zip?dl=0
and unzip it in your working directory where you have retrain.py and test.py. This will create two directories:
a.training_images and b. test_images and within training_images two subdirs with images are included flocks and clouds.
4. Execute (in Windows) python retrain.py from your working directory. Ignore the minor warnings about issues of few images. When finished the end lines should be like
.................
INFO:tensorflow:2018-12-10 22:56:38.778919: Step 499: Cross entropy = 0.002902
running testing . . .
INFO:tensorflow:2018-12-10 22:56:38.950519: Step 499: Validation accuracy = 89.0% (N=100)
writing trained graph and labbels with weights
INFO:tensorflow:Final test accuracy = 100.0% (N=1)
INFO:tensorflow:Froze 2 variables.
Converted 2 variables to const ops.
done !!
Process finished with exit code 0
5. Execute (in Windows) python test.py and you will see the following results:
A. starting program . . .
classifications = ['clouds', 'flocks']
---------------------------------------
the object appears to be a flock, 99.55% confidence
flock (0.99553)
cloud (0.00447)
https://www.dropbox.com/s/ak1mdqhf8yrw4na/flocka.jpg?dl=0
B. starting program . . .
classifications = ['clouds', 'flocks']
---------------------------------------
the object appears to be a flock, 99.07% confidence
flock (0.99071)
cloud (0.00929)
https://www.dropbox.com/s/elkzfz4mhb2d9bg/flockb.jpg?dl=0
C.starting program . . .
classifications = ['clouds', 'flocks']
---------------------------------------
the object appears to be a flock, 99.17% confidence
flock (0.99172)
cloud (0.00828)
https://www.dropbox.com/s/qel53semz4tinw9/flockc.jpg?dl=0
Thus you can see that despite the small training set, results appear pretty good.

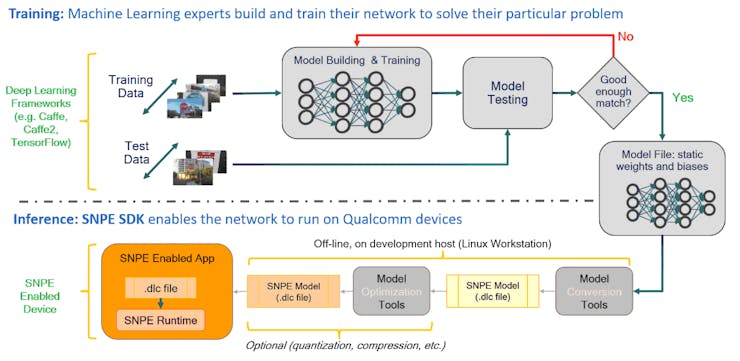

5. The final step is about using the Snapdragon Neural Processing Engine SDK to convert the TensorFlow model into an SNPE DLC file using the snpe-tensorflow-to-dlc tool as in
https://developer.qualcomm.com/docs/snpe/tools.html#tools_snpe-tensorflow-to-dlc
and then load and execute the model using SNPE runtime.
Note: I can not proceed for now at a Java test for the kit since it is currently stuck at customs with no indication of when it will be delivered (documents are required by THUNDERSOFT for customs to release the kit).
# test.py
import os
import tensorflow as tf
import numpy as np
import cv2
# module-level variables ##############################################################################################
RETRAINED_LABELS_TXT_FILE_LOC = os.getcwd() + "/" + "retrained_labels.txt"
RETRAINED_GRAPH_PB_FILE_LOC = os.getcwd() + "/" + "retrained_graph.pb"
TEST_IMAGES_DIR = os.getcwd() + "/test_images"
SCALAR_RED = (0.0, 0.0, 255.0)
SCALAR_BLUE = (255.0, 0.0, 0.0)
#######################################################################################################################
def main():
print("starting program . . .")
if not checkIfNecessaryPathsAndFilesExist():
return
# end if
# get a list of classifications from the labels file
classifications = []
# for each line in the label file . . .
for currentLine in tf.gfile.GFile(RETRAINED_LABELS_TXT_FILE_LOC):
# remove the carriage return
classification = currentLine.rstrip()
# and append to the list
classifications.append(classification)
# end for
# show the classifications to prove out that we were able to read the label file successfully
print("classifications = " + str(classifications))
# load the graph from file
with tf.gfile.FastGFile(RETRAINED_GRAPH_PB_FILE_LOC, 'rb') as retrainedGraphFile:
# instantiate a GraphDef object
graphDef = tf.GraphDef()
# read in retrained graph into the GraphDef object
graphDef.ParseFromString(retrainedGraphFile.read())
# import the graph into the current default Graph, note that we don't need to be concerned with the return value
_ = tf.import_graph_def(graphDef, name='')
# end with
# if the test image directory listed above is not valid, show an error message and bail
if not os.path.isdir(TEST_IMAGES_DIR):
print("the test image directory does not seem to be a valid directory, check file / directory paths")
return
# end if
with tf.Session() as sess:
# for each file in the test images directory . . .
for fileName in os.listdir(TEST_IMAGES_DIR):
# if the file does not end in .jpg or .jpeg (case-insensitive), continue with the next iteration of the for loop
if not (fileName.lower().endswith(".jpg") or fileName.lower().endswith(".jpeg")):
continue
# end if
# show the file name on std out
print(fileName)
# get the file name and full path of the current image file
imageFileWithPath = os.path.join(TEST_IMAGES_DIR, fileName)
# attempt to open the image with OpenCV
openCVImage = cv2.imread(imageFileWithPath)
# if we were not able to successfully open the image, continue with the next iteration of the for loop
if openCVImage is None:
print("unable to open " + fileName + " as an OpenCV image")
continue
# end if
# get the final tensor from the graph
finalTensor = sess.graph.get_tensor_by_name('final_result:0')
# convert the OpenCV image (numpy array) to a TensorFlow image
tfImage = np.array(openCVImage)[:, :, 0:3]
# run the network to get the predictions
predictions = sess.run(finalTensor, {'DecodeJpeg:0': tfImage})
# sort predictions from most confidence to least confidence
sortedPredictions = predictions[0].argsort()[-len(predictions[0]):][::-1]
print("---------------------------------------")
# keep track of if we're going through the next for loop for the first time so we can show more info about
# the first prediction, which is the most likely prediction (they were sorted descending above)
onMostLikelyPrediction = True
# for each prediction . . .
for prediction in sortedPredictions:
strClassification = classifications[prediction]
# if the classification (obtained from the directory name) ends with the letter "s", remove the "s" to change from plural to singular
if strClassification.endswith("s"):
strClassification = strClassification[:-1]
# end if
# get confidence, then get confidence rounded to 2 places after the decimal
confidence = predictions[0][prediction]
# if we're on the first (most likely) prediction, state what the object appears to be and show a % confidence to two decimal places
if onMostLikelyPrediction:
# get the score as a %
scoreAsAPercent = confidence * 100.0
# show the result to std out
print("the object appears to be a " + strClassification + ", " + "{0:.2f}".format(scoreAsAPercent) + "% confidence")
# write the result on the image
writeResultOnImage(openCVImage, strClassification + ", " + "{0:.2f}".format(scoreAsAPercent) + "% confidence")
# finally we can show the OpenCV image
cv2.imshow(fileName, openCVImage)
# mark that we've show the most likely prediction at this point so the additional information in
# this if statement does not show again for this image
onMostLikelyPrediction = False
# end if
# for any prediction, show the confidence as a ratio to five decimal places
print(strClassification + " (" + "{0:.5f}".format(confidence) + ")")
# end for
# pause until a key is pressed so the user can see the current image (shown above) and the prediction info
cv2.waitKey()
# after a key is pressed, close the current window to prep for the next time around
cv2.destroyAllWindows()
# end for
# end with
# write the graph to file so we can view with TensorBoard
tfFileWriter = tf.summary.FileWriter(os.getcwd())
tfFileWriter.add_graph(sess.graph)
tfFileWriter.close()
# end main
#######################################################################################################################
def checkIfNecessaryPathsAndFilesExist():
if not os.path.exists(TEST_IMAGES_DIR):
print('')
print('ERROR: TEST_IMAGES_DIR "' + TEST_IMAGES_DIR + '" does not seem to exist')
print('Did you set up the test images?')
print('')
return False
# end if
if not os.path.exists(RETRAINED_LABELS_TXT_FILE_LOC):
print('ERROR: RETRAINED_LABELS_TXT_FILE_LOC "' + RETRAINED_LABELS_TXT_FILE_LOC + '" does not seem to exist')
return False
# end if
if not os.path.exists(RETRAINED_GRAPH_PB_FILE_LOC):
print('ERROR: RETRAINED_GRAPH_PB_FILE_LOC "' + RETRAINED_GRAPH_PB_FILE_LOC + '" does not seem to exist')
return False
# end if
return True
# end function
#######################################################################################################################
def writeResultOnImage(openCVImage, resultText):
# ToDo: this function may take some further fine-tuning to show the text well given any possible image size
imageHeight, imageWidth, sceneNumChannels = openCVImage.shape
# choose a font
fontFace = cv2.FONT_HERSHEY_TRIPLEX
# chose the font size and thickness as a fraction of the image size
fontScale = 1.0
fontThickness = 2
# make sure font thickness is an integer, if not, the OpenCV functions that use this may crash
fontThickness = int(fontThickness)
upperLeftTextOriginX = int(imageWidth * 0.05)
upperLeftTextOriginY = int(imageHeight * 0.05)
textSize, baseline = cv2.getTextSize(resultText, fontFace, fontScale, fontThickness)
textSizeWidth, textSizeHeight = textSize
# calculate the lower left origin of the text area based on the text area center, width, and height
lowerLeftTextOriginX = upperLeftTextOriginX
lowerLeftTextOriginY = upperLeftTextOriginY + textSizeHeight
# write the text on the image
cv2.putText(openCVImage, resultText, (lowerLeftTextOriginX, lowerLeftTextOriginY), fontFace, fontScale, SCALAR_BLUE, fontThickness)
# end function
#######################################################################################################################
if __name__ == "__main__":
main()
# retrain.py
#
# original file by Google:
# https://github.com/tensorflow/tensorflow/blob/master/tensorflow/examples/image_retraining/retrain.py
"""
Transfer learning with Inception v3 or Mobilenet models.
This example shows how to take a Inception v3 or Mobilenet model trained on ImageNet images,
and train a new top layer that can recognize other classes of images.
The top layer receives as input a 2048-dimensional vector (1001-dimensional for Mobilenet) for each image. We train a
softmax layer on top of this representation. Assuming the softmax layer contains N labels, this corresponds to
learning N + 2048*N (or 1001*N) model parameters corresponding to the learned biases and weights.
You can replace the image_dir argument with any folder containing subfolders of images. The label for each image is
taken from the name of the subfolder it's in.
This produces a new model file that can be loaded and run by any TensorFlow program, for example the label_image sample code.
To use with TensorBoard:
tensorboard --logdir /path/to/tensorboard_logs
"""
from datetime import datetime
import hashlib
import os
import os.path
import random
import re
import sys
import tarfile
import numpy as np
from six.moves import urllib
import tensorflow as tf
from tensorflow.contrib.quantize.python import quant_ops
from tensorflow.python.framework import graph_util
from tensorflow.python.framework import tensor_shape
from tensorflow.python.platform import gfile
from tensorflow.python.util import compat
# module level variables ##############################################################################################
MIN_NUM_IMAGES_REQUIRED_FOR_TRAINING = 10
MIN_NUM_IMAGES_SUGGESTED_FOR_TRAINING = 100
MIN_NUM_IMAGES_REQUIRED_FOR_TESTING = 3
MAX_NUM_IMAGES_PER_CLASS = 2 ** 27 - 1 # ~134M
# path to folders of labeled images
TRAINING_IMAGES_DIR = os.getcwd() + '/training_images'
TEST_IMAGES_DIR = os.getcwd() + "/test_images/"
# where to save the trained graph
OUTPUT_GRAPH = os.getcwd() + '/' + 'retrained_graph.pb'
# where to save the intermediate graphs
INTERMEDIATE_OUTPUT_GRAPHS_DIR = os.getcwd() + '/intermediate_graph'
# how many steps to store intermediate graph, if "0" then will not store
INTERMEDIATE_STORE_FREQUENCY = 0
# where to save the trained graph's labels
OUTPUT_LABELS = os.getcwd() + '/' + 'retrained_labels.txt'
# where to save summary logs for TensorBoard
TENSORBOARD_DIR = os.getcwd() + '/' + 'tensorboard_logs'
# how many training steps to run before ending
# NOTE: original Google default is 4000, use 4000 (or possibly higher) for production grade results
HOW_MANY_TRAINING_STEPS=500
# how large a learning rate to use when training
LEARNING_RATE = 0.01
# what percentage of images to use as a test set
TESTING_PERCENTAGE = 10
# what percentage of images to use as a validation set
VALIDATION_PERCENTAGE = 10
# how often to evaluate the training results
EVAL_STEP_INTERVAL = 10
# how many images to train on at a time
TRAIN_BATCH_SIZE = 100
# How many images to test on. This test set is only used once, to evaluate the final accuracy of the model after
# training completes. A value of -1 causes the entire test set to be used, which leads to more stable results across runs.
TEST_BATCH_SIZE = -1
# How many images to use in an evaluation batch. This validation set is used much more often than the test set, and is an early indicator of how
# accurate the model is during training. A value of -1 causes the entire validation set to be used, which leads to
# more stable results across training iterations, but may be slower on large training sets.
VALIDATION_BATCH_SIZE = 100
# whether to print out a list of all misclassified test images
PRINT_MISCLASSIFIED_TEST_IMAGES = False
# Path to classify_image_graph_def.pb, imagenet_synset_to_human_label_map.txt, and imagenet_2012_challenge_label_map_proto.pbtxt
MODEL_DIR = os.getcwd() + "/" + "model"
# Path to cache bottleneck layer values as files
BOTTLENECK_DIR = os.getcwd() + '/' + 'bottleneck_data'
# the name of the output classification layer in the retrained graph
FINAL_TENSOR_NAME = 'final_result'
# whether to randomly flip half of the training images horizontally
FLIP_LEFT_RIGHT = False
# a percentage determining how much of a margin to randomly crop off the training images
RANDOM_CROP = 0
# a percentage determining how much to randomly scale up the size of the training images by
RANDOM_SCALE = 0
# a percentage determining how much to randomly multiply the training image input pixels up or down by
RANDOM_BRIGHTNESS = 0
# Which model architecture to use. 'inception_v3' is the most accurate, but also the slowest. For faster or smaller models, chose a MobileNet with
# the form 'mobilenet_<parameter size>_<input_size>[_quantized]'. For example, 'mobilenet_1.0_224' will pick a model that is 17 MB in size and takes
# 224 pixel input images, while 'mobilenet_0.25_128_quantized' will choose a much less accurate, but smaller and faster network that's 920 KB
# on disk and takes 128x128 images. See https://research.googleblog.com/2017/06/mobilenets-open-source-models-for.html for more information on Mobilenet.
# By default this script will use the high accuracy, but comparatively large and slow Inception v3 model architecture.
# It's recommended that you start with this to validate that you have gathered good training data, but if you want to deploy
# on resource-limited platforms, you can try the `--architecture` flag with a Mobilenet model. For example:
# example command to run floating-point version of mobilenet:
# ARCHITECTURE = 'mobilenet_1.0_224'
# example command to run quantized version of mobilenet:
# ARCHITECTURE = 'mobilenet_1.0_224_quantized'
# There are 32 different Mobilenet models to choose from, with a variety of file size and latency options. The first
# number can be '1.0', '0.75', '0.50', or '0.25' to control the size, and the second controls the input image size,
# either '224', '192', '160', or '128', with smaller sizes running faster.
# See https://research.googleblog.com/2017/06/mobilenets-open-source-models-for.html for more information on Mobilenet.
ARCHITECTURE = 'inception_v3'
#######################################################################################################################
def main():
print("starting program . . .")
# make sure the logging output is visible, see https://github.com/tensorflow/tensorflow/issues/3047
tf.logging.set_verbosity(tf.logging.INFO)
if not checkIfNecessaryPathsAndFilesExist():
return
# end if
# prepare necessary directories that can be used during training
prepare_file_system()
# Gather information about the model architecture we'll be using.
model_info = create_model_info(ARCHITECTURE)
if not model_info:
tf.logging.error('Did not recognize architecture flag')
return -1
# end if
# download the model if necessary, then create the model graph
print("downloading model (if necessary) . . .")
downloadModelIfNotAlreadyPresent(model_info['data_url'])
print("creating model graph . . .")
graph, bottleneck_tensor, resized_image_tensor = (create_model_graph(model_info))
# Look at the folder structure, and create lists of all the images.
print("creating image lists . . .")
image_lists = create_image_lists(TRAINING_IMAGES_DIR, TESTING_PERCENTAGE, VALIDATION_PERCENTAGE)
class_count = len(image_lists.keys())
if class_count == 0:
tf.logging.error('No valid folders of images found at ' + TRAINING_IMAGES_DIR)
return -1
# end if
if class_count == 1:
tf.logging.error('Only one valid folder of images found at ' + TRAINING_IMAGES_DIR + ' - multiple classes are needed for classification.')
return -1
# end if
# determinf if any of the distortion command line flags have been set
doDistortImages = False
if (FLIP_LEFT_RIGHT == True or RANDOM_CROP != 0 or RANDOM_SCALE != 0 or RANDOM_BRIGHTNESS != 0):
doDistortImages = True
# end if
print("starting session . . .")
with tf.Session(graph=graph) as sess:
# Set up the image decoding sub-graph.
print("performing jpeg decoding . . .")
jpeg_data_tensor, decoded_image_tensor = add_jpeg_decoding( model_info['input_width'],
model_info['input_height'],
model_info['input_depth'],
model_info['input_mean'],
model_info['input_std'])
print("caching bottlenecks . . .")
distorted_jpeg_data_tensor = None
distorted_image_tensor = None
if doDistortImages:
# We will be applying distortions, so setup the operations we'll need.
(distorted_jpeg_data_tensor, distorted_image_tensor) = add_input_distortions(FLIP_LEFT_RIGHT, RANDOM_CROP, RANDOM_SCALE,
RANDOM_BRIGHTNESS, model_info['input_width'],
model_info['input_height'], model_info['input_depth'],
model_info['input_mean'], model_info['input_std'])
else:
# We'll make sure we've calculated the 'bottleneck' image summaries and
# cached them on disk.
cache_bottlenecks(sess, image_lists, TRAINING_IMAGES_DIR, BOTTLENECK_DIR, jpeg_data_tensor, decoded_image_tensor,
resized_image_tensor, bottleneck_tensor, ARCHITECTURE)
# end if
# Add the new layer that we'll be training.
print("adding final training layer . . .")
(train_step, cross_entropy, bottleneck_input, ground_truth_input, final_tensor) = add_final_training_ops(len(image_lists.keys()),
FINAL_TENSOR_NAME,
bottleneck_tensor,
model_info['bottleneck_tensor_size'],
model_info['quantize_layer'])
# Create the operations we need to evaluate the accuracy of our new layer.
print("adding eval ops for final training layer . . .")
evaluation_step, prediction = add_evaluation_step(final_tensor, ground_truth_input)
# Merge all the summaries and write them out to the tensorboard_dir
print("writing TensorBoard info . . .")
merged = tf.summary.merge_all()
train_writer = tf.summary.FileWriter(TENSORBOARD_DIR + '/train', sess.graph)
validation_writer = tf.summary.FileWriter(TENSORBOARD_DIR + '/validation')
# Set up all our weights to their initial default values.
init = tf.global_variables_initializer()
sess.run(init)
# Run the training for as many cycles as requested on the command line.
print("performing training . . .")
for i in range(HOW_MANY_TRAINING_STEPS):
# Get a batch of input bottleneck values, either calculated fresh every
# time with distortions applied, or from the cache stored on disk.
if doDistortImages:
(train_bottlenecks, train_ground_truth) = get_random_distorted_bottlenecks(sess, image_lists, TRAIN_BATCH_SIZE, 'training',
TRAINING_IMAGES_DIR, distorted_jpeg_data_tensor,
distorted_image_tensor, resized_image_tensor, bottleneck_tensor)
else:
(train_bottlenecks, train_ground_truth, _) = get_random_cached_bottlenecks(sess, image_lists, TRAIN_BATCH_SIZE, 'training',
BOTTLENECK_DIR, TRAINING_IMAGES_DIR, jpeg_data_tensor,
decoded_image_tensor, resized_image_tensor, bottleneck_tensor,
ARCHITECTURE)
# end if
# Feed the bottlenecks and ground truth into the graph, and run a training
# step. Capture training summaries for TensorBoard with the `merged` op.
train_summary, _ = sess.run([merged, train_step], feed_dict={bottleneck_input: train_bottlenecks, ground_truth_input: train_ground_truth})
train_writer.add_summary(train_summary, i)
# Every so often, print out how well the graph is training.
is_last_step = (i + 1 == HOW_MANY_TRAINING_STEPS)
if (i % EVAL_STEP_INTERVAL) == 0 or is_last_step:
train_accuracy, cross_entropy_value = sess.run([evaluation_step, cross_entropy], feed_dict={bottleneck_input: train_bottlenecks, ground_truth_input: train_ground_truth})
tf.logging.info('%s: Step %d: Train accuracy = %.1f%%' % (datetime.now(), i, train_accuracy * 100))
tf.logging.info('%s: Step %d: Cross entropy = %f' % (datetime.now(), i, cross_entropy_value))
validation_bottlenecks, validation_ground_truth, _ = (get_random_cached_bottlenecks(sess, image_lists, VALIDATION_BATCH_SIZE, 'validation',
BOTTLENECK_DIR, TRAINING_IMAGES_DIR, jpeg_data_tensor,
decoded_image_tensor, resized_image_tensor, bottleneck_tensor,
ARCHITECTURE))
# Run a validation step and capture training summaries for TensorBoard with the `merged` op.
validation_summary, validation_accuracy = sess.run(
[merged, evaluation_step], feed_dict={bottleneck_input: validation_bottlenecks, ground_truth_input: validation_ground_truth})
validation_writer.add_summary(validation_summary, i)
tf.logging.info('%s: Step %d: Validation accuracy = %.1f%% (N=%d)' % (datetime.now(), i, validation_accuracy * 100, len(validation_bottlenecks)))
# end if
# Store intermediate results
intermediate_frequency = INTERMEDIATE_STORE_FREQUENCY
if (intermediate_frequency > 0 and (i % intermediate_frequency == 0) and i > 0):
intermediate_file_name = (INTERMEDIATE_OUTPUT_GRAPHS_DIR + 'intermediate_' + str(i) + '.pb')
tf.logging.info('Save intermediate result to : ' + intermediate_file_name)
save_graph_to_file(sess, graph, intermediate_file_name)
# end if
# end for
# We've completed all our training, so run a final test evaluation on some new images we haven't used before
print("running testing . . .")
test_bottlenecks, test_ground_truth, test_filenames = (get_random_cached_bottlenecks(sess, image_lists, TEST_BATCH_SIZE, 'testing', BOTTLENECK_DIR,
TRAINING_IMAGES_DIR, jpeg_data_tensor, decoded_image_tensor, resized_image_tensor,
bottleneck_tensor, ARCHITECTURE))
test_accuracy, predictions = sess.run([evaluation_step, prediction], feed_dict={bottleneck_input: test_bottlenecks, ground_truth_input: test_ground_truth})
tf.logging.info('Final test accuracy = %.1f%% (N=%d)' % (test_accuracy * 100, len(test_bottlenecks)))
if PRINT_MISCLASSIFIED_TEST_IMAGES:
tf.logging.info('=== MISCLASSIFIED TEST IMAGES ===')
for i, test_filename in enumerate(test_filenames):
if predictions[i] != test_ground_truth[i]:
tf.logging.info('%70s %s' % (test_filename, list(image_lists.keys())[predictions[i]]))
# end if
# end for
# end if
# write out the trained graph and labels with the weights stored as constants
print("writing trained graph and labbels with weights")
save_graph_to_file(sess, graph, OUTPUT_GRAPH)
with gfile.FastGFile(OUTPUT_LABELS, 'w') as f:
f.write('\n'.join(image_lists.keys()) + '\n')
# end with
print("done !!")
# end function
#######################################################################################################################
def checkIfNecessaryPathsAndFilesExist():
# if the training directory does not exist, show and error message and bail
if not os.path.exists(TRAINING_IMAGES_DIR):
print('')
print('ERROR: TRAINING_IMAGES_DIR "' + TRAINING_IMAGES_DIR + '" does not seem to exist')
print('Did you set up the training images?')
print('')
return False
# end if
# nested class
class TrainingSubDir:
# constructor
def __init__(self):
self.loc = ""
self.numImages = 0
# end constructor
# end class
# declare a list of training sub-directories
trainingSubDirs = []
# populate the training sub-directories
for dirName in os.listdir(TRAINING_IMAGES_DIR):
currentTrainingImagesSubDir = os.path.join(TRAINING_IMAGES_DIR, dirName)
if os.path.isdir(currentTrainingImagesSubDir):
trainingSubDir = TrainingSubDir()
trainingSubDir.loc = currentTrainingImagesSubDir
trainingSubDirs.append(trainingSubDir)
# end if
# end for
# if no training sub-directories were found, show an error message and return false
if len(trainingSubDirs) == 0:
print("ERROR: there don't seem to be any training image sub-directories in " + TRAINING_IMAGES_DIR)
print("Did you make a separare image sub-directory for each classification type?")
return False
# end if
# populate the number of training images in each training sub-directory
for trainingSubDir in trainingSubDirs:
# count how many images are in the current training sub-directory
for fileName in os.listdir(trainingSubDir.loc):
if fileName.endswith(".jpg"):
trainingSubDir.numImages += 1
# end if
# end if
# end for
# if any training sub-directory has less than the min required number of training images, show an error message and return false
for trainingSubDir in trainingSubDirs:
if trainingSubDir.numImages < MIN_NUM_IMAGES_REQUIRED_FOR_TRAINING:
print("ERROR: there are less than the required " + str(MIN_NUM_IMAGES_REQUIRED_FOR_TRAINING) + " images in " + trainingSubDir.loc)
print("Did you populate each training sub-directory with images?")
return False
# end if
# end for
# if any training sub-directory has less than the recommended number of training images, show a warning (but don't return false)
for trainingSubDir in trainingSubDirs:
if trainingSubDir.numImages < MIN_NUM_IMAGES_SUGGESTED_FOR_TRAINING:
print("WARNING: there are less than the suggested " + str(MIN_NUM_IMAGES_SUGGESTED_FOR_TRAINING) + " images in " + trainingSubDir.loc)
print("More images should be added to this directory for acceptable training results")
# note we do not return false here b/c this is a warning, not an error
# end if
# end for
# if the test images directory does not exist, show and error message and bail
if not os.path.exists(TEST_IMAGES_DIR):
print('')
print('ERROR: TEST_IMAGES_DIR "' + TEST_IMAGES_DIR + '" does not seem to exist')
print('Did you break out some test images?')
print('')
return False
# end if
# count how many images are in the test images directory
numImagesInTestDir = 0
for fileName in os.listdir(TEST_IMAGES_DIR):
if fileName.endswith(".jpg"):
numImagesInTestDir += 1
# end if
# end for
# if there are not enough images in the test images directory, show an error and return false
if numImagesInTestDir < MIN_NUM_IMAGES_REQUIRED_FOR_TESTING:
print("ERROR: there are not at least " + str(MIN_NUM_IMAGES_REQUIRED_FOR_TESTING) + " images in " + TEST_IMAGES_DIR)
print("Did you break out some test images?")
return False
# end if
return True
# end function
#######################################################################################################################
def prepare_file_system():
# Setup the directory we'll write summaries to for TensorBoard
if tf.gfile.Exists(TENSORBOARD_DIR):
tf.gfile.DeleteRecursively(TENSORBOARD_DIR)
# end if
tf.gfile.MakeDirs(TENSORBOARD_DIR)
if INTERMEDIATE_STORE_FREQUENCY > 0:
makeDirIfDoesNotExist(INTERMEDIATE_OUTPUT_GRAPHS_DIR)
# end if
return
# end function
#######################################################################################################################
def makeDirIfDoesNotExist(dir_name):
"""
Makes sure the folder exists on disk.
Args:
dir_name: Path string to the folder we want to create.
"""
if not os.path.exists(dir_name):
os.makedirs(dir_name)
# end if
# end function
#######################################################################################################################
def create_model_info(architecture):
"""
Given the name of a model architecture, returns information about it.
There are different base image recognition pretrained models that can be
retrained using transfer learning, and this function translates from the name
of a model to the attributes that are needed to download and train with it.
Args:
architecture: Name of a model architecture.
Returns:
Dictionary of information about the model, or None if the name isn't recognized
Raises:
ValueError: If architecture name is unknown.
"""
architecture = architecture.lower()
is_quantized = False
if architecture == 'inception_v3':
# pylint: disable=line-too-long
data_url = 'http://download.tensorflow.org/models/image/imagenet/inception-2015-12-05.tgz'
# pylint: enable=line-too-long
bottleneck_tensor_name = 'pool_3/_reshape:0'
bottleneck_tensor_size = 2048
input_width = 299
input_height = 299
input_depth = 3
resized_input_tensor_name = 'Mul:0'
model_file_name = 'classify_image_graph_def.pb'
input_mean = 128
input_std = 128
elif architecture.startswith('mobilenet_'):
parts = architecture.split('_')
if len(parts) != 3 and len(parts) != 4:
tf.logging.error("Couldn't understand architecture name '%s'", architecture)
return None
# end if
version_string = parts[1]
if (version_string != '1.0' and version_string != '0.75' and version_string != '0.50' and version_string != '0.25'):
tf.logging.error(""""The Mobilenet version should be '1.0', '0.75', '0.50', or '0.25', but found '%s' for architecture '%s'""", version_string, architecture)
return None
# end if
size_string = parts[2]
if (size_string != '224' and size_string != '192' and size_string != '160' and size_string != '128'):
tf.logging.error("""The Mobilenet input size should be '224', '192', '160', or '128', but found '%s' for architecture '%s'""", size_string, architecture)
return None
# end if
if len(parts) == 3:
is_quantized = False
else:
if parts[3] != 'quantized':
tf.logging.error(
"Couldn't understand architecture suffix '%s' for '%s'", parts[3], architecture)
return None
is_quantized = True
# end if
if is_quantized:
data_url = 'http://download.tensorflow.org/models/mobilenet_v1_'
data_url += version_string + '_' + size_string + '_quantized_frozen.tgz'
bottleneck_tensor_name = 'MobilenetV1/Predictions/Reshape:0'
resized_input_tensor_name = 'Placeholder:0'
model_dir_name = ('mobilenet_v1_' + version_string + '_' + size_string + '_quantized_frozen')
model_base_name = 'quantized_frozen_graph.pb'
else:
data_url = 'http://download.tensorflow.org/models/mobilenet_v1_'
data_url += version_string + '_' + size_string + '_frozen.tgz'
bottleneck_tensor_name = 'MobilenetV1/Predictions/Reshape:0'
resized_input_tensor_name = 'input:0'
model_dir_name = 'mobilenet_v1_' + version_string + '_' + size_string
model_base_name = 'frozen_graph.pb'
# end if
bottleneck_tensor_size = 1001
input_width = int(size_string)
input_height = int(size_string)
input_depth = 3
model_file_name = os.path.join(model_dir_name, model_base_name)
input_mean = 127.5
input_std = 127.5
else:
tf.logging.error("Couldn't understand architecture name '%s'", architecture)
raise ValueError('Unknown architecture', architecture)
# end if
return {'data_url': data_url, 'bottleneck_tensor_name': bottleneck_tensor_name, 'bottleneck_tensor_size': bottleneck_tensor_size,
'input_width': input_width, 'input_height': input_height, 'input_depth': input_depth, 'resized_input_tensor_name': resized_input_tensor_name,
'model_file_name': model_file_name, 'input_mean': input_mean, 'input_std': input_std, 'quantize_layer': is_quantized, }
# end function
#######################################################################################################################
def downloadModelIfNotAlreadyPresent(data_url):
"""
Download and extract model tar file.
If the pretrained model we're using doesn't already exist, this function downloads it from the TensorFlow.org website and unpacks it into a directory.
Args:
data_url: Web location of the tar file containing the pretrained model.
"""
dest_directory = MODEL_DIR
if not os.path.exists(dest_directory):
os.makedirs(dest_directory)
# end if
filename = data_url.split('/')[-1]
filepath = os.path.join(dest_directory, filename)
if not os.path.exists(filepath):
# nested function
def _progress(count, block_size, total_size):
sys.stdout.write('\r>> Downloading %s %.1f%%' % (filename, float(count * block_size) / float(total_size) * 100.0))
sys.stdout.flush()
# end def
filepath, _ = urllib.request.urlretrieve(data_url, filepath, _progress)
print()
statinfo = os.stat(filepath)
tf.logging.info('Successfully downloaded ' + str(filename) + ', statinfo.st_size = ' + str(statinfo.st_size) + ' bytes')
print('Extracting file from ', filepath)
tarfile.open(filepath, 'r:gz').extractall(dest_directory)
else:
print('Not extracting or downloading files, model already present in disk')
# end if
# end function
#######################################################################################################################
def create_model_graph(model_info):
""""
Creates a graph from saved GraphDef file and returns a Graph object.
Args:
model_info: Dictionary containing information about the model architecture.
Returns:
Graph holding the trained Inception network, and various tensors we'll be manipulating.
"""
with tf.Graph().as_default() as graph:
model_path = os.path.join(MODEL_DIR, model_info['model_file_name'])
print('Model path: ', model_path)
with gfile.FastGFile(model_path, 'rb') as f:
graph_def = tf.GraphDef()
graph_def.ParseFromString(f.read())
bottleneck_tensor, resized_input_tensor = (tf.import_graph_def(graph_def, name='', return_elements=[model_info['bottleneck_tensor_name'], model_info['resized_input_tensor_name'],]))
# end with
# end with
return graph, bottleneck_tensor, resized_input_tensor
# end function
#######################################################################################################################
def create_image_lists(image_dir, testing_percentage, validation_percentage):
"""
Builds a list of training images from the file system.
Analyzes the sub folders in the image directory, splits them into stable
training, testing, and validation sets, and returns a data structure
describing the lists of images for each label and their paths.
Args:
image_dir: String path to a folder containing subfolders of images.
testing_percentage: Integer percentage of the images to reserve for tests.
validation_percentage: Integer percentage of images reserved for validation.
Returns:
A dictionary containing an entry for each label subfolder, with images split
into training, testing, and validation sets within each label.
"""
# if the image directory does not exist, log an error and bail
if not gfile.Exists(image_dir):
tf.logging.error("Image directory '" + image_dir + "' not found.")
return None
# end if
# create an empty dictionary to store the results
result = {}
# get a list of the sub-directories of the image directory
sub_dirs = [x[0] for x in gfile.Walk(image_dir)]
# for each directory in the sub-directories list . . .
is_root_dir = True
for sub_dir in sub_dirs:
# if we're on the 1st (root) directory, mark our boolean for that as false for the next time around and go back to the top of the for loop
if is_root_dir:
is_root_dir = False
continue
# end if
dir_name = os.path.basename(sub_dir)
if dir_name == image_dir:
continue
# end if
# ToDo: This section should be refactored. The right way to do this would be to get a list of the files that are
# ToDo: there then append (extend) those, not to get the name except the extension, then append an extension,
# ToDo: this (current) way is error prone of the original file has an upper case or mixed case extension
extensions = ['jpg', 'jpeg']
file_list = []
tf.logging.info("Looking for images in '" + dir_name + "'")
for extension in extensions:
file_glob = os.path.join(image_dir, dir_name, '*.' + extension)
file_list.extend(gfile.Glob(file_glob))
# end for
# if the file list is empty at this point, log a warning and bail
if not file_list:
tf.logging.warning('No files found')
continue
# end if
# if the length of the file list is less than 20 or more than the max number, log an applicable warning (do not return, however)
if len(file_list) < 20:
tf.logging.warning('WARNING: Folder has less than 20 images, which may cause issues.')
elif len(file_list) > MAX_NUM_IMAGES_PER_CLASS:
tf.logging.warning('WARNING: Folder {} has more than {} images. Some images will never be selected.'.format(dir_name, MAX_NUM_IMAGES_PER_CLASS))
# end if
label_name = re.sub(r'[^a-z0-9]+', ' ', dir_name.lower())
training_images = []
testing_images = []
validation_images = []
for file_name in file_list:
base_name = os.path.basename(file_name)
# We want to ignore anything after '_nohash_' in the file name when deciding which set to put an image in, the data set creator
# has a way of grouping photos that are close variations of each other. For example this is used in the plant disease data set
# to group multiple pictures of the same leaf.
hash_name = re.sub(r'_nohash_.*$', '', file_name)
# This looks a bit magical, but we need to decide whether this file should go into the training, testing, or validation sets,
# and we want to keep existing files in the same set even if more files are subsequently added. To do that, we need a stable
# way of deciding based on just the file name itself, so we do a hash of that and then use that to generate a probability value
# that we use to assign it.
hash_name_hashed = hashlib.sha1(compat.as_bytes(hash_name)).hexdigest()
percentage_hash = ((int(hash_name_hashed, 16) % (MAX_NUM_IMAGES_PER_CLASS + 1)) * (100.0 / MAX_NUM_IMAGES_PER_CLASS))
if percentage_hash < validation_percentage:
validation_images.append(base_name)
elif percentage_hash < (testing_percentage + validation_percentage):
testing_images.append(base_name)
else:
training_images.append(base_name)
# end if
result[label_name] = {'dir': dir_name, 'training': training_images, 'testing': testing_images, 'validation': validation_images,}
return result
# end function
#######################################################################################################################
def add_jpeg_decoding(input_width, input_height, input_depth, input_mean, input_std):
"""
Adds operations that perform JPEG decoding and resizing to the graph..
Args:
input_width: Desired width of the image fed into the recognizer graph.
input_height: Desired width of the image fed into the recognizer graph.
input_depth: Desired channels of the image fed into the recognizer graph.
input_mean: Pixel value that should be zero in the image for the graph.
input_std: How much to divide the pixel values by before recognition.
Returns:
Tensors for the node to feed JPEG data into, and the output of the preprocessing steps.
"""
jpeg_data = tf.placeholder(tf.string, name='DecodeJPGInput')
decoded_image = tf.image.decode_jpeg(jpeg_data, channels=input_depth)
decoded_image_as_float = tf.cast(decoded_image, dtype=tf.float32)
decoded_image_4d = tf.expand_dims(decoded_image_as_float, 0)
resize_shape = tf.stack([input_height, input_width])
resize_shape_as_int = tf.cast(resize_shape, dtype=tf.int32)
resized_image = tf.image.resize_bilinear(decoded_image_4d, resize_shape_as_int)
offset_image = tf.subtract(resized_image, input_mean)
mul_image = tf.multiply(offset_image, 1.0 / input_std)
return jpeg_data, mul_image
# end function
#######################################################################################################################
def add_input_distortions(flip_left_right, random_crop, random_scale, random_brightness, input_width, input_height,
input_depth, input_mean, input_std):
"""
Creates the operations to apply the specified distortions.
During training it can help to improve the results if we run the images
through simple distortions like crops, scales, and flips. These reflect the
kind of variations we expect in the real world, and so can help train the
model to cope with natural data more effectively. Here we take the supplied
parameters and construct a network of operations to apply them to an image.
Cropping
~~~~~~~~
Cropping is done by placing a bounding box at a random position in the full
image. The cropping parameter controls the size of that box relative to the
input image. If it's zero, then the box is the same size as the input and no
cropping is performed. If the value is 50%, then the crop box will be half the
width and height of the input. In a diagram it looks like this:
< width >
+---------------------+
| |
| width - crop% |
| < > |
| +------+ |
| | | |
| | | |
| | | |
| +------+ |
| |
| |
+---------------------+
Scaling
~~~~~~~
Scaling is a lot like cropping, except that the bounding box is always
centered and its size varies randomly within the given range. For example if
the scale percentage is zero, then the bounding box is the same size as the
input and no scaling is applied. If it's 50%, then the bounding box will be in
a random range between half the width and height and full size.
Args:
flip_left_right: Boolean whether to randomly mirror images horizontally.
random_crop: Integer percentage setting the total margin used around the
crop box.
random_scale: Integer percentage of how much to vary the scale by.
random_brightness: Integer range to randomly multiply the pixel values by.
graph.
input_width: Horizontal size of expected input image to model.
input_height: Vertical size of expected input image to model.
input_depth: How many channels the expected input image should have.
input_mean: Pixel value that should be zero in the image for the graph.
input_std: How much to divide the pixel values by before recognition.
Returns:
The jpeg input layer and the distorted result tensor.
"""
jpeg_data = tf.placeholder(tf.string, name='DistortJPGInput')
decoded_image = tf.image.decode_jpeg(jpeg_data, channels=input_depth)
decoded_image_as_float = tf.cast(decoded_image, dtype=tf.float32)
decoded_image_4d = tf.expand_dims(decoded_image_as_float, 0)
margin_scale = 1.0 + (random_crop / 100.0)
resize_scale = 1.0 + (random_scale / 100.0)
margin_scale_value = tf.constant(margin_scale)
resize_scale_value = tf.random_uniform(tensor_shape.scalar(), minval=1.0, maxval=resize_scale)
scale_value = tf.multiply(margin_scale_value, resize_scale_value)
precrop_width = tf.multiply(scale_value, input_width)
precrop_height = tf.multiply(scale_value, input_height)
precrop_shape = tf.stack([precrop_height, precrop_width])
precrop_shape_as_int = tf.cast(precrop_shape, dtype=tf.int32)
precropped_image = tf.image.resize_bilinear(decoded_image_4d, precrop_shape_as_int)
precropped_image_3d = tf.squeeze(precropped_image, squeeze_dims=[0])
cropped_image = tf.random_crop(precropped_image_3d, [input_height, input_width, input_depth])
if flip_left_right:
flipped_image = tf.image.random_flip_left_right(cropped_image)
else:
flipped_image = cropped_image
# end if
brightness_min = 1.0 - (random_brightness / 100.0)
brightness_max = 1.0 + (random_brightness / 100.0)
brightness_value = tf.random_uniform(tensor_shape.scalar(), minval=brightness_min, maxval=brightness_max)
brightened_image = tf.multiply(flipped_image, brightness_value)
offset_image = tf.subtract(brightened_image, input_mean)
mul_image = tf.multiply(offset_image, 1.0 / input_std)
distort_result = tf.expand_dims(mul_image, 0, name='DistortResult')
return jpeg_data, distort_result
# end function
#######################################################################################################################
def cache_bottlenecks(sess, image_lists, image_dir, bottleneck_dir, jpeg_data_tensor, decoded_image_tensor,
resized_input_tensor, bottleneck_tensor, architecture):
"""
Ensures all the training, testing, and validation bottlenecks are cached.
Because we're likely to read the same image multiple times (if there are no distortions applied during training) it
can speed things up a lot if we calculate the bottleneck layer values once for each image during preprocessing,
and then just read those cached values repeatedly during training. Here we go through all the images we've found,
calculate those values, and save them off.
Args:
sess: The current active TensorFlow Session.
image_lists: Dictionary of training images for each label.
image_dir: Root folder string of the subfolders containing the training images.
bottleneck_dir: Folder string holding cached files of bottleneck values.
jpeg_data_tensor: Input tensor for jpeg data from file.
decoded_image_tensor: The output of decoding and resizing the image.
resized_input_tensor: The input node of the recognition graph.
bottleneck_tensor: The penultimate output layer of the graph.
architecture: The name of the model architecture.
Returns:
Nothing.
"""
how_many_bottlenecks = 0
makeDirIfDoesNotExist(bottleneck_dir)
for label_name, label_lists in image_lists.items():
for category in ['training', 'testing', 'validation']:
category_list = label_lists[category]
for index, unused_base_name in enumerate(category_list):
get_or_create_bottleneck(sess, image_lists, label_name, index, image_dir, category, bottleneck_dir,
jpeg_data_tensor, decoded_image_tensor, resized_input_tensor, bottleneck_tensor, architecture)
# end for
how_many_bottlenecks += 1
if how_many_bottlenecks % 100 == 0:
tf.logging.info(str(how_many_bottlenecks) + ' bottleneck files created.')
# end if
# end function
#######################################################################################################################
def get_or_create_bottleneck(sess, image_lists, label_name, index, image_dir, category, bottleneck_dir, jpeg_data_tensor,
decoded_image_tensor, resized_input_tensor, bottleneck_tensor, architecture):
"""
Retrieves or calculates bottleneck values for an image.
If a cached version of the bottleneck data exists on-disk, return that, otherwise calculate the data and save it to disk for future use.
Args:
sess: The current active TensorFlow Session.
image_lists: Dictionary of training images for each label.
label_name: Label string we want to get an image for.
index: Integer offset of the image we want. This will be modulo-ed by the available number of images for the label, so it can be arbitrarily large.
image_dir: Root folder string of the subfolders containing the training images.
category: Name string of which set to pull images from - training, testing, or validation.
bottleneck_dir: Folder string holding cached files of bottleneck values.
jpeg_data_tensor: The tensor to feed loaded jpeg data into.
decoded_image_tensor: The output of decoding and resizing the image.
resized_input_tensor: The input node of the recognition graph.
bottleneck_tensor: The output tensor for the bottleneck values.
architecture: The name of the model architecture.
Returns:
Numpy array of values produced by the bottleneck layer for the image.
"""
label_lists = image_lists[label_name]
sub_dir = label_lists['dir']
sub_dir_path = os.path.join(bottleneck_dir, sub_dir)
makeDirIfDoesNotExist(sub_dir_path)
bottleneck_path = get_bottleneck_path(image_lists, label_name, index, bottleneck_dir, category, architecture)
if not os.path.exists(bottleneck_path):
create_bottleneck_file(bottleneck_path, image_lists, label_name, index, image_dir, category, sess, jpeg_data_tensor,
decoded_image_tensor, resized_input_tensor, bottleneck_tensor)
# end if
# read in the contents of the bottleneck file as one big string
with open(bottleneck_path, 'r') as bottleneck_file:
bottleneckBigString = bottleneck_file.read()
# end with
bottleneckValues = []
errorOccurred = False
try:
# split the bottleneck file contents read in as one big string into individual float values
bottleneckValues = [float(individualString) for individualString in bottleneckBigString.split(',')]
except ValueError:
tf.logging.warning('Invalid float found, recreating bottleneck')
errorOccurred = True
# end try
if errorOccurred:
# if an error occurred above, create (or re-create) the bottleneck file
create_bottleneck_file(bottleneck_path, image_lists, label_name, index, image_dir, category, sess,
jpeg_data_tensor, decoded_image_tensor, resized_input_tensor, bottleneck_tensor)
# read in the contents of the newly created bottleneck file
with open(bottleneck_path, 'r') as bottleneck_file:
bottleneckBigString = bottleneck_file.read()
# end with
# split the bottleneck file contents read in as one big string into individual float values again
bottleneckValues = [float(individualString) for individualString in bottleneckBigString.split(',')]
# end if
return bottleneckValues
# end function
#######################################################################################################################
def get_bottleneck_path(image_lists, label_name, index, bottleneck_dir, category, architecture):
""""
Returns a path to a bottleneck file for a label at the given index.
Args:
image_lists: Dictionary of training images for each label.
label_name: Label string we want to get an image for.
index: Integer offset of the image we want. This will be moduloed by the
available number of images for the label, so it can be arbitrarily large.
bottleneck_dir: Folder string holding cached files of bottleneck values.
category: Name string of set to pull images from - training, testing, or
validation.
architecture: The name of the model architecture.
Returns:
File system path string to an image that meets the requested parameters.
"""
return get_image_path(image_lists, label_name, index, bottleneck_dir, category) + '_' + architecture + '.txt'
# end function
#######################################################################################################################
def create_bottleneck_file(bottleneck_path, image_lists, label_name, index,
image_dir, category, sess, jpeg_data_tensor,
decoded_image_tensor, resized_input_tensor,
bottleneck_tensor):
"""Create a single bottleneck file."""
tf.logging.info('Creating bottleneck at ' + bottleneck_path)
image_path = get_image_path(image_lists, label_name, index, image_dir, category)
if not gfile.Exists(image_path):
tf.logging.fatal('File does not exist %s', image_path)
# end if
image_data = gfile.FastGFile(image_path, 'rb').read()
try:
bottleneck_values = run_bottleneck_on_image(sess, image_data, jpeg_data_tensor, decoded_image_tensor, resized_input_tensor, bottleneck_tensor)
except Exception as e:
raise RuntimeError('Error during processing file %s (%s)' % (image_path, str(e)))
# end try
bottleneck_string = ','.join(str(x) for x in bottleneck_values)
with open(bottleneck_path, 'w') as bottleneck_file:
bottleneck_file.write(bottleneck_string)
# end with
# end function
#######################################################################################################################
def run_bottleneck_on_image(sess, image_data, image_data_tensor, decoded_image_tensor, resized_input_tensor, bottleneck_tensor):
"""
Runs inference on an image to extract the 'bottleneck' summary layer.
Args:
sess: Current active TensorFlow Session.
image_data: String of raw JPEG data.
image_data_tensor: Input data layer in the graph.
decoded_image_tensor: Output of initial image resizing and preprocessing.
resized_input_tensor: The input node of the recognition graph.
bottleneck_tensor: Layer before the final softmax.
Returns:
Numpy array of bottleneck values.
"""
# First decode the JPEG image, resize it, and rescale the pixel values.
resized_input_values = sess.run(decoded_image_tensor, {image_data_tensor: image_data})
# Then run it through the recognition network.
bottleneck_values = sess.run(bottleneck_tensor, {resized_input_tensor: resized_input_values})
bottleneck_values = np.squeeze(bottleneck_values)
return bottleneck_values
# end function
#######################################################################################################################
def get_image_path(image_lists, label_name, index, image_dir, category):
""""
Returns a path to an image for a label at the given index.
Args:
image_lists: Dictionary of training images for each label.
label_name: Label string we want to get an image for.
index: Int offset of the image we want. This will be moduloed by the available number of images for the label, so it can be arbitrarily large.
image_dir: Root folder string of the subfolders containing the training images.
category: Name string of set to pull images from - training, testing, or validation.
Returns:
File system path string to an image that meets the requested parameters.
"""
if label_name not in image_lists:
tf.logging.fatal('Label does not exist %s.', label_name)
# end if
label_lists = image_lists[label_name]
if category not in label_lists:
tf.logging.fatal('Category does not exist %s.', category)
# end if
category_list = label_lists[category]
if not category_list:
tf.logging.fatal('Label %s has no images in the category %s.', label_name, category)
# end if
mod_index = index % len(category_list)
base_name = category_list[mod_index]
sub_dir = label_lists['dir']
full_path = os.path.join(image_dir, sub_dir, base_name)
return full_path
# end function
#######################################################################################################################
...
This file has been truncated, please download it to see its full contents.
Comments
