Smart Intercom

The principle of operation:

• Person approaches to the intercom

• Looks at the camera

• The system compare his face with authorized people

• If it finds it, then the door opens and a person can enter

• There is also another way to pass;

• The person with the pass card place it to the RFID location and the door opens if it finds the code of this card in its database

*This project is still in progress. I hope the final version will be more beautiful.

**Gonna get rid of RPi 1 and NFC in favor of fingerprint scanner connected to RPi3. Updates are coming...

Preparation

Relay connection

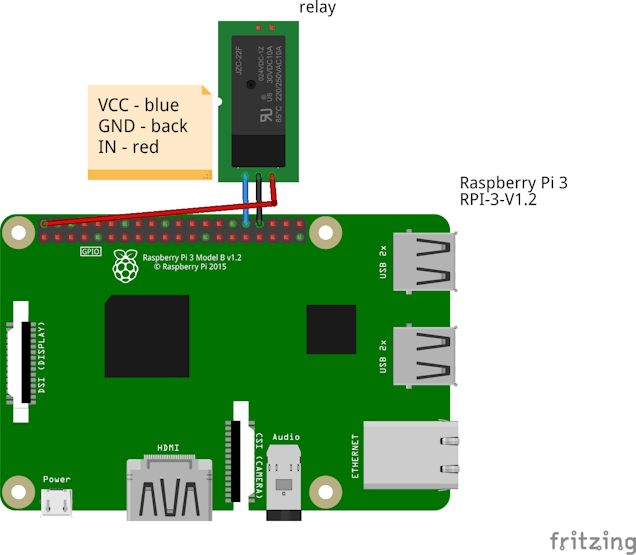

• Connect relay to RPI 3. In my case I used GPIO12 pin for data, 5v for power and you can choose any GND.

You can test the relay with shell script, just create a simple sh script:

nano open.sh
chmod +x open.sh
sh open.sh

Paste the code below and run it.

Script code:

#!/bin/bash
echo 12 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio12/direction
echo 0 > /sys/class/gpio/gpio12/value
ping -c 1 localhost
echo 12 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio12/direction
echo 1 > /sys/class/gpio/gpio12/value

Camera connection

• Connect camera module and enable it in raspi-config:

Open the raspi-config tool from the Terminal:

sudo raspi-config

Select Enable camera and hit Enter , then go to Finish and you'll be prompted to reboot.

To test that the system is installed and working, try the following command:

raspistill -v -o test.jpg

LED Connection

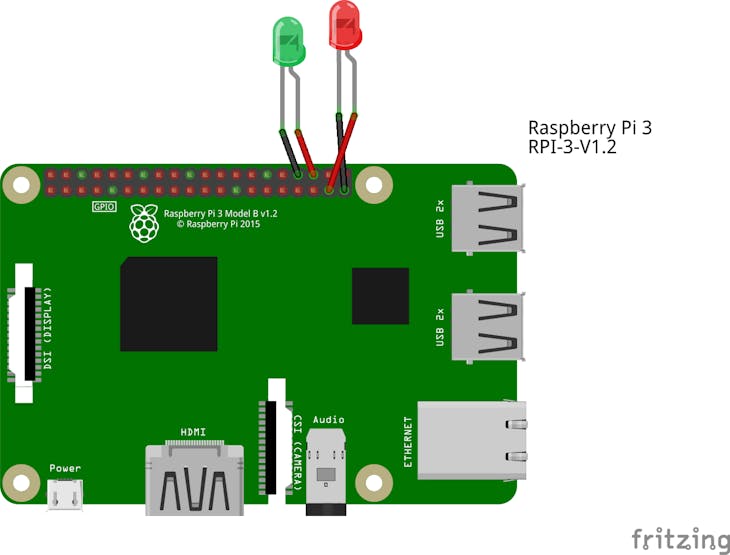

Connect your LED to any GPIO you want + GND. In my case I used GPIO16 for the green LED and GPIO26 for red. When you are done, test it:

Create 2 simple python scripts for the green and red LEDs with the following content:

• Green led.py

from gpiozero import LED
from time import sleep
led = LED(16)
while True:
   led.on()
   sleep(3)
   led.off()
   led.cleanup()

• Red led2.py

from gpiozero import LED
from time import sleep
led = LED(26)
while True:
   led.on()
   sleep(3)
   led.off()
   led.cleanup()

And then test it. If the LEDs are glowing, then everything works good.

python led.py
python led2.py

Face Recognition Script

Install this module from pypi using pip3 (or pip2 for Python 2):

pip3 install face_recognition

Create directory "pic" and "unknown" in Documents for example and place there some face pics of people you know. In my case it's ("/home/pi/Documents/pic/") and ("/home/pi/Documents/unknown/").

Create a python script with following code:

import face_recognition
import picamera
import numpy as np
import os
camera = picamera.PiCamera()
camera.resolution = (320, 240)
output = np.empty((240, 320, 3), dtype=np.uint8)
print("Loading known face image(s)")
ep_image = face_recognition.load_image_file("/home/pi/Documents/pic/ep.jpg")
ep_face_encoding = face_recognition.face_encodings(ep_image)[0]
vl_image = face_recognition.load_image_file("/home/pi/Documents/pic/vl.jpg")
vl_face_encoding = face_recognition.face_encodings(vl_image)[0]
face_locations = []
face_encodings = []
while True:
   print("Capturing image.")
   camera.capture(output, format="rgb")
   face_locations = face_recognition.face_locations(output)
   print("Found {} faces in image.".format(len(face_locations)))
   face_encodings = face_recognition.face_encodings(output, face_locations)
   for face_encoding in face_encodings:
       match = face_recognition.compare_faces([ep_face_encoding,vl_face_encoding], face_encoding)
       name = "<Unknown Person>"
       os.system("python /home/pi/led2.py &")
       import time
       date_string = time.strftime("%Y-%m-%d-%H:%M:%S")
       camera.capture("/home/pi/Documents/unknown/image-" + date_string + ".jpg")

Test it.

python facerec.py

RFID Connection

Pins:

We need this to connect our RFID module to Raspberry Pi 1.

• Preparation:

$ sudo nano /etc/modprobe.d/raspi-blacklist.conf
#blacklist spi-bcm2708
$ sudo apt-get install python-dev
$ git clone https://github.com/lthiery/SPI-Py.git
$ cd SPI-Py
$ sudo python setup.py install

• read.py: When the script finds authorized card, it opens the user picture on the remote RPI 3 (runs LED scripts), then it opens the door.

import MFRC522
import signal
import os
continue_reading = True
MIFAREReader = MFRC522.MFRC522()
cardA = [46,44,187,26,163]
cardB = [176,203,130,124,133]
cardC = [20,38,121,207,132]
def end_read(signal, frame):
 global continue_reading
 continue_reading = False
 print "Ctrl+C captured, ending read."
 MIFAREReader.GPIO_CLEEN()
signal.signal(signal.SIGINT, end_read)
while continue_reading:
 (status,TagType) = MIFAREReader.MFRC522_Request(MIFAREReader.PICC_REQIDL)
 if status == MIFAREReader.MI_OK:
   print "Card detected"
 (status,backData) = MIFAREReader.MFRC522_Anticoll()
 if status == MIFAREReader.MI_OK:
   print "Card read UID: "+str(backData[0])+","+str(backData[1])+","+str(backData[2])+","+str(backData[3])+","+str(backData[4])
   if  backData == cardA:
     print "Evghenii"
     os.system("sshpass -p *password* ssh root@10.0.0.60 fbi -T 1 -d /dev/fb1 -noverbose /home/pi/Documents/pic/ep.jpg")
     os.system("sshpass -p *password* ssh root@10.0.0.60 /home/pi/Documents/open.sh 2>/dev/null")
#      os.system("sshpass -p *password* ssh root@10.0.0.60 sleep 2")
     os.system("sshpass -p *password* ssh root@10.0.0.60 killall fbi")
   elif backData == cardB:
     print "Vlad"
     os.system("sshpass -p *password* ssh root@10.0.0.60 fbi -T 1 -d /dev/fb1 -noverbose /home/pi/Documents/pic/vl.jpg")
     os.system("sshpass -p *password* ssh root@10.0.0.60 /home/pi/Documents/open.sh 2>/dev/null")
#     os.system("sshpass -p *password* ssh root@10.0.0.60 sleep 2")
     os.system("sshpass -p *password* ssh root@10.0.0.60 killall fbi")
   elif backData == cardC:
     print "is Card C"
   else:
     print "wrong Card"
     os.system("sshpass -p *password* ssh root@10.0.0.60 /home/pi/led2.py 2>/dev/null")

• Using this example:

$ git clone https://github.com/rasplay/MFRC522-python.git
$ cd MFRC522-python
$ sudo python read.py

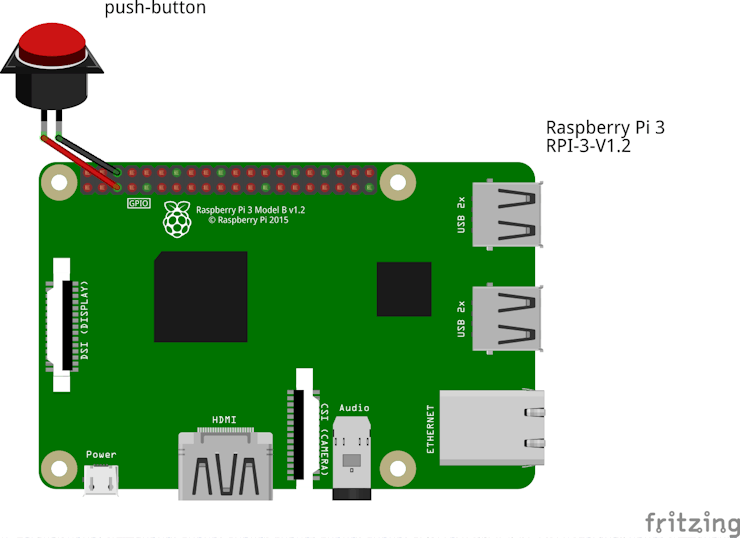

Button + Telegram

button.py

#!/usr/bin/python
import RPi.GPIO as GPIO
from subprocess import call
from datetime import datetime
import time
import os
shutdownPin = 29
shutdownMinSeconds = 5
# button debounce time in seconds
debounceSeconds = 0.01
GPIO.setmode(GPIO.BOARD)
GPIO.setup(shutdownPin, GPIO.IN, pull_up_down=GPIO.PUD_UP)
buttonPressedTime = None
def buttonStateChanged(pin):
   global buttonPressedTime
   if not (GPIO.input(pin)):
       # button is down
       if buttonPressedTime is None:
           buttonPressedTime = datetime.now()
   else:
       # button is up
       if buttonPressedTime is not None:
           elapsed = (datetime.now() - buttonPressedTime).total_seconds()
           buttonPressedTime = None
           if elapsed >= shutdownMinSeconds:
               call(['shutdown', '-r', 'now'], shell=True)
           elif elapsed >= debounceSeconds:
               os.system("bash /home/pi/timed.sh")
# subscribe to button presses
GPIO.add_event_detect(shutdownPin, GPIO.BOTH, callback=buttonStateChanged)
while True:
   # sleep to reduce unnecessary CPU usage
   time.sleep(5)

action.sh

#!/bin/bash
sshpass -p password ssh epogonii@ipadress -p1337 notify-send -i /usr/share/icons/gnome/32x32/actions/ring2.png Smart-Intercom Guest_at_the_door
DISPLAY=:0.0 XAUTHORITY=/home/pi/.Xauthority /usr/bin/feh --hide-pointer -x -q -D 5 -B black -F /home/pi/doorway.png &
sh /home/pi/Documents/open.sh > log.out 2> /dev/null
DISPLAY=:0.0 XAUTHORITY=/home/pi/.Xauthority xdotool key "x"
sh /home/pi/tgphoto.sh FaceRec /var/www/html/last.jpg > log.out 2> /dev/null

Added pushbutton to Smart Intercom. It sends you last photo to telegram bot and sends notification to Ubuntu Desktop PC.

Adding timing to push-button

In order to disable entrance in specific hours via push-button, i made the following bash script:

#!/bin/bash
H=$(date +%H)
if (( 7 <= 10#$H && 10#$H < 19 )); then
   echo between 7AM and 19PM
sh /home/pi/action.sh

else
   echo error
sh /home/pi/error.sh
fi

action.sh - opens the door between 7 am and 19 pm

error.sh - displays restriction image between 19 pm and 7 am error.sh script

#!/bin/bash
DISPLAY=:0.0 XAUTHORITY=/home/pi/.Xauthority /usr/bin/feh --hide-pointer -x -q -D 5 -B black -F /home/pi/error.png &
ping -c 4 localhost 2>/dev/null
DISPLAY=:0.0 XAUTHORITY=/home/pi/.Xauthority xdotool key "x"

P.S to run this script you will need to install xdotool

sudo apt install xdotool
