Story

This project is based on Raspberry Pi 1 and UART fingerprint scanner. It is very easy to build and control. Fingerprint scanner is able to store 1000 fingerprints. You can add new one, delete or even download image of scanned fingers. Adding new finger is very easy:

*Push "Add new finger" in telegram bot and place your finger to scanner two times* Write the name of the person, and it will be stored in text file with the number of the fingerprint* *It's need to delete specific finger. * As soon as you added new finger, push "Start search", place your finger and this time relay will change its state:

Preparation

For this you will need an RPI1/2/3 (it doesn't matter) with the Raspbian installed. You can get it here: https://www.raspberrypi.org/downloads/raspbian/

Boot up Raspbian and make some configuration.

sudo cp /boot/cmdline.txt /boot/cmdline_backup.txt

Edit the file:

sudo nano /boot/cmdline.txt

Delete any parameters involving the serial port "ttyAMA0" or "serial0" if it exist, which in this example is:

console=ttyAMA0,115200

Which gives:

dwc_otg.lpm_enable=0 console=tty1 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait

Press CTRL+X to exit and save .

Next, you have to disable the serial getty service:

sudo systemctl stop serial-getty@ttyAMA0.servicesudo systemctl disable serial-getty@ttyAMA0.service

Enable UART

Enabling UART with minimum core frequency:

pi@raspberrypi:~ $ sudo nano /boot/config.txt# Enable UARTenable_uart=1

Enabling UART with maximum core frequency:

pi@raspberrypi:~ $ sudo nano /boot/config.txt# Enable UARTenable_uart=1force_turbo=1

Install Python library for ZFM fingerprint sensors

~$ echo "deb http://apt.pm-codeworks.de wheezy main" | sudo tee -a /etc/apt/sources.list
~$ wget -O - http://apt.pm-codeworks.de/pm-codeworks.de.gpg | sudo apt-key add -
~$ sudo apt-get update
~$ sudo apt-get install python-fingerprint
~$ sudo usermod -a -G dialout pi

In my case I host telegram bot apart from RPi, so I created SSH secure public key to communicate with Raspberry.

server1:~# cd /root/
server1:~# ssh-keygen -t dsa
Generating public/private dsa key pair.
Enter file in which to save the key (/root/.ssh/id_dsa): <PRESS ENTER TO ACCEPT DEFAULT>
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase): <PRESS ENTER FOR NO PASSPHRASE>
Enter same passphrase again: <PRESS ENTER FOR NO PASSPHRASE>
Your identification has been saved in /root/.ssh/id_dsa.
Your public key has been saved in /root/.ssh/id_dsa.pub.
The key fingerprint is:
41:03:aa:dc:cc:b9:39:50:65:bc:ee:7b:36:d2:64:7a root@server1

Copy the public key from 'server1' to 'raspberrypi'...

server1:~# scp /root/.ssh/id_dsa.pub 192.168.0.2:/root/.ssh/authorized_keys

You can test it with:

ssh root@192.168.0.2

Create Telegram Bot

You can check official guide on how to this in just few steps:https://core.telegram.org/bots#3-how-do-i-create-a-bot

Install some dependencies for bot

sudo apt-get install libreadline-dev libconfig-dev libssl-dev lua5.2 liblua5.2-dev libevent-dev libjansson-dev libpython-dev make
apt-get update
apt-get -y install python-pip
python get-pip.py
pip install pytelegrambotapi
pip install simplejson

Run BOT

(in my case I host bot on virtual server)

# -*- coding: utf-8 -*-
import config
import telebot
import os
import time
import requests
import subprocess
import simplejson
import sys
from telebot import types
from telebot import util
bot = telebot.TeleBot(config.token)
@bot.message_handler(commands=['help', 'start'])
def begin(message):
   markup = types.ReplyKeyboardMarkup(selective=True,row_width=2, resize_keyboard=True)
   markup.add('🔍Start search', '👆🏻Add new finger', u'✅Status')
   msg = bot.reply_to(message, 'Выберите действие', reply_markup=markup)
   bot.register_next_step_handler(msg, process_step)
@bot.message_handler(commands=['name'])
def name(message):
 sent = bot.send_message(message.chat.id, 'Type name')
 bot.register_next_step_handler(sent, hello)
def hello(message):
   open('username.txt', 'w').write(message.text)
   os.system("sh find.sh 2>/dev/null")
   bot.send_message(message.chat.id, 'Done')
   return begin(message)
def process_step(message):
   if message.text==u'🔍Start search':
       os.system("cat </dev/null |ssh root@10.14.0.116 killall python 2>/dev/null")
       os.system("cat </dev/null |ssh root@10.14.0.116 python /usr/share/doc/python-fingerprint/examples/example_search.py & 2>/dev/null")
       return begin(message)
   if message.text==u'👆🏻Add new finger':
           os.system("cat </dev/null |ssh root@10.14.0.116 killall python 2>/dev/null")
           bot.send_message(message.chat.id, 'Place finger on the scaner...')
           output = os.system("ssh root@10.14.0.116 python /usr/share/doc/python-fingerprint/examples/example_enroll.py > /home/epogonii/Documents/bot/bot-fingerguard/add.txt << EOF")
           from telebot import util
           large_text = open("/home/epogonii/Documents/bot/bot-fingerguard/add.txt", "rb").read()
           splitted_text = util.split_string(large_text, 3000)
           for text in splitted_text:
                  bot.send_message(message.chat.id, text)
                  return name(message)
   if message.text==u'✅Status':
           from telebot import util
           large_text = open("/home/epogonii/Documents/bot/bot-fingerguard/add.txt", "rb").read()
           splitted_text = util.split_string(large_text, 3000)
           for text in splitted_text:
                  bot.send_message(message.chat.id, text)
                  return begin(message)
   else:
       bot.send_message(message.chat.id, "Try again")
if __name__ == '__main__':
   while True:
       try:
           bot.polling(none_stop=True)
       except Exception as ex:
           logger.error(ex)Create additional bash script for name adding to "database"
#!/bin/bashnumber=$(sed -n '3p' < add.txt |awk '{print $4}')if grep -R "New" add.txt thensed -i s/$/_$number/ username.txtsed -n '1p' username.txt >> database.txtelse    echo not foundfi

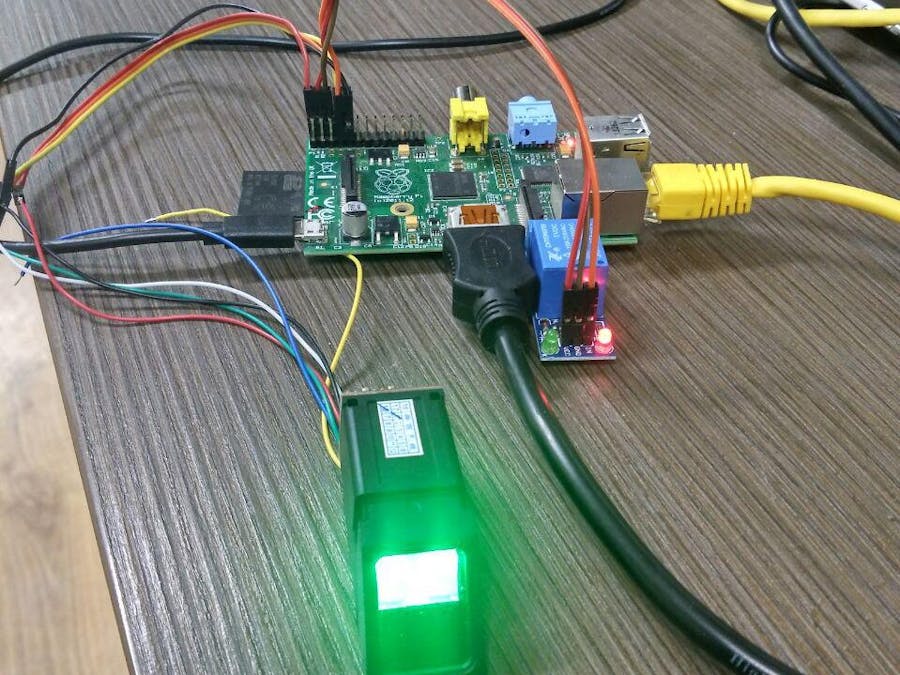

Assembling

Relay connection

Connect relay to RPI. In my case I used GPIO4 pin.

VCC - gpio 4

GND - any ground pin

IN - 5V

You can test the relay with python script, just create,paste the code and run it:

#!/usr/bin/env python
import time
import RPi.GPIO as GPIO
GPIO.setmode(GPIO.BCM)
GPIO.setup(4, GPIO.OUT)
GPIO.output(4, GPIO.LOW)
time.sleep(1)
GPIO.output(4, GPIO.HIGH)
GPIO.cleanup()Fingerprint scanner connection

To connect scanner you will need only 4 pins

IN(red) - 5V

GND - PIN9

TX(green) - gpio 15

RX(white) - gpio 14

And that's all, to test it you can run any of python library scripts that you have installed before. I will post modified Python fingerprint scanner files here, so just download them and overwrite and you are done.

#!/usr/bin/env python
# -*- coding: utf-8 -*-

"""
PyFingerprint
Copyright (C) 2015 Bastian Raschke <bastian.raschke@posteo.de>
All rights reserved.

"""
import sys
import os
import time
from pyfingerprint.pyfingerprint import PyFingerprint


## Enrolls new finger
##

## Tries to initialize the sensor
try:
    f = PyFingerprint('/dev/ttyAMA0', 57600, 0xFFFFFFFF, 0x00000000)

    if ( f.verifyPassword() == False ):
        raise ValueError('The given fingerprint sensor password is wrong!')

except Exception as e:
    print('The fingerprint sensor could not be initialized!')
    print('Exception message: ' + str(e))
    exit(1)

## Gets some sensor information
print('Currently used templates: ' + str(f.getTemplateCount()) +'/'+ str(f.getStorageCapacity()))

## Tries to enroll new finger
try:
    #print('Waiting for finger...')

    ## Wait that finger is read
    while ( f.readImage() == False ):
        pass

    ## Converts read image to characteristics and stores it in charbuffer 1
    f.convertImage(0x01)

    ## Checks if finger is already enrolled
    result = f.searchTemplate()
    positionNumber = result[0]

    if ( positionNumber >= 0 ):
        print('Template already exists at position #' + str(positionNumber))
        exit(1)

    #print('Remove finger...')
    time.sleep(2)

    #print('Waiting for same finger again...')

    ## Wait that finger is read again
    while ( f.readImage() == False ):
        pass

    ## Converts read image to characteristics and stores it in charbuffer 2
    f.convertImage(0x02)

    ## Compares the charbuffers
    if ( f.compareCharacteristics() == 0 ):
        raise Exception('Fingers do not match')

    ## Creates a template
    f.createTemplate()

    ## Saves template at new position number
    positionNumber = f.storeTemplate()
    print('Finger enrolled successfully!')
    print('New template position #' + str(positionNumber))

except Exception as e:
    print('Operation failed!')
    print('Exception message: ' + str(e))
    exit(1)

#!/usr/bin/env python
# -*- coding: utf-8 -*-

"""
PyFingerprint
Copyright (C) 2015 Bastian Raschke <bastian.raschke@posteo.de>
All rights reserved.

"""

from pyfingerprint.pyfingerprint import PyFingerprint


## Deletes a finger from sensor
##


## Tries to initialize the sensor
try:
    f = PyFingerprint('/dev/ttyAMA0', 57600, 0xFFFFFFFF, 0x00000000)

    if ( f.verifyPassword() == False ):
        raise ValueError('The given fingerprint sensor password is wrong!')

except Exception as e:
    print('The fingerprint sensor could not be initialized!')
    print('Exception message: ' + str(e))
    exit(1)

## Gets some sensor information
print('Currently used templates: ' + str(f.getTemplateCount()) +'/'+ str(f.getStorageCapacity()))

## Tries to delete the template of the finger
try:
    positionNumber = input('Please enter the template position you want to delete: ')
    positionNumber = int(positionNumber)

    if ( f.deleteTemplate(positionNumber) == True ):
        print('Template deleted!')

except Exception as e:
    print('Operation failed!')
    print('Exception message: ' + str(e))
    exit(1)

#!/usr/bin/env python
# -*- coding: utf-8 -*-

"""
PyFingerprint
Copyright (C) 2015 Bastian Raschke <bastian.raschke@posteo.de>
All rights reserved.

"""
import sys
import hashlib
from pyfingerprint.pyfingerprint import PyFingerprint
import os

## Search for a finger
##

## Tries to initialize the sensor
try:
    f = PyFingerprint('/dev/ttyAMA0', 57600, 0xFFFFFFFF, 0x00000000)

    if ( f.verifyPassword() == False ):
        raise ValueError('The given fingerprint sensor password is wrong!')

except Exception as e:
    print('The fingerprint sensor could not be initialized!')
    print('Exception message: ' + str(e))
    exit(1)

## Gets some sensor information
print('Currently used templates: ' + str(f.getTemplateCount()) +'/'+ str(f.getStorageCapacity()))

## Tries to search the finger and calculate hash
try:
    print('Waiting for finger...')

    ## Wait that finger is read
    while ( f.readImage() == False ):
        pass

    ## Converts read image to characteristics and stores it in charbuffer 1
    f.convertImage(0x01)

    ## Searchs template
    result = f.searchTemplate()

    positionNumber = result[0]
    accuracyScore = result[1]

    if ( positionNumber == -1 ):
        print('No match found!')
	os.execv(sys.executable, ['python'] + sys.argv)
    else:
        print('Found template at position #' + str(positionNumber))
        print('The accuracy score is: ' + str(accuracyScore))
	os.system('python /home/pi/open.py')

    ## OPTIONAL stuff
    ##

    ## Loads the found template to charbuffer 1
    f.loadTemplate(positionNumber, 0x01)

    ## Downloads the characteristics of template loaded in charbuffer 1
    characterics = str(f.downloadCharacteristics(0x01)).encode('utf-8')

    ## Hashes characteristics of template
    print('SHA-2 hash of template: ' + hashlib.sha256(characterics).hexdigest())

except Exception as e:
    print('Operation failed!')
    print('Exception message: ' + str(e))
    exit(1)

os.execv(sys.executable, ['python'] + sys.argv)
