Automated Bird Repeller System for Farms

Context

The automated bird repellent system was designed to keep birds away from feeding on crops on crop fields during harvesting seasons. The Sustainable Living Lab (SL2) in Singapore has created this prototype from scratch and implemented it on the Raitong Organics Farm in Northeastern Thailand. The entire process of conceptualizing, designing, iterative development, testing and implementation spanned close to a month, including five days spent on the Raitong Organics Farm itself.

Problem Statement

During the planting season in October and the harvesting season in July, birds such as pigeons, sparrows, and chickens were found to be feeding on the crops on the farm, causing significant damage. This led to the farm suffering losses in crop output and a subsequent adverse impact on it's revenue. Tried and tested solutions such as shooting blanks and the usage of scarecrows or laser beams were found to only provide short-term relief and had limited impact. At a time, close to 30 birds were found to be feeding off these crops, necessitating an immediate and truly effective solution.

Bird Behaviour

The birds were found to be attracted to the mill, where rice grains are stripped off the husks, sorted by size and colour, and packed. During our visit to the farm, we observed a congregation of birds (sparrows, pigeons) at two different timings: once in the morning (before 8 am) and in the evening (around 4-6 pm). The birds were found to be highly persistent, whereby despite loud noises, they made a momentary evacuation before promptly returning to their original spot.

Available Solutions

Our pre-trip research conducted online yielded a few potential solutions:

• Scarecrow: Upon enquiring about the viability of using a scarecrow with Bryan, he quipped that scarecrows are only useful as entertainment for the kids!

• Ultrasonic sound generator: Our additional research found little evidence that birds respond to this.

• Lasers: There are several commercially available laser systems. However, they are expensive, and require a large beam, high intensity laser (a laser license ought to be obtained before using this)

• Predator bird sound and speaker set: We've seen this work, but the effectiveness is still rather uncertain.

• Reflective tape: Several review videos showed that this might work in keeping birds away. However, the videos all showed application at small-sized house gardens. Will this however be able to circumvent the the birds' craving for bountiful rice?

• Predator bird drone: This has proven to work pretty effectively and could be part of potential expansion projects.

• Training a falcon: Potentially training the local species of falcons to fend off unwanted birds.

Chosen Solution

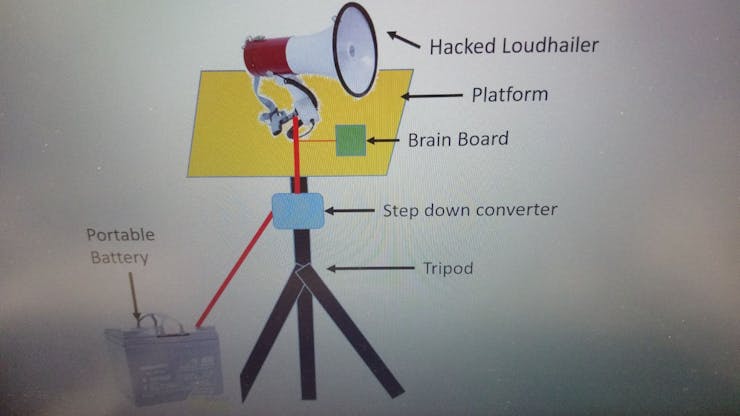

In a bid to keep these birds off the fields, SL2 conceptualised an automated bird repellent system which utilises a combination of ribbons and loud noises to shock the birds and cause them to flee the area.

Looking for the Sound

We sourced for various kinds of sounds, from natural predators such as falcon (and velociraptors) to gunshots, screams, and a ringing bell - a very entertaining mix! We will use these to test out the system to find out which will work the best. More importantly, we want the sound to be loud, surprising, and played in an irregular interval.

Hacking a Loudhailer

Looking to find an alternative to regular speakers, we hacked a loudhailer:

• Figure out which cable is for data input of the speaker.

• Connecting an input cable to it so that we can send audio data from an audio amplifier.

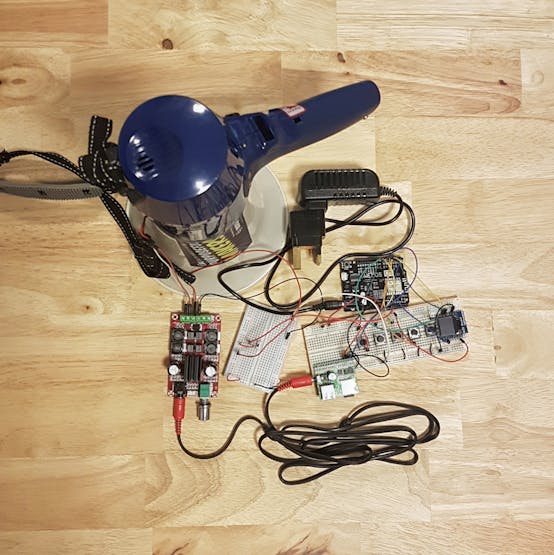

Hardware prototype

The 'sound brain' controls the audio signal sent to the megaphone speaker. We designed it to play our 'bird scarer' playlist in random intervals.

It is made up of:

• Wemos D1: Controls everything.

• MP3 Module: Read audio data off the Micro SD card, choose the audio to play, controls volume.

• Sound Amplifier: Amplify the audio signal to make it louder.

Initially, we tried to use the MP3 Module without the amplifier. It worked, but the volume was nowhere near what we wanted.

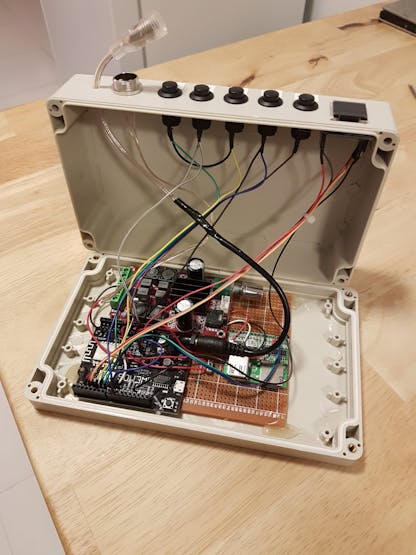

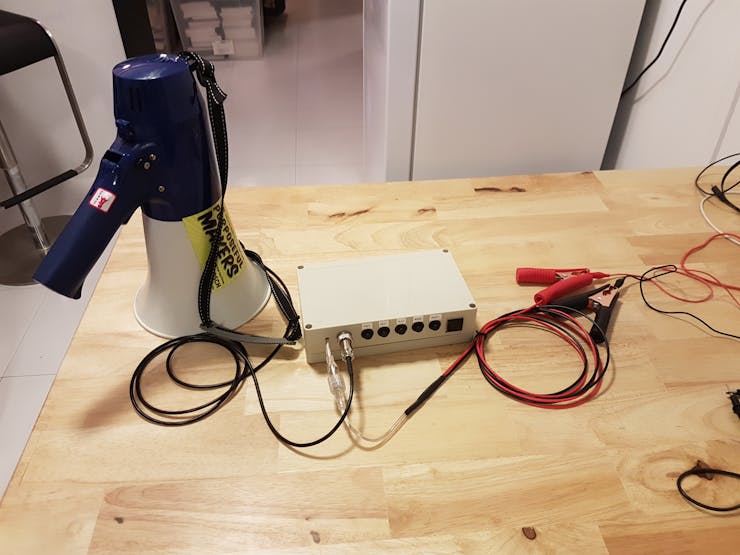

Environmental Consideration

It rained everyday when we were in RAITONG. Waterproofing is something we obviously have to consider.

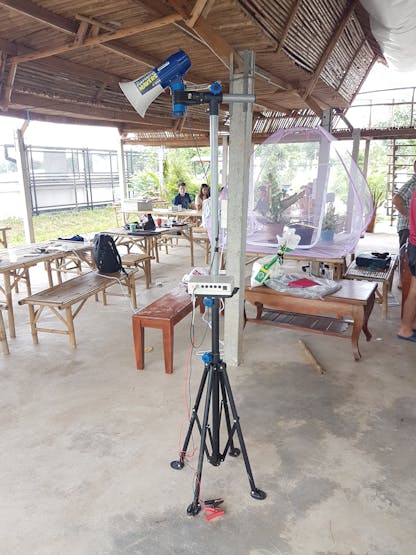

Testing the Prototype

For our test, we placed the prototype at the back of the mill, where rice husk is thrown off into a pile of buffet for the birds. This is more accessible compared to the roof, even though there are numerous there as well.

We noticed that the gunshot sound was most effective in repelling the birds. We'll try this again in the morning when there are more birds.

---------------------------------------------------------------------------------

We tried it again. Unfortunately, the birds learn fast! After they realised that the sound is not a real threat, they simply ignored the sound.

Conclusion

Our prototype does not work. We did not manage to repel the birds. However, it is still inconclusive whether sound works. Our megaphone was a 15W speaker. Perhaps using a higher powered speaker will work better. Also, the sound could be accompanied by some kind of moving object to scare the birds, such as a scarecrow that moves. A combination of movement and louder sound may work. However it is still required to randomise the sounds and location of the speaker, else the birds will get used to it.

We gave up on this solution also due to the fact that using a louder speaker may disturb the villages nearby.

So that's a wrap for our attempt using sound to repel birds. If we were to attempt to do this again, we would consider using a drone instead. Airports use drones to scare birds away from the runways. However, this is potentially costly. Thanks for reading!
