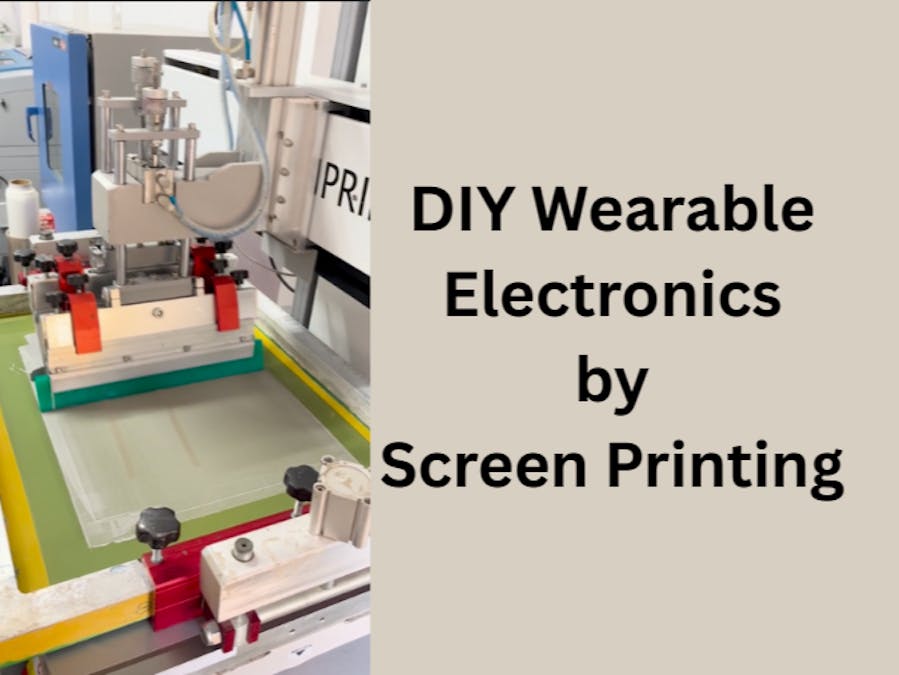

Wearable electronics are revolutionizing the way we interact with technology, blending functionality with fashion. This project delves into the art of screen-printing conductive circuits onto fabrics, enabling the creation of flexible, wearable electronic devices. Whether you're a hobbyist or a professional, this guide will walk you through the process of crafting your own screen-printed wearable tech.
🛠️ Materials Required- Conductive Ink: Silver or carbon-based inks suitable for textiles.
- Screen Printing Frame: A frame with a fine mesh screen (typically 110-160 mesh count).
- Stencil: Design of your circuit pattern.
- Squeegee: For evenly spreading the ink over the screen.
- Fabric Substrate: Stretchable fabrics like spandex or TPU-coated textiles.
- Drying/Curing Equipment: Heat press or oven, depending on ink specifications.
- Multimeter: For testing circuit continuity and resistance
Design Your Circuit:
- Use software like Adobe Illustrator or Inkscape to design your circuit pattern.
- Print the design onto a transparent sheet to create your stencil.
Prepare the Screen:
- Attach the stencil to the screen printing frame.
- Ensure it's securely fixed to prevent any movement during printing.
Set Up the Fabric:
- Place your fabric substrate on a flat surface.
- Secure it to prevent wrinkles or movement.
Apply the Conductive Ink:
- Pour a small amount of conductive ink onto the screen.
- Using the squeegee, spread the ink evenly across the stencil, ensuring it passes through the mesh onto the fabric.
Dry and Cure:
- Allow the printed fabric to air dry for a few minutes.
- Follow the ink manufacturer's instructions to cure the ink, typically involving heat pressing or baking.
Test the Circuit:
- Use a multimeter to check for continuity and measure resistance across different points of your printed circuit.
- For this example, we use an IR camera to test heating with a power supply
(Optional)Integrate Electronic Components:
- Sew or attach components like LEDs, sensors, or microcontrollers to your printed circuit.
- Ensure secure connections using conductive thread or adhesives.
