Advanced Cyber Security and Education Device - SUPERIOR BOY

Superior Boy is Cybersecurity, education, and research in one advanced device. Everything a mobile cybersecurity pro needs.

ExpertWork in progress5 hours26,588
Advanced Cyber Security and Education Device - SUPERIOR BOY

Things used in this project

Hardware components

RP2040
Raspberry Pi RP2040
×1
ESP32S
Espressif ESP32S
×1
STMicroelectronics ST7735S 1.8 inch TFT LCD Ekran
×1
Texas Instruments CC1101
×1
Nordic Semiconductor NRF24 Smd
×1
alwaysAI 3W Power Led
×1
TP4056
×1
PN532
×1
AMS1117 5V
×1
TLV73333PDBVR Sot23 3.3V
×1
bmp280
×1
mpu9250
×1

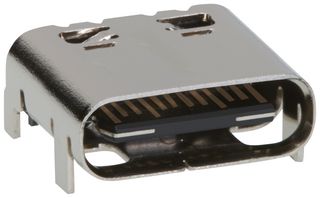

USB Connector, USB Type C
USB Connector, USB Type C
×1
IR Transceiver (Generic)
×1
Memory Socket, SD Card
Memory Socket, SD Card
×1
Solar Cockroach Vibrating Disc Motor
Brown Dog Gadgets Solar Cockroach Vibrating Disc Motor
×1
Speaker, Buzzer
Speaker, Buzzer
×1

Software apps and online services

Arduino IDE
Arduino IDE
Android Studio
Android Studio
KiCad
KiCad
Fusion 360
Autodesk Fusion 360

Story

Read more

Schematics

KiCad Schematic File

The schematic diagram for our device and the PCB to be used are attached.

KiCad PCB File

Code

superiorboy.c

Arduino
Coming soon...
#include "SuperiorBoy.h"

void setup() {

  setup.SuperiorBoy();

}

void loop() {

  loop.SuperiorBoy();

}
