Things used in this project

Hardware components:
R8326274 01
Raspberry Pi 2 Model B
×1

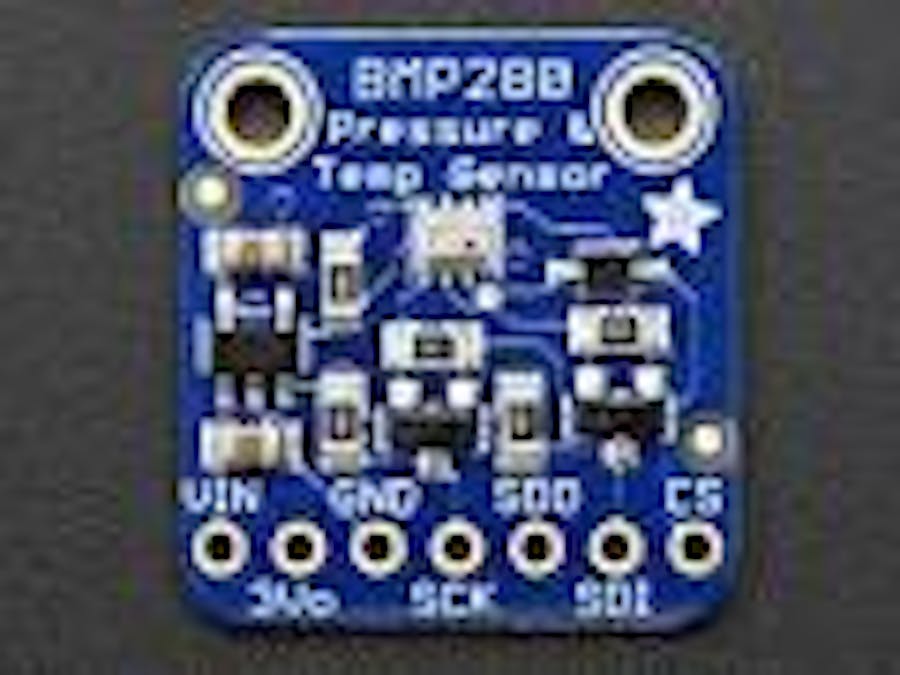

Adafruit BMP280
×1
12002 04
Breadboard (generic)
×1
11026 02
Jumper wires (generic)
×1
Software apps and online services:
Vs2015logo
Microsoft Visual Studio 2015
10
Microsoft Windows 10 IoT Core

Code

BMP280.csC#
    public class BMP280_CalibrationData
    {
        //BMP280 Registers
        public UInt16 dig_T1 { get; set; }
        public Int16 dig_T2 { get; set; }
        public Int16 dig_T3 { get; set; }

        public UInt16 dig_P1 { get; set; }
        public Int16 dig_P2 { get; set; }
        public Int16 dig_P3 { get; set; }
        public Int16 dig_P4 { get; set; }
        public Int16 dig_P5 { get; set; }
        public Int16 dig_P6 { get; set; }
        public Int16 dig_P7 { get; set; }
        public Int16 dig_P8 { get; set; }
        public Int16 dig_P9 { get; set; }
    }
    public class BMP280
    {
        //The BMP280 register addresses according the the datasheet: http://www.adafruit.com/datasheets/BST-BMP280-DS001-11.pdf
        const byte BMP280_Address = 0x77;
        const byte BMP280_Signature = 0x58;

        enum eRegisters : byte
        {
            BMP280_REGISTER_DIG_T1 = 0x88,
            BMP280_REGISTER_DIG_T2 = 0x8A,
            BMP280_REGISTER_DIG_T3 = 0x8C,

            BMP280_REGISTER_DIG_P1 = 0x8E,
            BMP280_REGISTER_DIG_P2 = 0x90,
            BMP280_REGISTER_DIG_P3 = 0x92,
            BMP280_REGISTER_DIG_P4 = 0x94,
            BMP280_REGISTER_DIG_P5 = 0x96,
            BMP280_REGISTER_DIG_P6 = 0x98,
            BMP280_REGISTER_DIG_P7 = 0x9A,
            BMP280_REGISTER_DIG_P8 = 0x9C,
            BMP280_REGISTER_DIG_P9 = 0x9E,

            BMP280_REGISTER_CHIPID = 0xD0,
            BMP280_REGISTER_VERSION = 0xD1,
            BMP280_REGISTER_SOFTRESET = 0xE0,

            BMP280_REGISTER_CAL26 = 0xE1,  // R calibration stored in 0xE1-0xF0

            BMP280_REGISTER_CONTROLHUMID = 0xF2,
            BMP280_REGISTER_CONTROL = 0xF4,
            BMP280_REGISTER_CONFIG = 0xF5,

            BMP280_REGISTER_PRESSUREDATA_MSB = 0xF7,
            BMP280_REGISTER_PRESSUREDATA_LSB = 0xF8,
            BMP280_REGISTER_PRESSUREDATA_XLSB = 0xF9, // bits <7:4>

            BMP280_REGISTER_TEMPDATA_MSB = 0xFA,
            BMP280_REGISTER_TEMPDATA_LSB = 0xFB,
            BMP280_REGISTER_TEMPDATA_XLSB = 0xFC, // bits <7:4>

            BMP280_REGISTER_HUMIDDATA_MSB = 0xFD,
            BMP280_REGISTER_HUMIDDATA_LSB = 0xFE,
        };

        //String for the friendly name of the I2C bus
        const string I2CControllerName = "I2C1";
        //Create an I2C device
        private I2cDevice bmp280 = null;
        //Create new calibration data for the sensor
        BMP280_CalibrationData CalibrationData;
        //Variable to check if device is initialized
        bool init = false;

        //Method to initialize the BMP280 sensor
        public async Task Initialize()
        {
            Debug.WriteLine("BMP280::Initialize");

            try
            {
                //Instantiate the I2CConnectionSettings using the device address of the BMP280
                I2cConnectionSettings settings = new I2cConnectionSettings(BMP280_Address);
                //Set the I2C bus speed of connection to fast mode
                settings.BusSpeed = I2cBusSpeed.FastMode;
                //Use the I2CBus device selector to create an advanced query syntax string
                string aqs = I2cDevice.GetDeviceSelector(I2CControllerName);
                //Use the Windows.Devices.Enumeration.DeviceInformation class to create a collection using the advanced query syntax string
                DeviceInformationCollection dis = await DeviceInformation.FindAllAsync(aqs);
                //Instantiate the the BMP280 I2C device using the device id of the I2CBus and the I2CConnectionSettings
                bmp280 = await I2cDevice.FromIdAsync(dis[0].Id, settings);
                //Check if device was found
                if (bmp280 == null)
                {
                    Debug.WriteLine("Device not found");
                }
            }
            catch (Exception e)
            {
                Debug.WriteLine("Exception: " + e.Message + "\n" + e.StackTrace);
                throw;
            }
        }

        private async Task Begin()
        {
            Debug.WriteLine("BMP280::Begin");
            byte[] WriteBuffer = new byte[] { (byte)eRegisters.BMP280_REGISTER_CHIPID };
            byte[] ReadBuffer = new byte[] { 0xFF };

            //Read the device signature
            bmp280.WriteRead(WriteBuffer, ReadBuffer);
            Debug.WriteLine("BMP280 Signature: " + ReadBuffer[0].ToString());

            //Verify the device signature
            if (ReadBuffer[0] != BMP280_Signature)
            {
                Debug.WriteLine("BMP280::Begin Signature Mismatch.");
                return;
            }

            //Set the initalize variable to true
            init = true;

            //Read the coefficients table
            CalibrationData = await ReadCoefficeints();

            //Write control register
            await WriteControlRegister();

            //Write humidity control register
            await WriteControlRegisterHumidity();
        }
        //Method to write 0x03 to the humidity control register
        private async Task WriteControlRegisterHumidity()
        {
            byte[] WriteBuffer = new byte[] { (byte)eRegisters.BMP280_REGISTER_CONTROLHUMID, 0x03 };
            bmp280.Write(WriteBuffer);
            await Task.Delay(1);
            return;
        }

        //Method to write 0x3F to the control register
        private async Task WriteControlRegister()
        {
            byte[] WriteBuffer = new byte[] { (byte)eRegisters.BMP280_REGISTER_CONTROL, 0x3F };
            bmp280.Write(WriteBuffer);
            await Task.Delay(1);
            return;
        }

        //Method to read a 16-bit value from a register and return it in little endian format
        private UInt16 ReadUInt16_LittleEndian(byte register)
        {
            UInt16 value = 0;
            byte[] writeBuffer = new byte[] { 0x00 };
            byte[] readBuffer = new byte[] { 0x00, 0x00 };

            writeBuffer[0] = register;

            bmp280.WriteRead(writeBuffer, readBuffer);
            int h = readBuffer[1] << 8;
            int l = readBuffer[0];
            value = (UInt16)(h + l);
            return value;
        }

        //Method to read an 8-bit value from a register
        private byte ReadByte(byte register)
        {
            byte value = 0;
            byte[] writeBuffer = new byte[] { 0x00 };
            byte[] readBuffer = new byte[] { 0x00 };

            writeBuffer[0] = register;

            bmp280.WriteRead(writeBuffer, readBuffer);
            value = readBuffer[0];
            return value;
        }

        //Method to read the caliberation data from the registers
        private async Task<BMP280_CalibrationData> ReadCoefficeints()
        {
            // 16 bit calibration data is stored as Little Endian, the helper method will do the byte swap.
            CalibrationData = new BMP280_CalibrationData();

            // Read temperature calibration data
            CalibrationData.dig_T1 = ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_T1);
            CalibrationData.dig_T2 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_T2);
            CalibrationData.dig_T3 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_T3);

            // Read presure calibration data
            CalibrationData.dig_P1 = ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P1);
            CalibrationData.dig_P2 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P2);
            CalibrationData.dig_P3 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P3);
            CalibrationData.dig_P4 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P4);
            CalibrationData.dig_P5 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P5);
            CalibrationData.dig_P6 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P6);
            CalibrationData.dig_P7 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P7);
            CalibrationData.dig_P8 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P8);
            CalibrationData.dig_P9 = (Int16)ReadUInt16_LittleEndian((byte)eRegisters.BMP280_REGISTER_DIG_P9);

            await Task.Delay(1);
            return CalibrationData;
        }


        //t_fine carries fine temperature as global value
        Int32 t_fine = Int32.MinValue;
        //Method to return the temperature in DegC. Resolution is 0.01 DegC. Output value of 5123 equals 51.23 DegC.
        private double BMP280_compensate_T_double(Int32 adc_T)
        {
            double var1, var2, T;

            //The temperature is calculated using the compensation formula in the BMP280 datasheet
            var1 = ((adc_T / 16384.0) - (CalibrationData.dig_T1 / 1024.0)) * CalibrationData.dig_T2;
            var2 = ((adc_T / 131072.0) - (CalibrationData.dig_T1 / 8192.0)) * CalibrationData.dig_T3;

            t_fine = (Int32)(var1 + var2);

            T = (var1 + var2) / 5120.0;
            return T;
        }


        //Method to returns the pressure in Pa, in Q24.8 format (24 integer bits and 8 fractional bits).
        //Output value of 24674867 represents 24674867/256 = 96386.2 Pa = 963.862 hPa
        private Int64 BMP280_compensate_P_Int64(Int32 adc_P)
        {
            Int64 var1, var2, p;

            //The pressure is calculated using the compensation formula in the BMP280 datasheet
            var1 = t_fine - 128000;
            var2 = var1 * var1 * (Int64)CalibrationData.dig_P6;
            var2 = var2 + ((var1 * (Int64)CalibrationData.dig_P5) << 17);
            var2 = var2 + ((Int64)CalibrationData.dig_P4 << 35);
            var1 = ((var1 * var1 * (Int64)CalibrationData.dig_P3) >> 8) + ((var1 * (Int64)CalibrationData.dig_P2) << 12);
            var1 = (((((Int64)1 << 47) + var1)) * (Int64)CalibrationData.dig_P1) >> 33;
            if (var1 == 0)
            {
                Debug.WriteLine("BMP280_compensate_P_Int64 Jump out to avoid / 0");
                return 0; //Avoid exception caused by division by zero
            }
            //Perform calibration operations as per datasheet: http://www.adafruit.com/datasheets/BST-BMP280-DS001-11.pdf
            p = 1048576 - adc_P;
            p = (((p << 31) - var2) * 3125) / var1;
            var1 = ((Int64)CalibrationData.dig_P9 * (p >> 13) * (p >> 13)) >> 25;
            var2 = ((Int64)CalibrationData.dig_P8 * p) >> 19;
            p = ((p + var1 + var2) >> 8) + ((Int64)CalibrationData.dig_P7 << 4);
            return p;
        }


        public async Task<float> ReadTemperature()
        {
            //Make sure the I2C device is initialized
            if (!init) await Begin();

            //Read the MSB, LSB and bits 7:4 (XLSB) of the temperature from the BMP280 registers
            byte tmsb = ReadByte((byte)eRegisters.BMP280_REGISTER_TEMPDATA_MSB);
            byte tlsb = ReadByte((byte)eRegisters.BMP280_REGISTER_TEMPDATA_LSB);
            byte txlsb = ReadByte((byte)eRegisters.BMP280_REGISTER_TEMPDATA_XLSB); // bits 7:4

            //Combine the values into a 32-bit integer
            Int32 t = (tmsb << 12) + (tlsb << 4) + (txlsb >> 4);

            //Convert the raw value to the temperature in degC
            double temp = BMP280_compensate_T_double(t);

            //Return the temperature as a float value
            return (float)temp;
        }

        public async Task<float> ReadPreasure()
        {
            //Make sure the I2C device is initialized
            if (!init) await Begin();

            //Read the temperature first to load the t_fine value for compensation
            if (t_fine == Int32.MinValue)
            {
                await ReadTemperature();
            }

            //Read the MSB, LSB and bits 7:4 (XLSB) of the pressure from the BMP280 registers
            byte tmsb = ReadByte((byte)eRegisters.BMP280_REGISTER_PRESSUREDATA_MSB);
            byte tlsb = ReadByte((byte)eRegisters.BMP280_REGISTER_PRESSUREDATA_LSB);
            byte txlsb = ReadByte((byte)eRegisters.BMP280_REGISTER_PRESSUREDATA_XLSB); // bits 7:4

            //Combine the values into a 32-bit integer
            Int32 t = (tmsb << 12) + (tlsb << 4) + (txlsb >> 4);

            //Convert the raw value to the pressure in Pa
            Int64 pres = BMP280_compensate_P_Int64(t);

            //Return the temperature as a float value
            return ((float)pres) / 256;
        }

        //Method to take the sea level pressure in Hectopascals(hPa) as a parameter and calculate the altitude using current pressure.
        public async Task<float> ReadAltitude(float seaLevel)
        {
            //Make sure the I2C device is initialized
            if (!init) await Begin();

            //Read the pressure first
            float pressure = await ReadPreasure();
            //Convert the pressure to Hectopascals(hPa)
            pressure /= 100;

            //Calculate and return the altitude using the international barometric formula
            return 44330.0f * (1.0f - (float)Math.Pow((pressure / seaLevel), 0.1903f));
        }
    }
MainPage.xamlHTML
<Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid x:Name="TemperatureSensorGrid" Background="White" Margin="1110,330,10,250">
            <Ellipse x:Name="TemperatureOutsideEllipse" Fill="White" HorizontalAlignment="Center" Height="400" Stroke="Black" VerticalAlignment="Center" Width="400"/>
            <Ellipse Fill="White" HorizontalAlignment="Center" Height="300" Stroke="Black" VerticalAlignment="Center" Width="300"/>
            <Grid x:Name= "internalTemperatureGrid">
                <Grid.RowDefinitions>
                    <RowDefinition Height="0.5*"/>
                    <RowDefinition Height="*"/>
                    <RowDefinition Height="0.5*"/>
                </Grid.RowDefinitions>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="*"/>
                </Grid.ColumnDefinitions>
                <Grid x:Name="CenterOfTemperatureGrid" Grid.Row="1" Grid.Column="1">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="4*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <TextBlock x:Name="TemperatureUnitsMain"  Grid.Row="5" Text="Celsius" TextAlignment="Center" HorizontalAlignment="Center" TextWrapping="Wrap" VerticalAlignment="Bottom" Width="155" RenderTransformOrigin="0.46,4.286" Foreground="#323232" Margin="56,0,56,15" Grid.RowSpan="2"/>
                    <TextBlock x:Name="CurrentTemperatureNumber" Grid.Row="1" Text="0" HorizontalAlignment="Center" TextWrapping="Wrap" VerticalAlignment="Top" FontSize="70" TextAlignment="Center" Foreground="#323232" Margin="115,38,114,0" Grid.RowSpan="3"/>
                    <TextBlock x:Name="CurrentTemperatureText" Grid.Row="1" Text="Current Temperature" TextAlignment="Center" HorizontalAlignment="Center" VerticalAlignment="Top" TextWrapping="Wrap" Width="155" RenderTransformOrigin="0.207,0.569" Foreground="#323232" Margin="56,13,56,0"/>
                    <TextBlock x:Name="CurrentTime" Text="0:00" HorizontalAlignment="Center" TextWrapping="Wrap" VerticalAlignment="Top" FontSize="70" TextAlignment="Center" Foreground="#323232" Margin="-1042,-351,1136,0" Width="173"/>
                </Grid>
            </Grid>
        </Grid>
        <Rectangle Fill="#C44D58" HorizontalAlignment="Left" Height="24" VerticalAlignment="Center" Width="24" Margin="585,392,0,664"/>
        <TextBlock x:Name="TooHigh" Text=" = Too Hot" VerticalAlignment="Center" HorizontalAlignment="Left" Foreground="Black" Margin="609,392,0,664" Height="24"/>
        <Rectangle Fill="#FFEC6B6B" HorizontalAlignment="Left" Height="24" VerticalAlignment="Center" Width="24" Margin="486,392,0,664"/>
        <TextBlock x:Name="TooHigh_Copy" Text=" = Hot" VerticalAlignment="Center" HorizontalAlignment="Left" Foreground="Black" Margin="515,392,0,664" Height="24"/>
        <Rectangle Fill="#FFC7F464" HorizontalAlignment="Left" Height="24" VerticalAlignment="Center" Width="24" Margin="388,392,0,664"/>
        <TextBlock x:Name="TooHigh_Copy1" Text=" = OK" VerticalAlignment="Center" HorizontalAlignment="Left" Foreground="Black" Margin="417,392,0,664" Height="24"/>
        <Rectangle Fill="#FF4ECDC4" HorizontalAlignment="Left" Height="24" VerticalAlignment="Center" Width="24" Margin="296,392,0,664"/>
        <TextBlock x:Name="TooHigh_Copy2" Text=" = Cold" VerticalAlignment="Center" HorizontalAlignment="Left" Foreground="Black" Margin="325,392,0,664" Height="24"/>
        <TextBlock x:Name="TooHigh_Copy3" Text=" = Too Cold" VerticalAlignment="Center" HorizontalAlignment="Left" Foreground="Black" Margin="206,392,0,664" Height="24"/>
        <Rectangle Fill="#FF556270" HorizontalAlignment="Left" Height="24" VerticalAlignment="Center" Width="24" Margin="177,392,0,664"/>
        <TextBlock x:Name="CurrentDate" Text="0/0/0000" HorizontalAlignment="Center" TextWrapping="Wrap" VerticalAlignment="Top" FontSize="48" TextAlignment="Center" Foreground="#323232" Margin="296,226,1362,0" Width="262"/>


    </Grid>
SensorDataProvider.csC#
public delegate void DataReceivedEventHandler(object sender, SensorDataEventArgs e);
    public class SensorDataProvider
    {
        public event DataReceivedEventHandler DataReceived;

        //Barometric Sensor
        public BMP280 BMP280;

        private Timer timer;
        private Timer writeToFile;
        Random rand = new Random();

        public SensorDataProvider()
        {
            BMP280 = new BMP280();
        }

        public void StartTimer()
        {
            timer = new Timer(timerCallback, this, 0, 3000);
            writeToFile = new Timer(writeToFileTimerCallback, this, 20000, 9000);
        }
        private async void writeToFileTimerCallback(object state)
        {

            for (int ii = 0; ii < App.TemperatureList.Count; ii++)
            {
                App.Temperatureresult.Add(App.TemperatureList[ii]);
                await Windows.Storage.FileIO.AppendTextAsync(App.TemperatureFile, App.TemperatureList[ii]);
            }
        }

        /**
         * This method records on a timer the data measured by the temperature, brightness, and soil moisture sensor,
         * then organizes all of the information collected.
         * */
        private async void timerCallback(object state)
        {
            //ensures that the temperature sensor is initialized before it is measured from
            if (BMP280 == null)
            {
                Debug.WriteLine("BMP280 is null");
            }
            else
            {
                //receives the value from the temperature sensor and saves
                //the data in the SensorDataEventArgs class, which holds
                //the sensor name, the data point, and the time the value was measured.
                //this data is then sent back to the main page and the UI is adjusted based
                //off of the measurement.
                //float currentTemperature = (float) rand.NextDouble() * 10;
                float currentTemperature = await BMP280.ReadTemperature();
                var tempArgs = new SensorDataEventArgs()
                {
                    SensorName = "Temperature",
                    SensorValue = currentTemperature,
                    Timestamp = DateTime.Now
                };
                OnDataReceived(tempArgs);
            }

        protected virtual void OnDataReceived(SensorDataEventArgs e)
        {
            if (DataReceived != null)
            {
                DataReceived(this, e);
            }
        }
    }
    public class SensorDataEventArgs : EventArgs
    {
        public string SensorName;
        public float SensorValue;
        public DateTime Timestamp;
    }
MainPage.xaml.csC#
public sealed partial class MainPage : Page
{
  public Timer controlPanelTimer;

        //This is the timer for the altitude and pressure
        public Timer altPressTimer;
        //This will be able to be set by the user in the next sprint

        //These colors dictate what the tabs that determine time span look like
        Color colorBlue;
        Color colorlightBlue;
        Color colorWhite;
        Color colorlightRed;
        Color colorRed;
        SolidColorBrush SolidColorBrushBlue;
        SolidColorBrush SolidColorBrushLightBlue;
        SolidColorBrush SolidColorBrushWhite;
        SolidColorBrush SolidColorBrushLightRed;
        SolidColorBrush SolidColorBrushRed;
        public static float currentTemperature
        public MainPage()
        {
          this.InitializeComponent();
            controlPanelTimer = new Timer(timerControlPanel, this, 0, 1000);

            colorBlue = Color.FromArgb(255, 85, 98, 112);
            colorlightBlue = Color.FromArgb(255, 78, 205, 196);
            colorWhite = Color.FromArgb(255, 199, 244, 100);
            colorlightRed = Color.FromArgb(255, 236, 107, 107);
            colorRed = Color.FromArgb(255, 196, 77, 88);
            SolidColorBrushBlue = new SolidColorBrush(colorBlue);
            SolidColorBrushLightBlue = new SolidColorBrush(colorlightBlue);
            SolidColorBrushWhite = new SolidColorBrush(colorWhite);
            SolidColorBrushLightRed = new SolidColorBrush(colorlightRed);
            SolidColorBrushRed = new SolidColorBrush(colorRed);

            DateTime Now = DateTime.Now;
            Random rand = new Random();
            TimeSpan oneDay = new TimeSpan(1, 0, 0, 0);
            TimeSpan oneHour = new TimeSpan(1, 0, 0);
            DateTime LowerBound = Now - oneDay;
            while (LowerBound < Now)
            {
                float randomValue = (float)rand.NextDouble() * 10;
                String nextValue = randomValue + "," + LowerBound + Environment.NewLine;
                App.TemperatureList.Add(nextValue);

                randomValue = (float)rand.NextDouble() * 10;
                nextValue = randomValue + "," + LowerBound + Environment.NewLine;
                App.BrightnessList.Add(nextValue);

                randomValue = (float)rand.NextDouble() * 10;
                nextValue = randomValue + "," + LowerBound + Environment.NewLine;
                App.SoilMoistureList.Add(nextValue);

                LowerBound += oneHour;
            }
        }
  private async void SensorProvider_DataReceived(object sender, SensorDataEventArgs e)
        {
            String format = formatOfSensorValue(e.SensorValue);
            String nextValue = e.SensorValue + "," + DateTime.Now + Environment.NewLine;
            SolidColorBrush ellipseFill;
            switch (e.SensorName)
            {
                case "Temperature":
                    await Dispatcher.RunAsync(CoreDispatcherPriority.Normal, () =>
                    {
                        currentTemperature = e.SensorValue;
                        float suggestionTemperature = idealTemperature - e.SensorValue;
                        CurrentTemperatureNumber.Text = e.SensorValue.ToString(format);
                        OurSuggestionNumberTemperature.Text = suggestionTemperature.ToString(format);
                        ellipseFill = FigureOutFill(suggestionTemperature);
                        TemperatureOutsideEllipse.Fill = ellipseFill;

                        TemperatureUnitsMain.Foreground = ellipseFill;
                        IdealTemperatureText.Foreground = ellipseFill;
                        IdealTemperatureNumber.Foreground = ellipseFill;
                        CurrentTemperatureNumber.Foreground = ellipseFill;
                        CurrentTemperatureText.Foreground = ellipseFill;
                        OurSuggestionTextTemperature.Foreground = ellipseFill;
                        OurSuggestionNumberTemperature.Foreground = ellipseFill;

                        App.TemperatureList.Add(nextValue);
                    });
                    break;
            }
        }
                public SolidColorBrush FigureOutFill(float suggestion)
        {
            if (suggestion > 9)
            {
                return SolidColorBrushBlue;
            }
            else if (suggestion > 3)
            {
                return SolidColorBrushLightBlue;
            }
            else if (suggestion > -3)
            {
                return SolidColorBrushWhite;
            }
            else if (suggestion > -9)
            {
                return SolidColorBrushLightRed;
            }
            else
            {
                return SolidColorBrushRed;
            }
        }
}

Credits

315922854b8b9d601de0d0238ddaf323
Super Kid

I am building the project with IoT with Windows (Windows On Devices). Also I have a tag: Break your heart for the beginner.

Contact

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

Horus: The Weather Station
Intermediate
  • 139
  • 4

Full instructions

A Raspberry Pi-based weather station that measures temperature, humidity and pressure using the Astro Pi Sense HAT and uploads the data.

How To Configure Moonlight For Steam Using JustBoom
Intermediate
  • 36
  • 2

Full instructions

This guide will show you how to install Moonlight for Raspbian and configure it for your JustBoom to stream games from your PC.

Reducing Arduino Power Consumption
Intermediate
  • 162
  • 5

Full instructions

One the most important feature of portable electronics should be long battery life. We can reduce the current drawn by several ways.

DIY Patient Thermometer for Healthcare Training
Intermediate
  • 66
  • 2

Work in progress

DIY thermometer, IR remote controlled. 9 different temperatures. For use in healthcare simulation training. Cost-effective solution.

Raspberry Pi Motion Tracking Gun Turret
Intermediate
  • 6,973
  • 16

Full instructions

A motion tracking airsoft or Nerf gun turret with autonomous and manual operation modes, controlled by a Raspberry Pi.

Particle Photon Based Security System with Alerting
Intermediate
  • 1,377
  • 20

Full instructions

Be alerted to any door or window opening and closing in your house on your smart phone.

Sign up / LoginProjectsPlatformsTopicsContestsLiveAppsBetaFree StoreBlog
