Micro-Doppler Based Pedestrian Classification for ADAS​

clc
clear all
x = readDCA1000_drone('FINAL_DRONE_3.bin');
X=x(1,:);
plot(abs(X))

L = 64;  % adc samples per chirp
nchirp = (length(X)/L);   %% no of chirps

Xr_trans = vec2mat(X,L) ;
Xr = Xr_trans';

N = length(Xr);
K = N-L+1 ;
for  i = 1: K
    for j = 1 : L
         A(j,i) = Xr(1,i+j-1);
         B(j,i) = Xr(2,i+j-1);
         C(j,i) = Xr(3,i+j-1);
    end

end

Z = A+B+C;


wvd(Xr(1,:),1000);
Tsamp = 0.001 ;

clf;

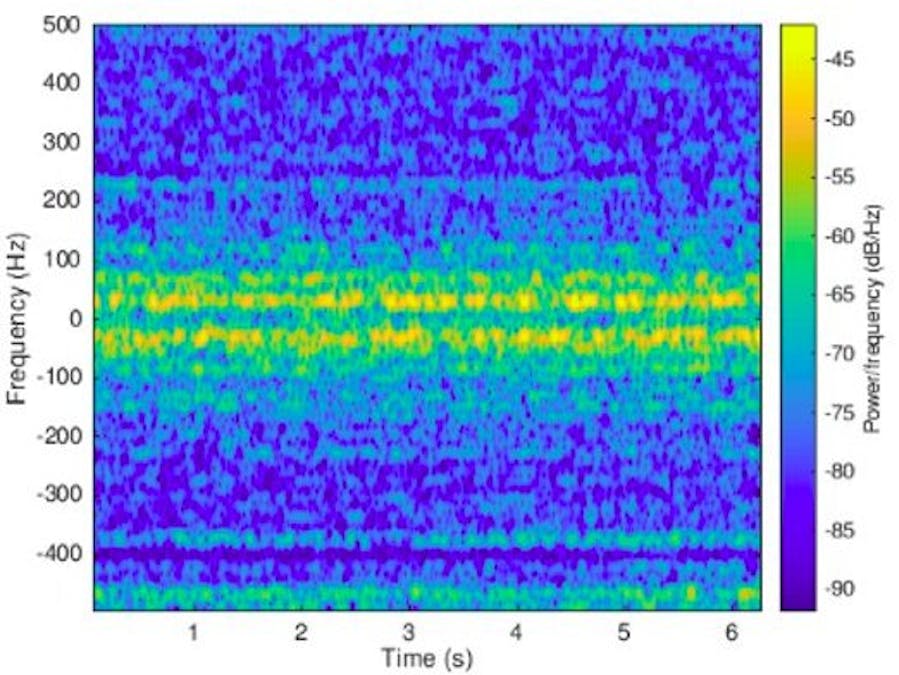

spectrogram(sum(Xr),kaiser(128,10),120,256,1/Tsamp,'centered','yaxis');
clim = get(gca,'CLim');
set(gca,'CLim',clim(2)+[-50 0])



[uxd,sxd,vxd] = svd(Xr);
clf
plot(10*log10(diag(sxd)));
xlabel('Rank');
ylabel('Singular Values');
hold on;
hold on;
plot([8 8],[20 55],'r--');
plot([17 17],[20 55],'r--');
plot([45 45],[20 55],'r--');
text(5,35,'A');
text(15,35,'B');
text(35,35,'C');
text(57,35,'D');


rk = 8:14;
xdr = uxd(:,rk)*sxd(rk,:)*vxd';
clf
spectrogram(sum(xdr),kaiser(128,10),120,256,1/Tsamp,'centered','yaxis');
clim = get(gca,'CLim');
set(gca,'CLim',clim(2)+[-50 0])


[uxd,sxd,vxd] = svd(A);
clf
plot(10*log10(diag(sxd)));
xlabel('Rank');
ylabel('Singular Values');
hold on;
hold on;
plot([8 8],[20 55],'r--');
plot([17 17],[20 55],'r--');
plot([45 45],[20 55],'r--');
text(5,35,'A');
text(15,35,'B');
text(35,35,'C');
text(57,35,'D');


rk = 14:24 ;
xdr = uxd(:,rk)*sxd(rk,:)*vxd';
clf
spectrogram(sum(xdr),kaiser(128,10),120,256,1/Tsamp,'centered','yaxis');
clim = get(gca,'CLim');
set(gca,'CLim',clim(2)+[-50 0])



wvd(sum(xdr),1000);


S = Z'*Z ;

[uxd,sxd,vxd] = svd(S);
clf
plot(10*log10(diag(sxd)));
xlabel('Rank');
ylabel('Singular Values');
hold on;
hold on;
plot([8 8],[20 55],'r--');
plot([17 17],[20 55],'r--');
plot([45 45],[20 55],'r--');
text(5,35,'A');
text(15,35,'B');
text(35,35,'C');
text(57,35,'D');


rk = 8:14;
xdr = uxd(:,rk)*sxd(rk,:)*vxd';
clf
spectrogram(sum(xdr),kaiser(128,10),120,256,1/Tsamp,'centered','yaxis');
clim = get(gca,'CLim');
set(gca,'CLim',clim(2)+[-50 0])
ylim([-0.4 0.4])
