How to Make an Electric Dialer with Arduino

When I was a child, I was curious about everything. One of these questions, was how a telephone worked. Later on, I learned the related knowledge and started another journey - how to make phone by myself.

Well, if you have the same experience, you may be interested to check this basic but interesting tutorial: make a dialer with Arduino (little programming). Not a whole telephone itself, I'm afraid. I'm making this dialer so when making calls with the telephone (not cell phone or nowadays smart phone), I can just pick up the phone receiver and place the speaker near its mic, type in the number on my PC on Serial Monitor of Arduino IDE, and the number will be dialed accordingly.

Step 1: Prepare the components

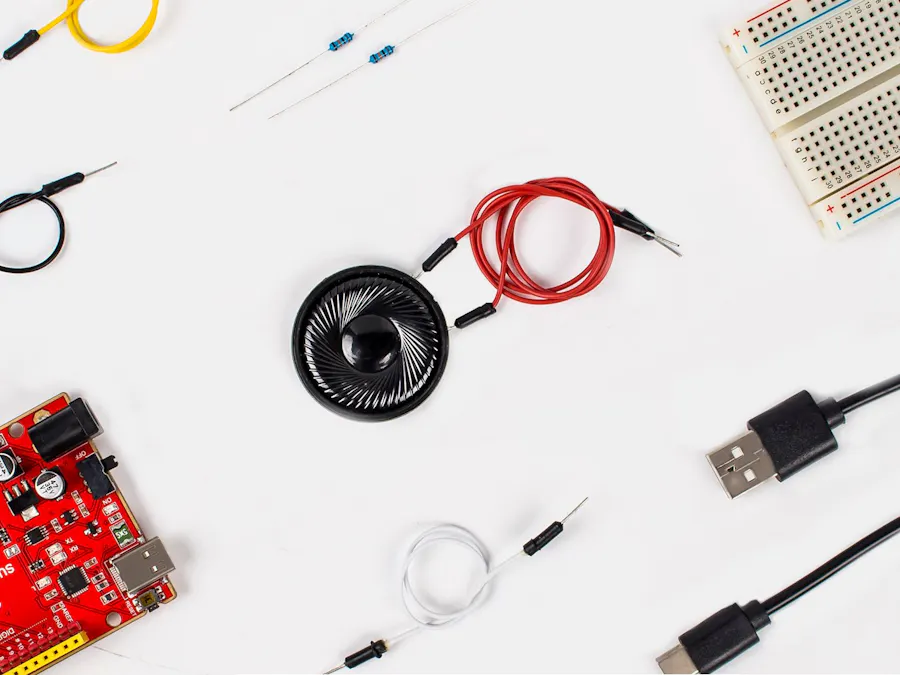

SunFounder Mars/Arduino Uno board

USB cable

Speaker

220 Ohm resistor (for current-limiting)

Breadboard

Several jumper wires

Step 2: Connect the devices

Wire them up: Uno's GND to one pin of the speaker, each of Pin 11 and Pin 12 to a resistor respectively, then the resistors to the other pin of the speaker. In the end, connect the Mars board to the computer with a type-C cable.

Step 3: Open Arduino IDE, write the code and Tone library, and run the program

First write/copy the code in the Arduino IDE (here I use the version 1.8.0).

Include the Tone library. Click Sketch -> Include Library -> Manage Libraries.

On the manager window, type in tone to search (it may take a while to auto-update), find ToneLibrary and click Install.

Then select Tools -> Port and Board. Click the upload icon to burn the code to the Arduino board.

Step 4: Power on and "dial" the phone number

Power on the circuit by the USB cable connected to the computer. Open Serial Monitor in the IDE and enter the phone number on the window.

Then the speaker will dial the number you entered. Place the telephone receiver mic near the speaker, and the phone will dial automatically. Saved the rotary panel! Since the modern smart phones cannot dial, we can test only. Hit the Call on the mobile phone, tap out a tele number and enter the same one on the serial window. Listen, the same sound!

BTW, I found that if the resistor is removed, the speaker will make louder sounds. But, that's not so safe in protecting the speaker. So be cautious when trying.
