Simulation of Calculator Keypad with Arduino in Proteus

In this Arduino tutorial you will learn how to connect calculator keypad with the Arduino board..

BeginnerFull instructions provided3,163

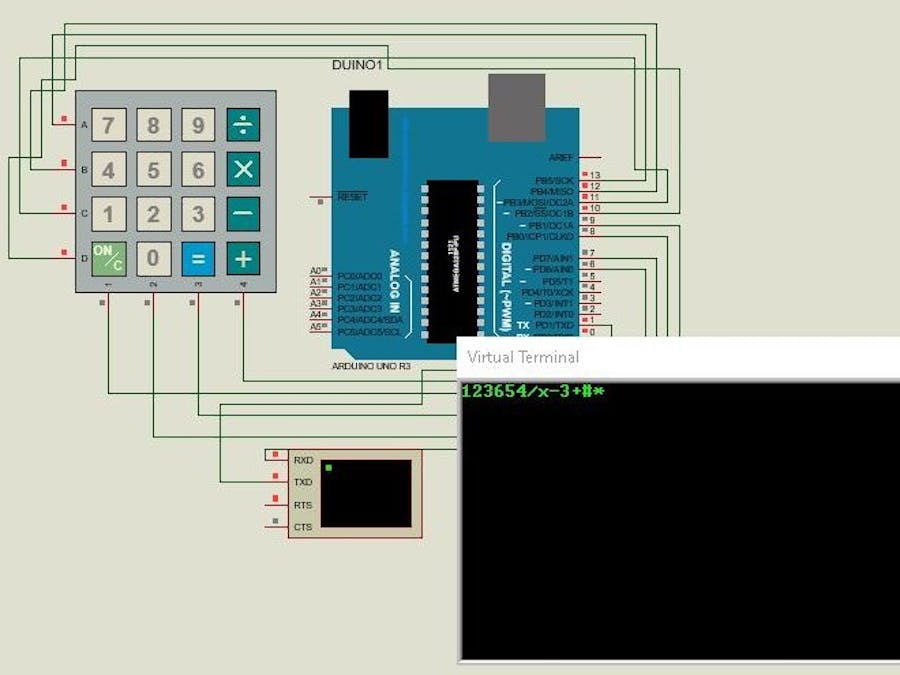

Simulation of Calculator Keypad with Arduino in Proteus

Things used in this project

Story

Read more

Schematics

Proteus simulation file

Code

ARDUINO CODE

Arduino
#include <Keypad.h>

const byte ROWS = 4; //four rows
const byte COLS = 4; //three columns
char keys[ROWS][COLS] = {
{'7','8','9', '/'},
{'4','5','6','x'},
{'1','2','3','-'},
{'*','0','#','+'}
};
byte rowPins[ROWS] = {13, 12, 11, 10}; //connect to the row pinouts of the keypad
byte colPins[COLS] = {9, 8, 7, 6}; //connect to the column pinouts of the keypad

Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

int KeyCheck = 0;

void setup()
{
Serial.begin(9600);

}

void loop()
{
char key = keypad.getKey();

if (key)
{
if(key == '1'){KeyCheck = 1; Serial.print("1");}
if(key == '2'){KeyCheck = 1; Serial.print("2");}
if(key == '3'){KeyCheck = 1; Serial.print("3");}

if(key == '4'){KeyCheck = 1; Serial.print("4");}
if(key == '5'){KeyCheck = 1; Serial.print("5");}
if(key == '6'){KeyCheck = 1; Serial.print("6");}

if(KeyCheck == 0){Serial.print(key);}
KeyCheck = 0;
}

}
