Working with LCD

This project demonstrates the working with LCD and Arduino.

BeginnerProtip720
Working with LCD

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
USB Cable 2.0 Type A/B for Arduino Uno
DIYables USB Cable 2.0 Type A/B for Arduino Uno
×1
Alphanumeric LCD, 16 x 2
Alphanumeric LCD, 16 x 2
×1
Jumper Wires
DIYables Jumper Wires
×16
Breadboard
DIYables Breadboard
×1
Resistor
DIYables Resistor
×1
Prototype Expansion Board for Arduino Uno
DIYables Prototype Expansion Board for Arduino Uno
Optional
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

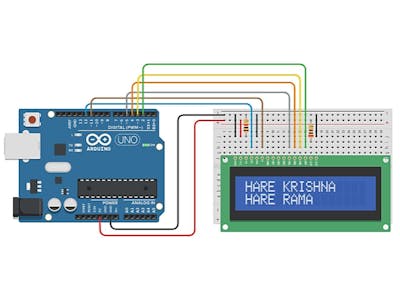

Breadboard Diagram

Make Connections as shown in the figure

Code

Code for working with LCD

Arduino
Prints "HARE KRISHNA" on the first row and "HARE RAMA" on the second row.
#include <LiquidCrystal.h>

LiquidCrystal MyLCD (12, 11, 5, 4, 3, 2);

void setup()
{
  MyLCD.begin(16, 2);
  MyLCD.home();
  MyLCD.print ("HARE KRISHNA");
  MyLCD.setCursor(0,1);
  MyLCD.print ("HARE RAMA");
}

void loop ()
{
}
