Series Circuit

This project is taken from the book "Arduino Projects Book" of the Starter Kit. The two switches are in series.

BeginnerProtip2,119

Things used in this project

Hardware components

Arduino UNO

DIYables USB Cable 2.0 Type A/B for Arduino Uno

DIYables Jumper Wires

DIYables LED

DIYables Resistor

DIYables Jumper Wires

DIYables Breadboard

DIYables Prototype Expansion Board for Arduino Uno

Optional

DIYables Starter Kit

Optional

Story

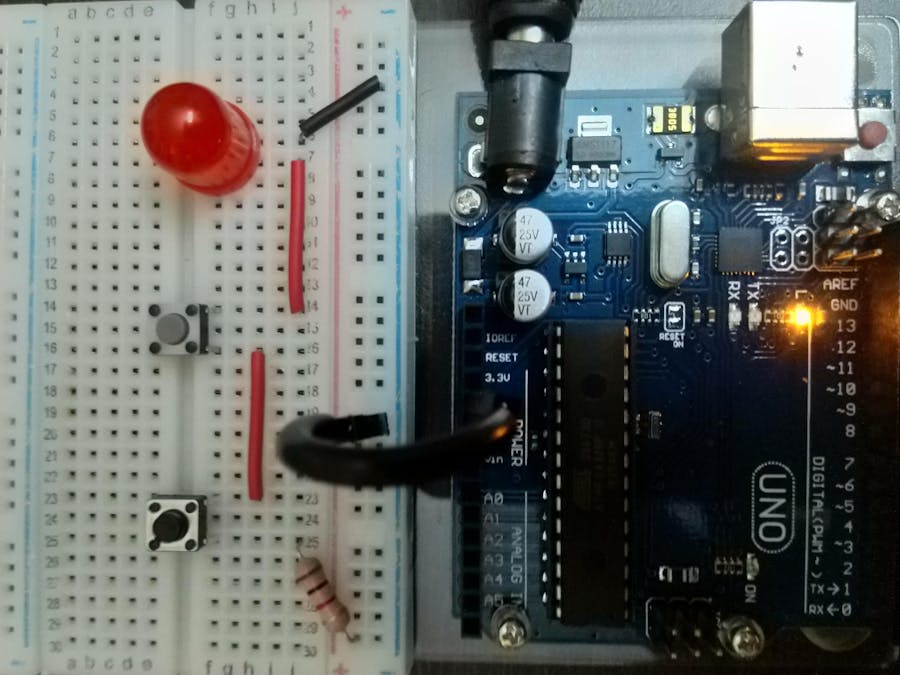

This project is taken from the book "Arduino Projects Book" of the Starter Kit. The two switches are in series. This means that the same electrical current flows through both of them, so that they both have to be pressed for the LED to light up. Arduino is just the power source for this circuit

Series Circuit
