Things used in this project

Hardware components:
TD1208
×1
TD1208 breakout
×1
181 02
Adafruit Standard LCD - 16x2 White on Blue
×1
Mfr 25frf52 1m sml
Resistor 1M ohm
×1
Kemet c315c103k1r5ta image
Capacitor 10 nF
×1
rotary pulse dial from old telephone
×1
Generic push button
×1
generic battery holder
×1
Software apps and online services:
Screen%20shot%202016 03 01%20at%209.14.06%20pm

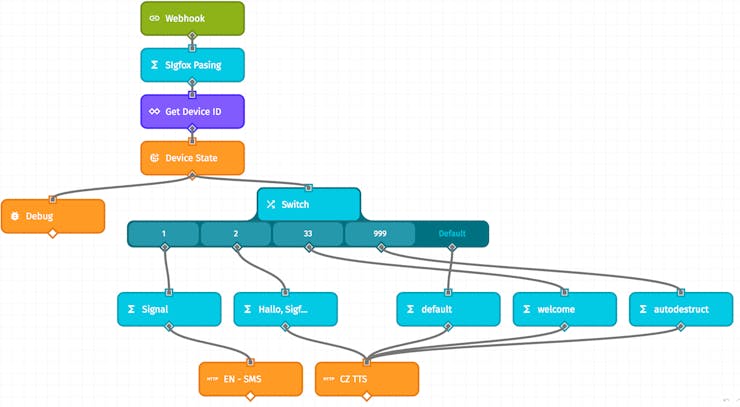

Losant Losant Platform
Sigfox logo rgb j7ilnvhq6o
Sigfox
Hand tools and fabrication machines:
3drag
3D Printer (generic)

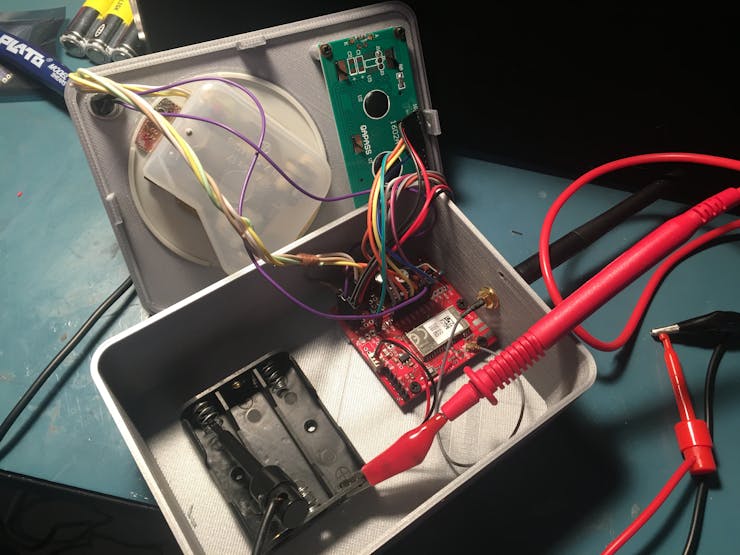

Custom parts and enclosures

enclosure TOP
enclosure BOTTOM

Schematics

Schematics
2017 07 15 13 17 51 dial pdf   adobe acrobat reader dc zaquluqyge

Code

Main codeC/C++
Main code utilizes modified library LCD_HD44780_EFM32
/******************************************************************************
 * @file
 * @brief Dial - rotary dial with sigfox connectivitya
 * @author David Týr
 * @version 1.0.0
 ******************************************************************************

 ******************************************************************************/

#include <efm32.h>
#include <em_gpio.h>
#include <td_core.h>
#include <td_sigfox.h>
#include <td_gpio.h>
#include <td_measure.h>
#include <td_rtc.h>
#include <em_timer.h>
//#include <td_tools_led.h>
#include <td_tools_switch.h>


#include <td_uart.h>
#include <td_printf.h>
//#include <td_stream.h>

#include <LCD_HD44780_EFM32.h>



#define TD_GEOLOC_USE_CODE		0
#define TD_SCHEDULER_MAX_TIMER	5


/* This file declare all "dynamic" library data. It should be last included file
 * Standard size value can be override before including this file
 */



#define TD_GEOLOC_USE_CODE 0
#include <td_config.h>

/*******************************************************************************
 *************************   DEFINES   *****************************************
 ******************************************************************************/


#define PW_PORT			TIM2_PORT
#define PW_BIT			TIM2_BIT
#define Pulse_PORT	    SCL_PORT
#define Pulse_BIT		SCL_BIT
#define Pulse_MASK		SCL_MASK
#define PDONE_PORT		SDA_PORT
#define PDONE_BIT		SDA_BIT
#define PDONE_MASK		SDA_MASK
#define BUTTON_PORT		DAC0_PORT
#define BUTTON_BIT		DAC0_BIT
#define BUTTON_MASK		DAC0_MASK


/*******************************************************************************
 ******************************  CONSTANTS  ************************************
 ******************************************************************************/

/*******************************************************************************
 *************************   PRIVATE VARIABLES   *******************************
 ******************************************************************************/

/** Button event flag */
/** Timer ID */
uint8_t Timer_timeout = 0xFF;


uint8_t SW_pulse = 0;
uint8_t SW_button = 0;
uint8_t Pulse_count = 0;
uint32_t MyNum = 0;
uint32_t Phone = 0;
uint32_t Code = 0;
uint8_t Stage = 0; //0- off 1-PWD 2-dial 3-code
static bool Disp_ON = false;
static bool SendEvent = false;

static uint8_t frame[11];


uint32_t PWD = 123;
uint16_t Timeout = 30;


/*******************************************************************************
 *************************   PRIVATE FUNCTIONS   *******************************
 ******************************************************************************/



static int COMMIT(uint32_t arg, uint8_t repetition) {

	Pulse_count--;

	TD_SCHEDULER_Restart (Timer_timeout);

	char buffer[1];

	if (Pulse_count == 0) {
		Pulse_count = 0;
		//Pulse_start = true;
		//lcd_clrscr();
		MyNum = 0;
		Stage--;

		return 0;
	}

	if (Pulse_count > 10  ) {
			Pulse_count = 0;
			return 0;
		}

	if (Pulse_count == 10) {
		Pulse_count = 0;
	}

	sprintf(buffer, "%d", Pulse_count);


	if (Stage == 1) {
		lcd_puts("*");
	}
	else {
		lcd_puts(buffer);

	}

	MyNum = (MyNum * 10) +  Pulse_count;

	Pulse_count = 0 ;

	return 1;
}

static void PULSE(uint32_t mask)
{

		Pulse_count++;

		TD_RTC_Delay(100);
		GPIO_IntConfig(Pulse_PORT, Pulse_BIT, true, false, true);

	}

static void TURN_OFF(uint32_t arg, uint8_t repetition)
{
	Disp_ON = false;
	GPIO_PinOutClear(PW_PORT, PW_BIT);
	GPIO_PinOutClear(USR0_PORT, USR0_BIT);
	GPIO_PinOutClear(USR1_PORT, USR1_BIT);
	GPIO_PinOutClear(USR2_PORT, USR2_BIT);
	GPIO_PinOutClear(USR3_PORT, USR3_BIT);
	GPIO_PinOutClear(USR4_PORT, USR4_BIT);
	GPIO_PinOutClear(DB2_PORT, DB2_BIT);
	GPIO_PinOutClear(DB3_PORT, DB3_BIT);

}


/*******************************************************************************
 **************************   PUBLIC FUNCTIONS   *******************************
 ******************************************************************************/



/***************************************************************************//**
 * @brief
 *   User setup function.
 ******************************************************************************/
void TD_USER_Setup(void)
{

	  // Initialize printf() to work with the LEUART
	 //     init_printf(TD_UART_Init(9600, true, false),
	  //    		TD_UART_Putc,
	   //   		TD_UART_Start,
	    //  		TD_UART_Stop);
	     // tfp_printf("START\r\n");

	  	// If using DB2/DB3
	    GPIO_DbgSWDIOEnable(false);
	    GPIO_DbgSWDClkEnable(false);

		 TD_RTC_Delay(10000);


			// Define the button pin as an input with an internal pull-up resistor
				GPIO_PinModeSet(PW_PORT, PW_BIT, gpioModePushPull, 0);
				GPIO_DriveModeSet(PW_PORT, gpioDriveModeHigh);




		int type;
		IRQn_Type irq_parity;


	// Define the button pin as an input with an internal pull-up resistor
		GPIO_PinModeSet(Pulse_PORT, Pulse_BIT, gpioModeInputPull, 1);

		// Set up a user hook on button pin interrupt
		type = (Pulse_MASK & TD_GPIO_ODD_MASK) ?
		TD_GPIO_USER_ODD : TD_GPIO_USER_EVEN;
		TD_GPIO_SetCallback(type, PULSE, Pulse_MASK);

		// Enable falling edge and rise interrupts on button pin
		GPIO_IntConfig(Pulse_PORT, Pulse_BIT, true, false, true);

		// Clear and enable the corresponding interrupt in the CPU's Nested Vector
		// Interrupt Controller
		irq_parity =
					(Pulse_MASK & TD_GPIO_ODD_MASK) ? GPIO_ODD_IRQn : GPIO_EVEN_IRQn;
		NVIC_ClearPendingIRQ(irq_parity);
		NVIC_EnableIRQ(irq_parity);









		// Push button initialization
		SW_pulse = TD_TOOLS_SWITCH_Init(PDONE_PORT, PDONE_BIT, gpioModeInputPull, true, true, 10, 3, 10);
		SW_button = TD_TOOLS_SWITCH_Init(BUTTON_PORT, BUTTON_BIT, gpioModeInputPull, true, true, 1, 3, 10);

		// Interrupt handling
		TD_TOOLS_SWITCH_Start(SW_pulse);
		TD_TOOLS_SWITCH_Start(SW_button);







}

/***************************************************************************//**
 * @brief
 *   User loop function.
 ******************************************************************************/
void TD_USER_Loop(void)
{
	// buttons handling
					switch (TD_TOOLS_SWITCH_Process(SW_pulse)) {
						case TD_TOOLS_SWITCH_SHORT_RELEASED:
							 COMMIT(0,0);
							break;

					default:
						break;
					}

					switch (TD_TOOLS_SWITCH_Process(SW_button)) {
						case TD_TOOLS_SWITCH_SHORT_RELEASED:



							if (!Disp_ON) {
								TD_SCHEDULER_Restart (Timer_timeout);
								Timer_timeout = TD_SCHEDULER_Append(Timeout, 0 , 0, TD_SCHEDULER_ONE_SHOT, TURN_OFF, 1); //timeout start
								GPIO_PinOutSet(PW_PORT, PW_BIT);
								TD_RTC_Delay (5000);
								lcd_init(LCD_DISP_ON_CURSOR_BLINK);

								Stage = 0;
								MyNum = 0;
								Pulse_count = 0;

								Disp_ON = true;
							}


							switch (Stage) {

							case 1:
								if (MyNum == PWD) {
									lcd_clrscr();
									lcd_home();
									 lcd_command(0x0C);
									lcd_puts("OK");

									TD_RTC_Delay (T1S);
									lcd_command(0x0F);
									Stage = 2;
								}
								else {
									lcd_clrscr();
									lcd_home();
									lcd_puts("WRONG PIN!!");

									TD_RTC_Delay (T3S);
									 MyNum =0;
									Stage = 0;
								}
							break;

							case 3:
								Phone = MyNum;
								lcd_clrscr();
								lcd_home();
								lcd_command(0x0C);
								lcd_puts("OK");
								TD_RTC_Delay (T1S);
								lcd_command(0x0F);
								Stage = 4;

							break;


							case 5:
								Code = MyNum;
								lcd_clrscr();
								lcd_home();
								lcd_command(0x0C);
								lcd_puts("TRANSMITTING...");
								SendEvent = true;

							break;

							}

						break;

					default:
						break;
					}

	if (Disp_ON) {

		switch (Stage) {

		case 0:
			lcd_clrscr();
			lcd_home();

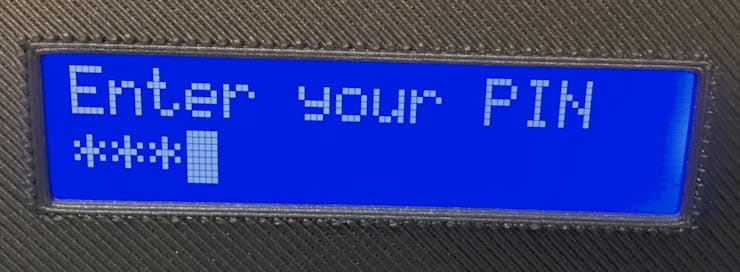

			lcd_puts("Enter your PIN");
			MyNum = 0;
			Stage = 1;
			lcd_gotoxy(0,1);
		break;


		case 2:
			lcd_clrscr();
			lcd_home();

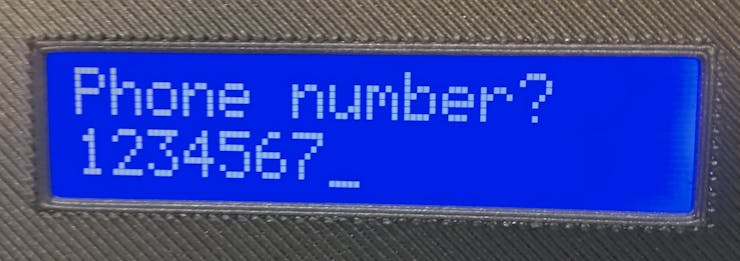

			lcd_puts("Phone number?");
			lcd_gotoxy(0,1);
			MyNum = 0;
			Stage = 3;
		break;

		case 4:
			lcd_clrscr();
			lcd_home();

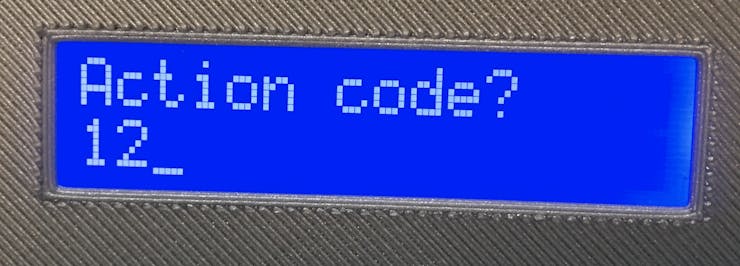

			lcd_puts("Action code?");
			lcd_gotoxy(0,1);
			MyNum = 0;
			Stage = 5;
		break;
		}
	}

	if (SendEvent) {


				// Send the single byte counter to the SIGFOX network
				unsigned int volt = TD_MEASURE_VoltageTemperatureExtended(false);



				frame[1] = ( volt >> 8 ) & 0xff;
				frame[2] = ( volt ) & 0xff;
				frame[3] = ( Phone >> 24 ) & 0xff;
				frame[4] = ( Phone >> 16 ) & 0xff;
				frame[5] = ( Phone >> 8 ) & 0xff;
				frame[6] = ( Phone ) & 0xff;
				frame[7] = ( Code >> 24 ) & 0xff;
				frame[8] = ( Code >> 16 ) & 0xff;
				frame[9] = ( Code >> 8 ) & 0xff;
				frame[10] = ( Code ) & 0xff;



				TD_SIGFOX_Send(frame, 11, 0);

				SendEvent = false;


				lcd_clrscr();
				lcd_home();
				lcd_command(0x0C);
				lcd_puts("DONE!!!");
				TD_RTC_Delay (T5S);
				TD_SCHEDULER_Remove (Timer_timeout);
				TURN_OFF (0,0);

			}

}
LCD_HD44780_EFM32.hC/C++
LCD HD44780 library h-file
No preview (download only).
LCD_HD44780_EFM32.cC/C++
LCD_HD44780 library
No preview (download only).

Credits

David Týr

An open-minded technological enthusiast who would like to taste everything new. In his free time, he loves to make own DIY projects.
