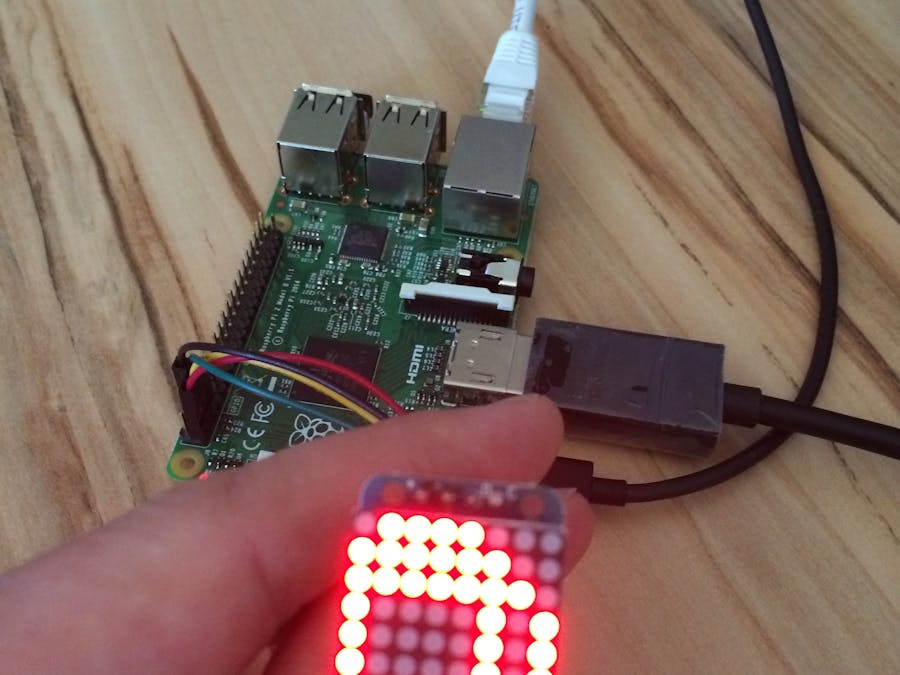

8x8 LED Matrix display on RPi 2 with Windows 10 IoT Core

Adafruit Mini 8x8 LED Matrix is simple graphical display with I2C interface. To prepare image for display is not straightforward. Every row is represented by one byte but columns are shifted by one. First column is bit 7 but second column is bit 0 in byte.

Used driver chip HT16K33 can control 16x8 displays so we will need just every second row.

Application will show schema of display where you can switch LED on and off and you will see result on display connected to Raspberry Pi 2 and you will see byte value for every line. Application will run on regular computers without I2C bus too.

Hardware setup

You will need to do some soldering. Please follow instructions on Adafruit web (https://learn.adafruit.com/adafruit-led-backpack). There are more similar Matrix displays so you will need to follow right one. Wiring is very simple. Raspberry Pi already contains pull up resistors for I2C bus so you need just connect 3.3 V to VCC, GND to GND, SDA to SDA and SCL to SCL. Check Raspberry Pi pinout on my favorite interactive pinout diagram (http://pi.gadgetoid.com/pinout). It is recommended to use separate power supply for external hardware because of limited current from Raspberry Pi. Do not use 5 V. It can destroy Rapsberry Pi.

Application

1. Setup your PC to work with Windows 10 IoT Core (http://ms-iot.github.io/content/win10/SetupPC.htm).

2. Start new Project with Windows Universal Blank App template

1. Add reference to Windows IoT Extension SDK

User Interface

User interface is simple grid 8 rows and 9 columns. Last column is for row byte value.

<Grid Width="450" Height="400" Name="_matrix">

            <Grid.RowDefinitions>

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

                <RowDefinition />

            </Grid.RowDefinitions>

            <Grid.ColumnDefinitions>

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

                <ColumnDefinition />

            </Grid.ColumnDefinitions>

 </Grid>

We will fill grid using Ellipse and TextBlock objects in code behind. Ellipses will represent LEDs and TextBlock will show byte value for row.

for (int i = 0; i < MATRIX_SIZE; i++)

            {

                TextBlock tb = new TextBlock();

                tb.Text = "0x00";

                tb.HorizontalAlignment = HorizontalAlignment.Center;

                tb.VerticalAlignment = VerticalAlignment.Center;

                tb.SetValue(Grid.RowProperty, i);

                tb.SetValue(Grid.ColumnProperty, MATRIX_SIZE);

                _matrix.Children.Add(tb);

                _matrixRowValue[i] = tb;



                for (int j = 0; j < MATRIX_SIZE; j++)

                {

                    Ellipse led = new Ellipse();

                    led.Width = 40;

                    led.Height = 40;

                    led.HorizontalAlignment = HorizontalAlignment.Center;

                    led.VerticalAlignment = VerticalAlignment.Center;

                    led.Fill = _off;

                    led.SetValue(Grid.RowProperty, i);

                    led.SetValue(Grid.ColumnProperty, j);

                    led.PointerPressed += Led_PointerPressed;

                    _matrix.Children.Add(led);

                }

            }

I2C communication

If you want to sommunicate with I2C device you need to know address of device and communication speed. Object _matrixDevice is type of I2cDevice class.

                // I2C bus settings

                // Address of device is 0x70

                I2cConnectionSettings settings = new I2cConnectionSettings(0x70);

                // Using standard speed 100 kHZ

                settings.BusSpeed = I2cBusSpeed.StandardMode;



                // Get device on bus named I2C1

                string aqs = I2cDevice.GetDeviceSelector("I2C1");

                var dis = await DeviceInformation.FindAllAsync(aqs);

                _matrixDevice = await I2cDevice.FromIdAsync(dis[0].Id, settings);

If you gate I2CDevice you can write and read bytes from it. If getting device fails you run your application on device with no I2C support but user interface can still work.

Here is piece of code changing LED on display. This code runs in response to clicking or touching ellipse representing LED in grid on screen.

        private void setMatrixData(int row, int column, byte state)

        {

            // shift columns in grid to columns on device

            column = (column + 7) & 7;

            // write state to matrix

            _matrixData[row, column] = state;

            byte rowData = 0x00;

            //calculate byte

            for (int i = 0; i < MATRIX_SIZE; i++)

            {

                rowData |= (byte)(_matrixData[row, i] << (byte)i);

            }

            // show byte value for row

            _matrixRowValue[row].Text = String.Format("0x{0:X2}", rowData);

            // if we have not real display return

            if (_matrixDevice == null)

            {

                return;

            }

            // write value to display

            _matrixDevice.Write(new byte[] { (byte)(row*2), rowData });

        }

Full code is available on https://github.com/bechynsky/AdafruitMini8x8LEDMatrixW10IoTCore
