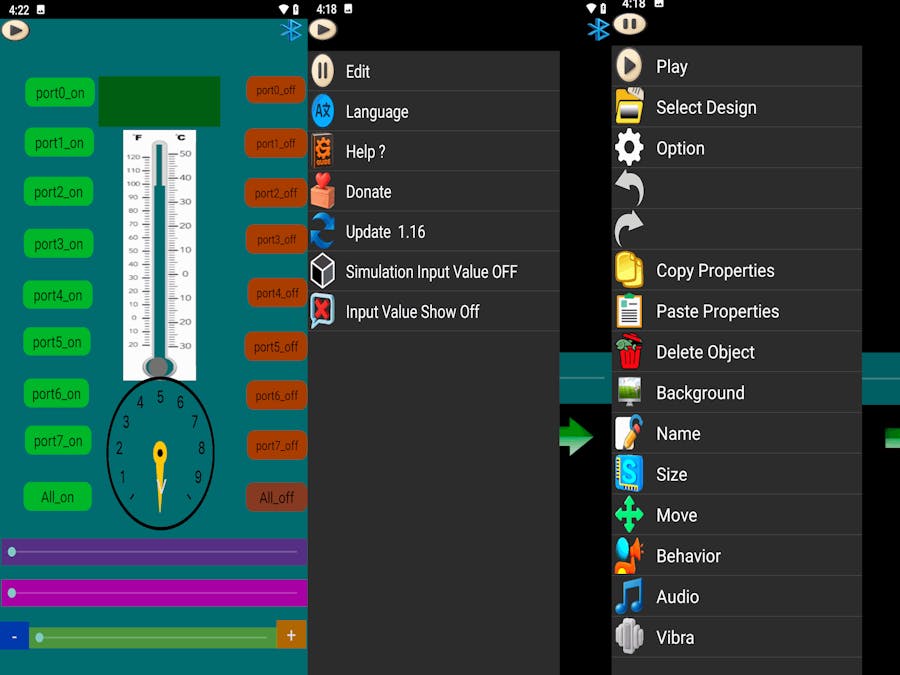

SoifGo is an Android application that provides users with advanced capabilities using buttons and seek bars The core structure of SoifGo is based on two main pages: Play and Edit. To start designing, go to the Edit page and use the Select Design option. First, create a folder using the Select Design menu. Then, again through Select Design, create a new page inside that folder. Finally, once more open Select Design and add a button to the page. To modify anything on the Edit page, always click on the button first, then open the Edit menu so the button’s options appear. Whenever you want to add another button, edit folders or pages, or change the main theme, you must use the Select Design option.
esp8266_mqtt
Arduinohttps://soifgo.github.io/soifgo/tutorials/server/Esp8266_wifi_mqtt/esp8266_mqtt.html
#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <EEPROM.h>
#include <PubSubClient.h>
ESP8266WebServer server(80);
WiFiClient espClient;
PubSubClient client(espClient);
const char* mqtt_server = "test.mosquitto.org";
const int mqtt_port = 1883;
const char* mqtt_recv_topic = "soifgo_send";
String ssid = "";
String password = "";
String ap_pass = "";
unsigned long lastCheck = 0;
const unsigned long checkInterval = 15000;
int reconnectAttempts = 0;
const int maxReconnectAttempts = 4;
void handleRoot() {
String mac = WiFi.macAddress();
String html = "<h1>WiFi Setup</h1>"
"<p><b>MAC Address:</b> " + mac + "</p>"
"<form action='/savewifi' method='POST'>"
"WiFi SSID: <input type='text' name='ssid'><br>"
"WiFi Password: <input type='text' name='pass'><br>"
"<input type='submit' value='Save WiFi'>"
"</form><hr>"
"<form action='/saveap' method='POST'>"
"AP SSID: <b>ESP_Config</b><br>"
"AP Password: <input type='text' name='ap_pass' placeholder='min 8 chars'><br>"
"<input type='submit' value='Save AP'>"
"</form><hr>"
"<form action='/reset' method='POST'>"
"<input type='submit' value='Reset EEPROM & Restart'>"
"</form>";
server.send(200, "text/html", html);
}
void handleSaveWiFi() {
ssid = server.arg("ssid");
password = server.arg("pass");
for (int i = 0; i < 200; i++) EEPROM.write(i, 0);
EEPROM.write(0, ssid.length());
for (int i = 0; i < ssid.length(); i++) EEPROM.write(i+1, ssid[i]);
EEPROM.write(100, password.length());
for (int i = 0; i < password.length(); i++) EEPROM.write(i+101, password[i]);
EEPROM.commit();
server.send(200, "text/html", "WiFi Saved! Restarting...");
delay(1500);
ESP.restart();
}
void handleSaveAP() {
ap_pass = server.arg("ap_pass");
if (ap_pass.length() < 8) {
server.send(200, "text/html", "Error: Password must be at least 8 characters!");
return;
}
for (int i = 200; i < 400; i++) EEPROM.write(i, 0);
EEPROM.write(300, ap_pass.length());
for (int i = 0; i < ap_pass.length(); i++) EEPROM.write(i+301, ap_pass[i]);
EEPROM.commit();
server.send(200, "text/html", "AP Password Saved! Restarting...");
delay(2000);
ESP.restart();
}
void handleReset() {
for (int i = 0; i < 512; i++) {
EEPROM.write(i, 0);
}
EEPROM.commit();
server.send(200, "text/html", "EEPROM cleared! Restarting...");
delay(2000);
ESP.restart();
}
void loadCredentials() {
int ssidLen = EEPROM.read(0);
ssid = "";
for (int i = 0; i < ssidLen; i++) ssid += char(EEPROM.read(i+1));
int passLen = EEPROM.read(100);
password = "";
for (int i = 0; i < passLen; i++) password += char(EEPROM.read(i+101));
int apPassLen = EEPROM.read(300);
ap_pass = "";
for (int i = 0; i < apPassLen; i++) ap_pass += char(EEPROM.read(i+301));
}
void connectWiFi() {
loadCredentials();
bool connected = false;
if (ssid.length() > 0) {
WiFi.begin(ssid.c_str(), password.c_str());
Serial.print("Connecting to saved WiFi: ");
Serial.println(ssid);
int retries = 0;
while (WiFi.status() != WL_CONNECTED && retries < 5) {
delay(500);
Serial.print(".");
retries++;
}
if (WiFi.status() == WL_CONNECTED) {
Serial.println("\nConnected!");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
connected = true;
} else {
Serial.println("\nWiFi connect failed.");
}
}
if (!connected) {
if (ap_pass.length() < 8) ap_pass = "12345678";
WiFi.softAP("ESP_Config", ap_pass.c_str());
Serial.println("Started AP: ESP_Config, password: " + ap_pass);
Serial.print("AP IP: ");
Serial.println(WiFi.softAPIP());
}
}
void mqttCallback(char* topic, byte* payload, unsigned int length) {
String message;
for (unsigned int i = 0; i < length; i++) {
message += (char)payload[i];
}
if (String(topic) == mqtt_recv_topic) {
Serial.println(message);
}
}
bool reconnectMQTT() {
if (!client.connected()) {
String clientId = "ESP8266Client-" + String(ESP.getChipId());
if (client.connect(clientId.c_str())) {
client.subscribe(mqtt_recv_topic);
Serial.println("MQTT connected");
reconnectAttempts = 0;
return true;
} else {
reconnectAttempts++;
Serial.println("MQTT reconnect failed");
return false;
}
}
return true;
}
void setup() {
Serial.begin(115200);
EEPROM.begin(512);
connectWiFi();
server.on("/", handleRoot);
server.on("/savewifi", handleSaveWiFi);
server.on("/saveap", handleSaveAP);
server.on("/reset", handleReset);
server.begin();
client.setServer(mqtt_server, mqtt_port);
client.setCallback(mqttCallback);
}
void loop() {
server.handleClient();
if (WiFi.status() == WL_CONNECTED) {
if (!client.connected()) {
reconnectMQTT();
}
client.loop();
}
if (millis() - lastCheck > checkInterval) {
lastCheck = millis();
if (WiFi.status() != WL_CONNECTED) {
Serial.println("WiFi lost reconnecting...");
connectWiFi();
}
if (!client.connected()) {
if (!reconnectMQTT() && reconnectAttempts >= maxReconnectAttempts) {
Serial.println("Too many fails Restarting...");
ESP.restart();
}
}
}
static String serialBuffer = "";
while (Serial.available()) {
char c = Serial.read();
if (c == '\n') {
serialBuffer.trim();
if (serialBuffer.length() > 0) {
int sepIndex = serialBuffer.indexOf(':');
if (sepIndex > 0) {
String topicPart = serialBuffer.substring(0, sepIndex);
String payloadPart = serialBuffer.substring(sepIndex + 1);
String fullTopic = "soifgo_" + topicPart;
client.publish(fullTopic.c_str(), payloadPart.c_str());
}
}
serialBuffer = "";
} else {
serialBuffer += c;
}
}
}
$regfile = "m16adef.dat"
$crystal = 11059200
Config Adc = Single , Prescaler = Auto , Reference = Avcc
Config Timer1 = Pwm , Pwm = 10 , Compare_a_pwm = Clear_up , Compare_b_pwm = Clear_up , Prescale = 1
Declare Sub Red
CONFIG PORTB=OUTPUT
Portb = 0
Config Portc.0 = Input 'in key 1
Ddrc.0 = 0 : Portc.0 = 1
Config Portc.1 = Input 'in key 2
Ddrc.1 = 0 : Portc.1 = 1
$baud = 9600
Enable Interrupts
Config Serialin = Buffered , Size = 41 , Bytematch = 13
Dim Text As String * 40
Dim Text2 As String * 4
Dim Text3 As String * 5
DIM TEMP1,LastTemp1 AS WORD
Dim Temp2,LastTemp2 As Word
Dim Volt,pwm1aa As Word
Dim Volt2,LastVolt2 As Single
Dim Step1 As Byte
Dim T1 , I As Byte
dim t2 as bit
dim pc,lastpc,pb,lastpb as byte
config watchdog=2048
start watchdog
Readeeprom portb , 1
Waitms 1
Readeeprom pwm1aa , 3
Waitms 1
Open "comd.6:9600,8,n,1" For Output As #1
Print #1 , "soifgo"
pwm1a=pwm1aa
Main:
waitms 30
Incr Step1
reset watchdog
If Step1 >8 Then Step1 = 1
Select Case Step1
Case 1
Volt = Getadc(0)
Volt2 = Volt / 204.8
If Volt2 <> Lastvolt2 Then
Print "volt:" ; Fusing(volt2 , "#.##")
Lastvolt2 = Volt2
End If
Case 2
Temp1 = Getadc(1)
If Temp1 <> Lasttemp1 Then
Print "temp1" ; ":" ; Temp1
Lasttemp1 = Temp1
End If
Case 3
Temp2 = Getadc(2)
If Temp2 <> Lasttemp2 Then
Print "temp2" ; ":" ; Temp2
Lasttemp2 = Temp2
End If
Case 4
Pb = Portb
If Pb <> Lastpb Then
Print "portb" ; ":" ; Bin(portb)
Lastpb = Pb
End If
Case 5
Pc = Portc
If Pc <> Lastpc Then
Print "pinc" ; ":" ; Pinc.0 ; Pinc.1
Lastpc = Pc
End If
End Select
Goto Main
Serial0charmatch:
Waitms 40
Input Text
if text <> "" then call Red
Return
Sub Red
Reset Watchdog
Text = Trim(text)
Text = Ltrim(text)
Disable Interrupts
' Print #1 , ">" ; Text ; "<"
If Instr(text , "rang") > 0 Then
Print #1 , Mid(text , 6 , 36)
End If
Enable Interrupts
If Instr(text , "pwm1a") > 0 Then
Text3 = Mid(text , 7 , 4)
Pwm1a = Val(text3)
Writeeeprom pwm1a , 3
End If
If Instr(text , "port") > 0 Then
Text2 = Mid(Text , 7 , 1)
Text = Mid(text , 5 , 1)
if text2="0" then t2=0
if text2="1" then t2=1
t1=val(text)
If T1 < 8 Then Portb.t1 = T2
If T1 = 9 Then
if t2=1 then
Portb = 255
For I = 0 To 7
Print "port" ; I ; ":1"
Waitms 50
Next
End If
if t2=0 then
portb=0
for i=0 to 7
Print "port" ; I ; ":0"
waitms 50
next
end if
end if
Writeeeprom Portb , 1
End If
Text = ""
Text2 = ""
Text3 = ""
T1 = 222
T2 = 0
Clear Serialin
End Sub
$regfile = "m16adef.dat"
$crystal = 11059200
Config Adc = Single , Prescaler = Auto , Reference = Avcc
Config Timer1 = Pwm , Pwm = 10 , Compare_a_pwm = Clear_up , Compare_b_pwm = Clear_up , Prescale = 1
Declare Sub Red
CONFIG PORTB=OUTPUT
Portb = 0
Config Portc.0 = Input 'in key 1
Ddrc.0 = 0 : Portc.0 = 1
Config Portc.1 = Input 'in key 2
Ddrc.1 = 0 : Portc.1 = 1
$baud = 115200
Enable Interrupts
Config Serialin = Buffered , Size = 41 , Bytematch = 13
Dim Text As String * 40
Dim Text2 As String * 4
Dim Text3 As String * 5
DIM TEMP1,LastTemp1 AS WORD
Dim Temp2,LastTemp2 As Word
Dim Volt,pwm1aa As Word
Dim Volt2,LastVolt2 As Single
Dim Step1 As Byte
dim p,t1,i as byte
dim t2 as bit
dim pc,lastpc,pb,lastpb as byte
config watchdog=2048
start watchdog
Readeeprom portb , 1
Waitms 1
Readeeprom pwm1aa , 3
Waitms 1
Open "comd.6:9600,8,n,1" For Output As #1
Print #1 , "soifgo"
pwm1a=pwm1aa
Main:
waitms 100
Incr Step1
reset watchdog
If Step1 > 16 Then Step1 = 1
Select Case Step1
Case 2
Volt = Getadc(0)
Volt2 = Volt / 204.8
If Volt2 <> Lastvolt2 Then
Print "#volt:" ; Fusing(volt2 , "#.##") ; "*"
Lastvolt2 = Volt2
End If
Case 4
Temp1 = Getadc(1)
If Temp1 <> Lasttemp1 Then
Print "#temp1" ; ":" ; Temp1 ; "*"
Lasttemp1 = Temp1
End If
Case 6
Temp2 = Getadc(2)
If Temp2 <> Lasttemp2 Then
Print "#temp2" ; ":" ; Temp2 ; "*"
Lasttemp2 = Temp2
End If
Case 8
Pb = Portb
If Pb <> Lastpb Then
Print "#portb" ; ":" ; Bin(portb) ; "*"
Lastpb = Pb
End If
Case 10
Pc = Portc
If Pc <> Lastpc Then
Print "#pinc" ; ":" ; Pinc.0 ; Pinc.1 ; "*"
Lastpc = Pc
End If
Case 12
incr p
if p>7 then p=0
Print "#GET:port";p;"*"
End Select
Goto Main
Serial0charmatch:
waitms 20
Input Text
if text <> "" then call Red
Return
Sub Red
Reset Watchdog
Text = Trim(text)
Text = Ltrim(text)
'Print #1 , ">";Text;"<"
If Instr(text , "rang") > 0 Then
Disable Interrupts
Print #1 , Mid(text , 6 , 36)
Enable Interrupts
End If
If Instr(text , "pwm1a") > 0 Then
Text3 = Mid(text , 7 , 4)
Pwm1a = Val(text3)
Writeeeprom pwm1a , 3
End If
If Instr(text , "port") > 0 Then
Text2 = Mid(Text , 7 , 1)
Text = Mid(text , 5 , 1)
if text2="0" then t2=0
if text2="1" then t2=1
t1=val(text)
If T1 < 8 Then Portb.t1 = T2
If T1 = 9 Then
if t2=1 then
Portb = 255
For I = 0 To 7
Print "#port" ; I ; ":1*"
Waitms 50
Next
End If
if t2=0 then
portb=0
for i=0 to 7
Print "#port";i ; ":0*"
waitms 50
next
end if
end if
Writeeeprom Portb , 1
End If
Text = ""
Text2 = ""
Text3 = ""
T1 = 222
T2 = 0
Clear Serialin
End Sub
