Do not forget to include the ASCII Dictionary.

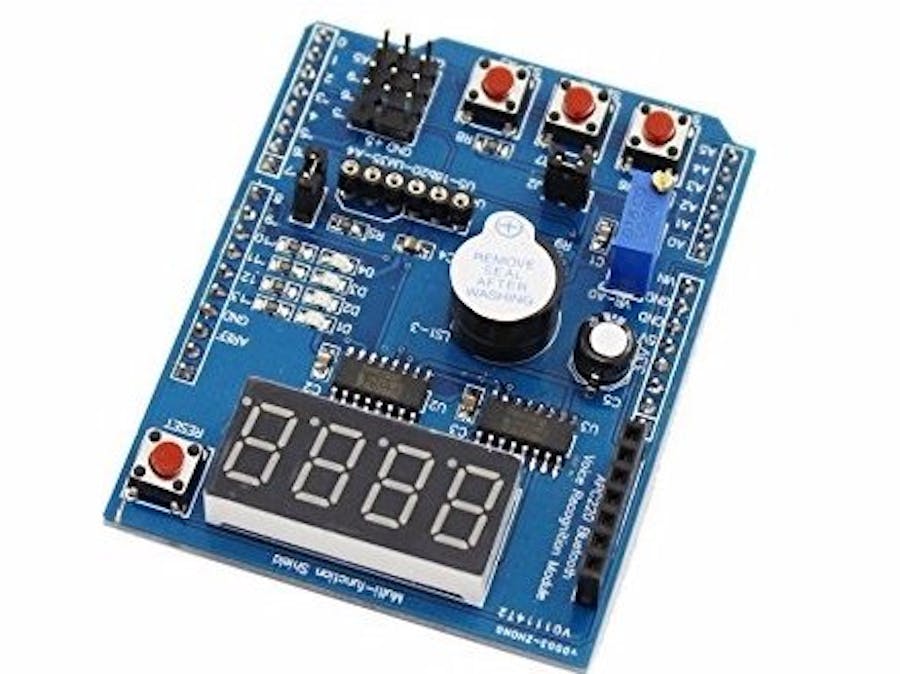

This library helps you to write characters from an ASCII Dictionary on a 4x7 segments using shift registers (595). You write/update the "to write chars"
via simplified methods.
nx7seg::write(char[] chars, int chars_array)
Write chars
nx7seg::writeChar(char value, int where, bool point)
Write chars
nx7seg::writeInt(int value, int expected_length)
Write an int
nx7seg::writeFloat(float value, int expected_length)
Write a float
nx7seg::writeDigit(int value, int where, bool point)
Write a specific digit from the dictionary
nx7seg::clear()
Clear the display
Once written, you can simply use nx7seg::send()
to write data into the shift registers and nx7seg::refresh(int time)
to continuously refresh the 7 segments during a time period.
#include <ASCIIDic.h>
#include <NX7Seg.h>
#define LATCH_DIO 4
#define CLK_DIO 7
#define DATA_DIO 8
nx7seg my4x7seg = nx7seg(LATCH_DIO,CLK_DIO,DATA_DIO);
void setup ()
{
/* Set DIO pins to outputs */
pinMode(LATCH_DIO,OUTPUT);
pinMode(CLK_DIO,OUTPUT);
pinMode(DATA_DIO,OUTPUT);
}
/* Main program */
void loop()
{
my4x7seg.writeInt(46);
my4x7seg.refresh(1000);
my4x7seg.write("abcd",4);
my4x7seg.refresh(1000);
my4x7seg.writeFloat(i);
my4x7seg.refresh(1000);
}
Functionsnx7seg nx7seg(int latch, int clock, int data, bool reverse = false)
Constructor : If you don't have a latch (not a 595 shift register), give a pin and don't use it. If the 7 segment is reverse, then gives the argument reverse to true.
Latch could be named : RCLCK
Clock could be named : SCLK
void buffer(digit, data)
Write a byte in the digits buffer
void clear()
Clear the 7 segment buffer
void send()
Show the digit buffer on the 7 segment : Less than a millisecond. Use this if you are time dependant. Call it multiple times between time dependant steps to show the message.
byte cypher(char)
Convert a char into a byte coded for the 7 segments
void refresh(time = 500) // APPROXIMATIVE in ms
Show the digit buffer on the 7 segments during some time (in ms). It is approximative. It is a loop with delay(1), time times. Nothing can be done while showing numbers.
void write(char[], int sizeArray = 4)
Write a char[] into the buffer array, coded by cypher. Specify the size array.
void writeChar(char value, int digit, bool point = false);
Write a char into the buffer array, coded by cypher, at the digit wanted. If wanted, add a point.
void writeDigit(int value, int digit, bool point = false);
Write a number (0 to 10) into the buffer array, coded by cypher, at the digit wanted. If wanted, add a point.
void writeFloat(float value, int toWrite = 4)
Write the float value to 7 segment buffer. (refresh() or send() to show)
void writeInt(int value, int toWrite = 4)
Write the float value to 7 segment buffer. (refresh() or send() to show)
TODO- Change the direction of the chars. Right to left instead of left to right for some 3641BS soldered differently.
Alexis Paques (@AlexisTM)
